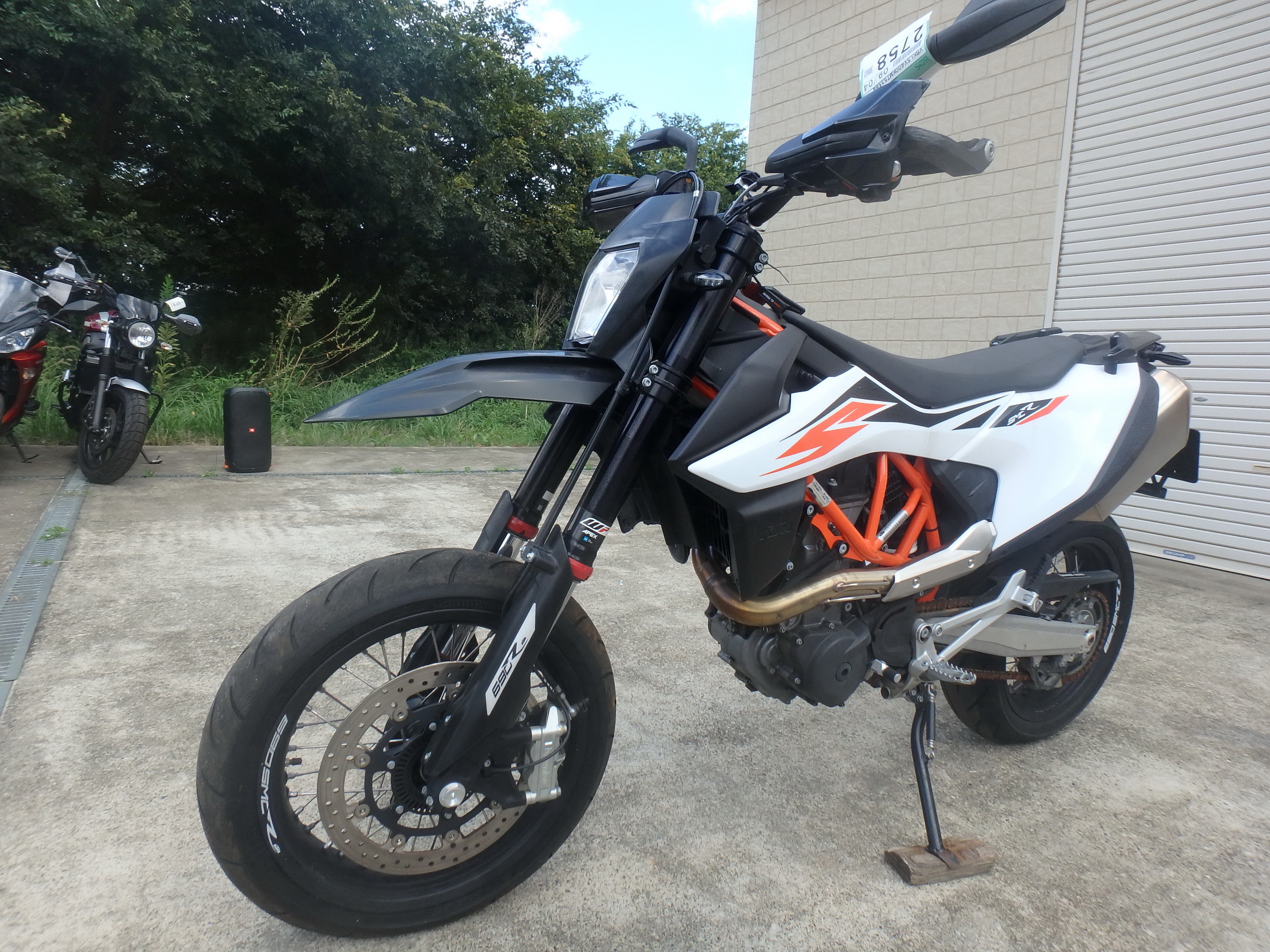

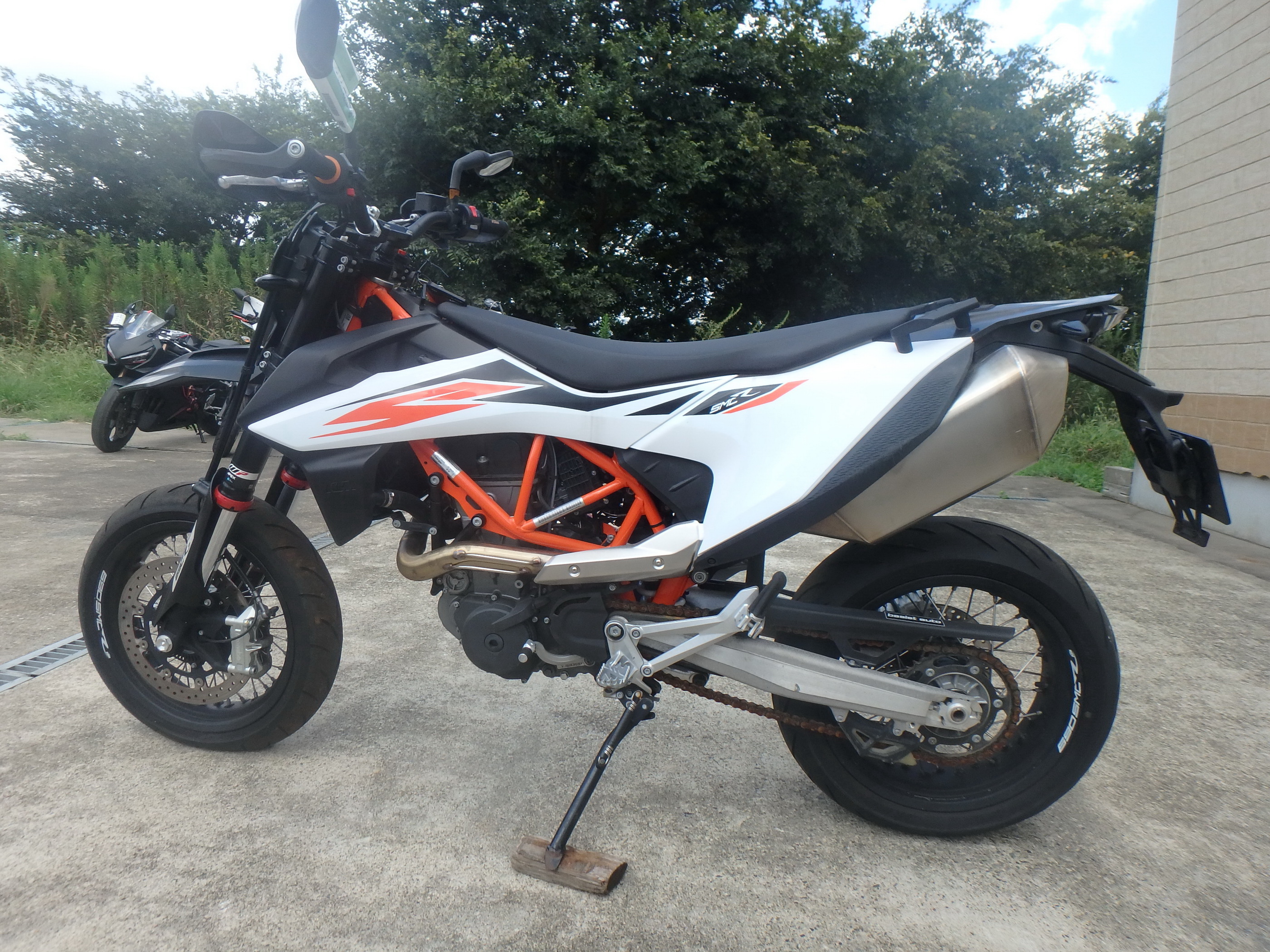

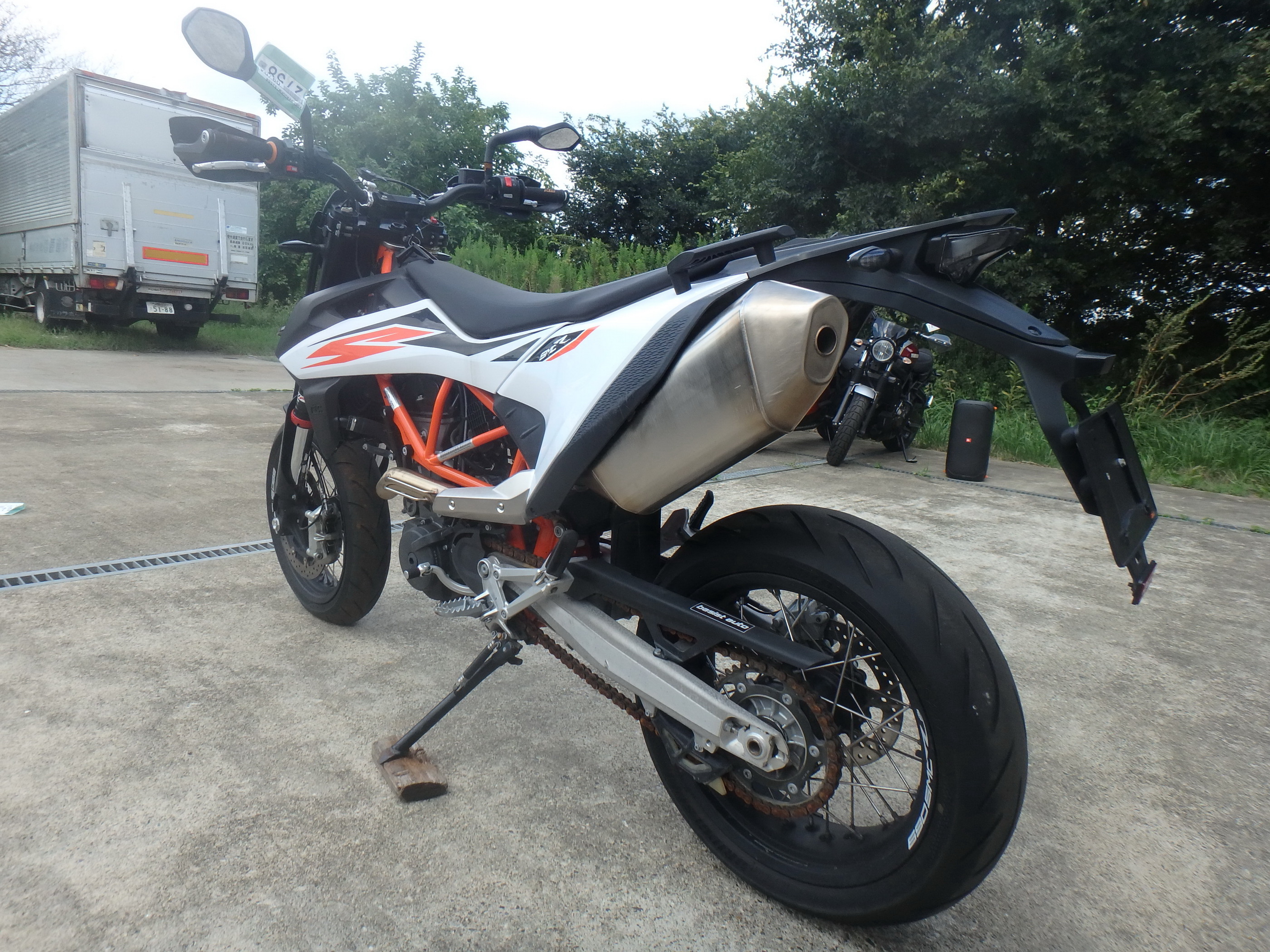

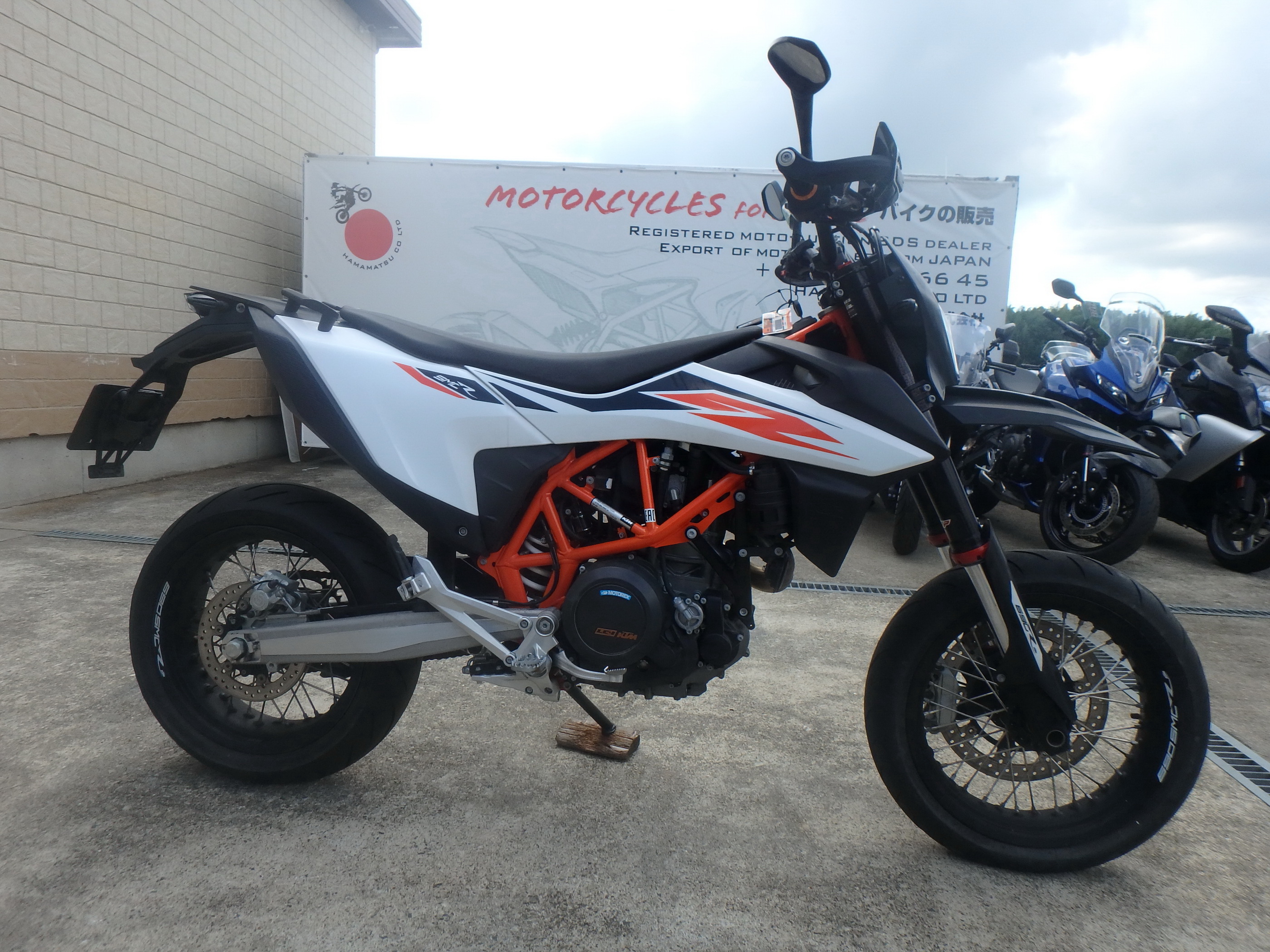

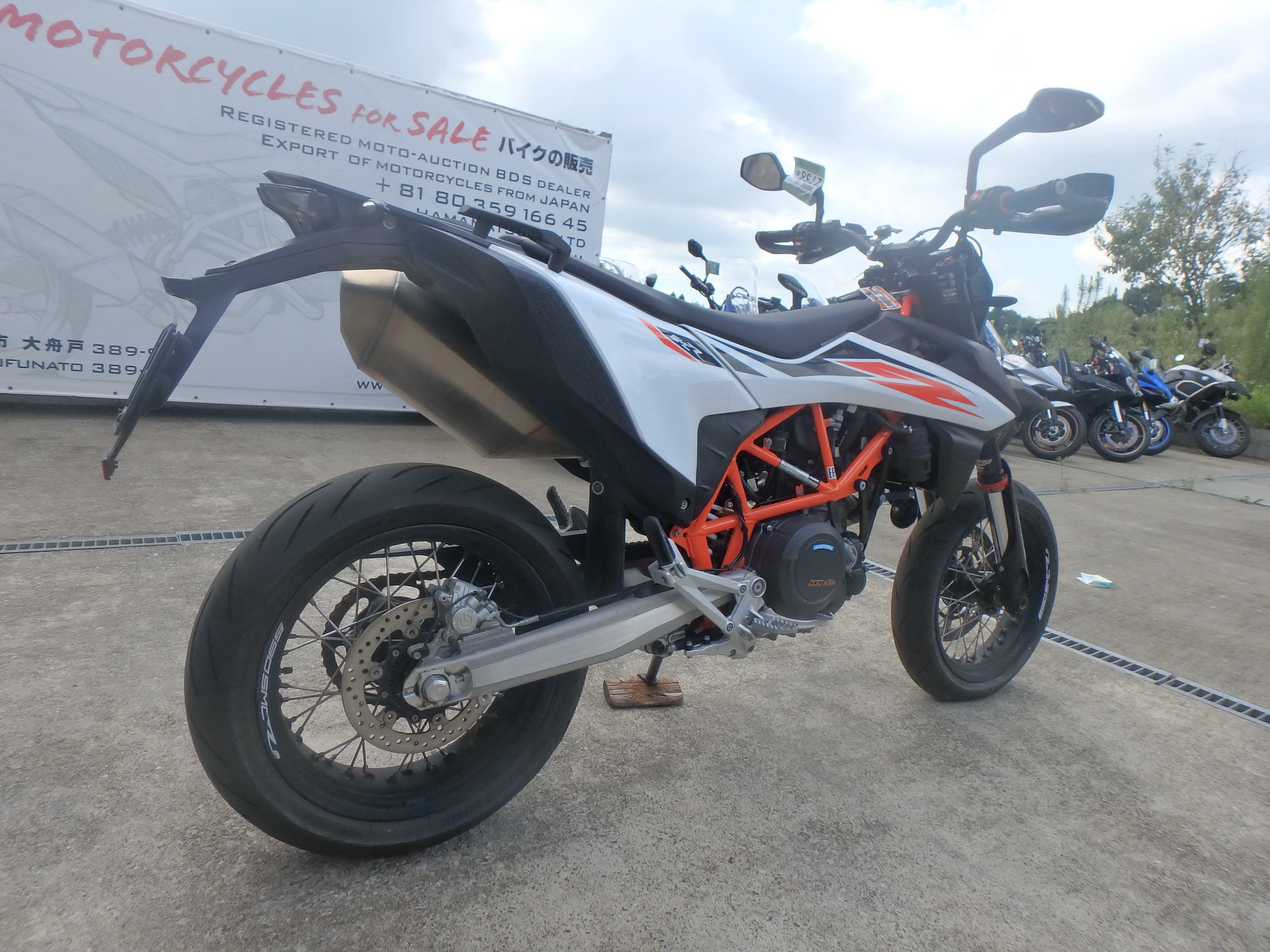

#2758 Bike KTM 690 SMC R
Model: 690 SMC R
Year: 2019
Capacity: 690 cm3

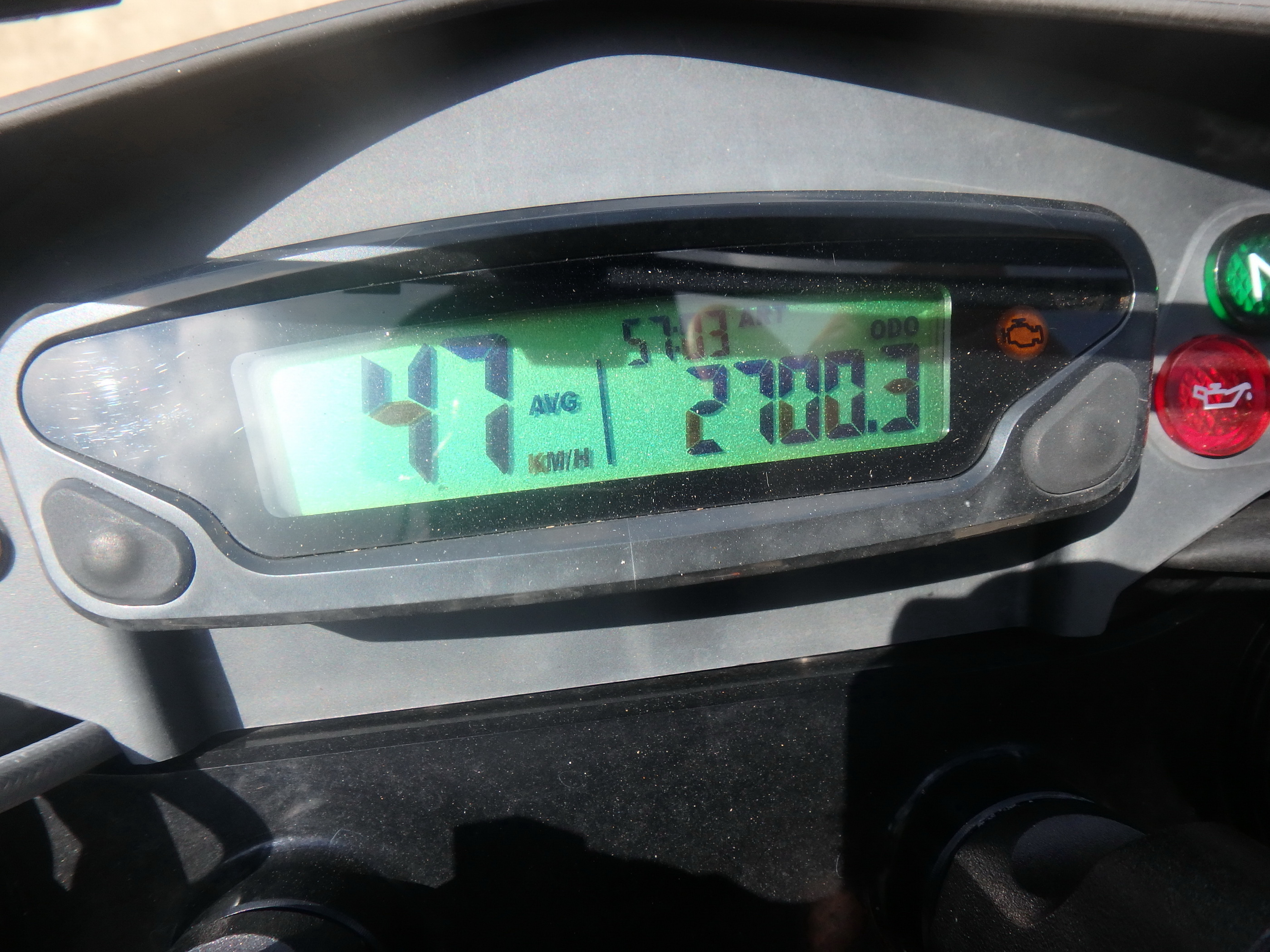

Mileage: 2700 km.
in
Additional information
Make Model
KTM 690 SMC R
Year
2019

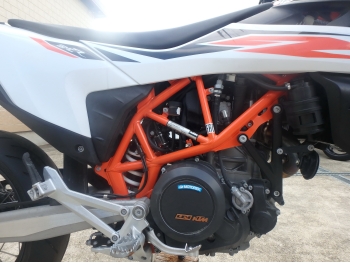

Engine
Single cylinder, 4-stroke, SOHC, 4-valve
Capacity
690 cc / 42.1 cu in
Bore x Stroke
105 x 80 mm
Compression Ratio
12.7:1
Cooling System
Liquid cooled
Lubrication System
Pressure lubrication with 2 oil pumps
Exhaust
Stainless steel primary and secondary silencer
Induction
Keihin EFI (throttle body 50 mm)
Ignition
Keihin EMS with RBW, double ignition
Starting
Electric
Battery
Lithium Ion 12V 8,6Ah
Max Power
72 hp / 54 kW @
Max Torque
73.5 Nm / 54 lb-ft @ 6500 rpm
Clutch
PASC™ slipper clutch, hydraulically operated
Transmission
6-Speed
Final Drive
Chain, X-Ring 5/8 × 1/4 in
Primary Drive
36:79
Frame
Chromium-molybdenum-steel trellis frame, powder coated
Sub Frame
Self-supporting plastic tank

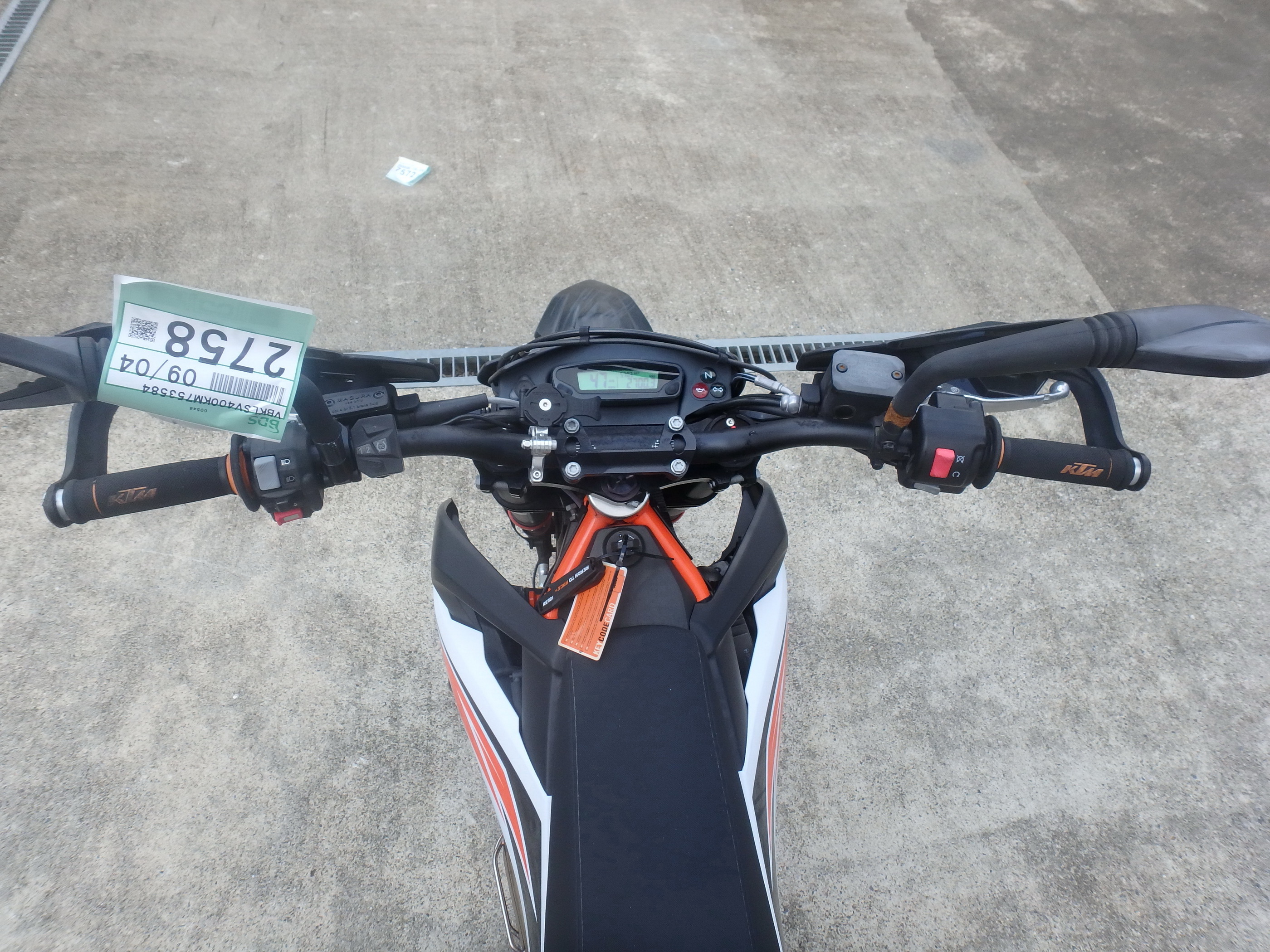

Handlebar
Aluminum, tapered, Ø 28 / 22 mm

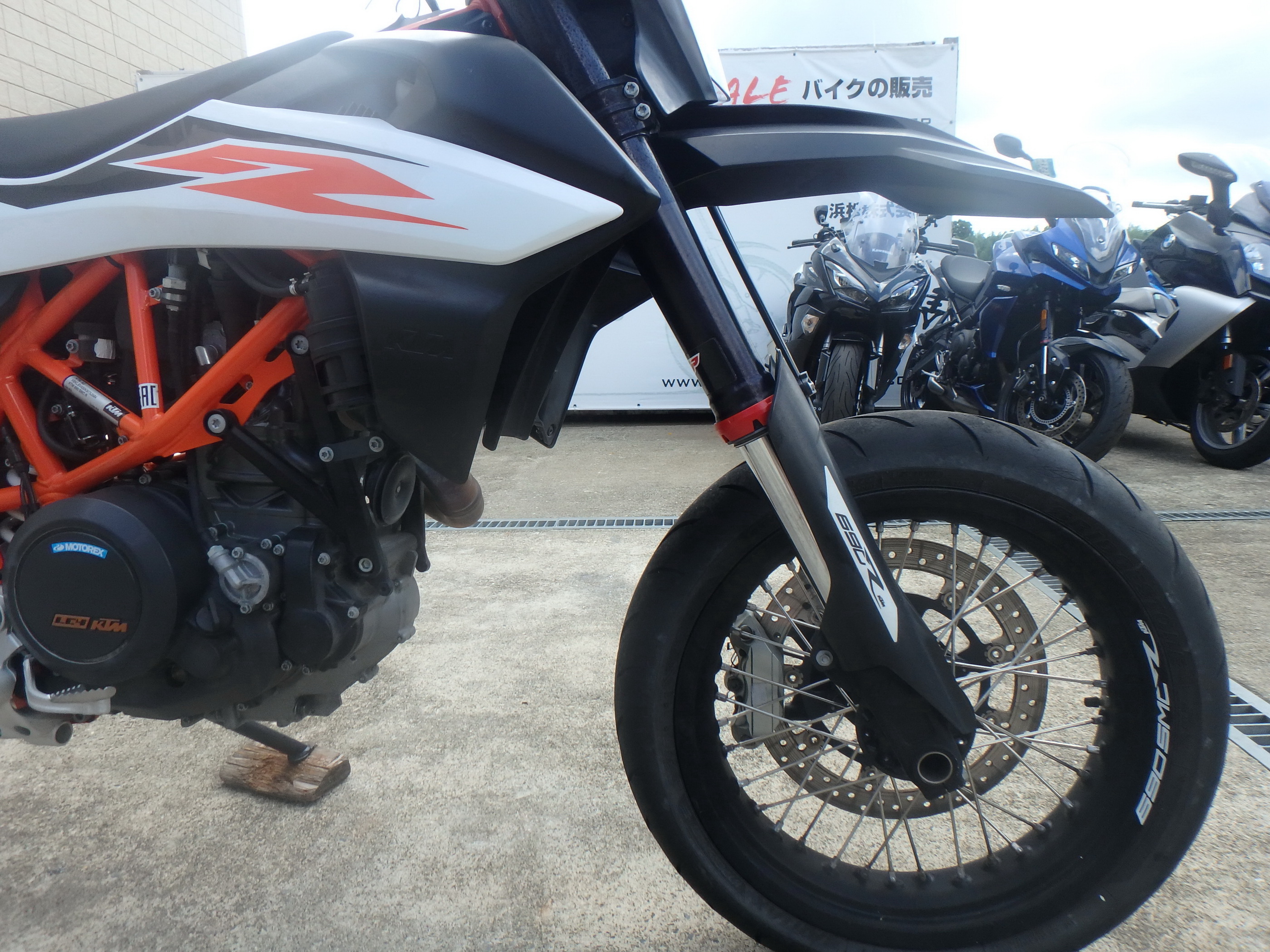

Front Suspension
WP USD XPLOR 48 forks
Front Wheel Travel
215 mm / 8.4 in

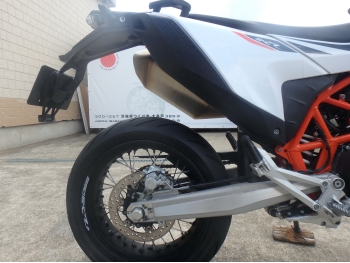

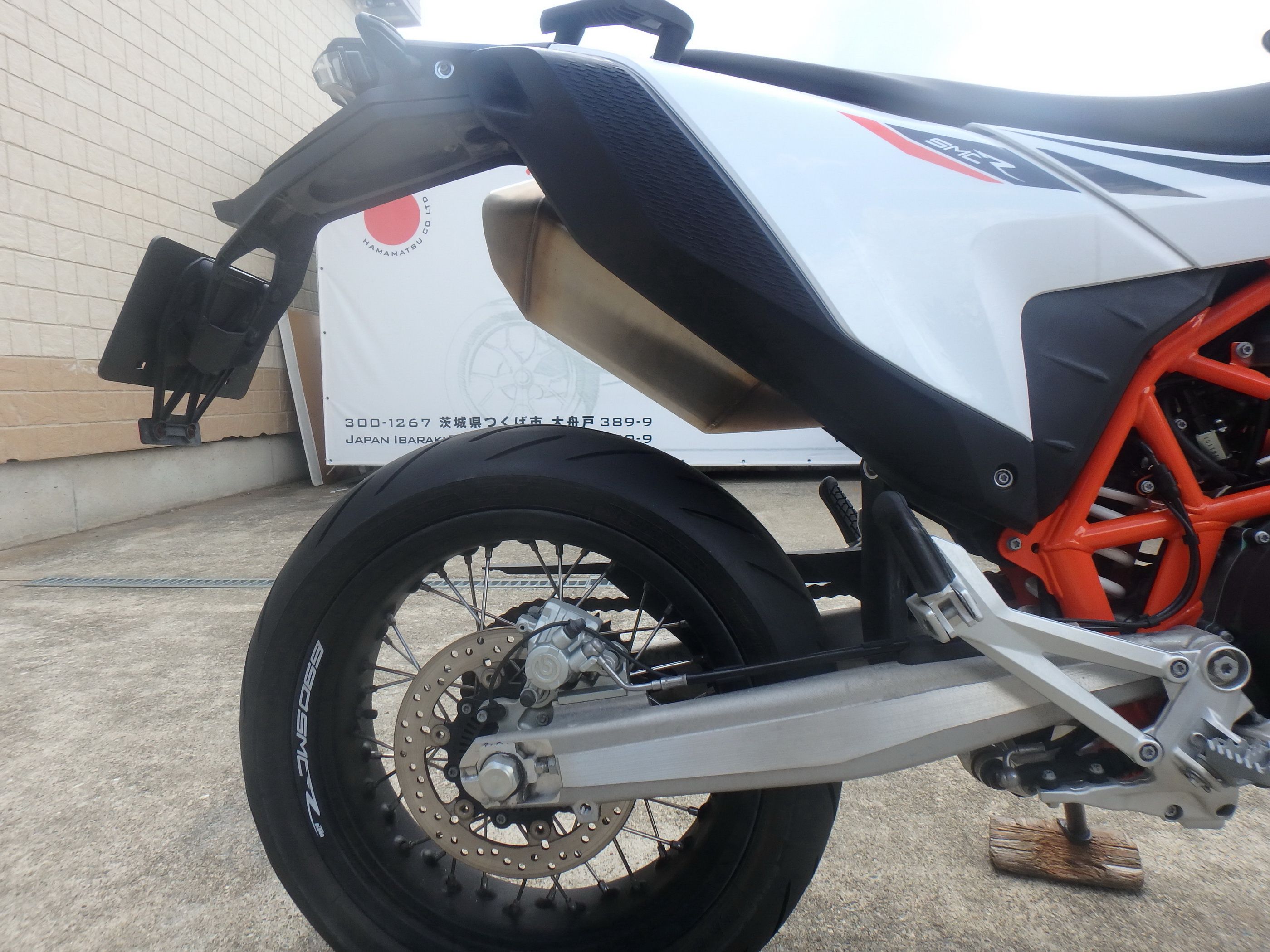

Rear Suspension
WP shock absorber with Pro-Lever linkage
Rear Wheel Travel
240 mm / 9.4 in
Front Brakes
Single 320mm disc, Brembo 4 piston floating caliper
Rear Brakes
Single 240 mm disc, Brembo single piston floating caliper
ABS
Bosch 9.1 MP (incl. Cornering ABS and offroad mode, disengageable)
Front Wheel
Spoked wheels with aluminum tubeless rims 3.50 × 17″;
Rear Wheel
Spoked wheels with aluminum tubeless rims 5.00 × 17″
Front Tyre
120/70 ZR 17
Rear Tyre
160/60 ZR 17
Steering Head Angle
63.6°
Trail
107.7 mm / 4.2 in
Wheelbase
1470 mm / 57.8 in
Ground Clearance
238 mm / 9.3 in
Seat Height
890 mm / 35.0 in
Dry Weight
147 kg / 324 lbs
Fuel Capacity
13.5 Litres / 3.5 US gal
