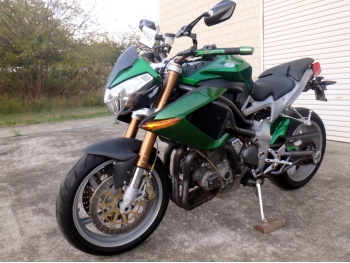

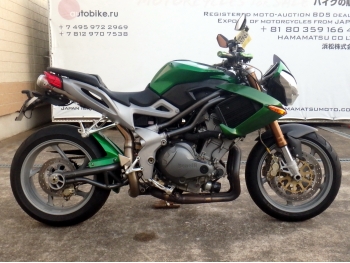

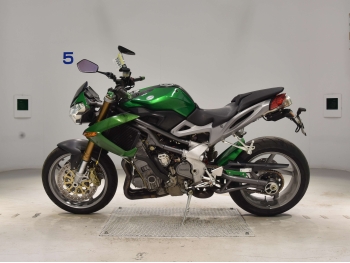

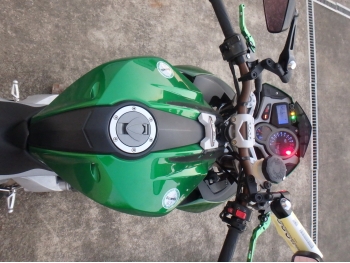

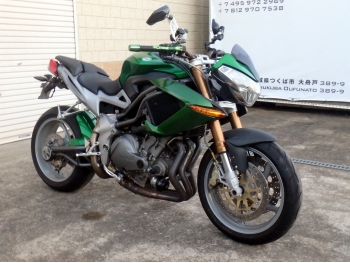

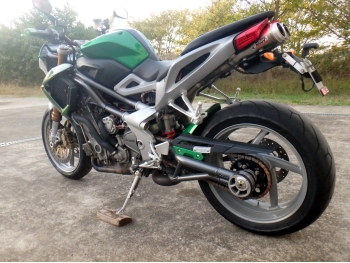

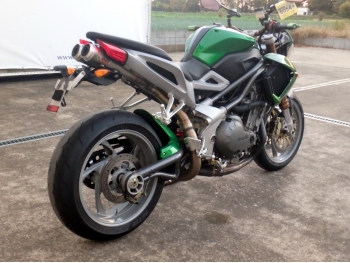

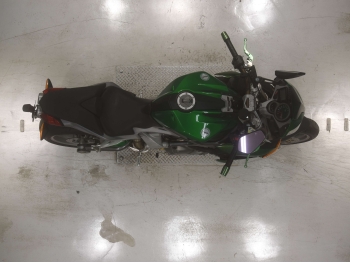

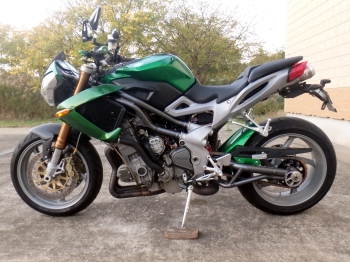

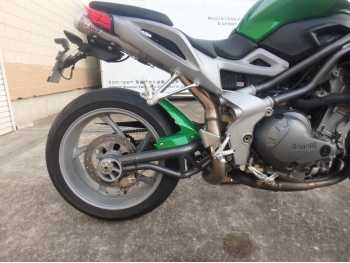

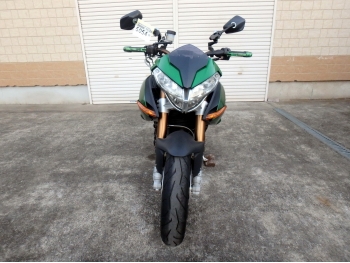

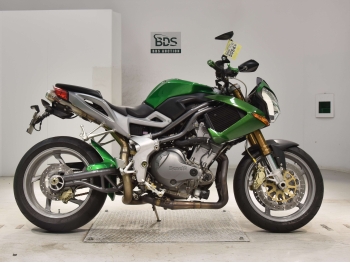

#5054 Bike Benelli TNT1130
Model: TNT1130
Year: 2004
Capacity: 1130 cm3

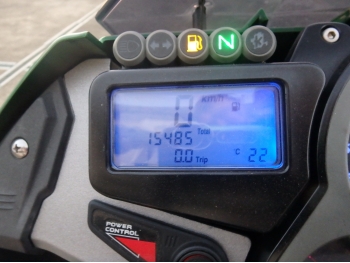

Mileage: 15485 km.
in
Additional information
Make Model
Benelli TNT 1130 Naked
Year
2004

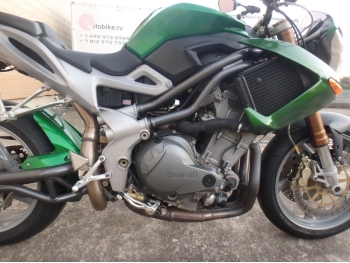

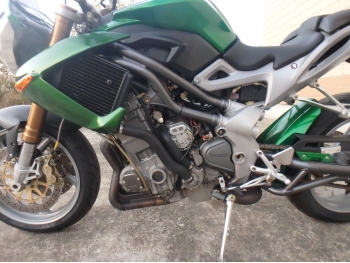

Engine
Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder
Capacity
1130 cc / 69 cu in
Bore x Stroke
88 x 62 mm
Compression Ratio
11.5:1
Cooling System
Liquid cooled
Lubrication
Wet sump
Oil
API SJ 15W/50 - synthetic
Oil Capacity
4 L / 1.1 US gal
Induction
Electronic injection with 1 injector per cylinder
Ignition
Electronic
Battery
12V, 10Ah
Starting
Electric
Max Power
101 kW / 135 hp @ 9500 rpm
Max Torque
110 Nm / 11.2 kgf-m / 81.1 lb-ft @ 7750 rpm
Clutch
Oil bath
Transmission
6 Speed
Final Drive
Chain
Gear Ratios
1st 2.786 / 2nd 1.994 / 3rd 1.524 / 4th 1.304 / 5th 1.167 / 6th 0.926
Frame
Front ASD steel tube trellis, fastened with drawer screws to boxed rear section, aluminium alloy castings.
Rake
Trail
100 mm / 3.9 in
Front Suspension
Marzocchi 50 mm diameter upside down fork ASD steel tube trellis oscillating main fork
Front Wheel Travel
120 mm / 4.7 in
Rear Suspension
Mono shock absorber with adjustable extension and spring load
Rear Wheel Travel
115 mm / 4.5 in
Front Brakes
Rear Brakes
Wheels
Aluminium alloy, 5-spoke
Front Rim
3.5 x 17 in
Front Tyre
120/70-ZR17 (58W)
Rear Rim
6.0 x 17 in
Rear Tyre
190/55-ZR17 (73W)
Dimensions
Length: 2100 mm / 82.7 in Width: 900 mm / 35.4 in Height: 1050 mm / 41.3 in
Wheelbase
1443 mm / 56.8 in

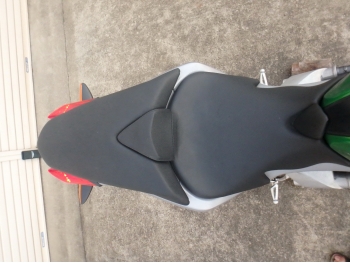

Seat Height
780 mm / 30.7 in
Dry Weight
205 kg / 452 lbs
Wet Weight
215 kg / 474 lbs
Gross Vehicle Weight Rating
400 kg / 882 lbs
Fuel Capacity
16.5 L / 4.4 US gal
Fuel Reserve
5 L / 1.3 US gal
Consumption Average
5.8 L/100 km / 17.2 km/lit / 40.5 US mpg
11.0 sec
Top Speed
243 km/h / 151 mph
