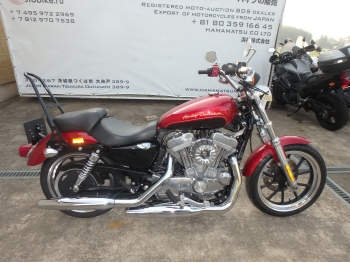

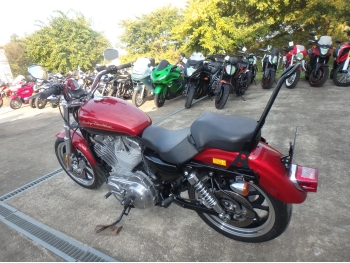

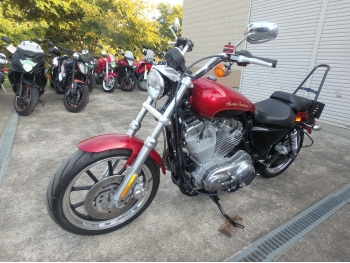

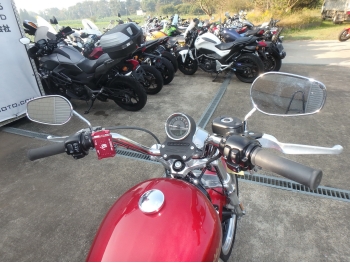

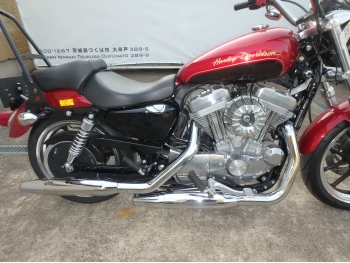

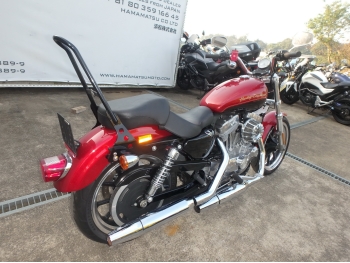

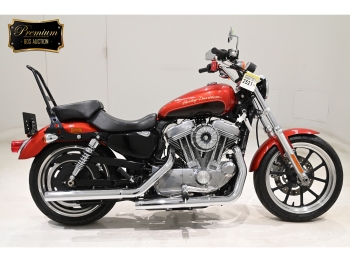

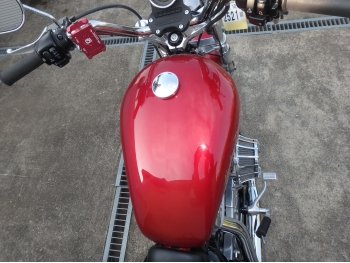

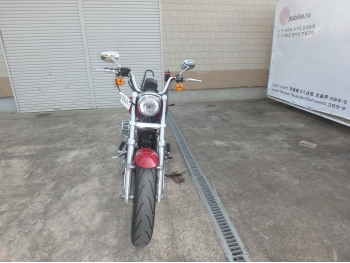

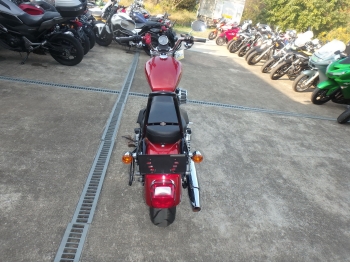

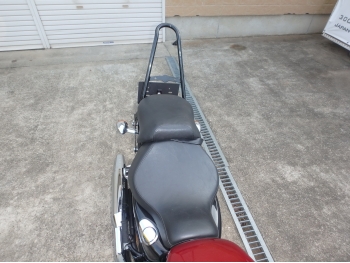

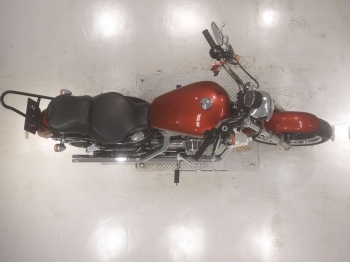

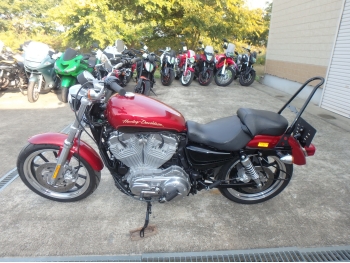

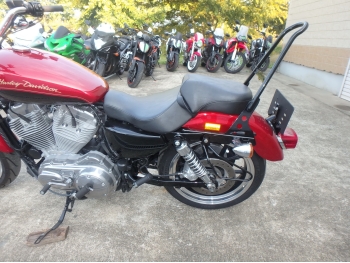

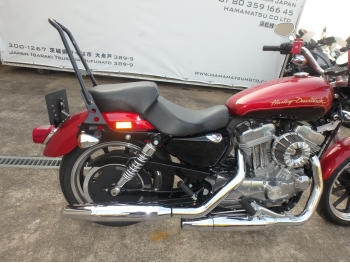

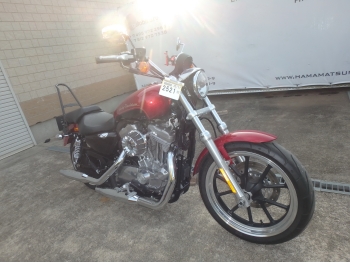

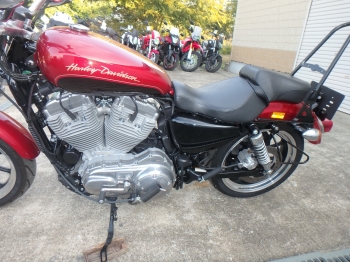

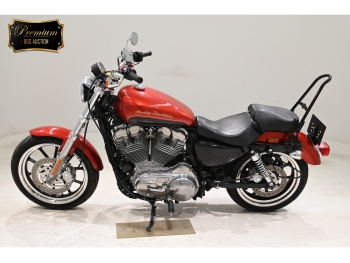

#2521 Bike Harley Davidson XL883L-I Sportster Super Low
Model: XL883L-I Sportster Super Low
Year: 2013
Capacity: 883 cm3

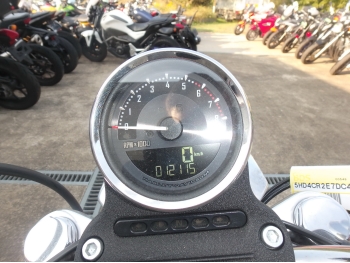

Mileage: 12115 km.
in
Additional information
Make Model
Harley Davidson XL 883L Sportster Super Low
Year
2011
Engine
Four stroke, 45� V-Twin, OHV, 2 valves per cylinder.
Capacity
883 cc / 53.9 cub in.
Bore x Stroke
76.2 x 96.8 mm
Cooling System
Air cooled
Compression Ratio
8.8:1
Exhaust
Chrome, staggered, shorty exhaust with dual mufflers
induction
Electronic Sequential Pot Fuel Injection
Ignition
Digital CDI
Starting
Electric
Max Power
68 hp / 50.2 kW @ 4400 rpm
Max Torque
73 Nm / 53.8 ft/lb @ 4100 rpm
Clutch
Multi-plate clutch with diaphragm spring in oil bath
Transmission
5 Speed
Final Drive
Belt
Gear Ratio
1st 10.407 2nd 7.436 3rd 5.53 4th 4.583 5th 3.93
Frame
Mild steel, tubular frame, circular sections, cast junctions Swingarm Mild steel, rectangular tube sections, stamped junctions, MIG welded
Front Suspension
39mm Forks
Front Wheel Travel
104 mm / 4.09 in
Rear Suspension
Coil-over, dual-adjustable preload
Rear Wheel Travel
64 mm / 2.5 in

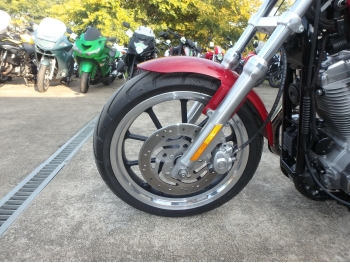

Front Brakes
Single 300mm disc 2 38mm piston calipers
Rear Brakes
Single 260mm disc 2 38mm piston calipers

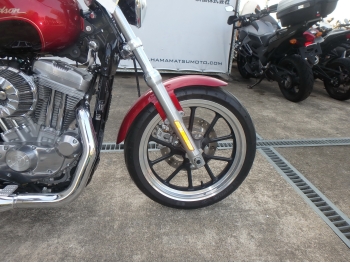

Front Wheel
Black, Split 5-Spoke with Machined Rim
Rear Wheel
Black, Split 5-Spoke with Machined Rim
Front Tyre
120/70 ZR-18 59W
Rear Tyre
150/60 ZR-17 66W
Rake
31.1�
Trail
145 mm / 5.7 in
Dimensions
Length 2215 mm / 87.2 in
Wheelbase
1500 mm / 59.1 in
Seat Height
Laden 648 mm / 25.5 in Unladen 681 mm / 26.8 in
Gross Vehicle Weight Rating
453.6 kg / 1000 lbs
Dry Weight
234 kg / 536 lbs
Wet Weight
260 kg / 573 lbs
Oil Capacity
2.7 Litres / 2.8 US qrts
Fuel Capacity
17 Litres / 4.5 gal
