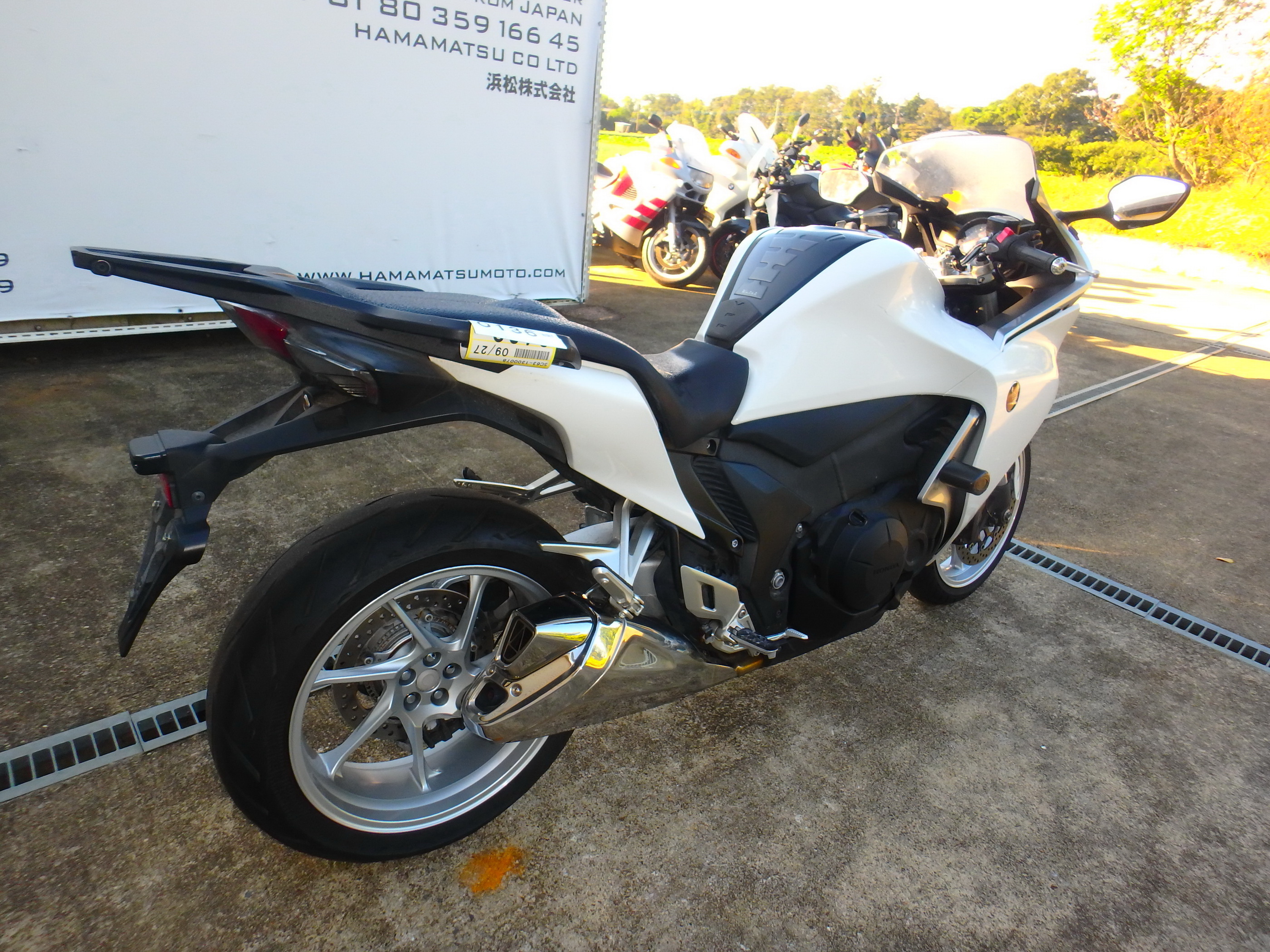

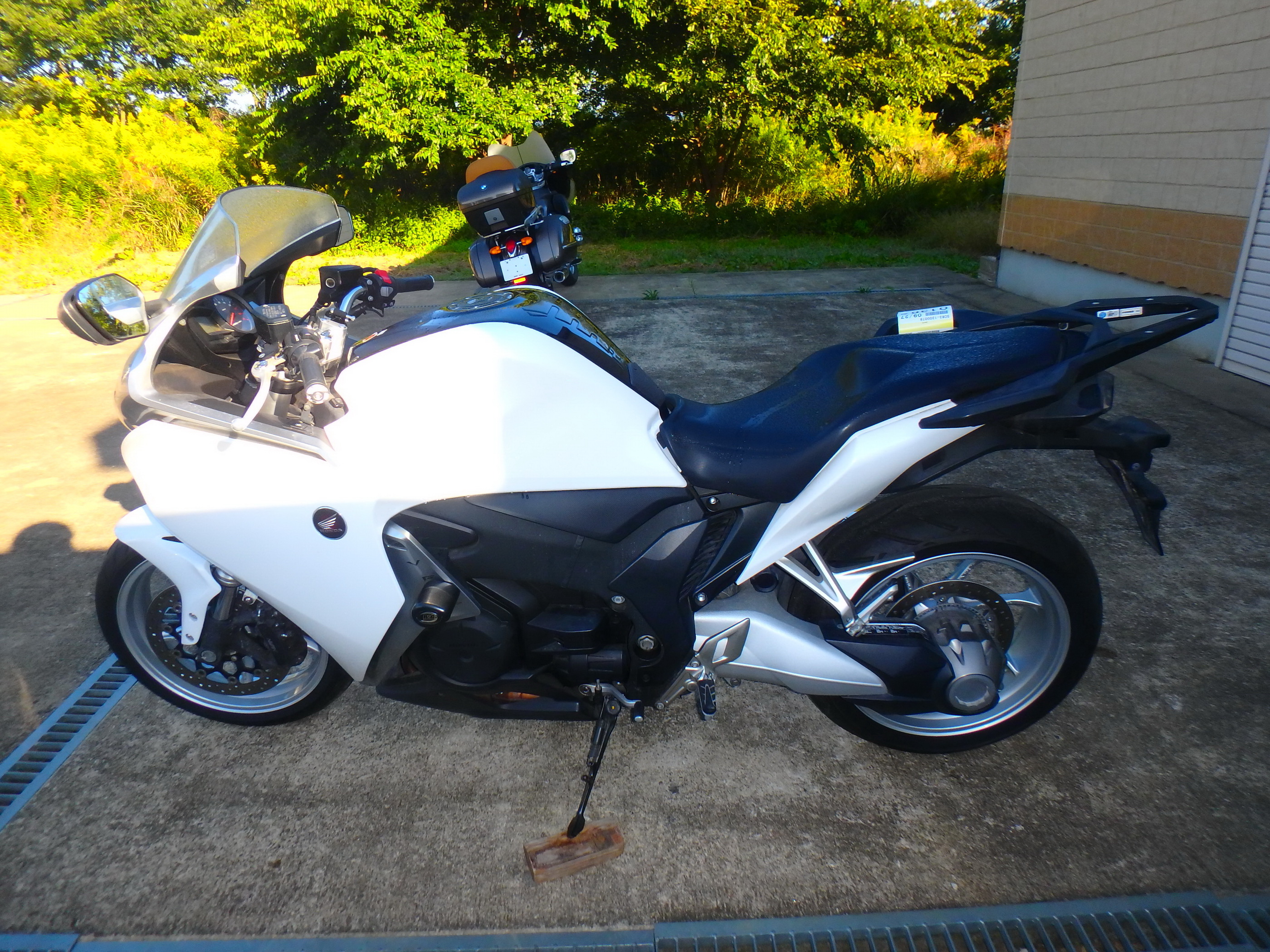

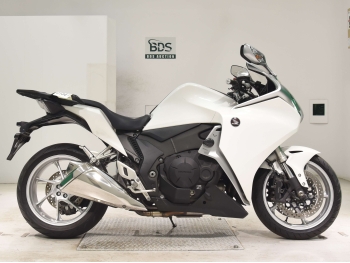

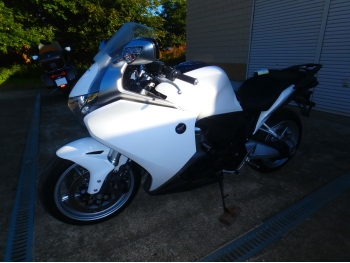

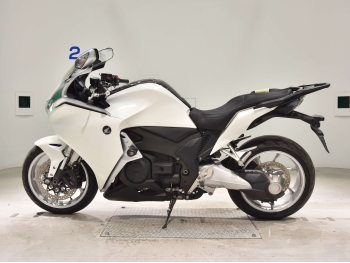

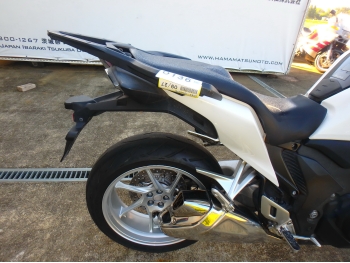

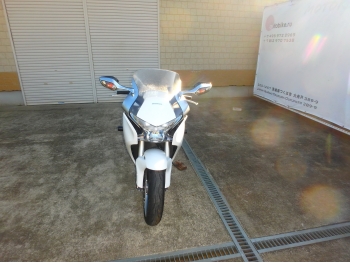

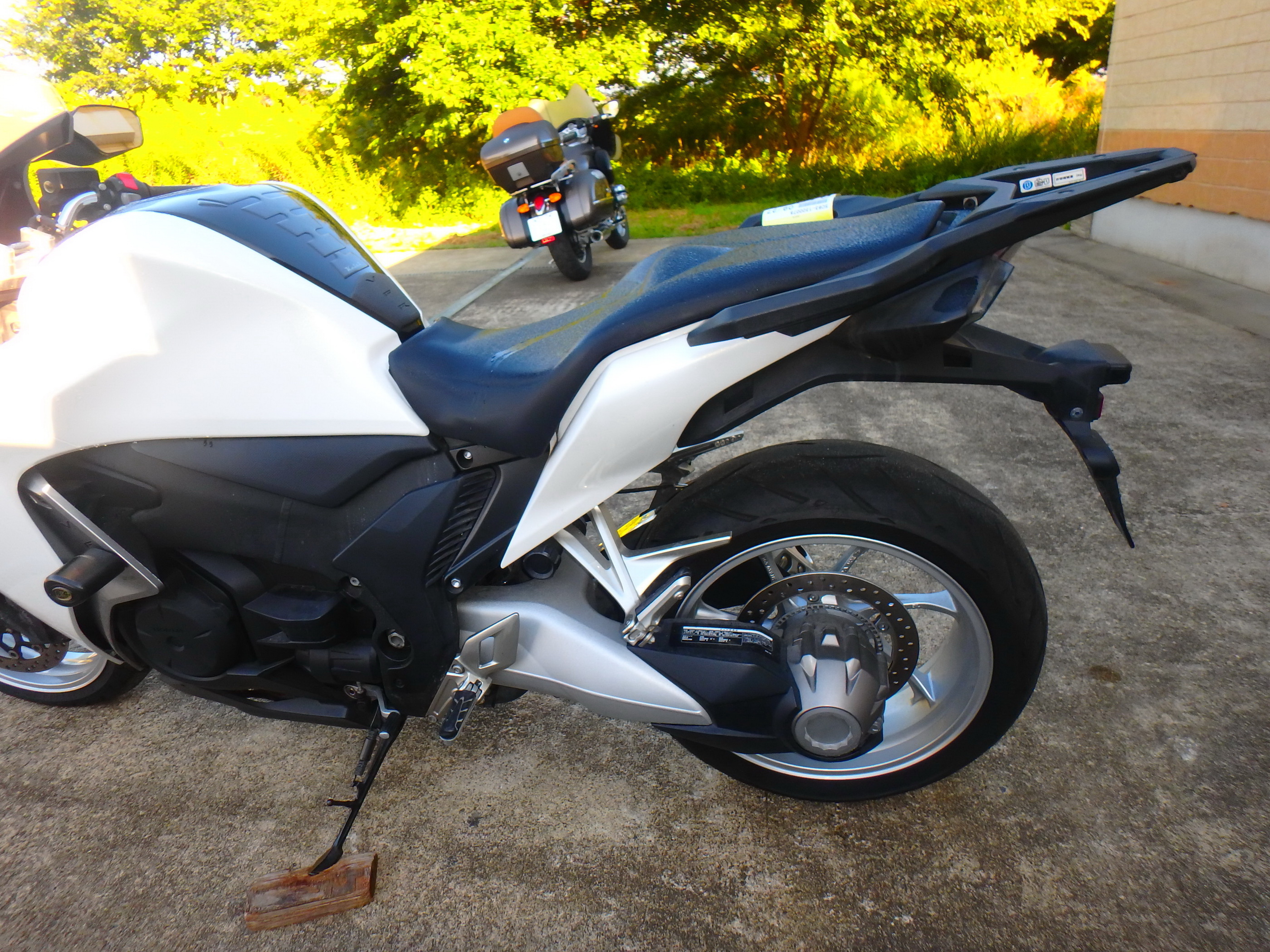

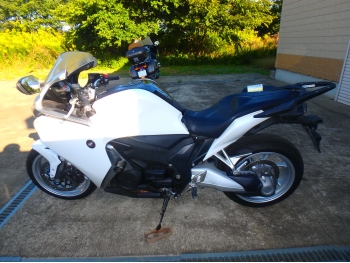

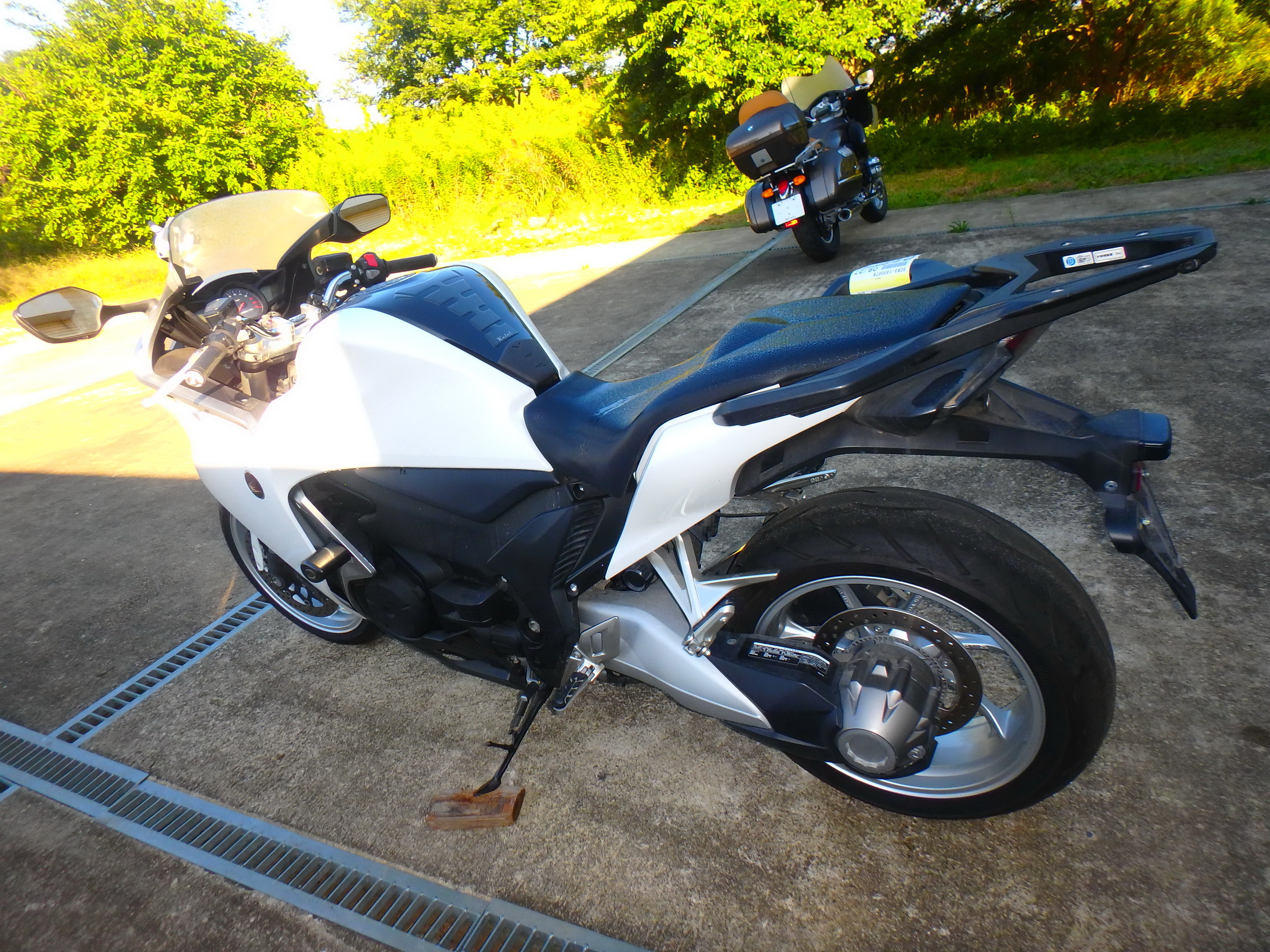

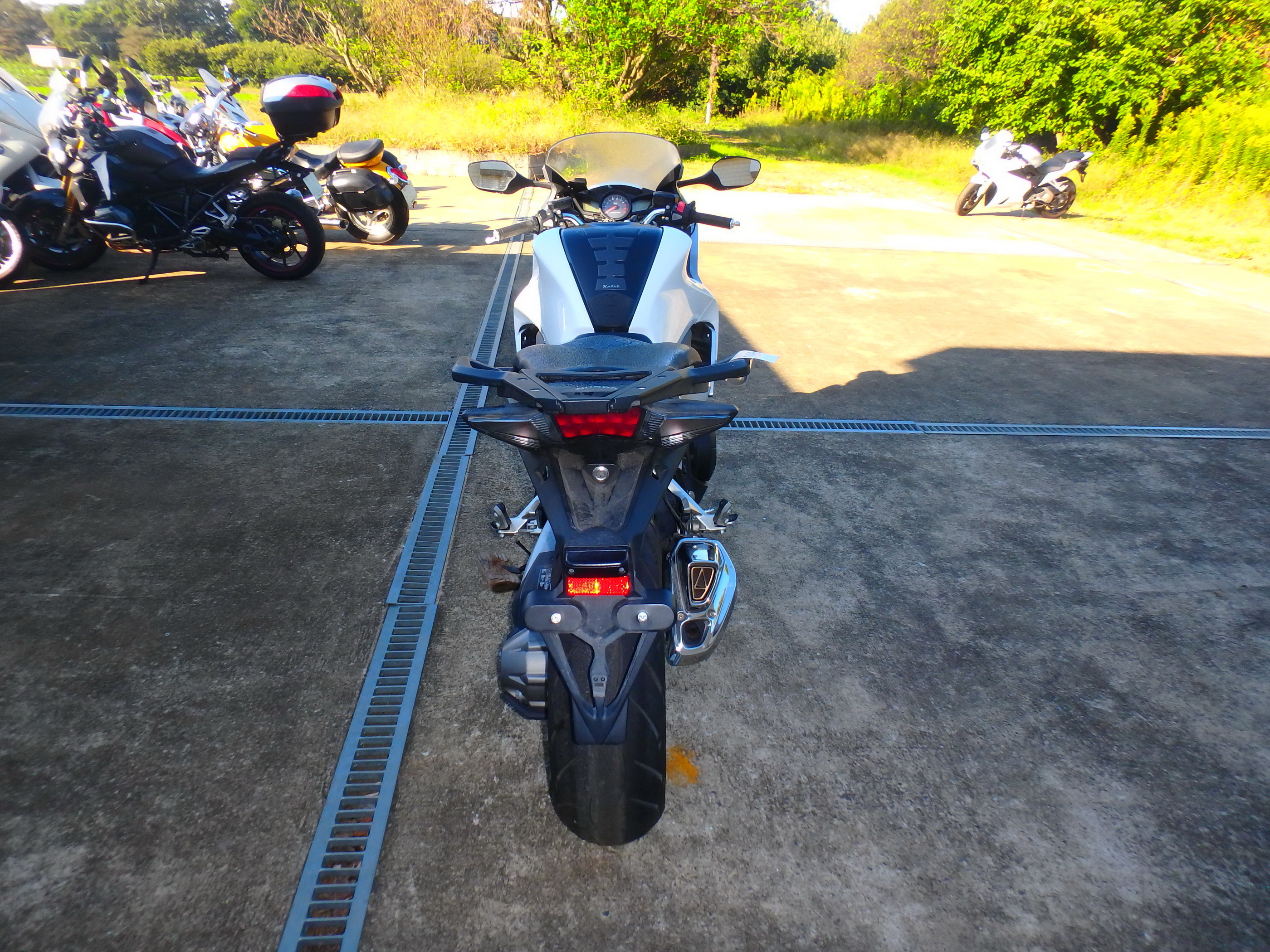

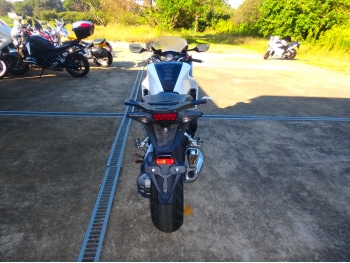

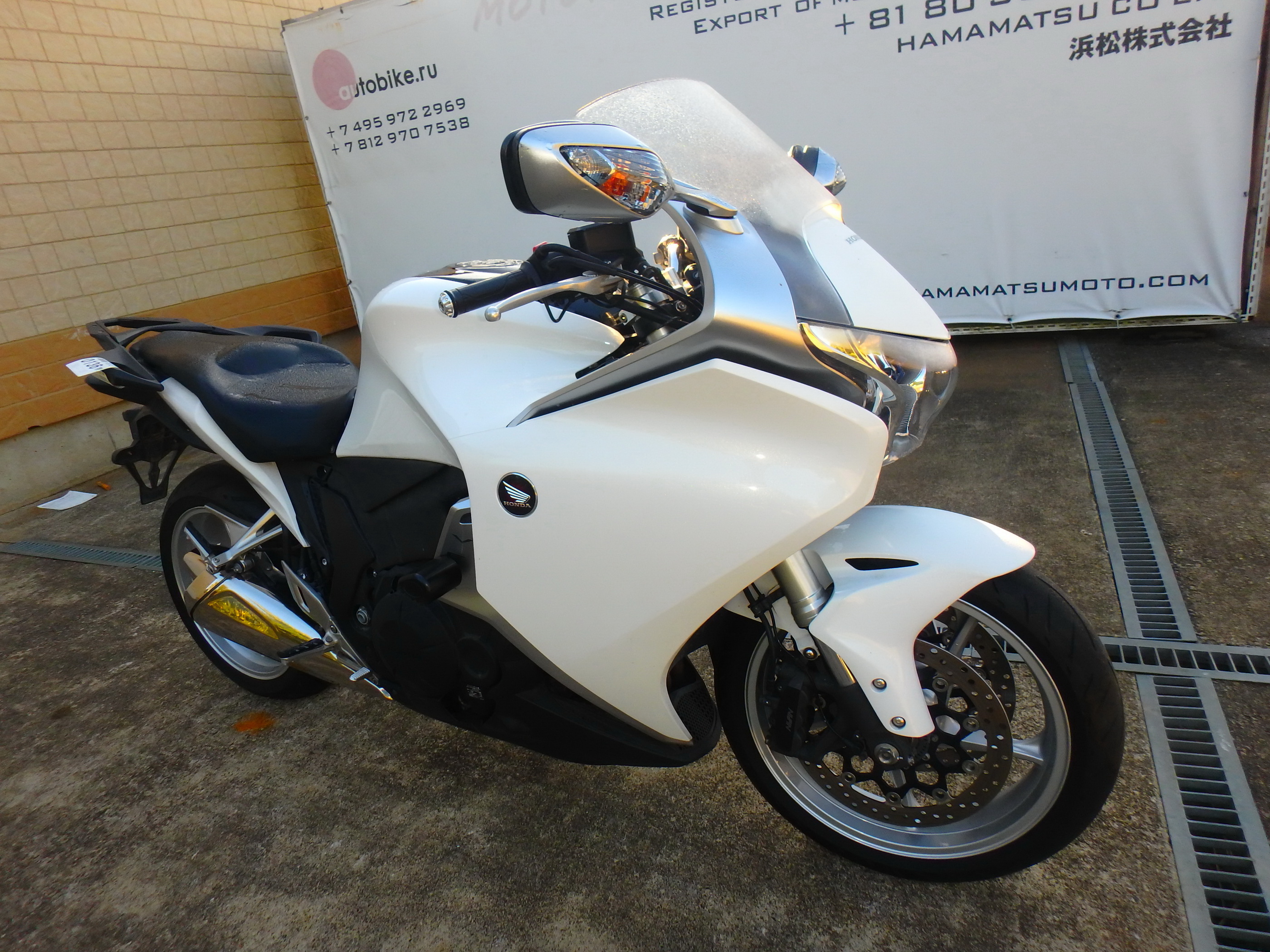

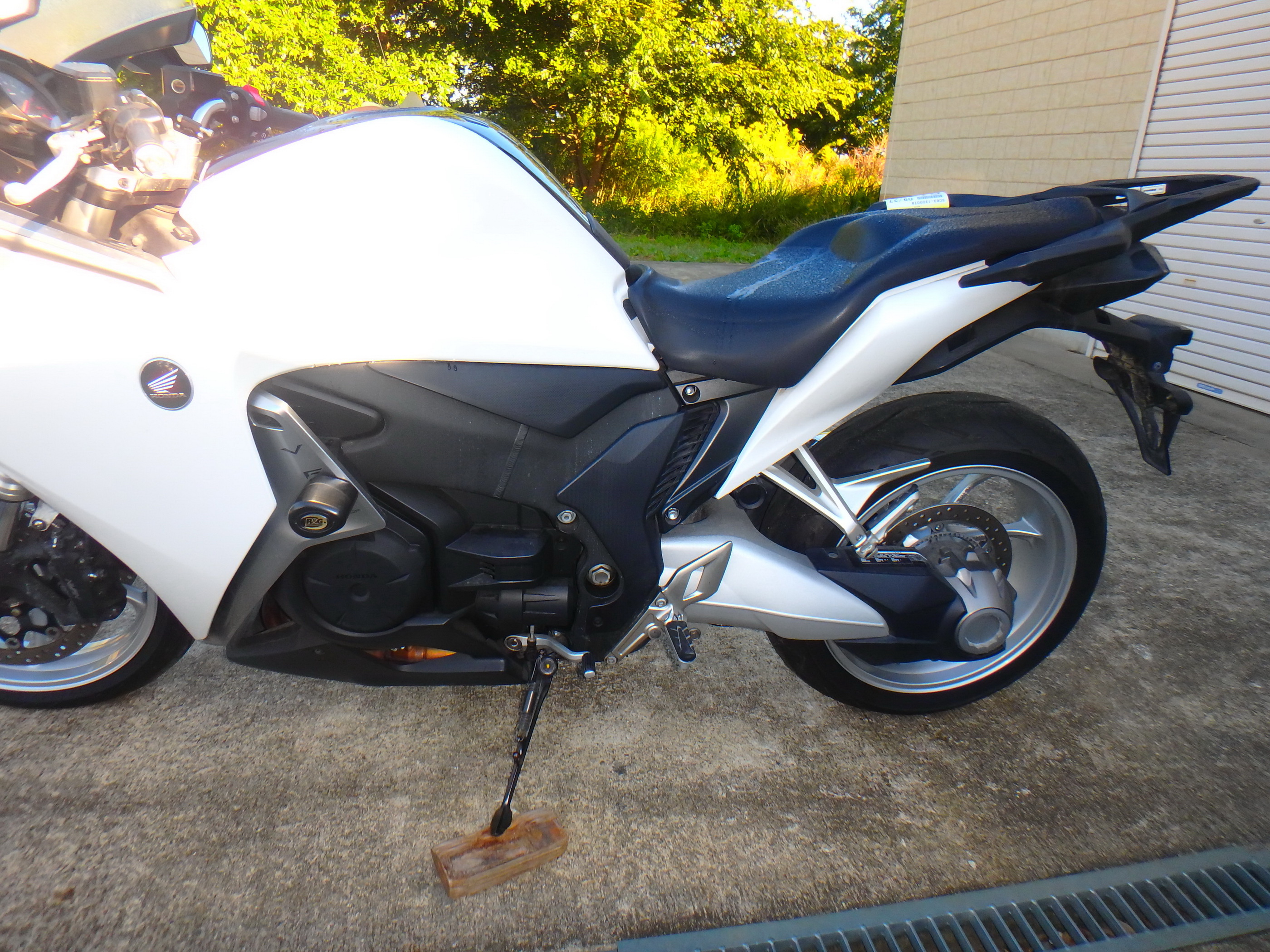

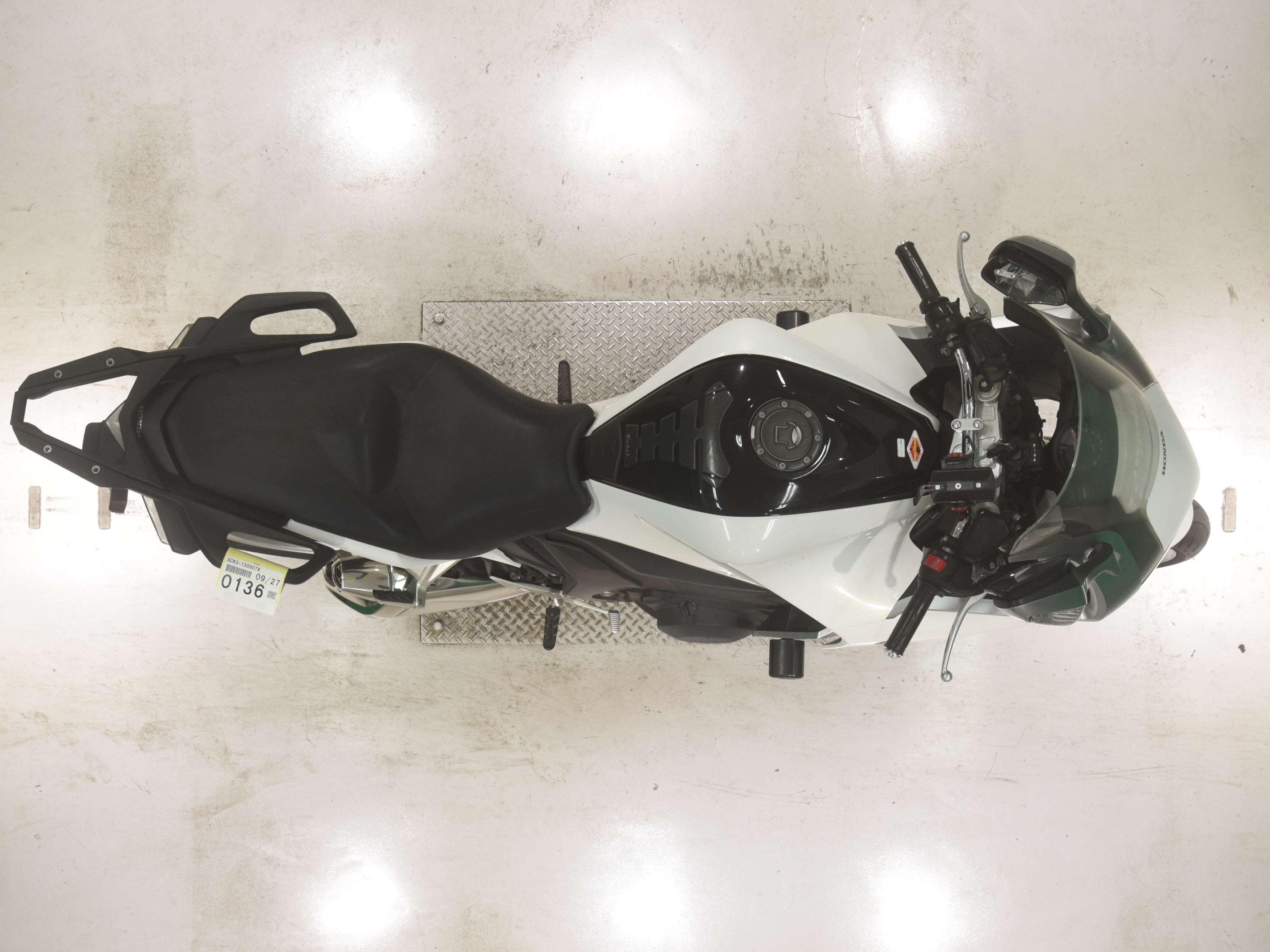

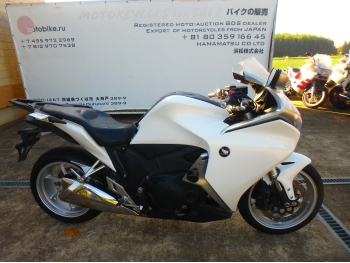

#0136 Bike Honda VFR1200F
Model: VFR1200F
Year: 2013
Capacity: 1200 cm3

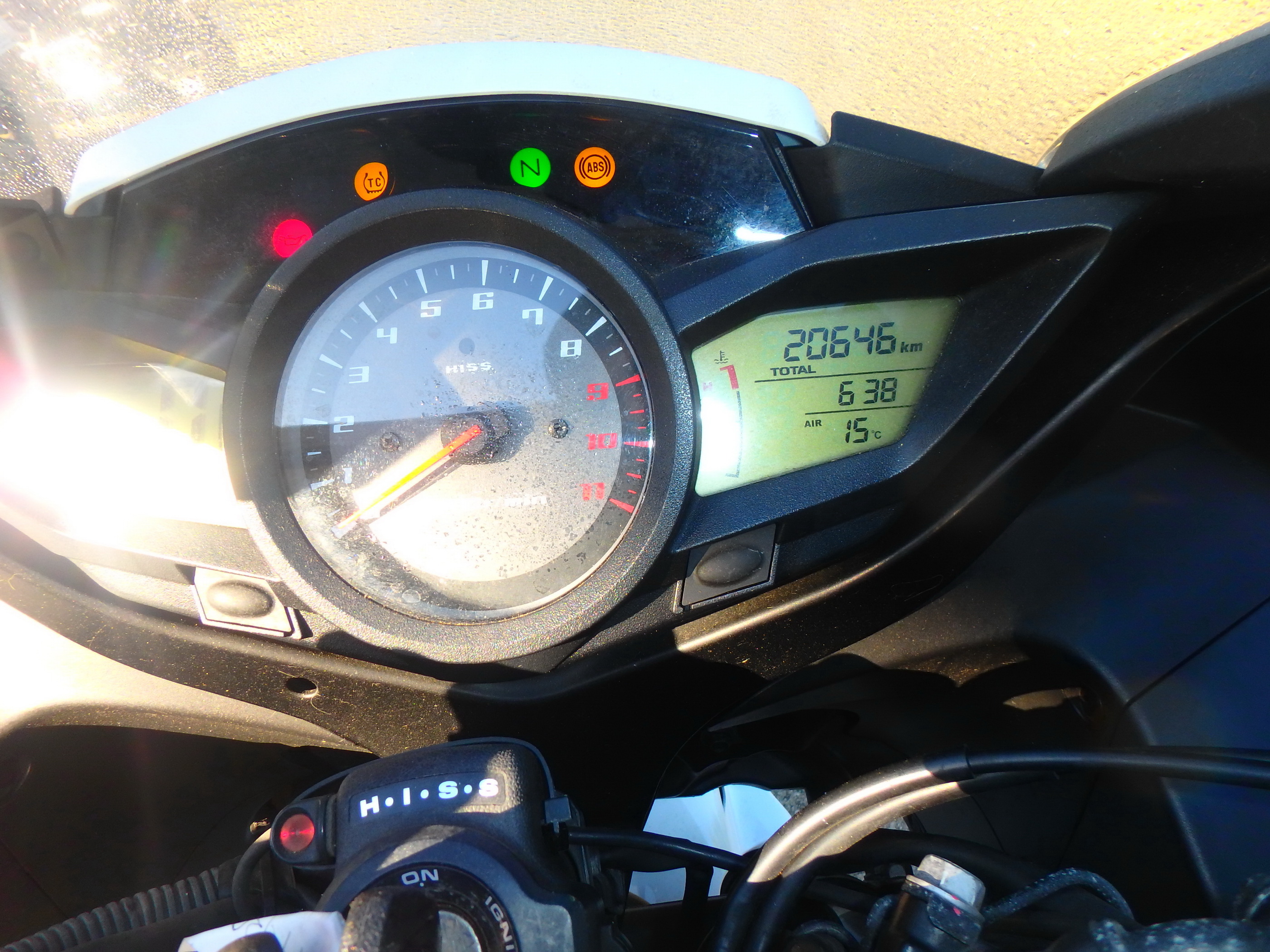

Mileage: 20645 km.
in
Additional information
Make Model
VFR 1200F
Year
2013
Engine
Four stroke, 76 � V-4, SOHC, 4 valve per cylinder
Capacity
1237 cc / 75.4 cu-in
Bore x Stroke
81 x 60 mm
Compression Ratio
12.0:1
Cooling System
Liquid cooled
Induction
PGM-FI electronic injection
Ignition
Digital transistorized with electronic advance computerized control Ignition Timing: 6.4 � -10.4 � BTDC (idle speed) Sparkplug Type: IMR9E-9HES (NGK); VUH27ES (DENSO)
Spark Plug
IMR9E-9HES (NGK); VUH27ES (DENSO)
Starting
Electric
Max Power
127 kW / 170 hp @ 10000 rpm
Max Torque
129 Nm /�95.1 lb-ft @ 8750 rpm
Clutch
Wet, multiplate slipper type, Clutch Operation Hydraulic
Transmission
6 Speed
Final Drive
Shaft
Gear Ratio
1st 2.600 (39/15) 2nd 1.736 (33/19) 3rd 1.363 (30/22) 4th 1.160 (29/25) 5th 1.032 (32/31) 6th 0.939 (31/33)
Chassis Type
Double beam cast aluminum vacuum mold Geometry direction: 25.5 degrees, 101 mm forward Swingarm: single-arm aluminum driveshaft

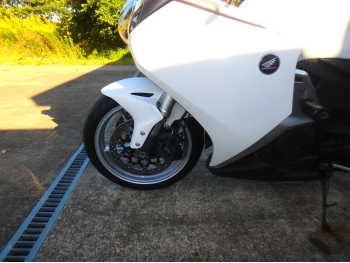

Front Suspension
Inverted telescopic fork 41 mm HMAS cartridge-type with adjustable spring preload without positions,
Front Wheel Travel
120 mm / 4.3 in
Rear Suspension
Pro-Link HMAS gas shock, adjustable spring preload 25 positions,
Rear Wheel Travel
120 mm / 4.3 in

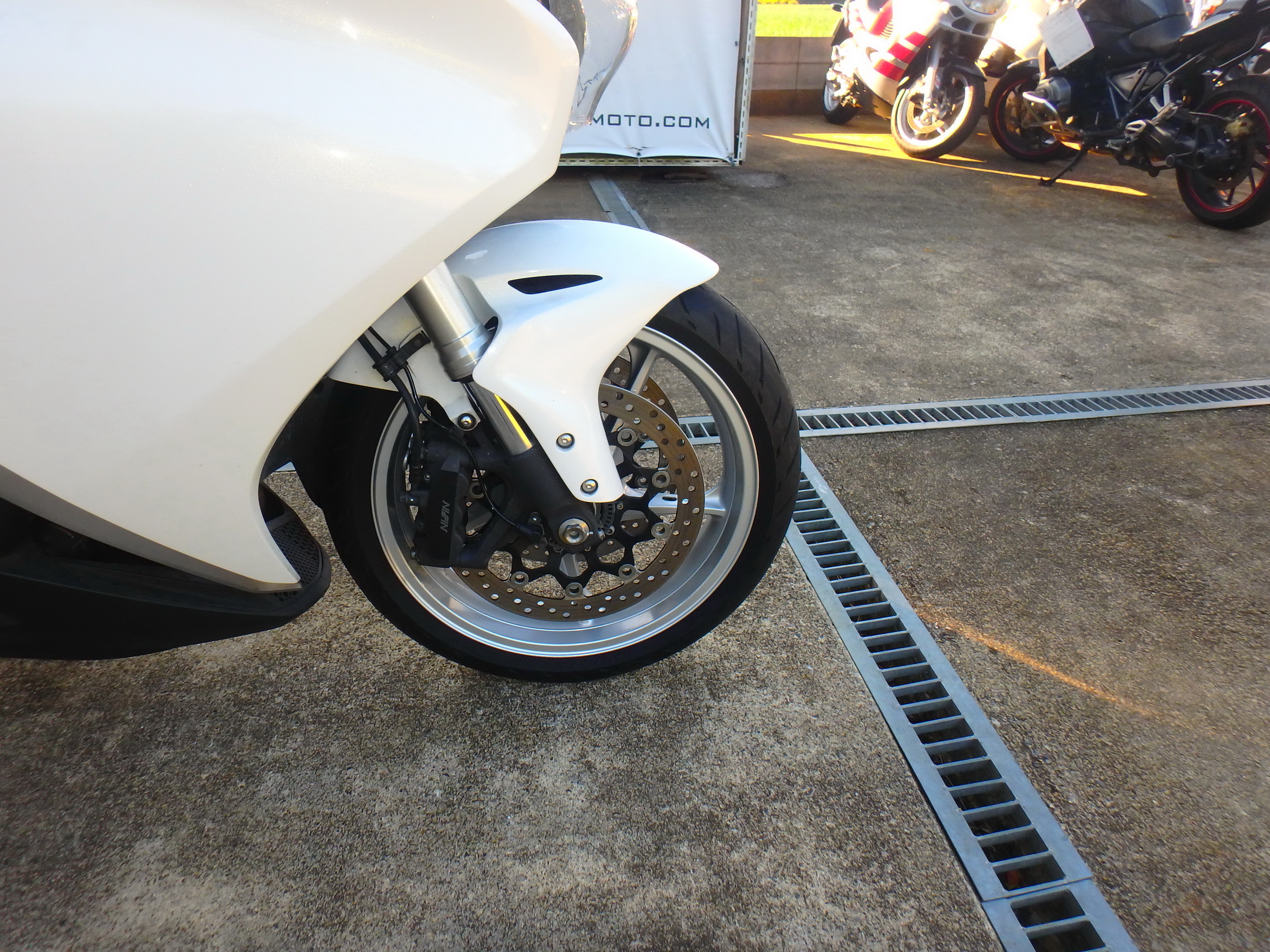

Front Brakes
2x Hydraulic discs 320mm floating, 6-piston radial calipers, Combined-ABS
Rear Brakes
Single hydraulic 276mm disc 2 piston caliper, Combined-ABS
Front Tyre
120/70 ZR17M / C (58W)
Rear Tyre
190/55 ZR17M / C (75W)
Rake (Caster angle)
25.3�
Trail
101.mm / 4 in
Dimensions
Length 2244 mm / 88.3 in Width 752 mm / 29.6 in Height 1222 mm / 48.1 in
Wheelbase
1545 mm / 60.8 in
Seat Height
815 mm / 31.9 in
Wet Weight
267 kg / 613 lbs

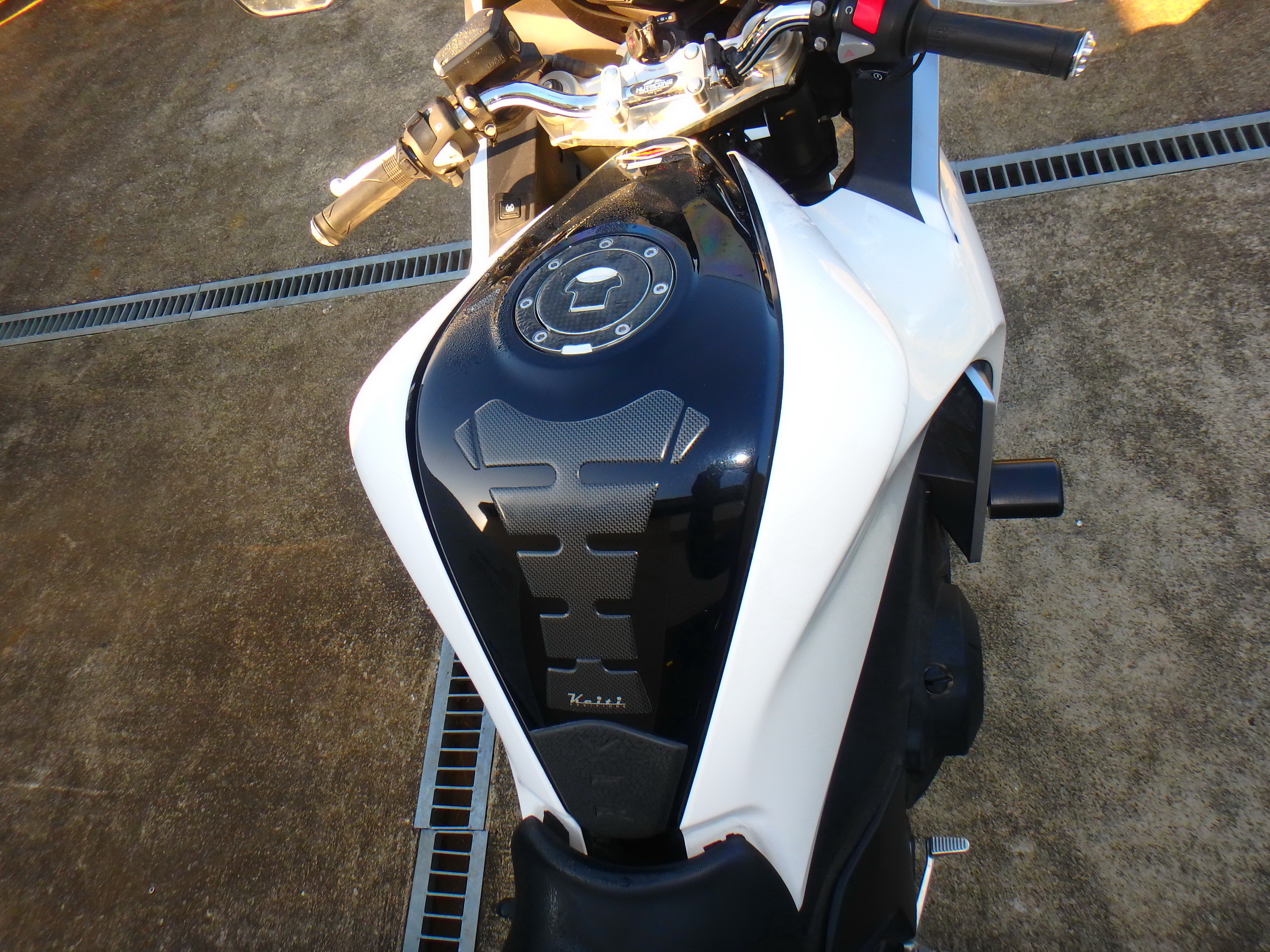

Fuel Capacity
18.5 Litres / 5.02 US gal
Average Consumption
17.8 km/lit
Standing 1/4 Mile
10.8 sec
Top Speed
251.2 km/h / 156 mph
