Additional information
Make Model

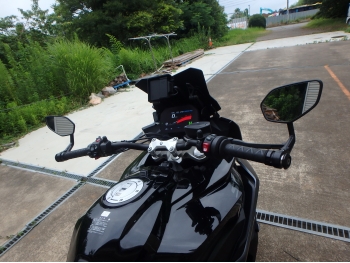

BMW S 1000XR
Year
2022
Engine
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, Intake/outlet mm 33.5/27.2
Capacity
999 cc / 60.9 cu-in
Bore x Stroke
80 x 49.7 mm
Cooling System
Liquid/oil cooled
Compression Ratio
12.5:1
Lubrication
Wet sump
Mixture Control
Electronic injection, throttle valve 48 mm
Engine Management
Electronic intake pipe injection
Emission Control
Regulated three-way catalytic converter - EURO5
Starting
Electric
Max Power
121 kW / 165 hp @ 11000 rpm
Max Torque
114 Nm / 84 lb-ft @ 9250 rpm
Clutch
Multiplate clutch in oil bath, slipper clutch, self-reinforcing
Transmission
Six-speed synchromesh gearbox with spur gears
Final Drive
Chain drive, 17/45
Primary Ratio
1.652
Gear Ratio
1st 2.647 2nd 2.091 3rd 1.727 4th. 1.476 5th 1.304 lth. 1.167
Transmission Ratio
2.647
Frame
Aluminum composite bridge frame, partially self-supporting engine
Front Suspension
45mm Upside-down telescopic fork electronic self-adjusting rebound/compression damping (Dynamic ESA)
Front Wheel Travel
150 mm / 5.9 in
Rear Suspension
Aluminium double-sided swing-arm, central spring strut, electronic preload adjuster, electronic self-adjusting rebound/compression damping (Dynamic ESA)
Rear Wheel Travel
150 mm / 5.9 in
Front Brakes
2x 320mm floating discs, radial four-piston fixed calipers
Rear Brakes
Single 265mm disc brake, twin-piston floating caliper
ABS
BMW Motorrad Race ABS, partially integral
Traction Control
BMW Motorrad DTC
Wheels
Cast aluminum wheels
Front Rim
3.50 x 17
Rear Rim
6.00 x 17
Front Tyre
120/70 ZR 17
Rear Tyre
190/55 ZR 17
Castor
116 mm / 4.6 in
Steering Head Angle
65.1°
Dimensions
Length 2333 mm / 91.8 in Width 917 mm / 36.1 Height 411 mm / 55.5 in
Wheelbase
1522 mm / 59.9 in
Seat Height
840 mm / 33.0 in - 790 mm / 31.1 with optional lowered suspension
Wet Weight
226 kg / 498 lbs
Fuel Capacity
20 Litres / 5.2 US gal
