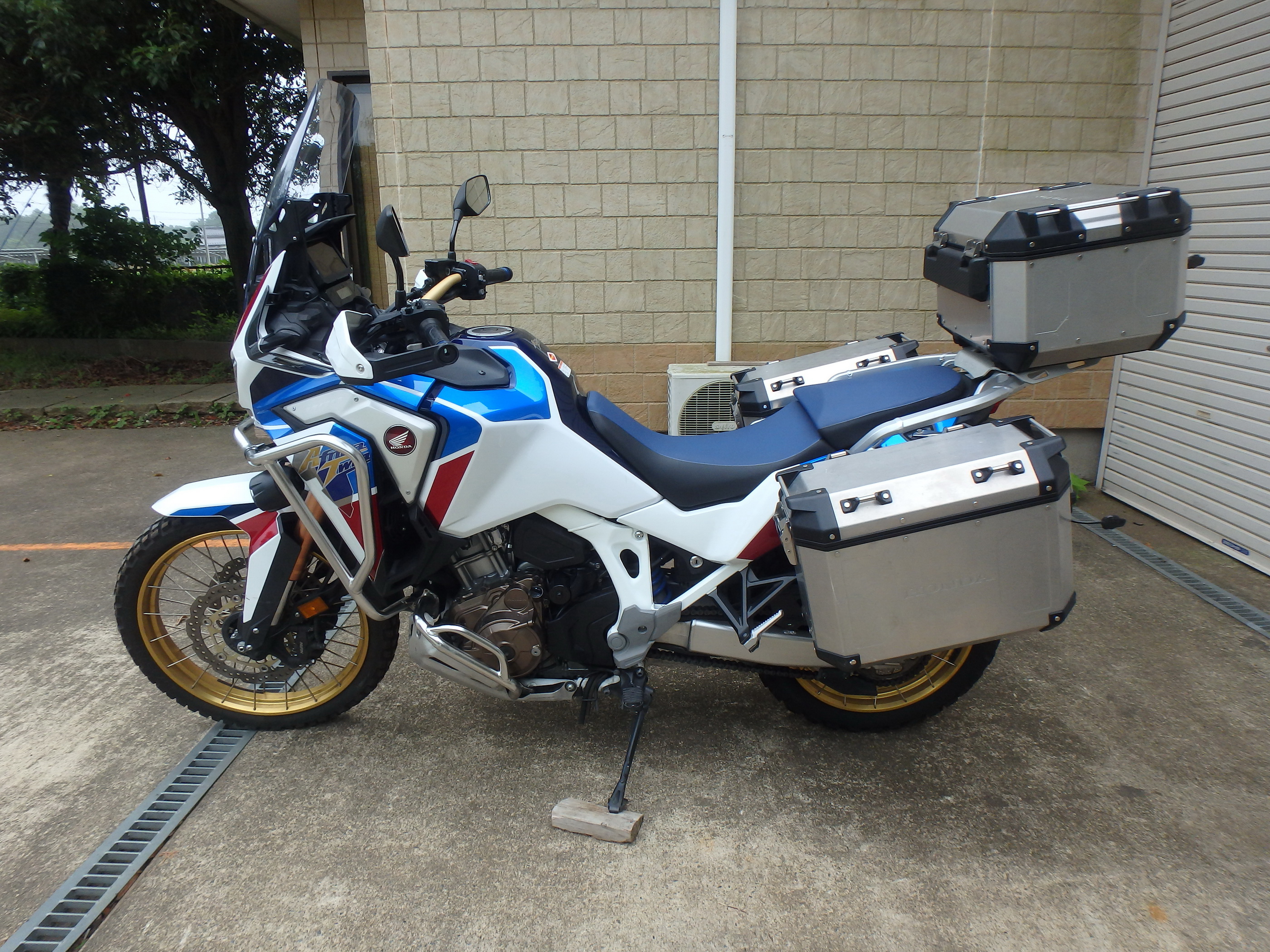

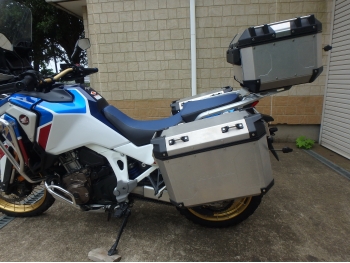

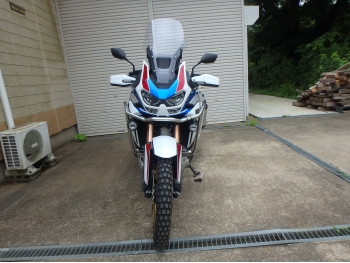

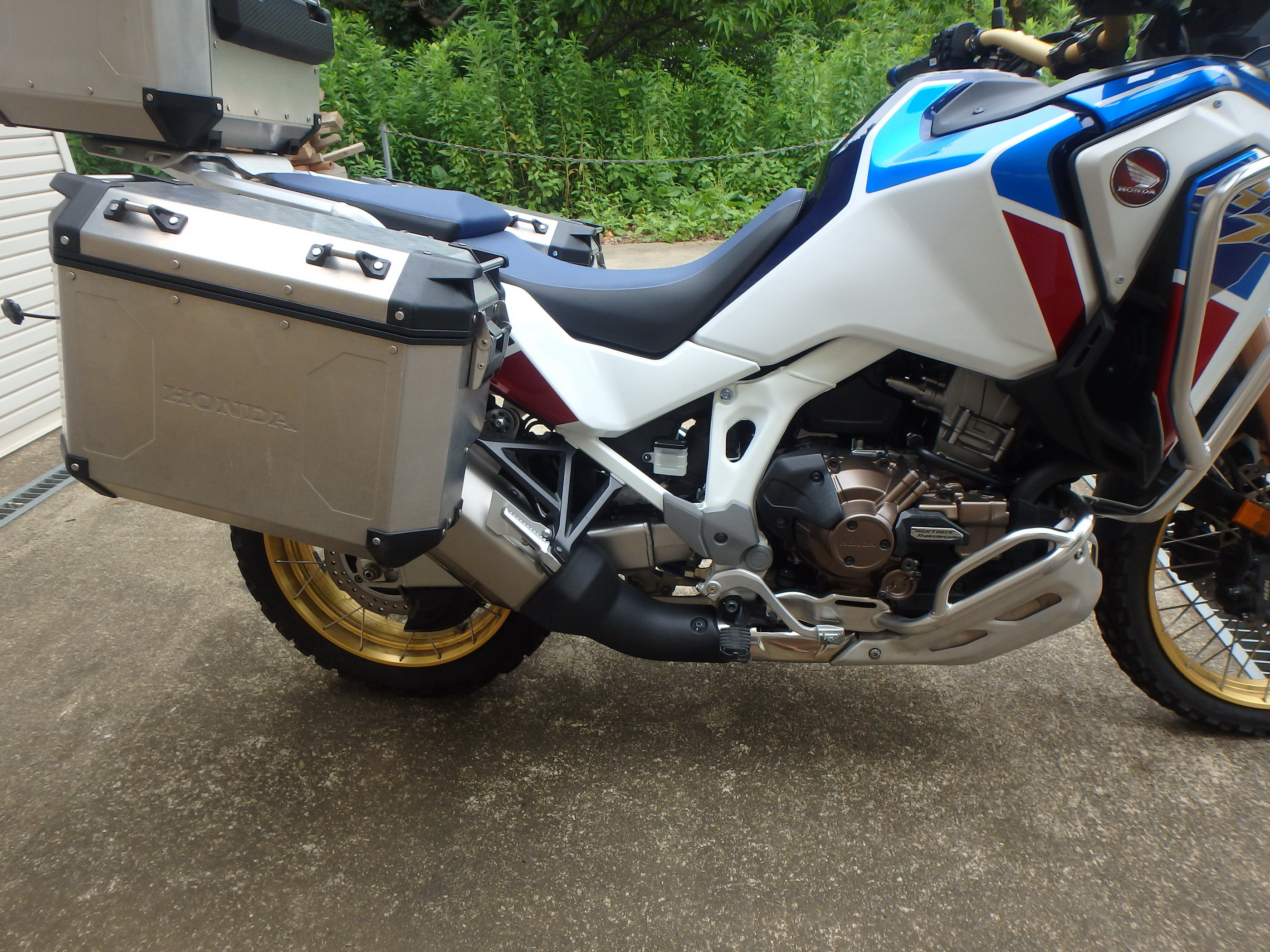

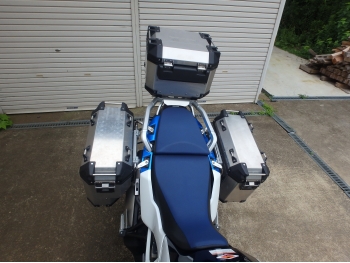

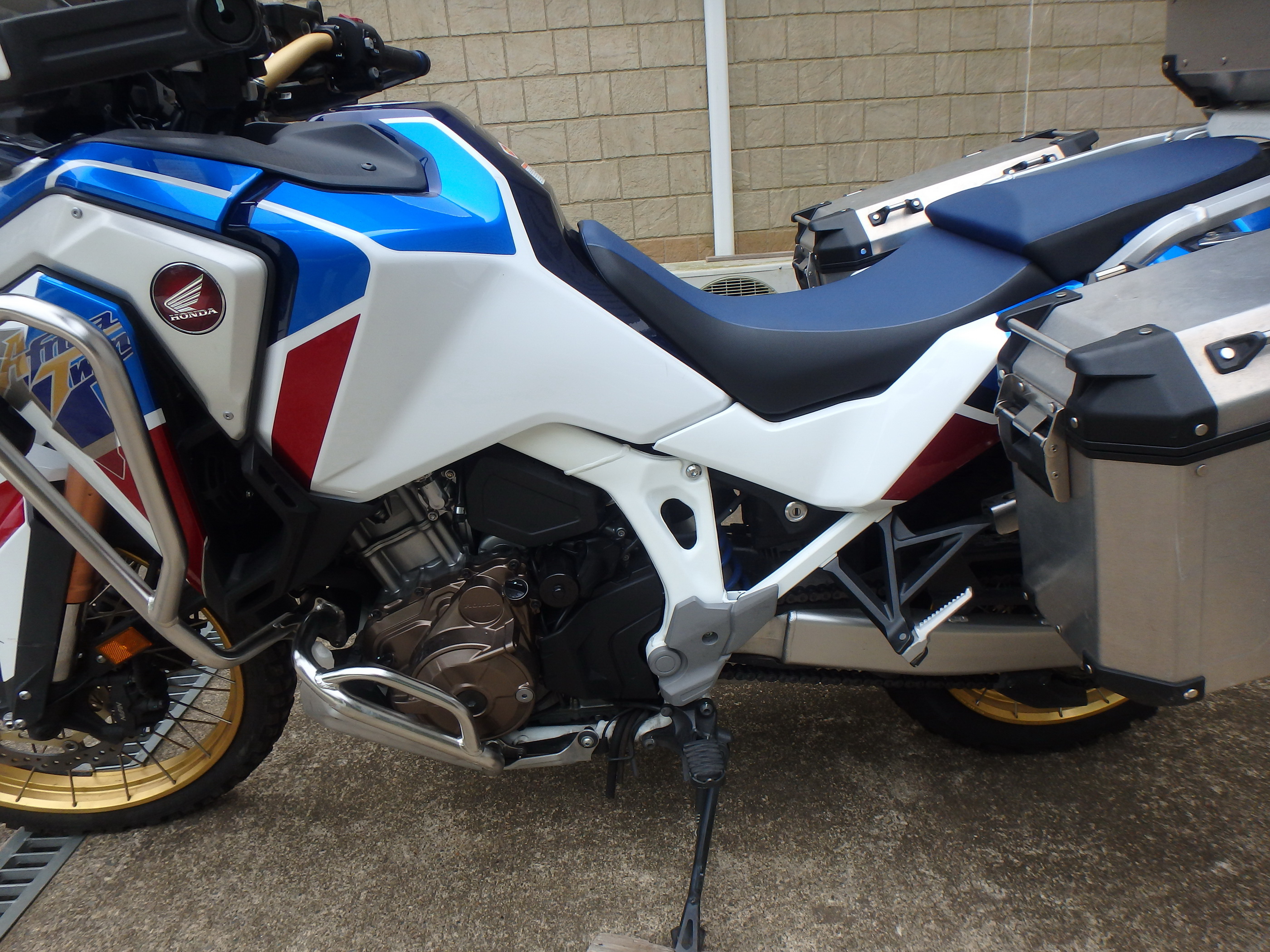

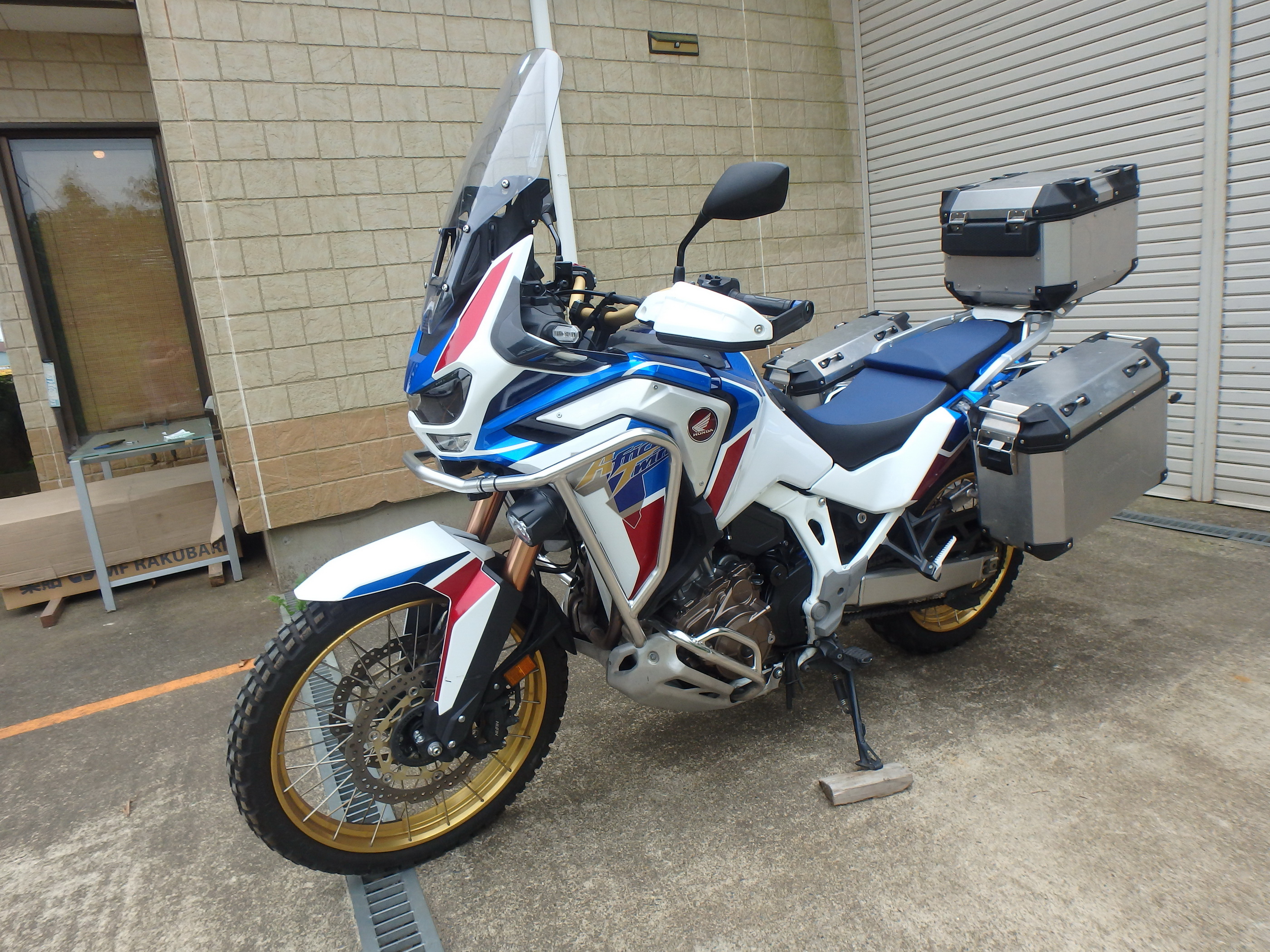

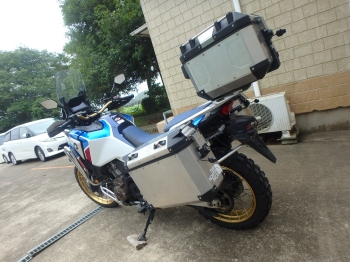

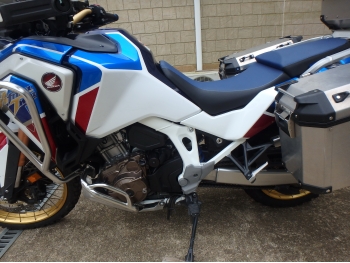

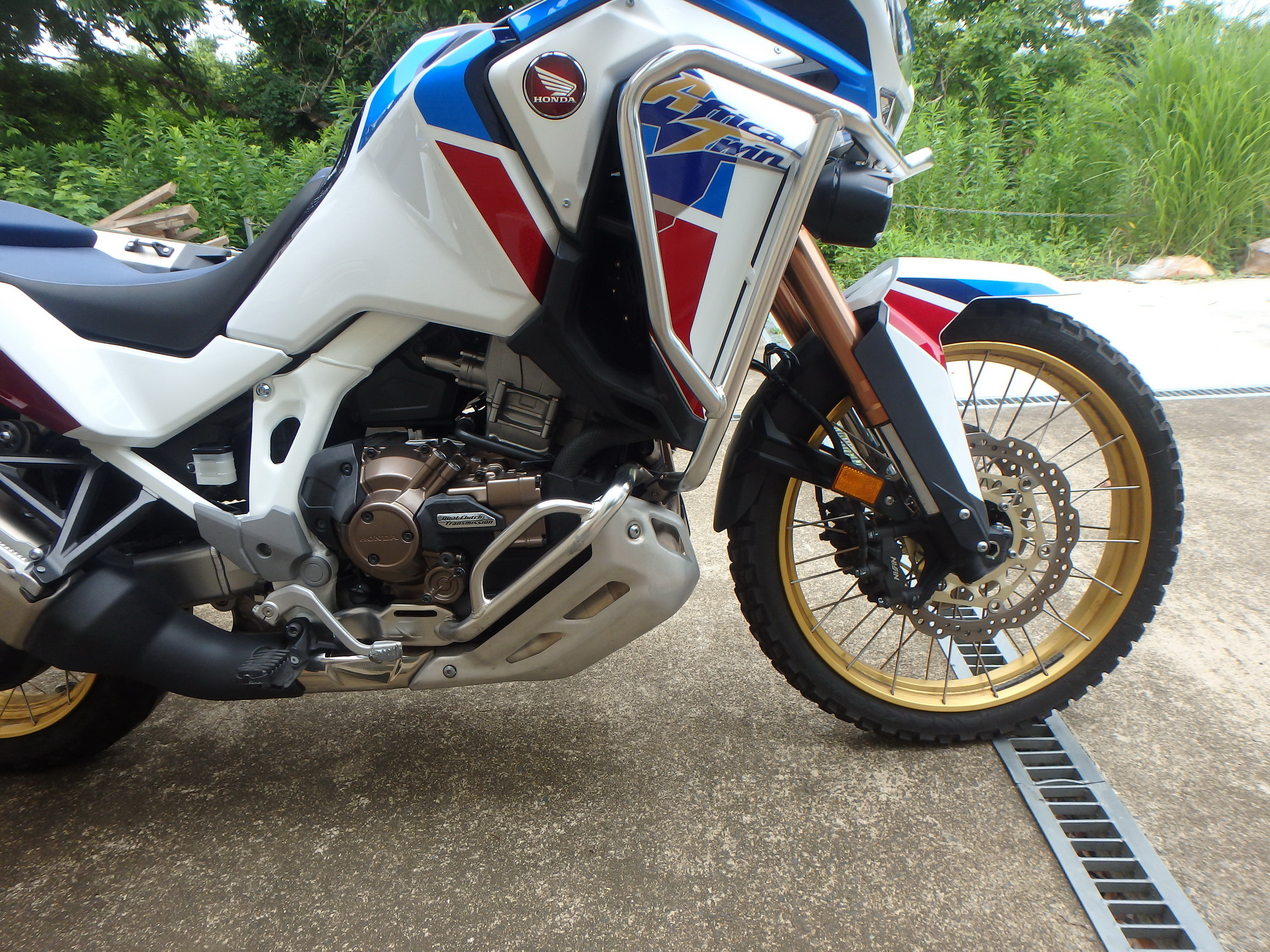

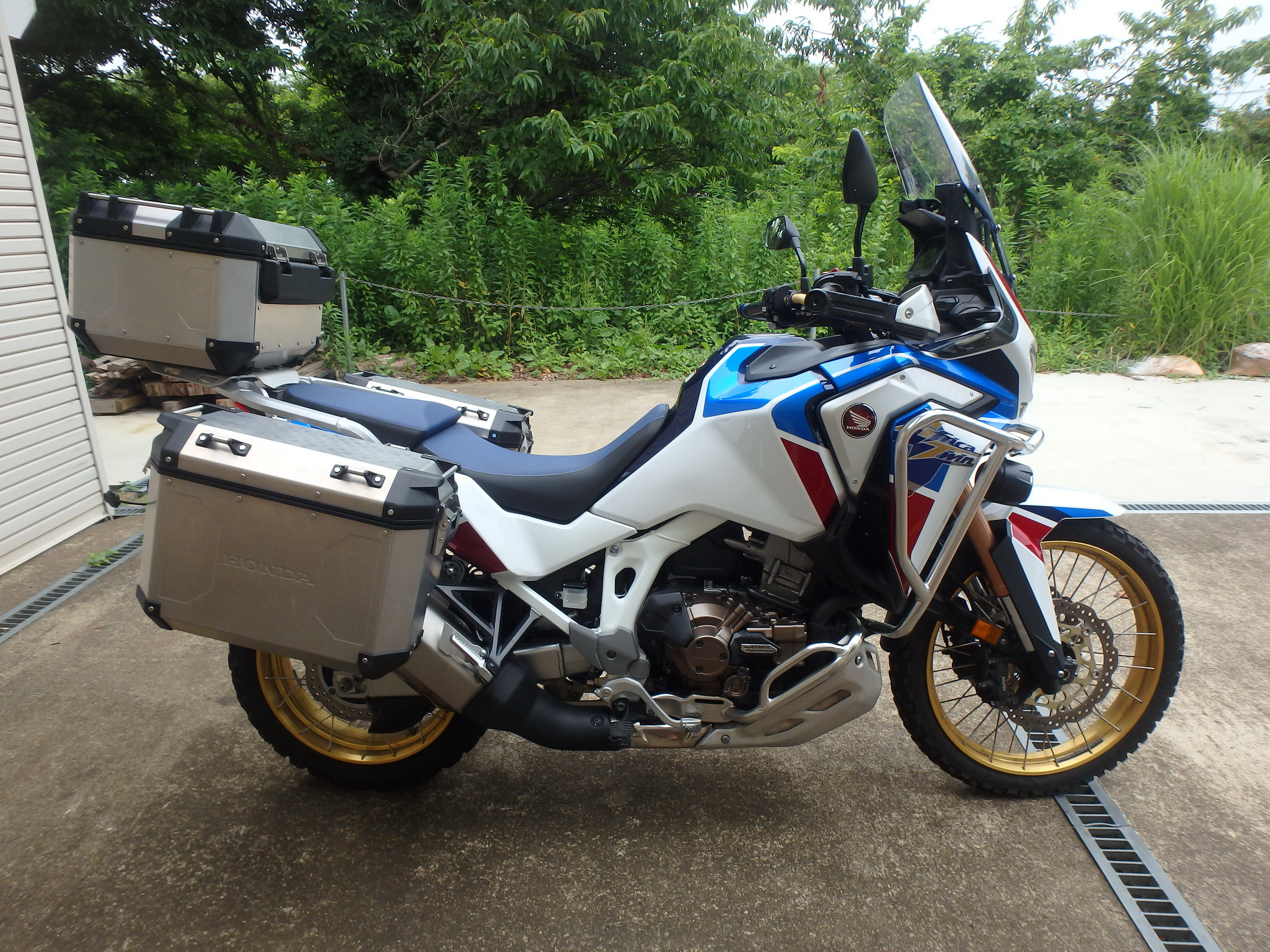

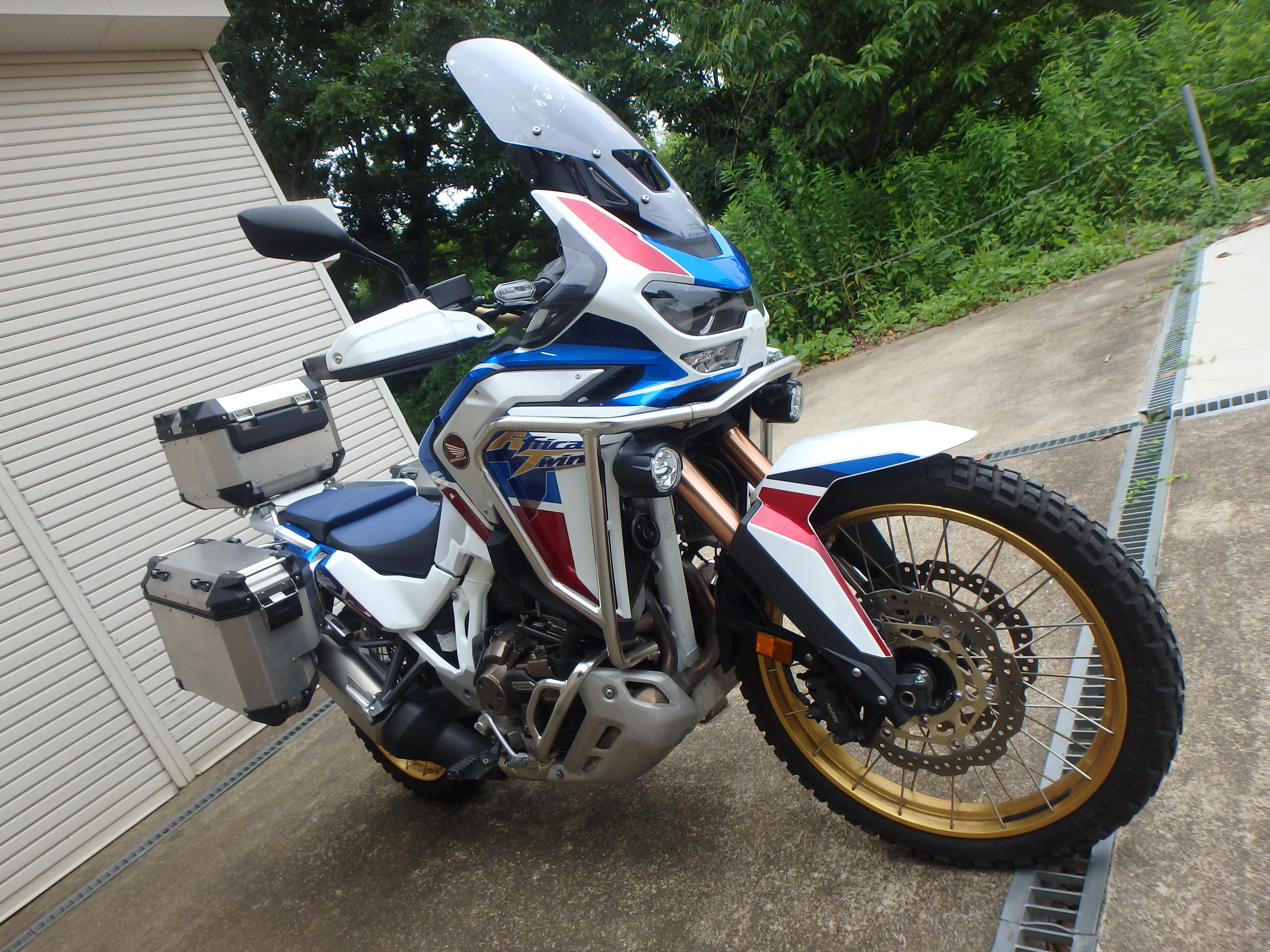

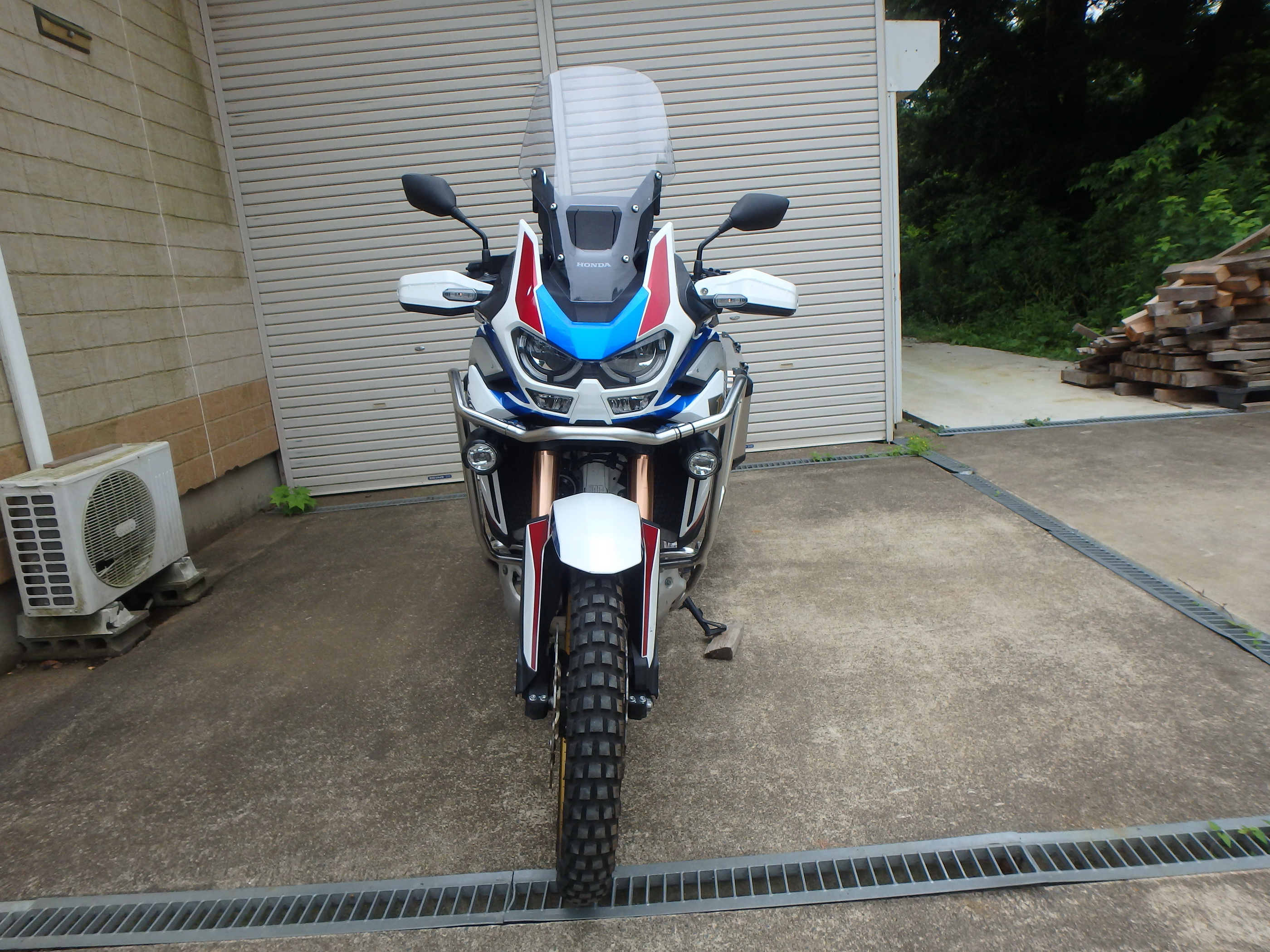

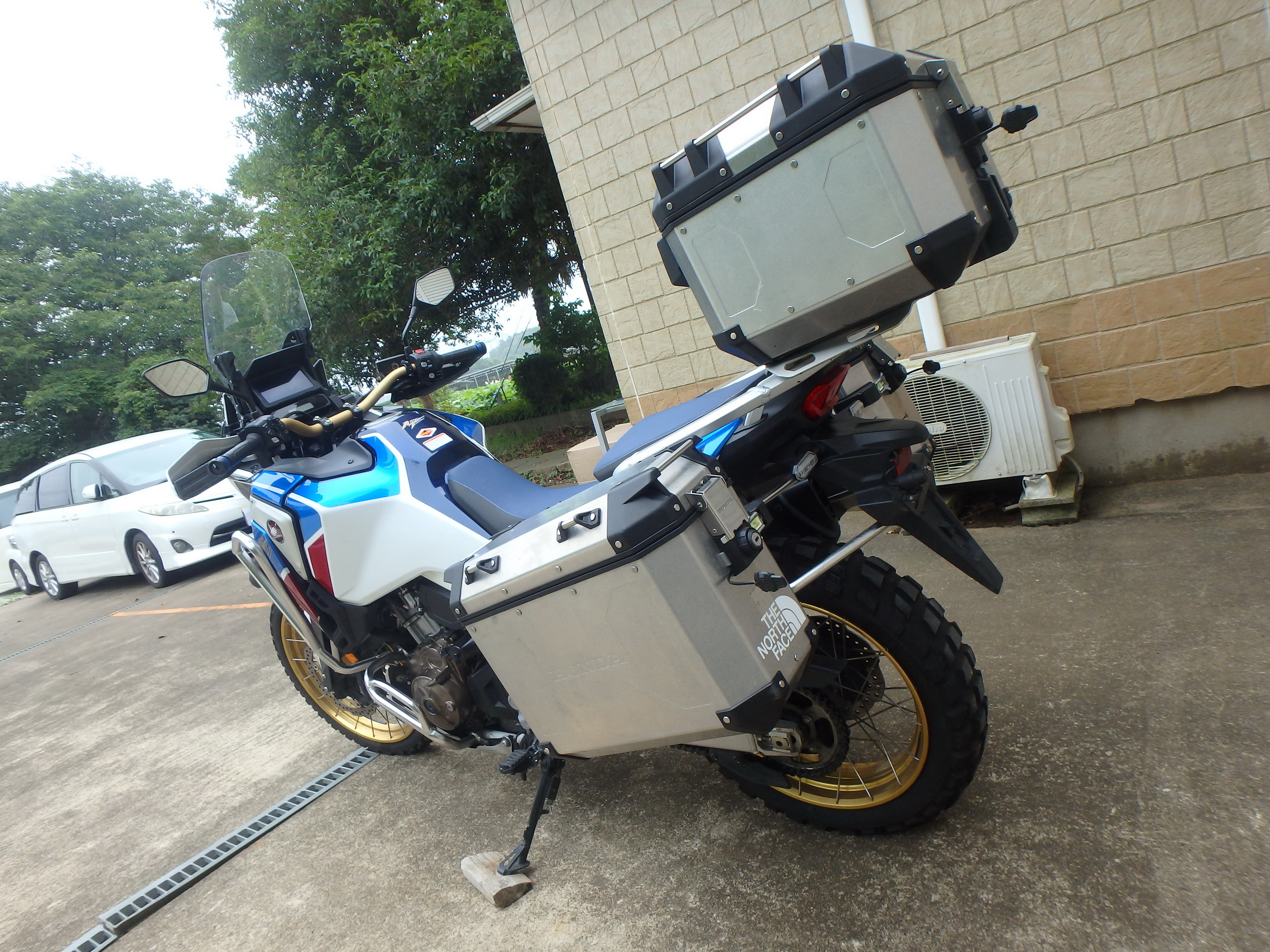

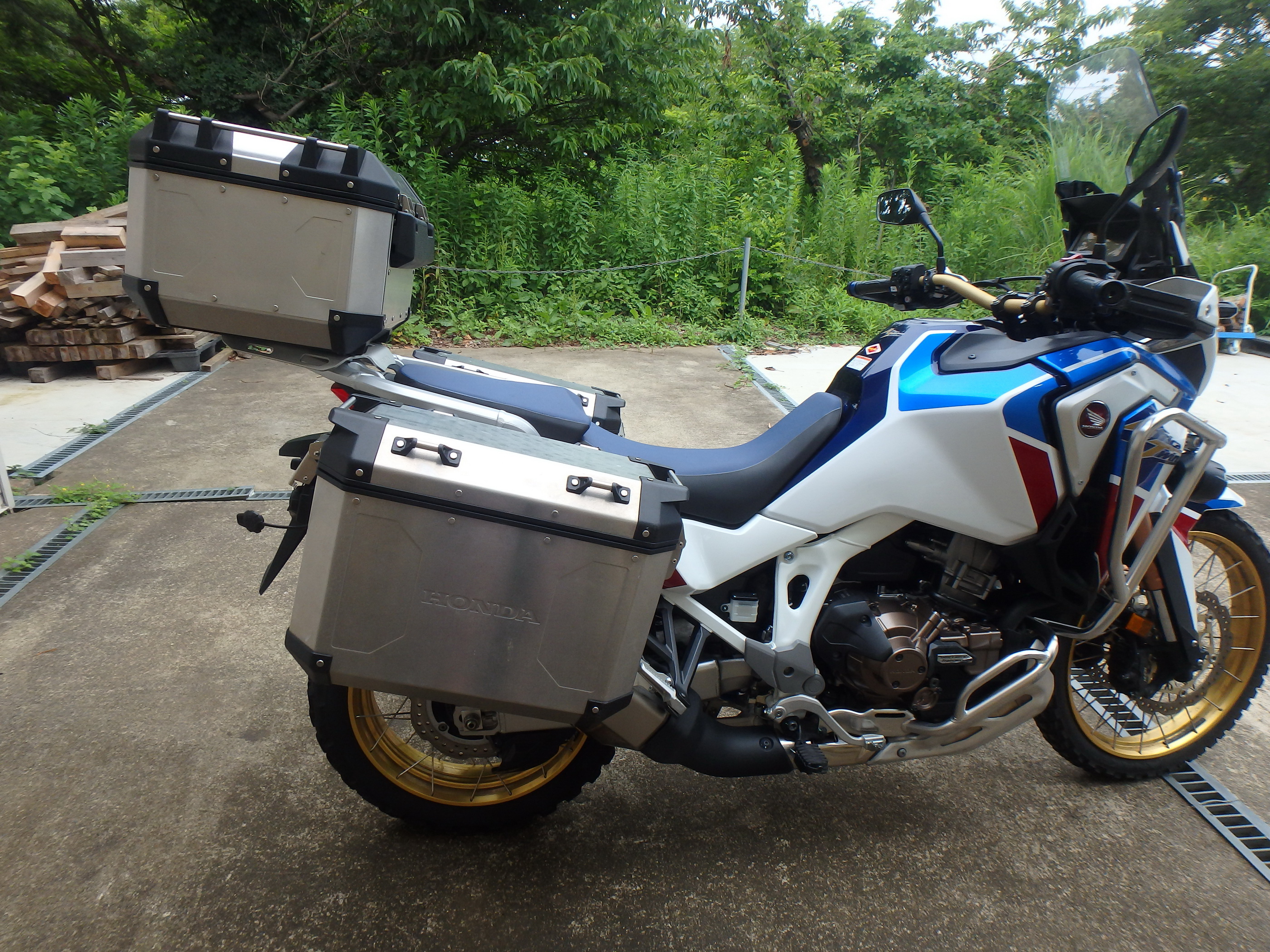

#0591 Bike Honda CRF1100L AfricaTwin DCT
Model: CRF1100L AfricaTwin DCT
Year: 2020
Capacity: 1100 cm3

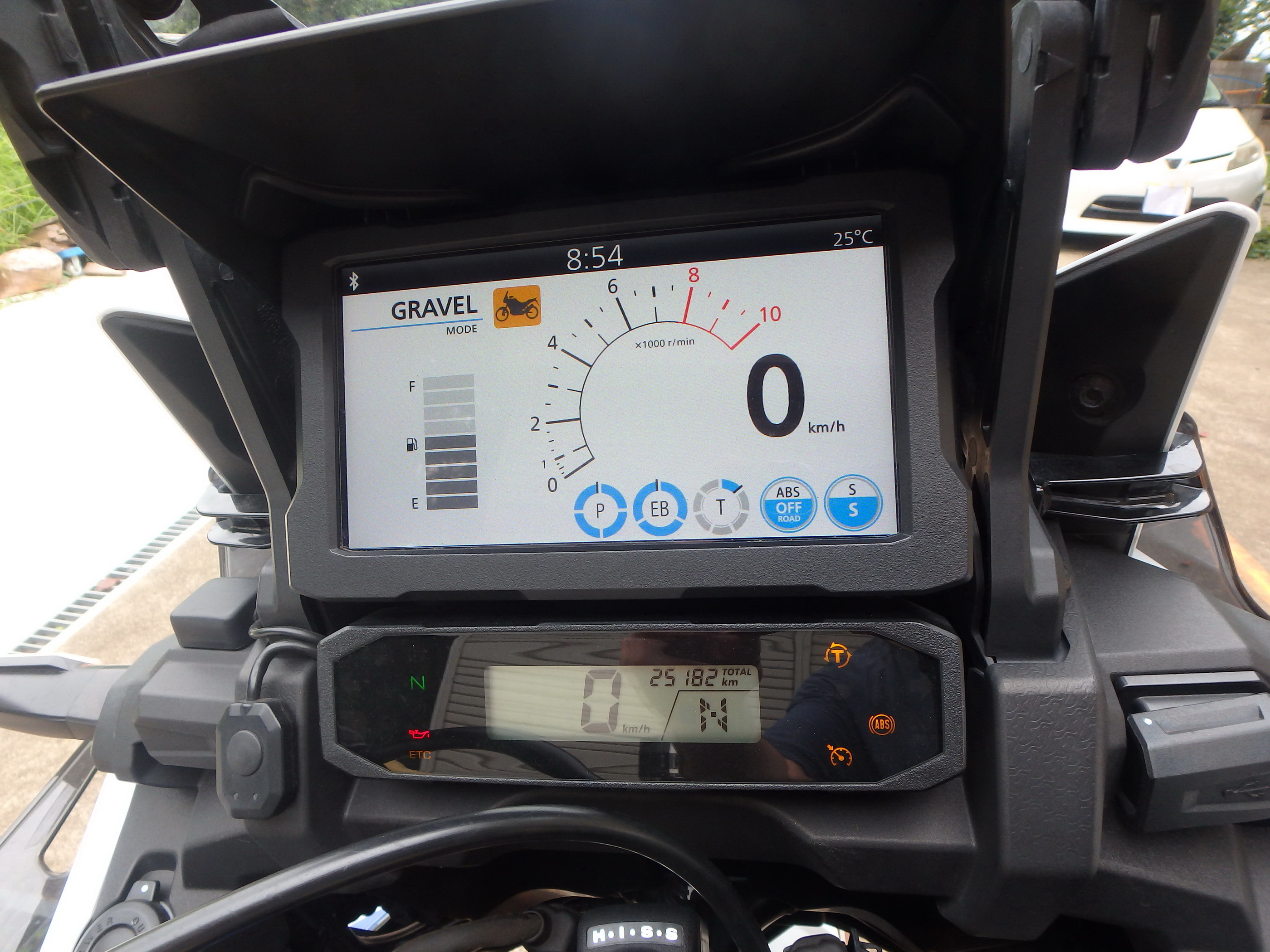

Mileage: 25182 km.
in
Additional information
Make Model
Honda CRF 1100L Africa Twin / DCT
Year
2020
Engine
Four stroke, parallel Twin with 270° crank and Uni-cam, SOHC, 4 valves per cylinder
Capacity
1084 cc / 66.1 cu-in
Bore x Stroke
92.0 x 81.5 mm
Compression Ratio
10.1:1
Cooling System
Liquid cooled
Emission
112g/km MT / 110g/km DCT
Induction
PGM-FI electronic fuel injection w/ 46mm throttle bodies (Throttle By Wire)
Ignition
Full transistorized ignition
Battery
12V-6Ah Li-ion battery (20hr)
Starting
Electric
Max Power
75 kW / 100.5 hp @ 7500 rpm
Max Torque
105 Nm / 77.4 ft-lb @ 6250 rpm
Clutch
Wet, multiplate with coil springs, aluminium cam assist and slipper clutch DCT – 2 wet multiplate clutches with coil springs
Transmission
Constant mesh 6-speed manual / 6-speed automatic DCT with on- and off-road riding modes
Final Drive
525 Chain
Frame
Steel semi-double cradle type with high-tensile strength steel rear sub-frame
Front Suspension
45mm Showa cartridge-type inverted telescopic fork with dial-style preload adjuster and DF adjustments
Front Wheel Travel
230 mm / 9.1 in
Rear Suspension
Monoblock aluminium swing arm with Pro-Link with SHOWA gas-charged damper, hydraulic dial-style preload adjuster and rebound damping adjustments
Rear Wheel Travel
220 mm / 8.6 in

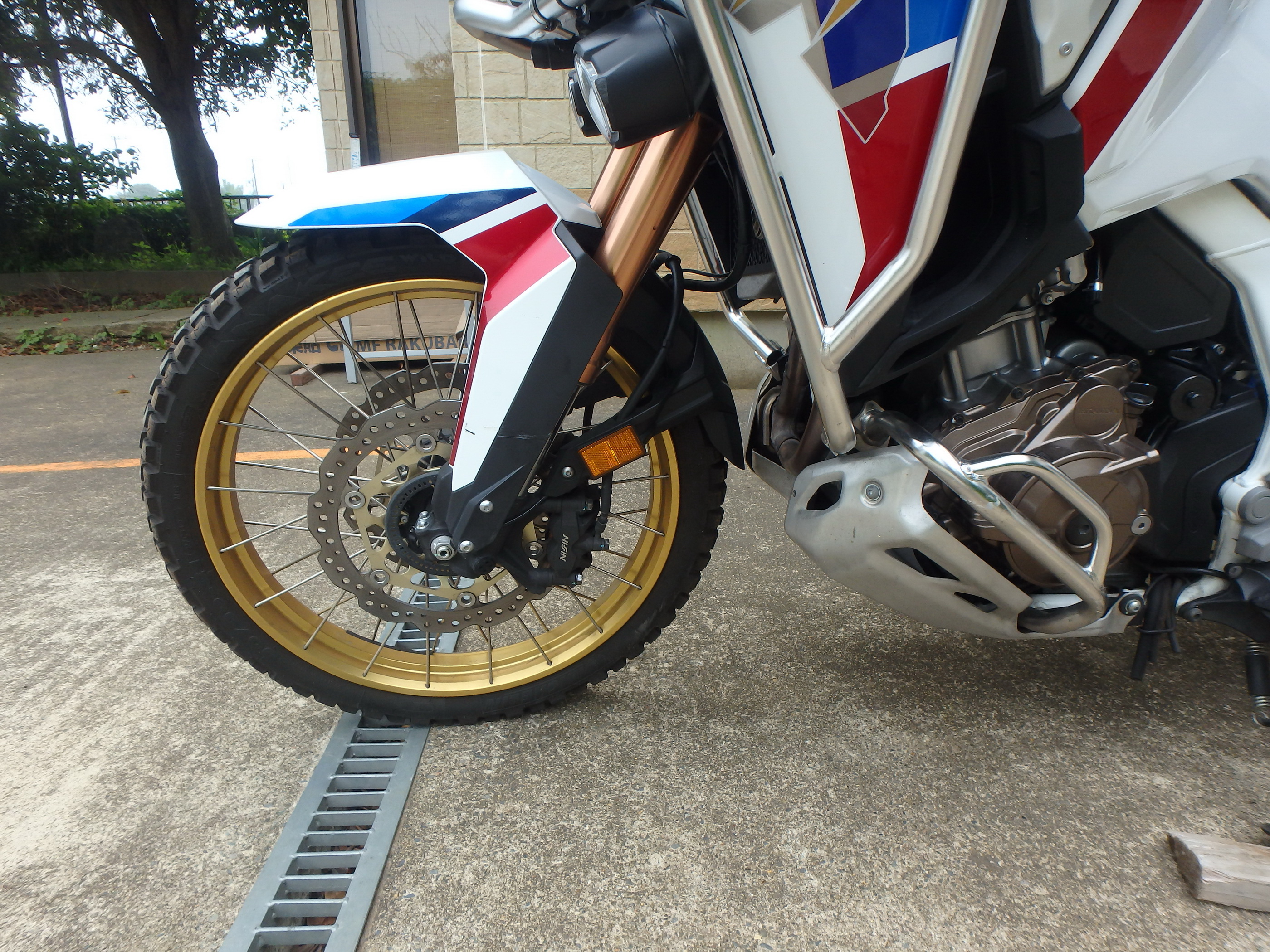

Front Brakes
2x 310 mm wave floating hydraulic disc with aluminium hub and radial fit 4-piston calipers and sintered metal pads
Rear Brakes
Single 256mm wave hydraulic disc with single piston caliper and sintered metal pads. 2-Channel with rear ABS off mode
ABS System
2 channel with IMU, Selectable ABS MODE with on-road and off-road setting
Wheels
Wire spoke with aluminium rim
Front Wheel
21M/C x MT2.15
Rear Wheel
18M/C x MT4.00
Front Tyre
90/90-21
Rear Tyre
150/70R-18
Rake
27°
Trail
113 mm / 4.4 in
Dimensions
Length 2334 mm / 91.9 in Width 961 mm / 37.8 in Height 1391 mm / 54.7 in
Wheelbase
1575 mm / 62 in
Seat Height
850 mm / 33.5 in - 870 mm / 34.2 in (low seat option 825 mm / 32.5 in, high seat option 895 mm / 35.2 in)
Ground Clearance
250 mm / 9.8 in
Wet Weight
226 kg / 498.3 lbs - 236 kg / 520.3 lbs DCT
Fuel Capacity
18.8 Litres / 5 US gal
