Additional information
Make Model
Honda CBR 650R
Year
2024
Engine
Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.
Capacity
649 cc / 39.6 cu-in
Bore x Stroke
67 x 46mm
Compression Ratio
11.6:1
Cooling System
Liquid cooled
Induction
PGM-FI electronic fuel injection, 32mm bore
Emission
Euro5
Ignition
Digital transistorized with electronic advance
Starting
Electric
Max Power
70 kW / 93.8 hp @ 12000 rpm
Max Torque
63 Nm / 46.4 lb-ft @ 9500rpm
Clutch
Multiplate wet
Transmission
Close-ratio 6 Speed
Final Drive
#525 chain; 15T/42T
Frame
Steel diamond
Front Suspension
41mm Showa Separate Function front Fork Big Piston (SFF-BP) USD forks
Front Wheel Travel
120 mm / 4.7 in
Rear Suspension
Monoshock damper with 10 stage adjustable preload, 43.5mm stroke
Rear Wheel Travel
127 mm / 5.0 in

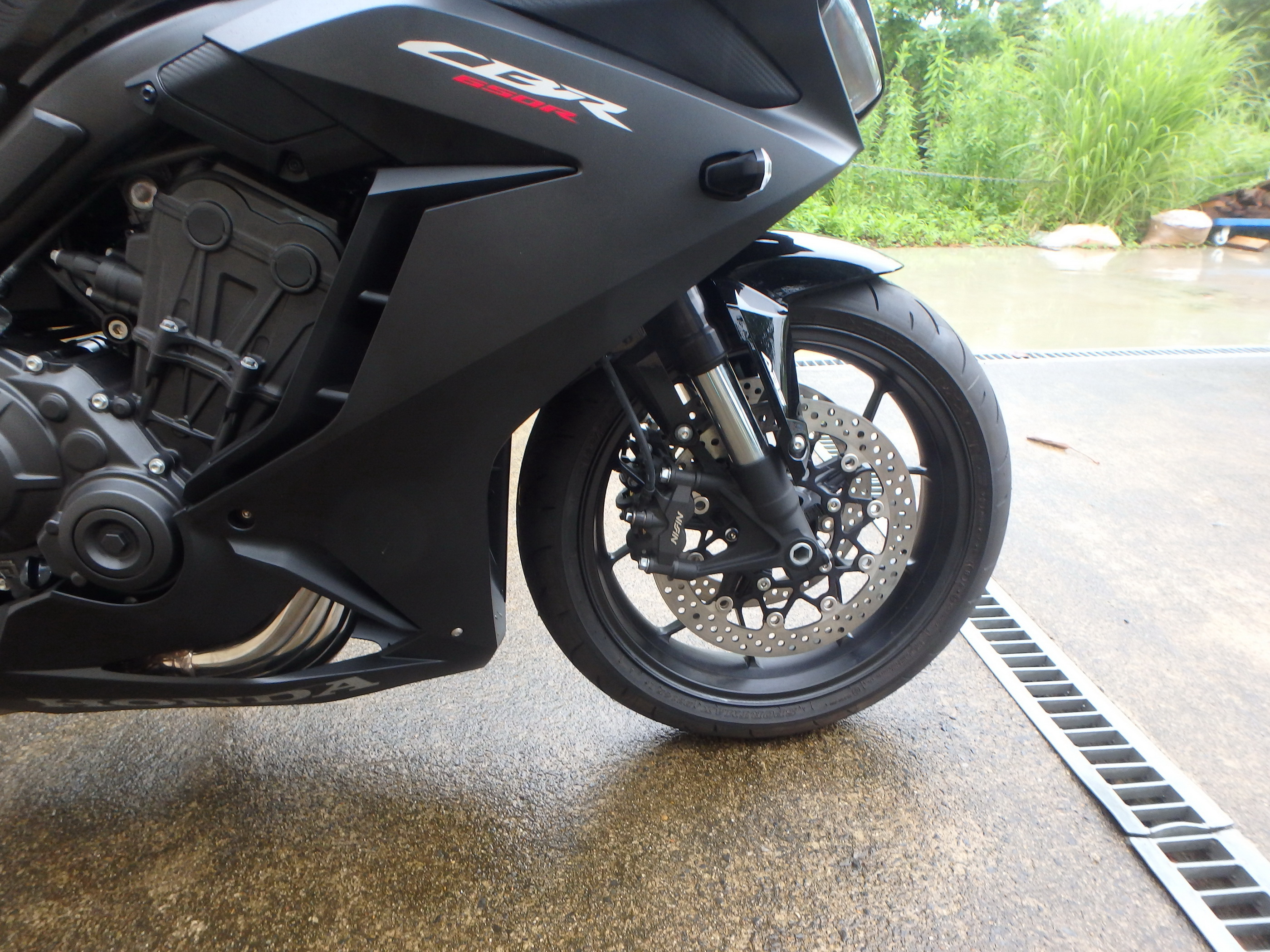

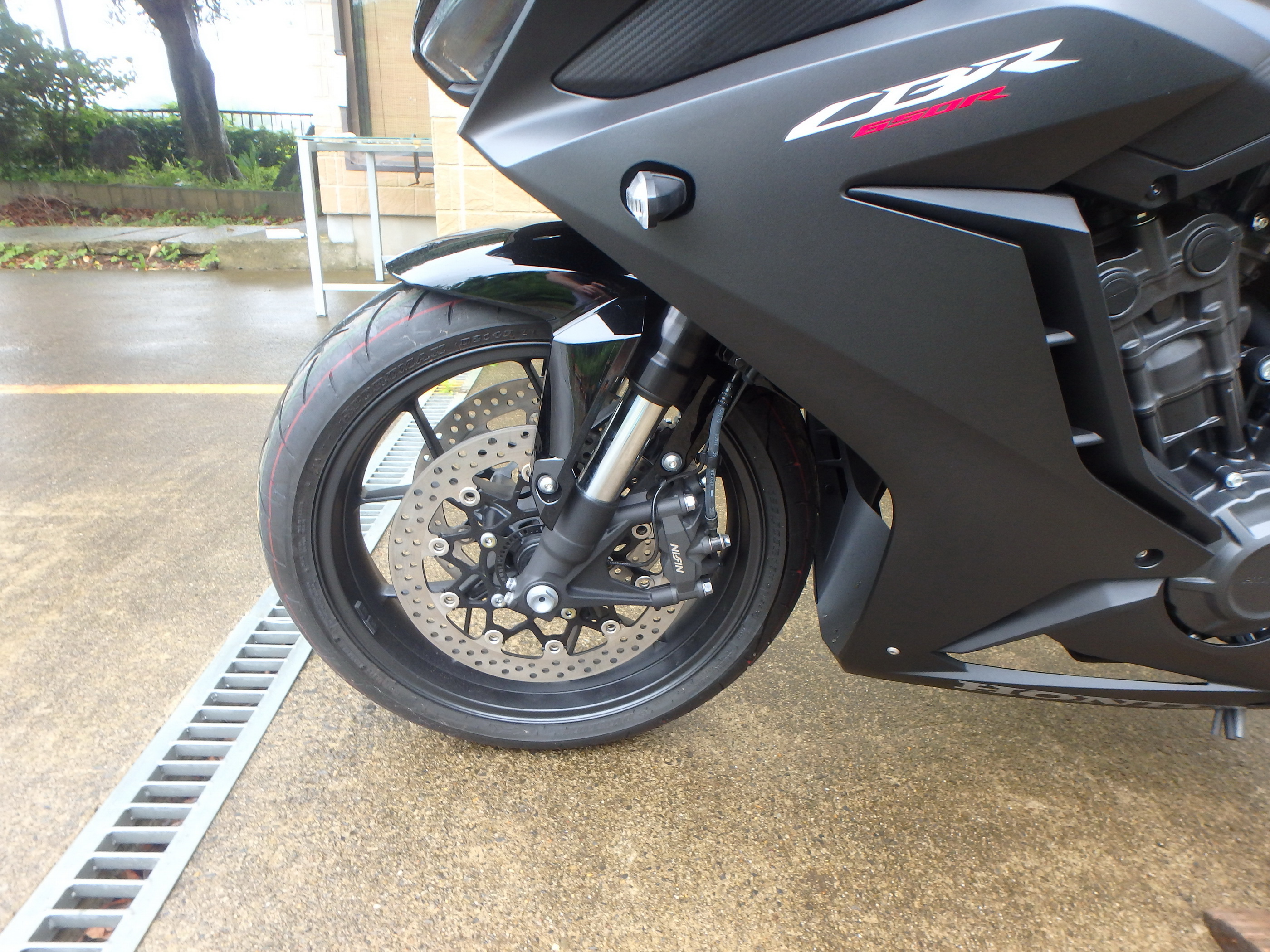

Front Brakes
2x 310mm floating discs dual four-piston, radial-mount Nissin hydraulic calipers
Rear Brakes
Single 240mm disc Single one-piston hydraulic caliper
ABS
2-channel ABS
Wheels
Hollow section 6-spoke cast aluminium
Front Tyre
120/70ZR17 M/C (58W)
Rear Tyre
180/55ZR17 M/C (73W)
Rake
25.5°
Trail
101 mm / 3.9 in
Dimensions
Length 2131 mm / 83.9 in Width 749.3 mm / 29.5 in Height 1148 mm / 45.2 in
Wheelbase
1450 mm / 57.0 in
Seat Height
810 mm / 31.9 in
Ground Clearance
130 mm / 5.2 in
Wet Weight
208 / 458.5 lbs
Fuel Capacity
15.4 Litres / 4.0 US gal
