Additional information
Make Model

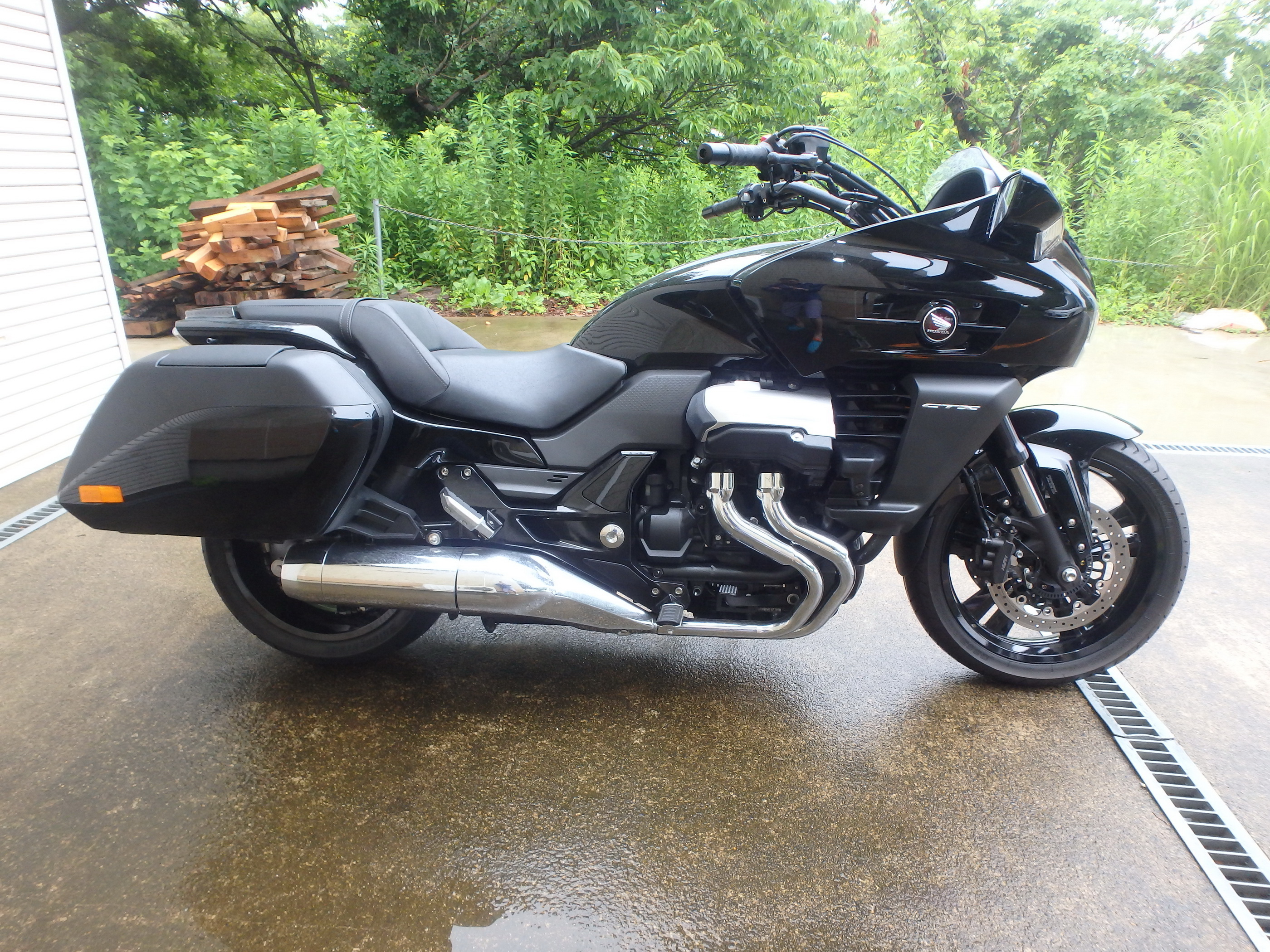

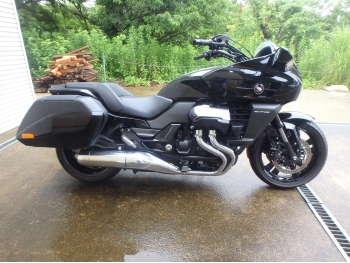

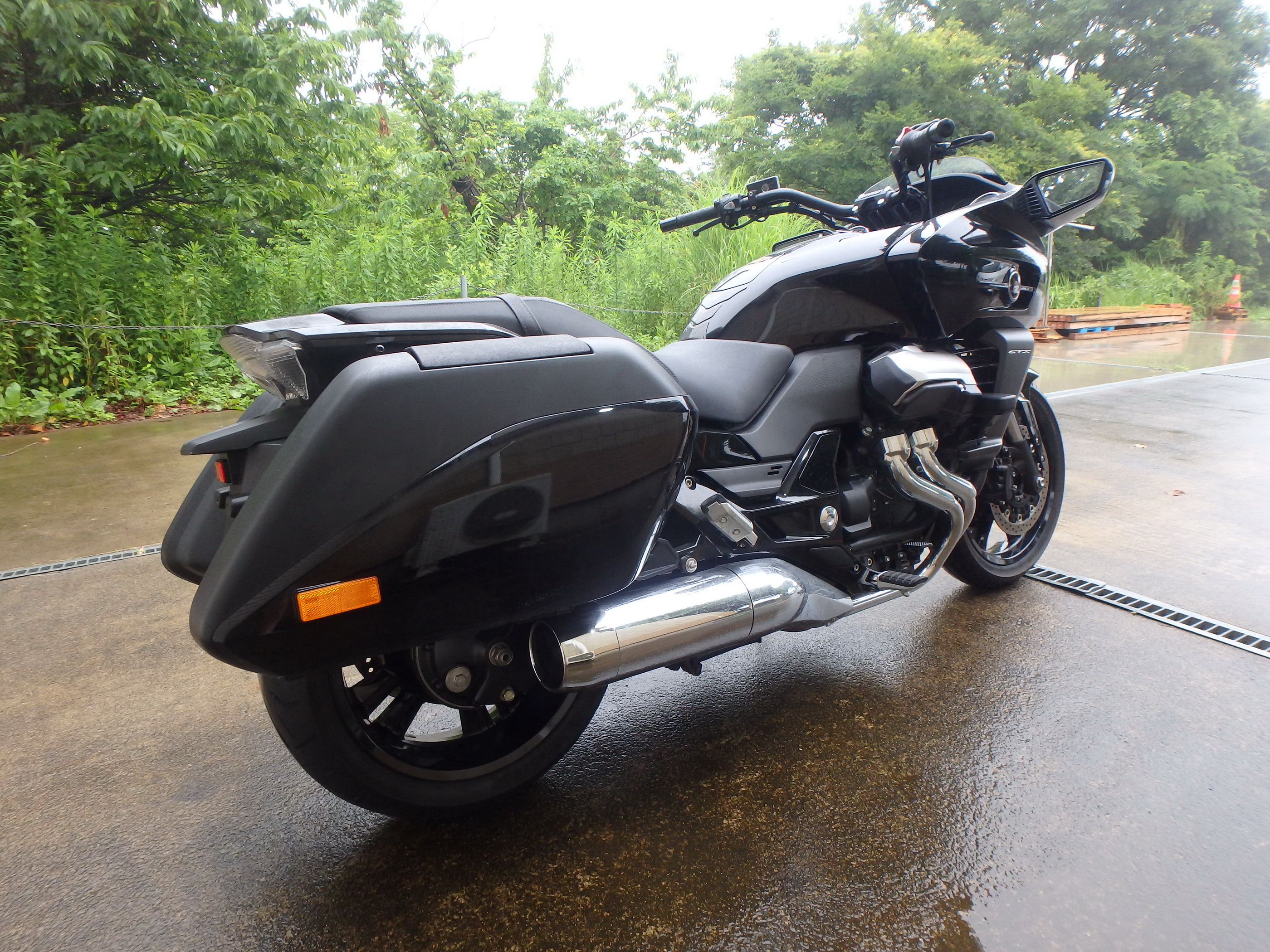

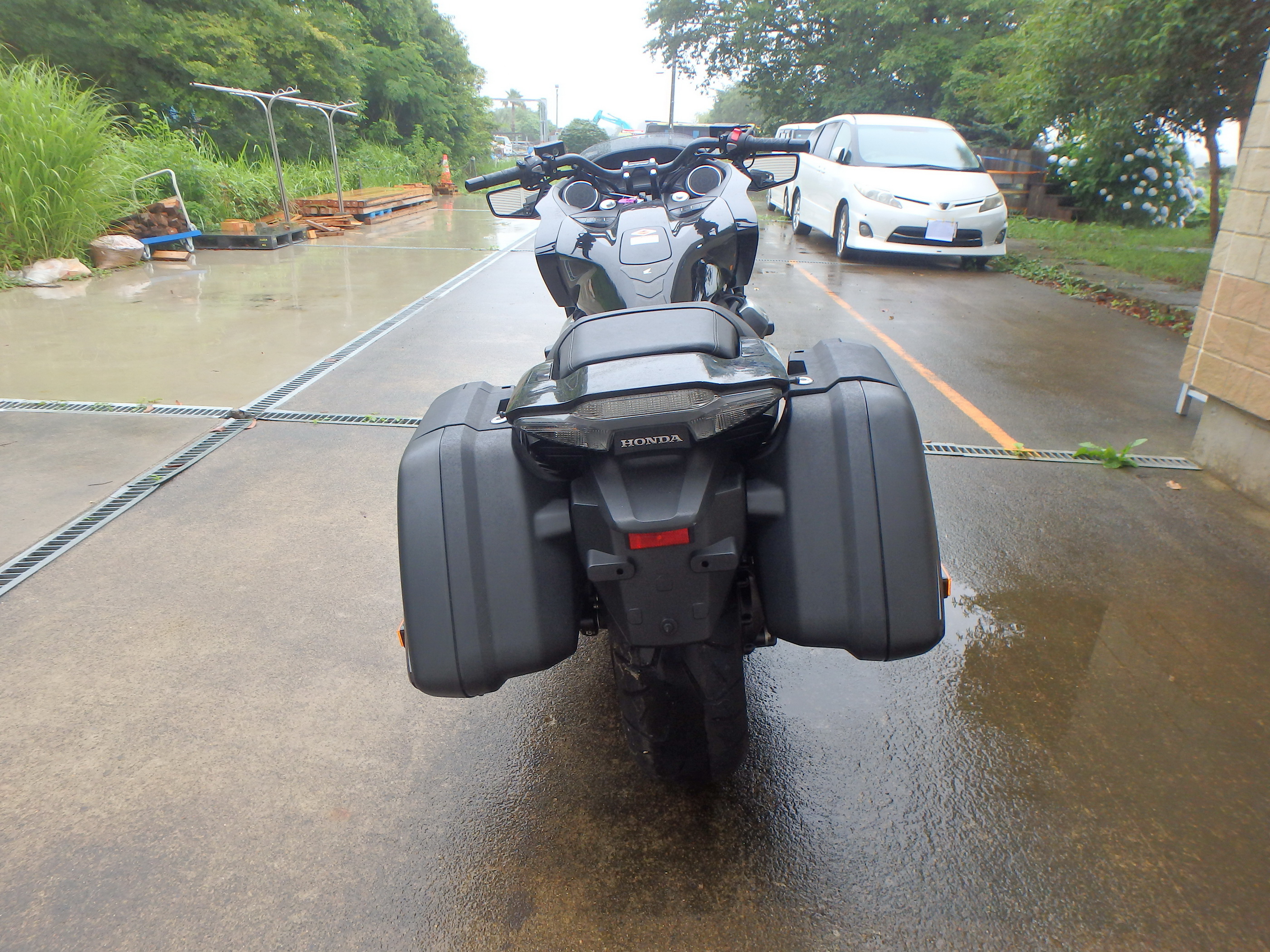

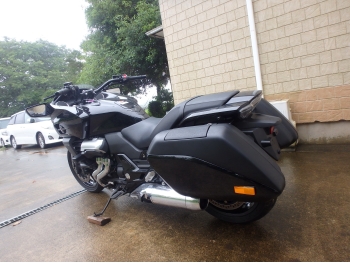

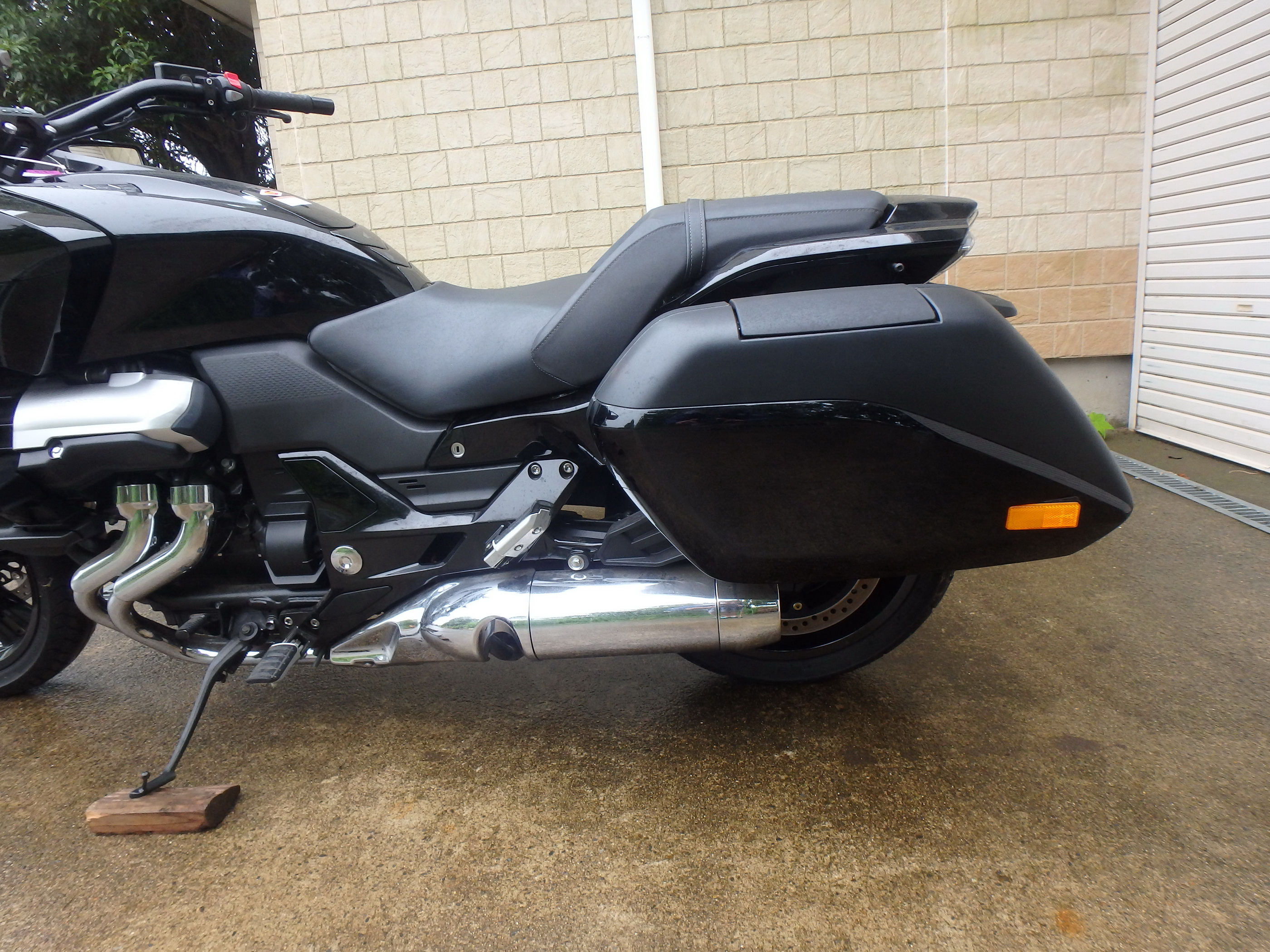

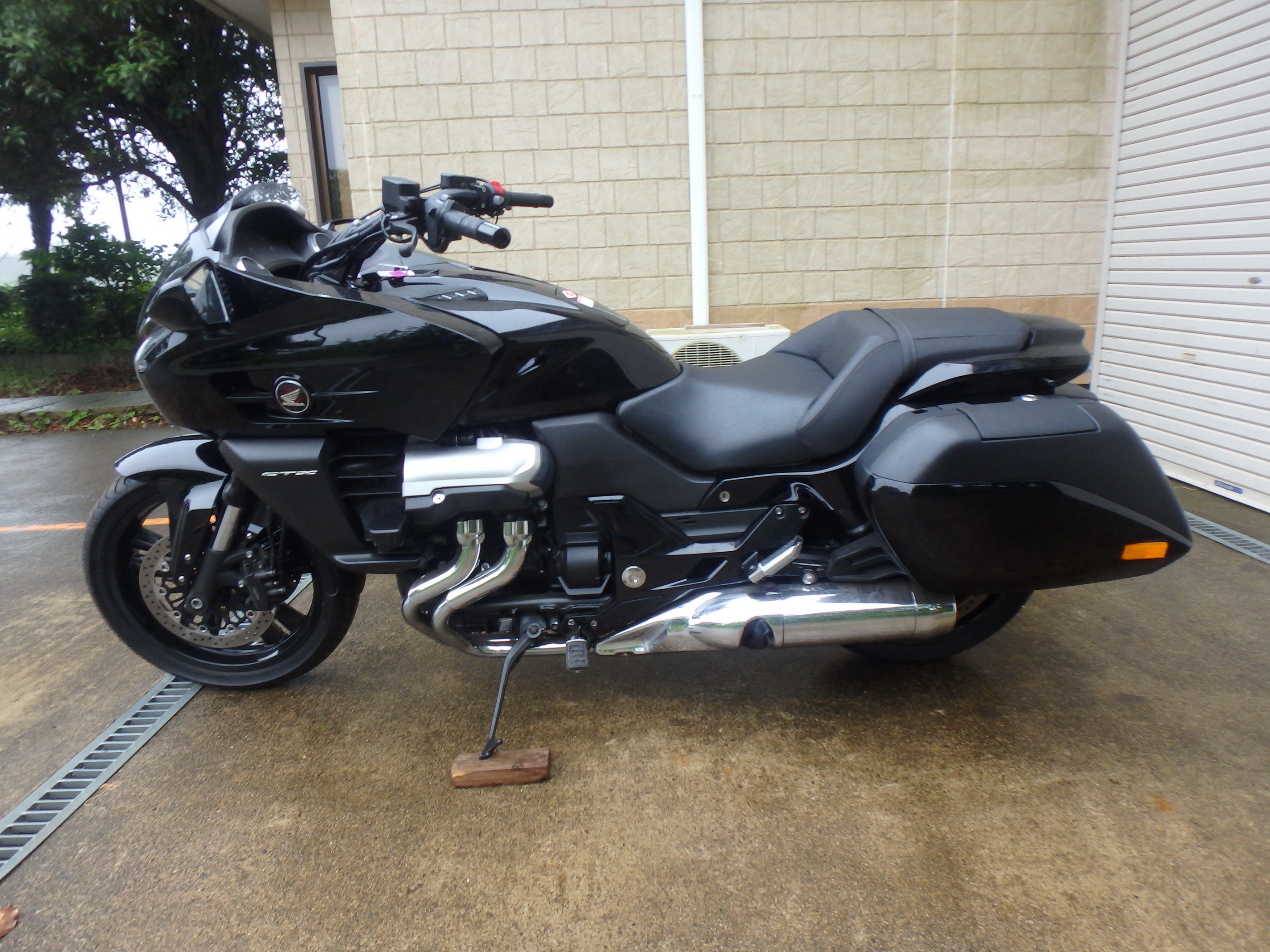

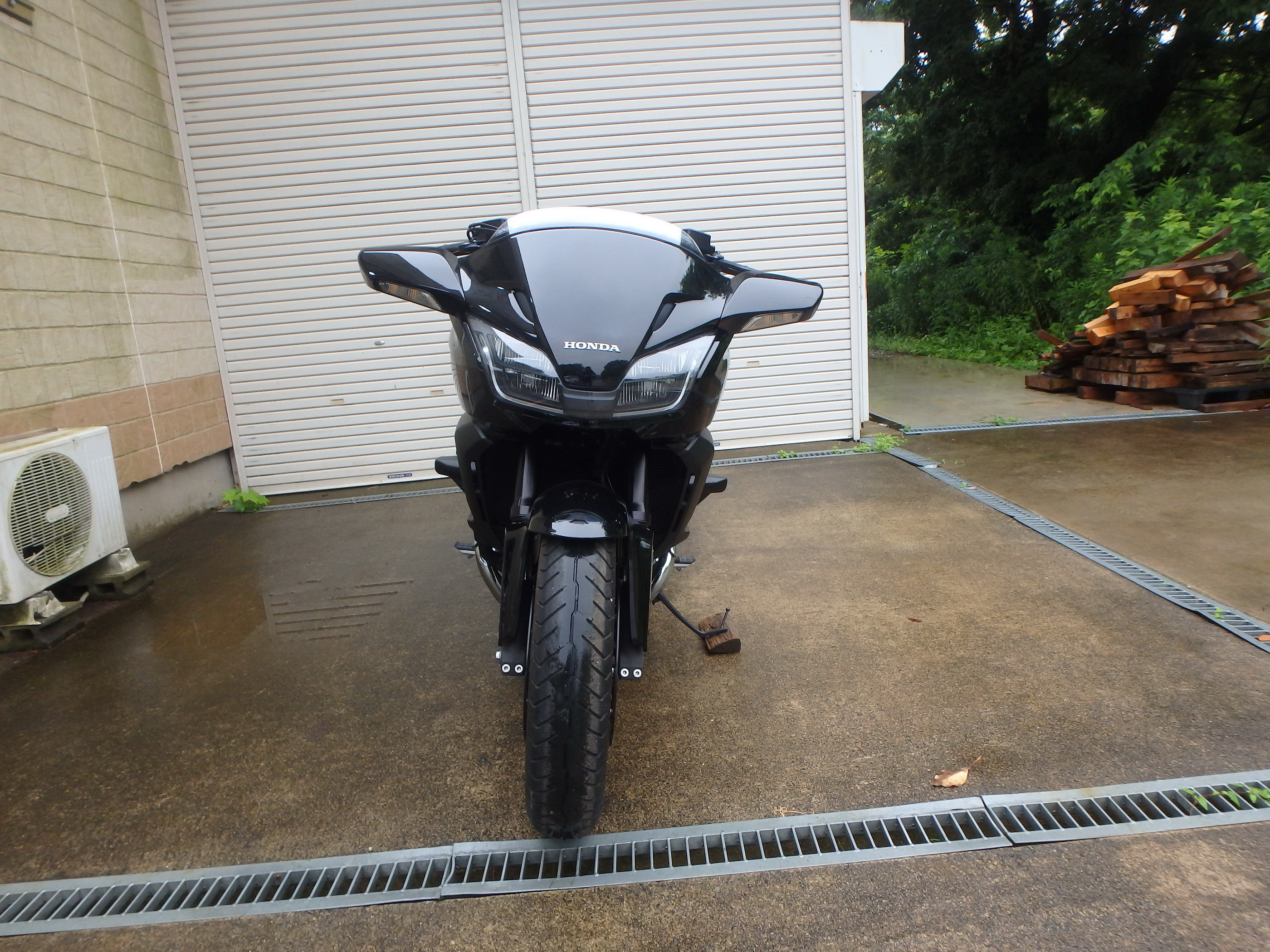

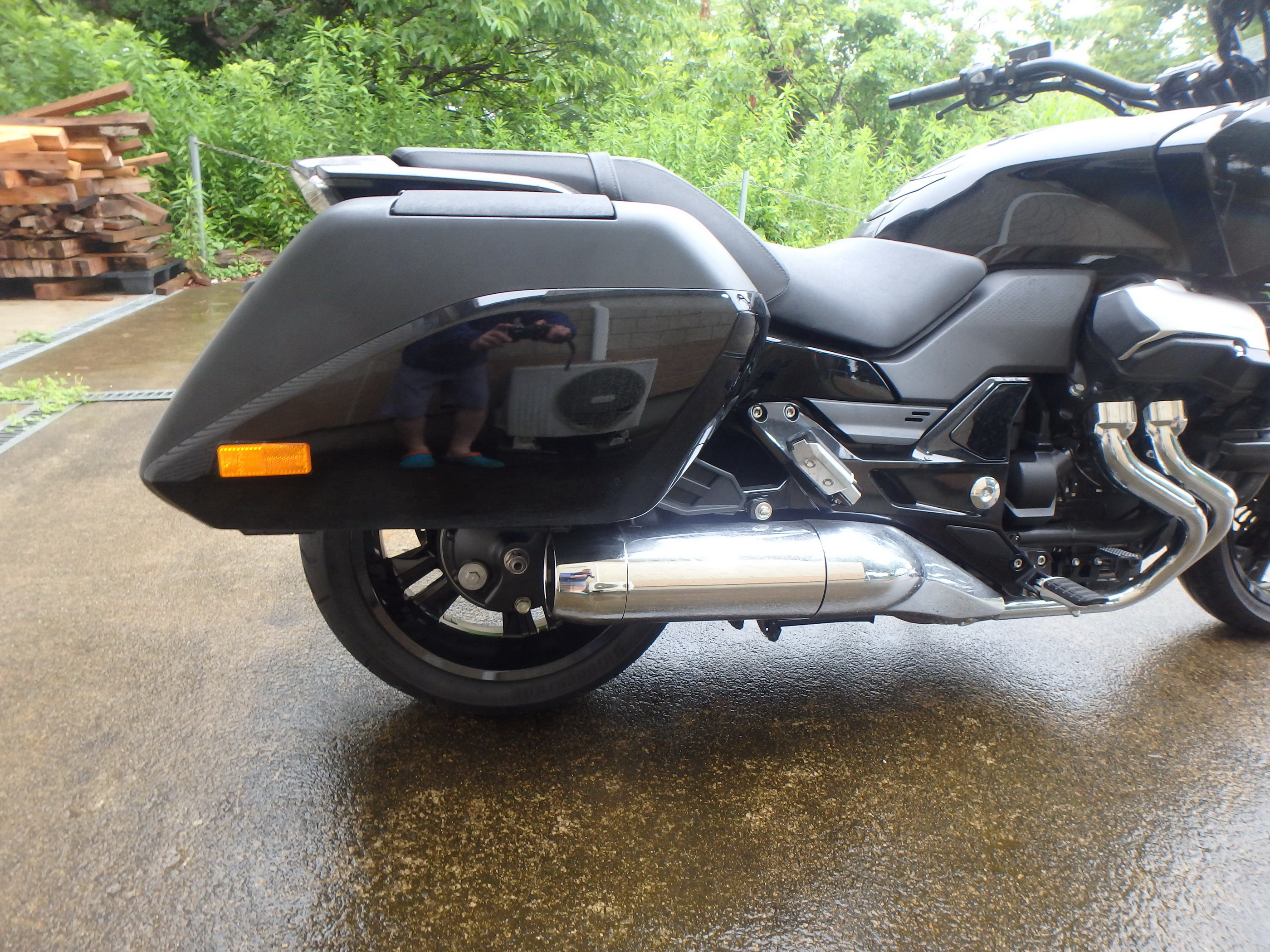

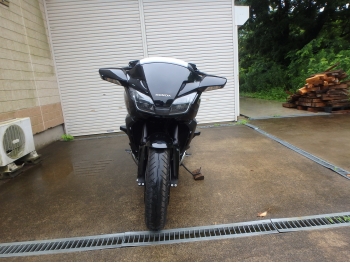

Honda CTX 1300
Year
2014-15
Engine

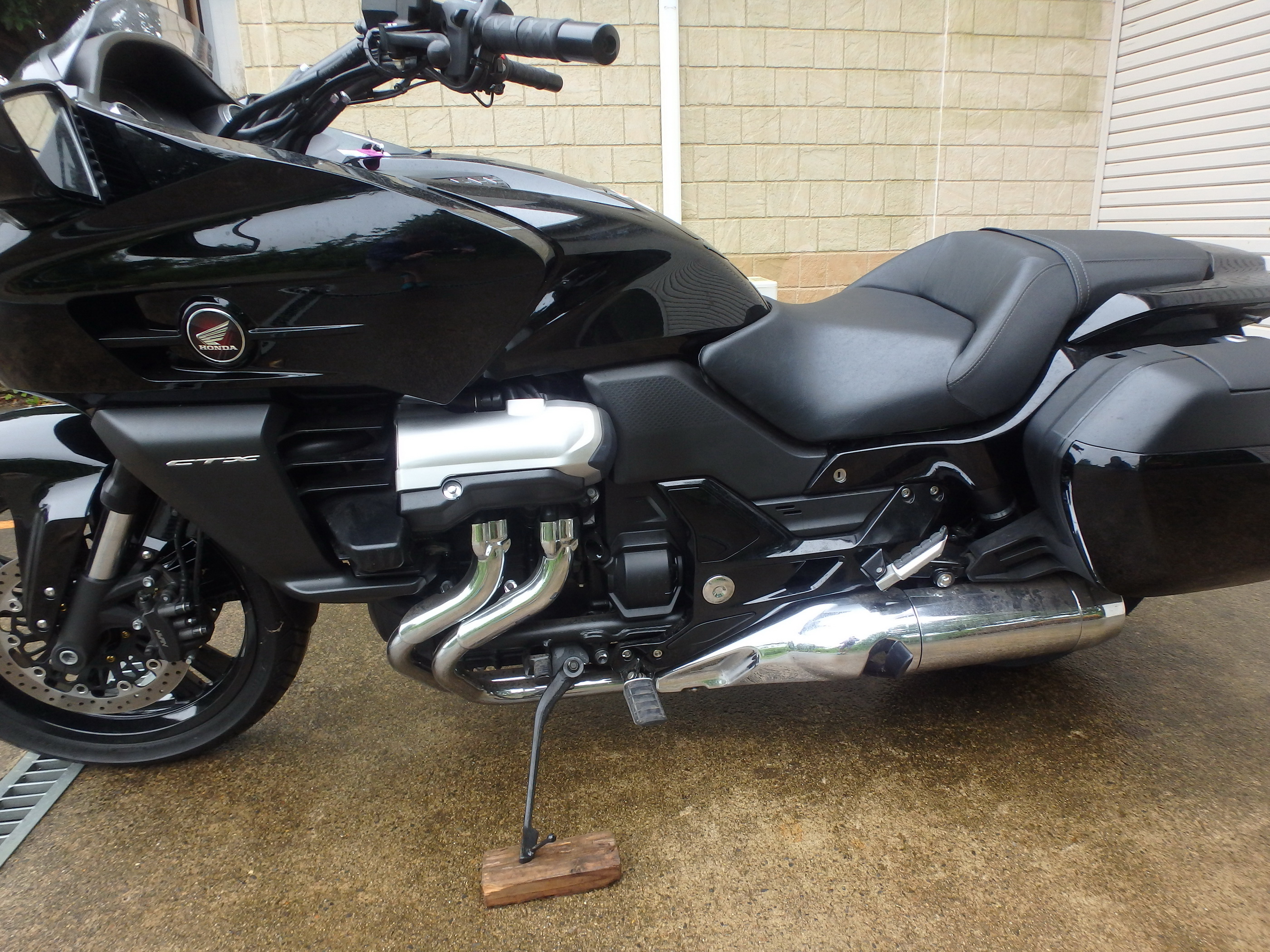

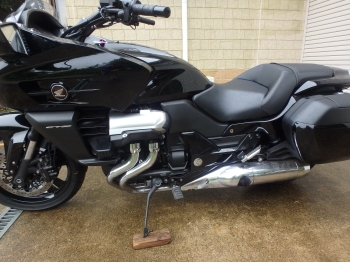

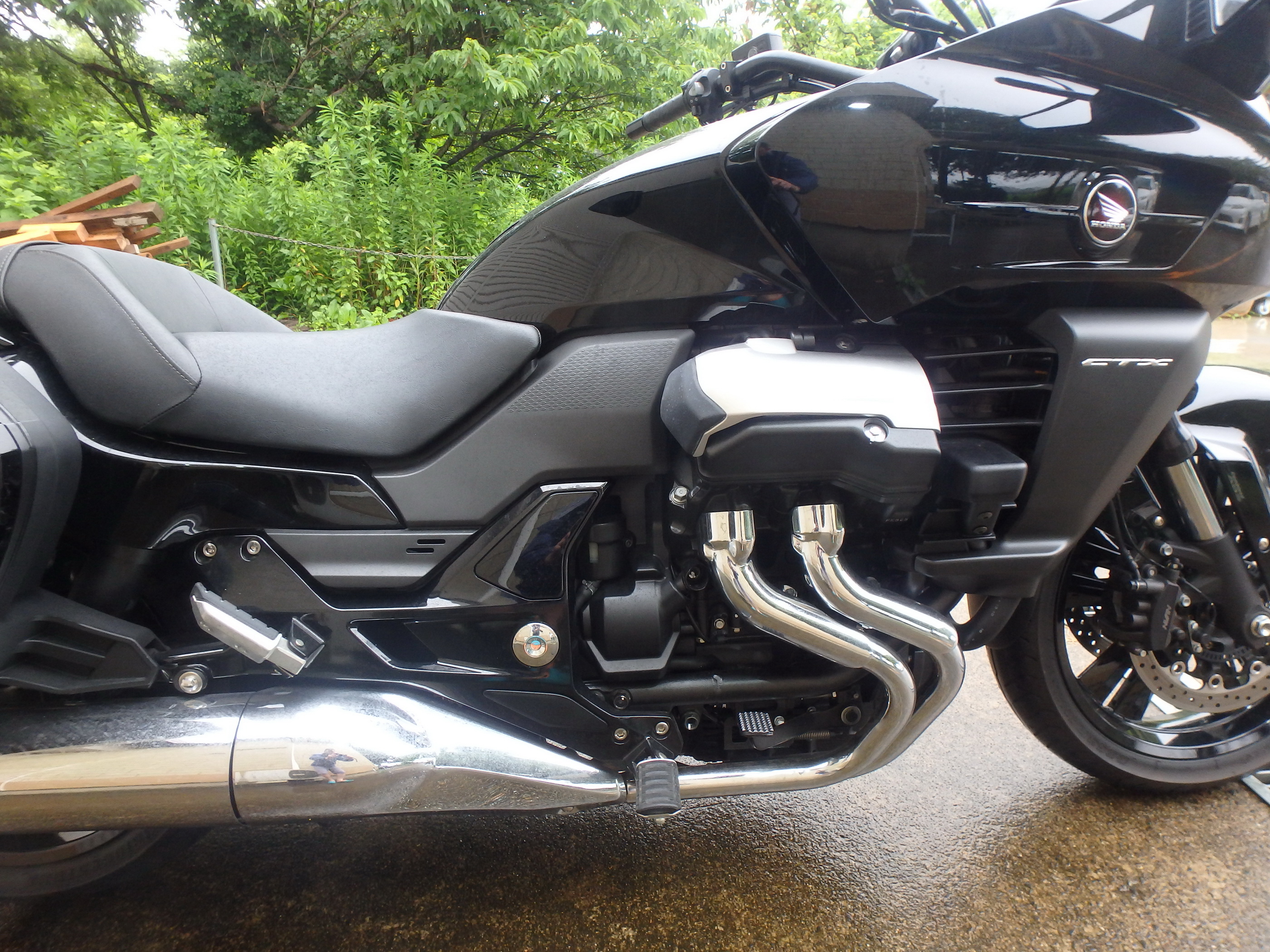

Four stroke, longitudinally mounted 90° V-4, DOHC, 4 valve per cylinder
Capacity
1231 cc / 75.1 cu-in
Bore x Stroke
78 x 66.0 mm
Cooling System
Liquid cooled
Compression Ratio
10.0:1
Induction
PGM-FI with electronic control IACV, four 36mm throttle bodies, eight holes per injector
Ignition
Computer-controlled digital with 3-D mapping and electronic advance
Starting
Eclectic
Max Power
Max Torque
Clutch
Wet Multiplate
Transmission
5 Speed
Final Drive
Shaft
Frame
Rigid tube steel diamond
Front Suspension

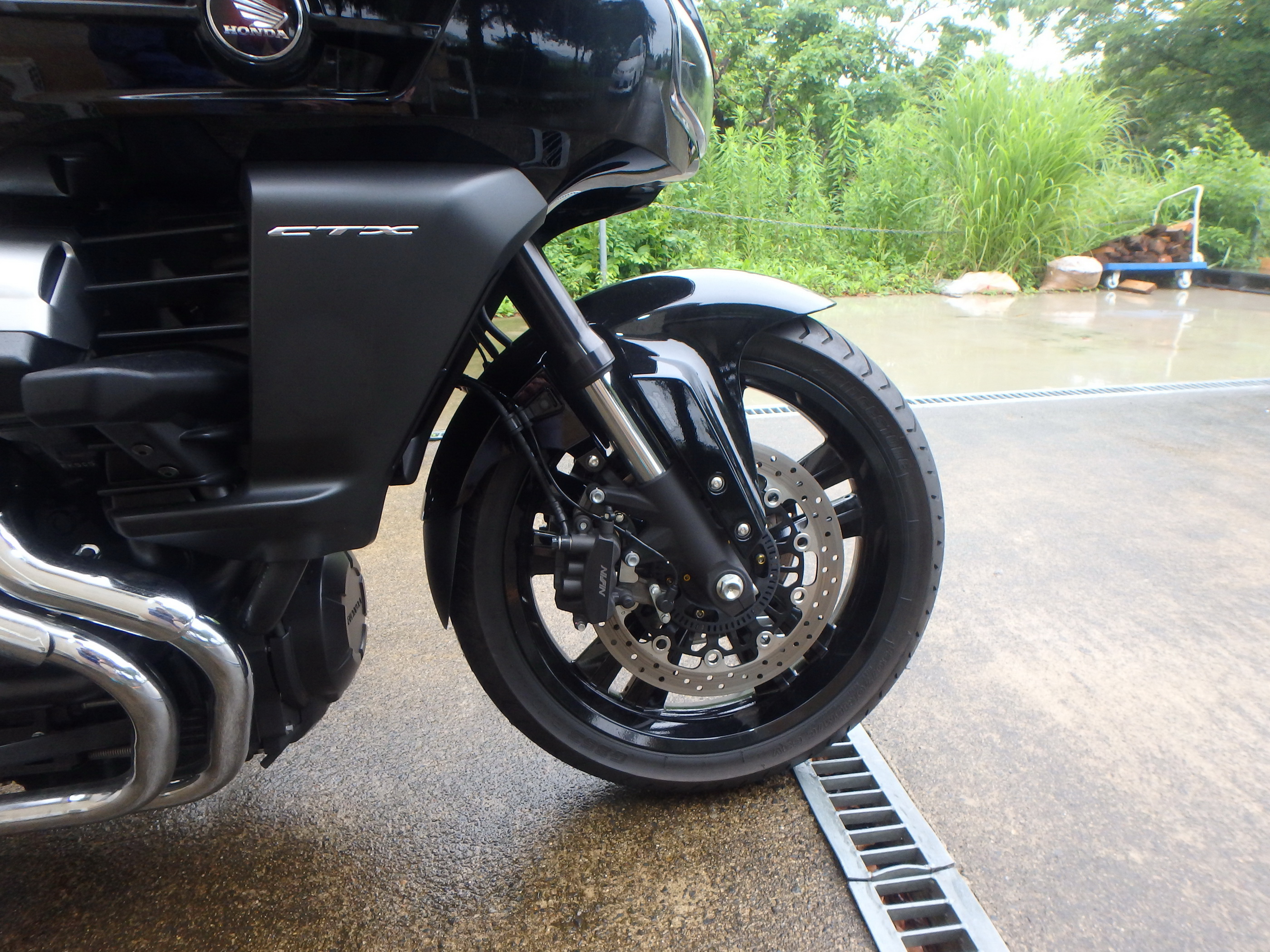

Inverted 45mm fork
Rear Suspension
Twin rear shocks with spring preload

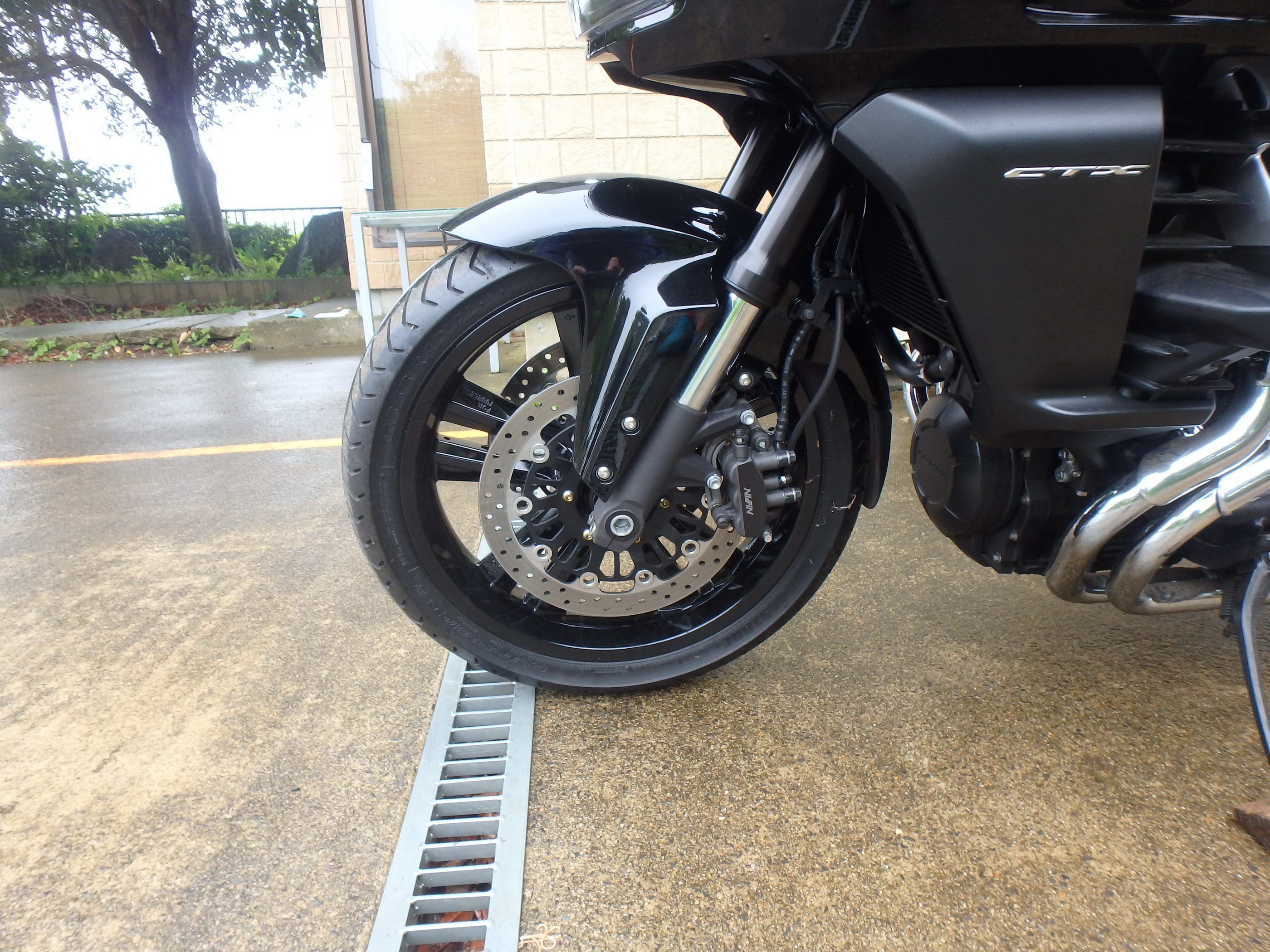

Front Brakes
2X 310mm disc
Rear Brakes
Single 315mm disc (Deluxe model fitted with CBS ABS)
Front Tyre
130/70R-18
Rear Tyre
200/50R-17
Rake
28˚
Trail
114 3 mm / 4.5 in
Dimensions
Length 2195 mm / 86.4 inWidth 790 mm / 31.1 inHeight 1440 mm / 56.6 in
Wheelbase
1638.3 mm / 64.5 in
Seat Height
739 mm / 29.1 in
Wet Weight
331.7 lg / 731.4 lbs

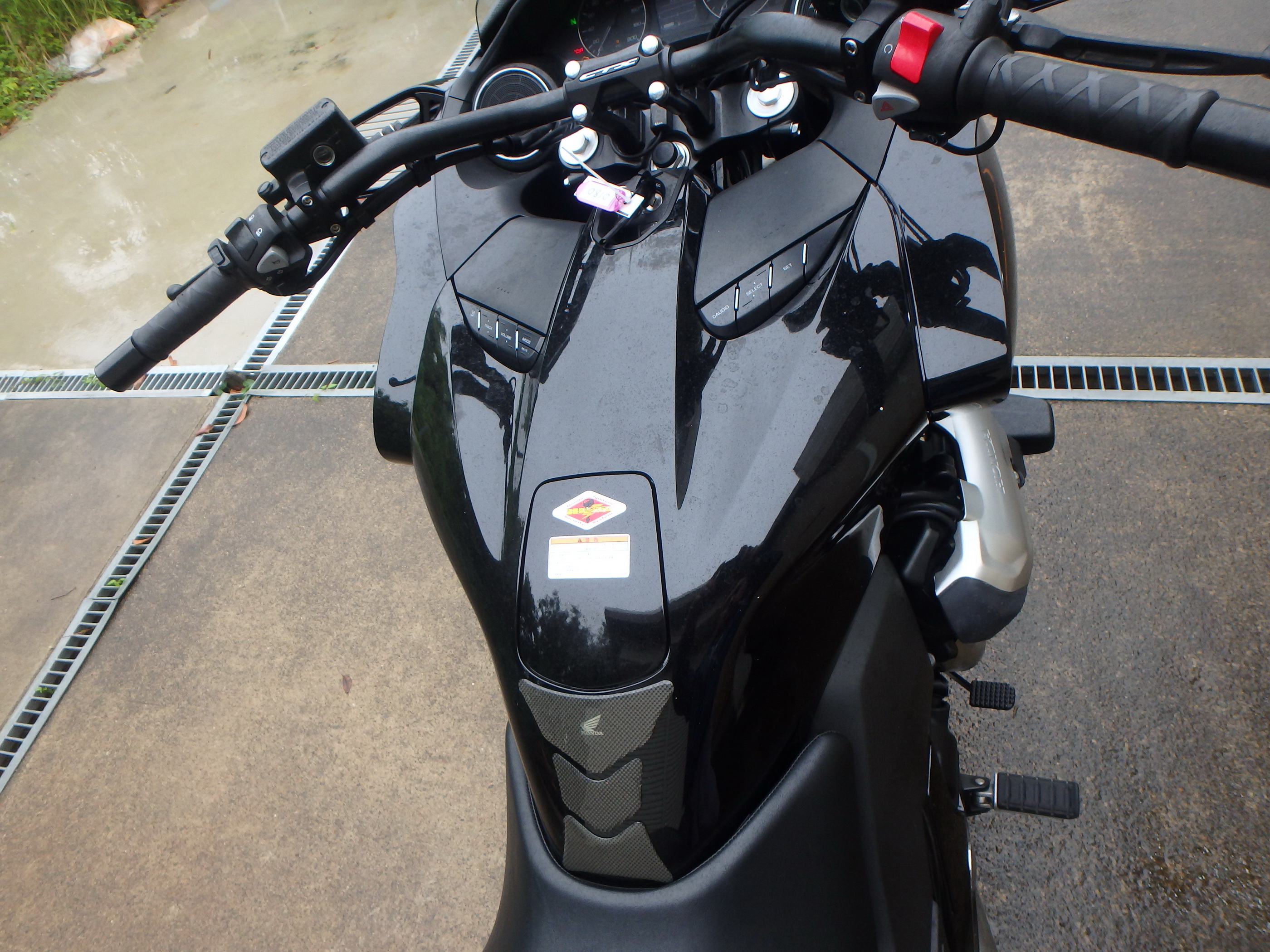

Fuel Capacity
22.5 Liters / 5.1 gal
