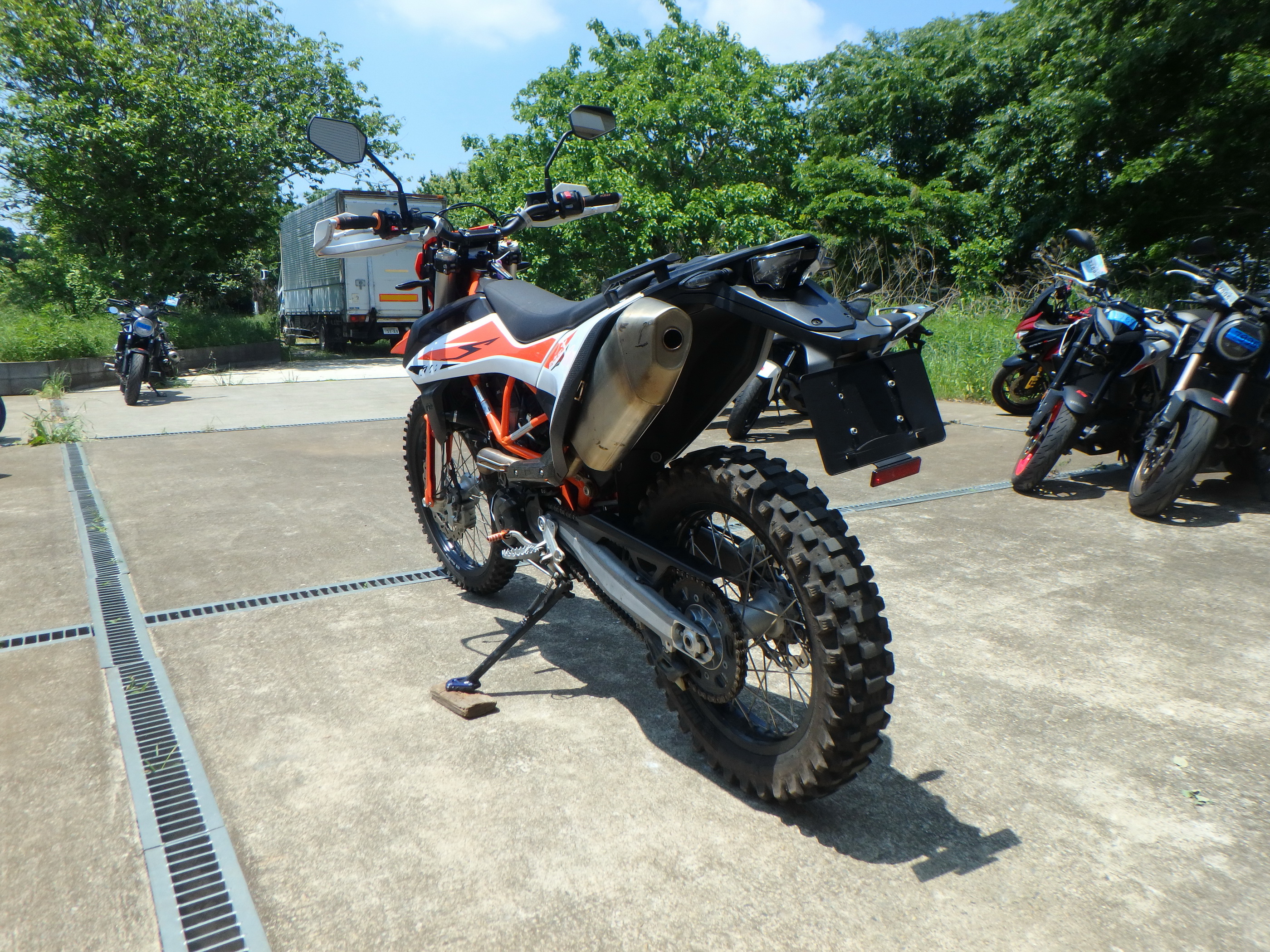

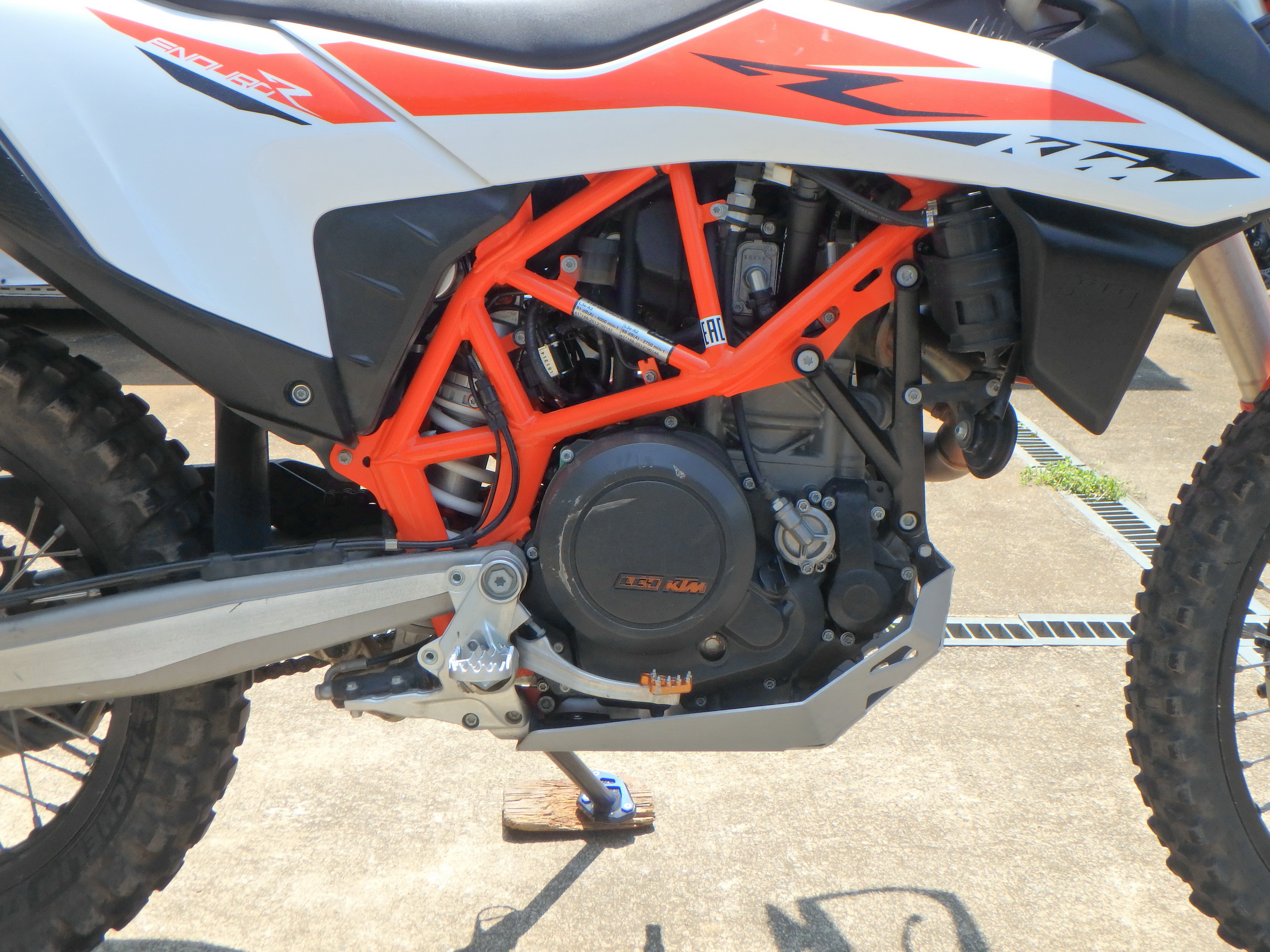

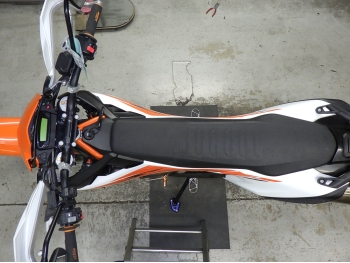

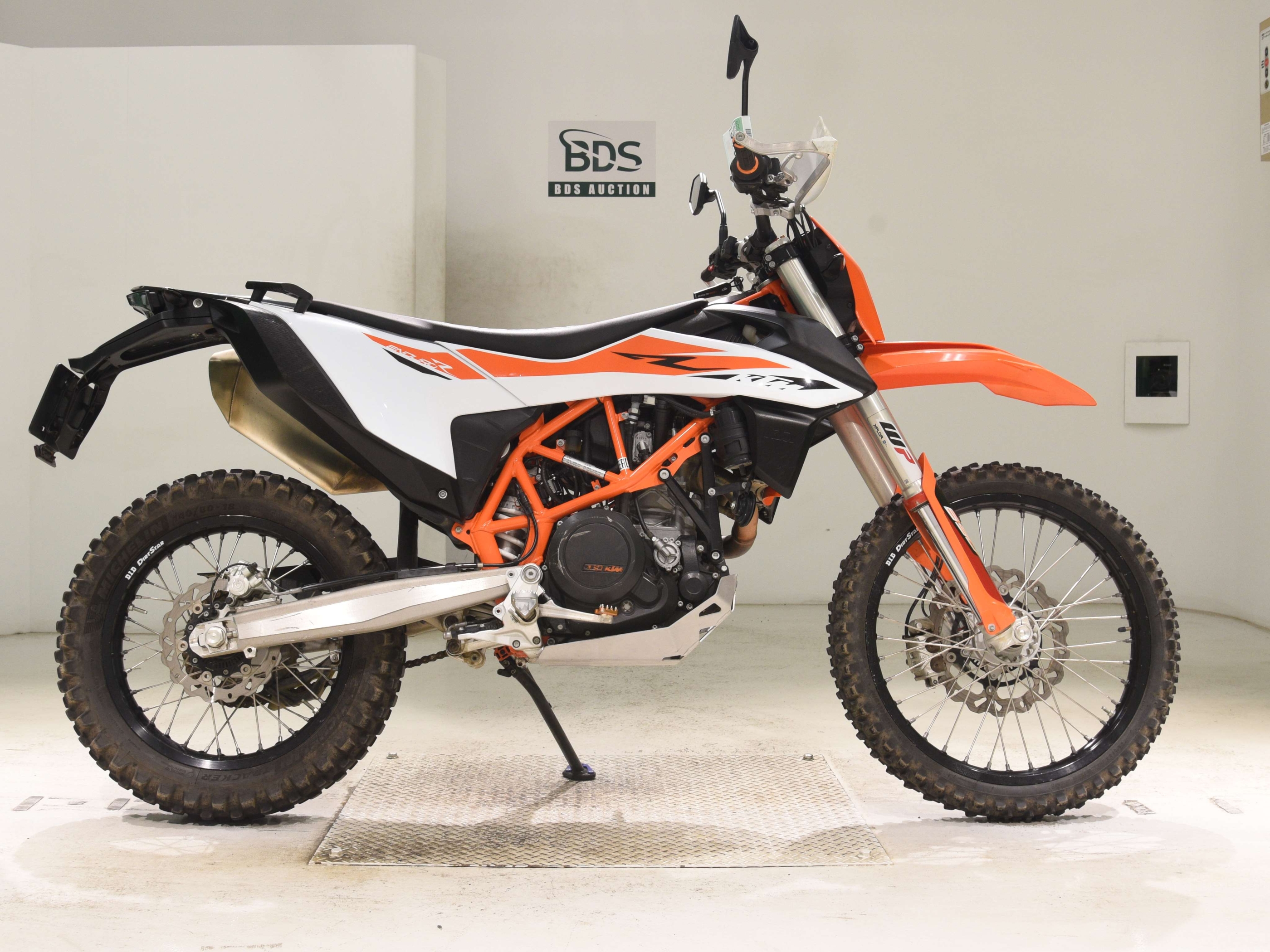

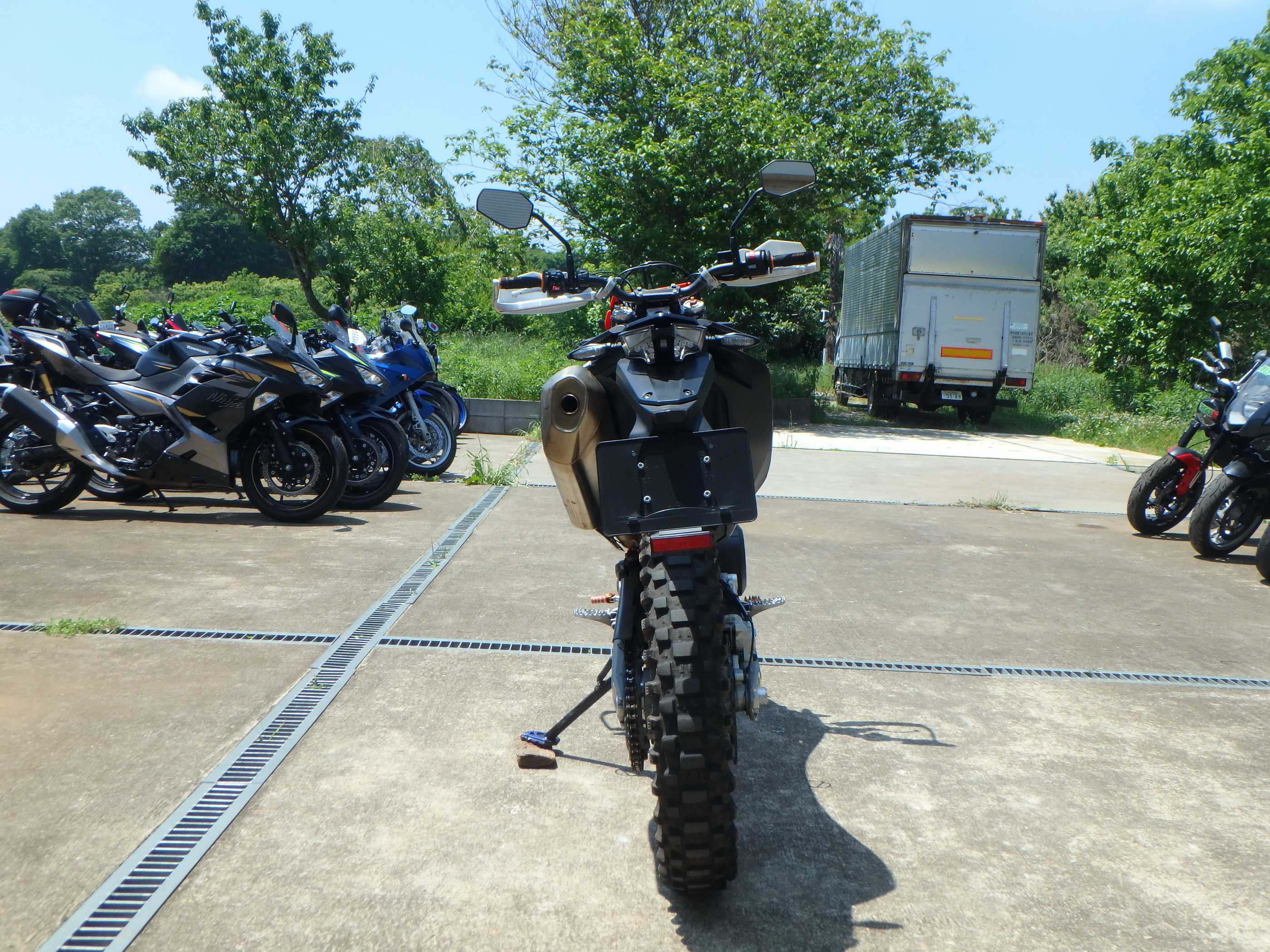

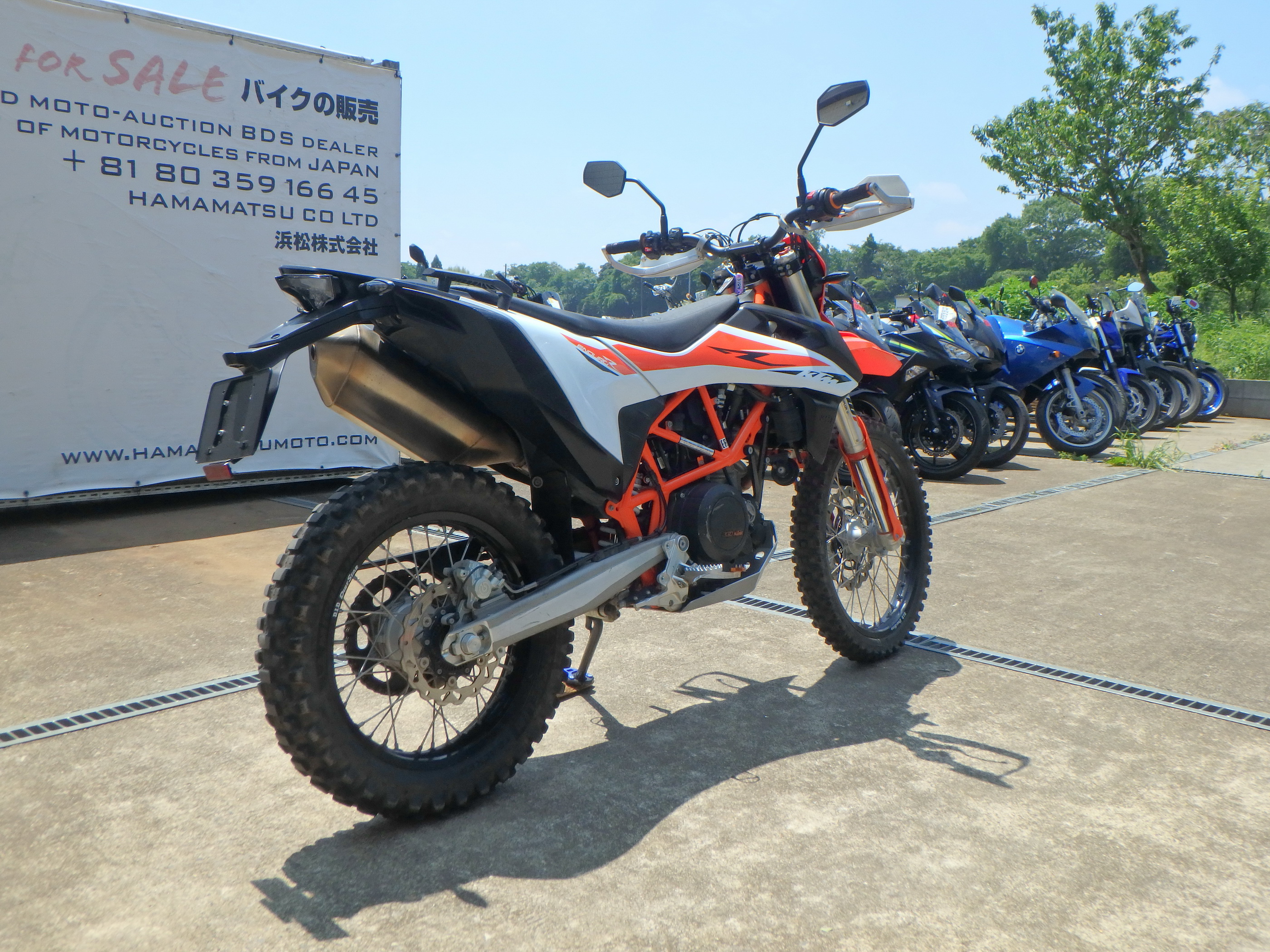

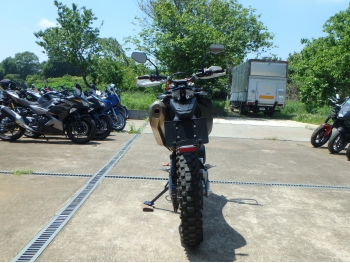

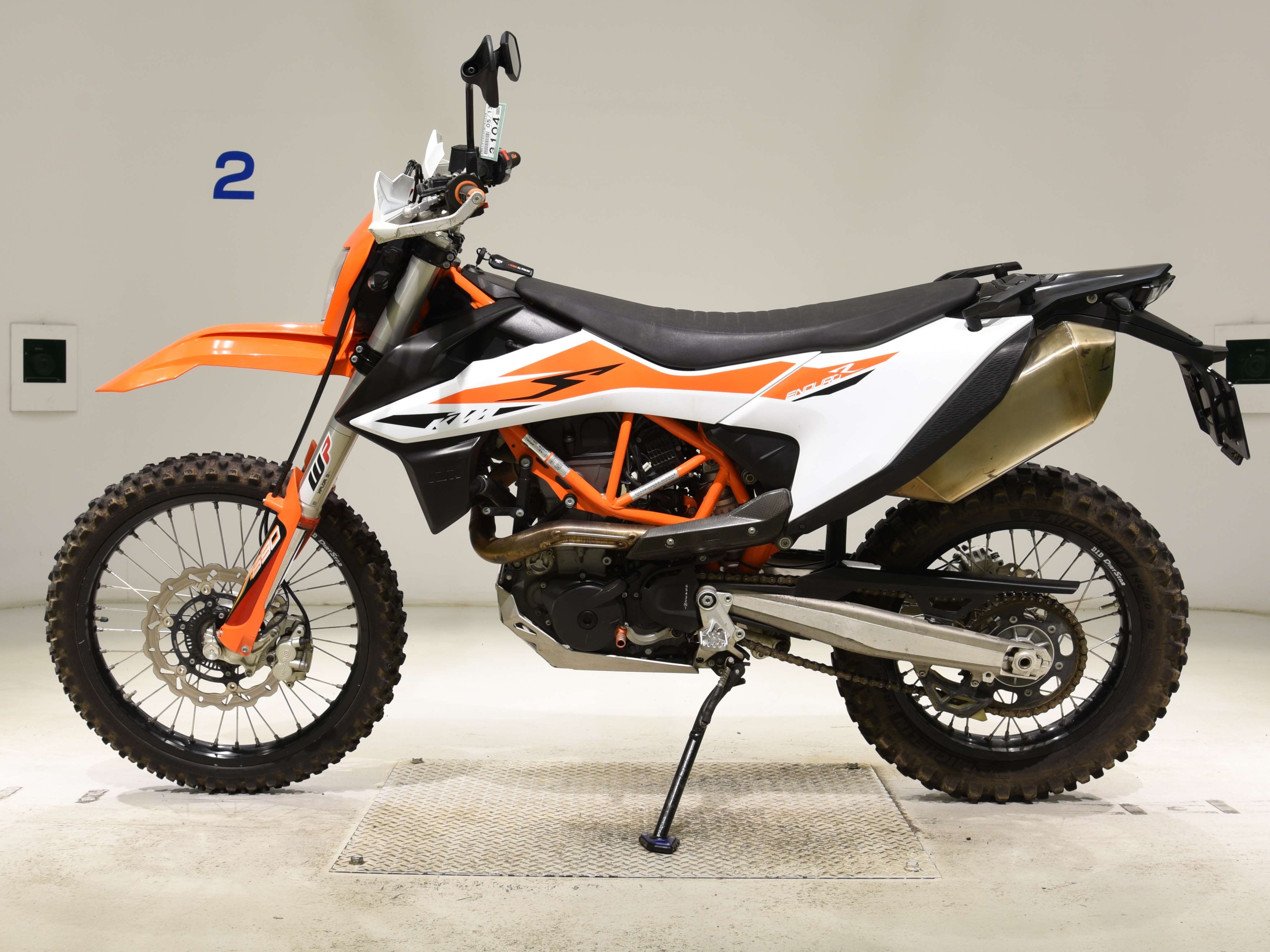

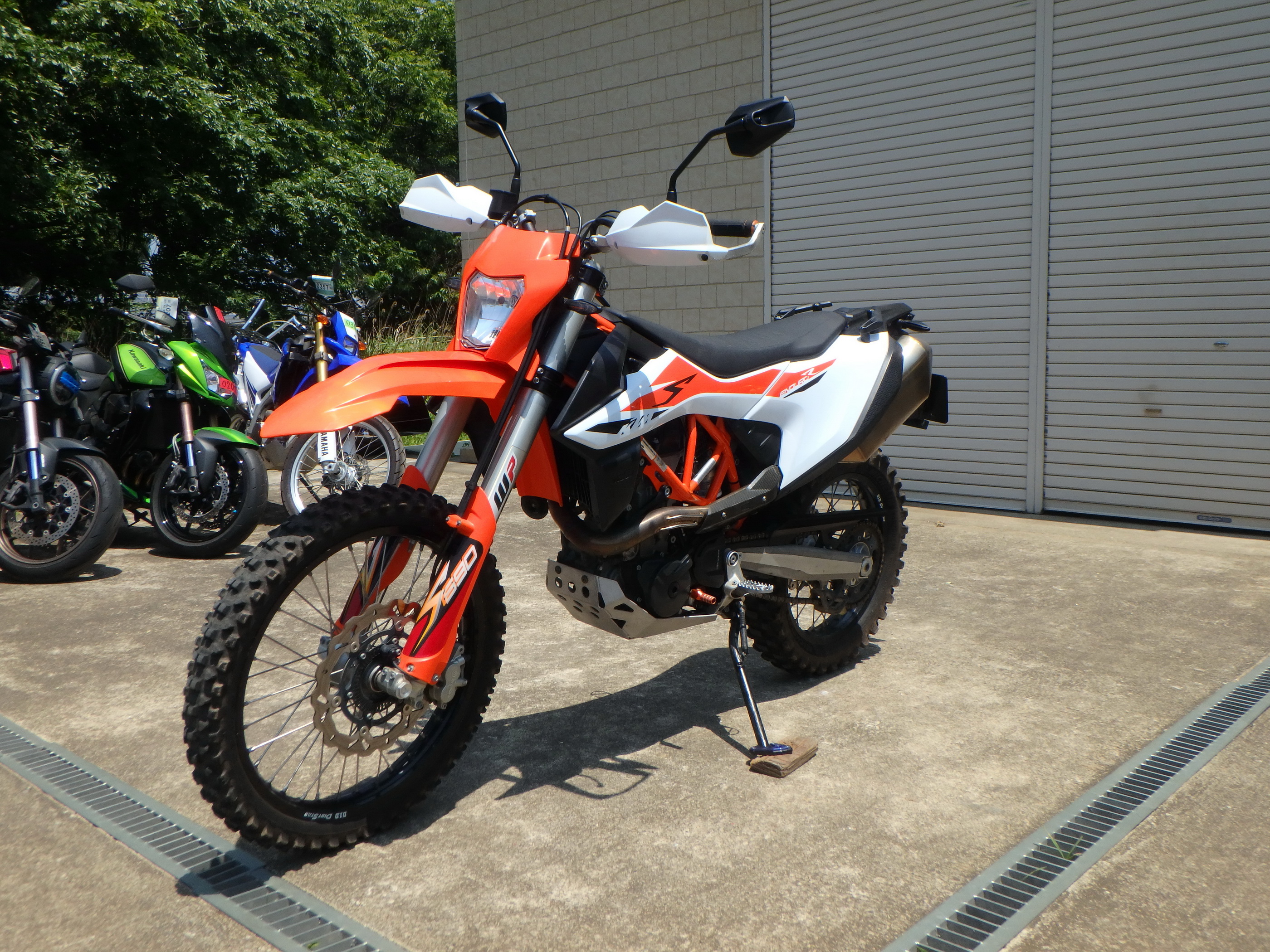

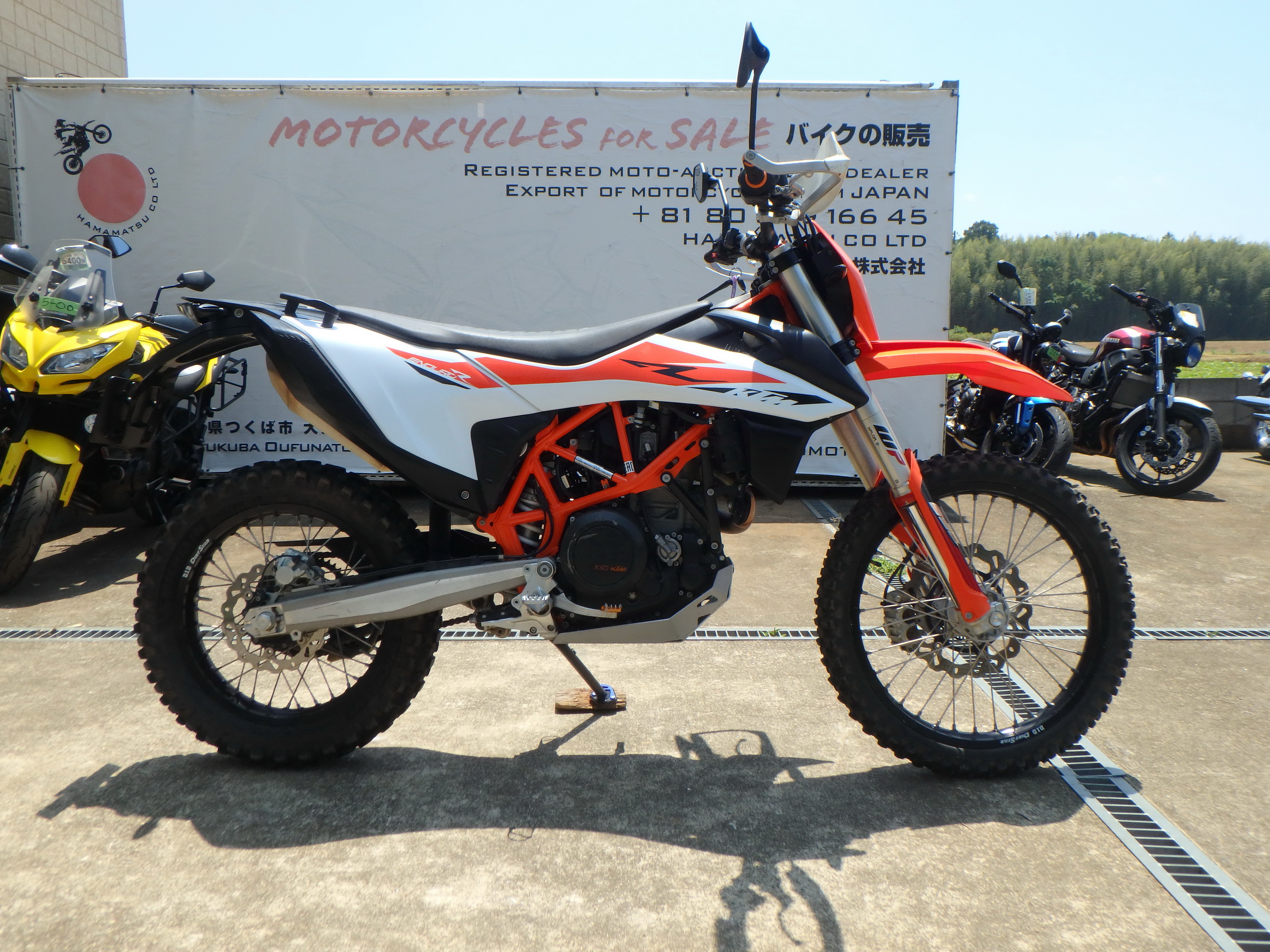

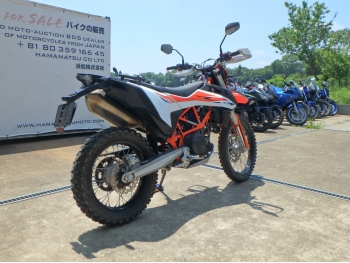

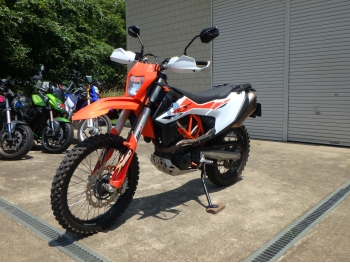

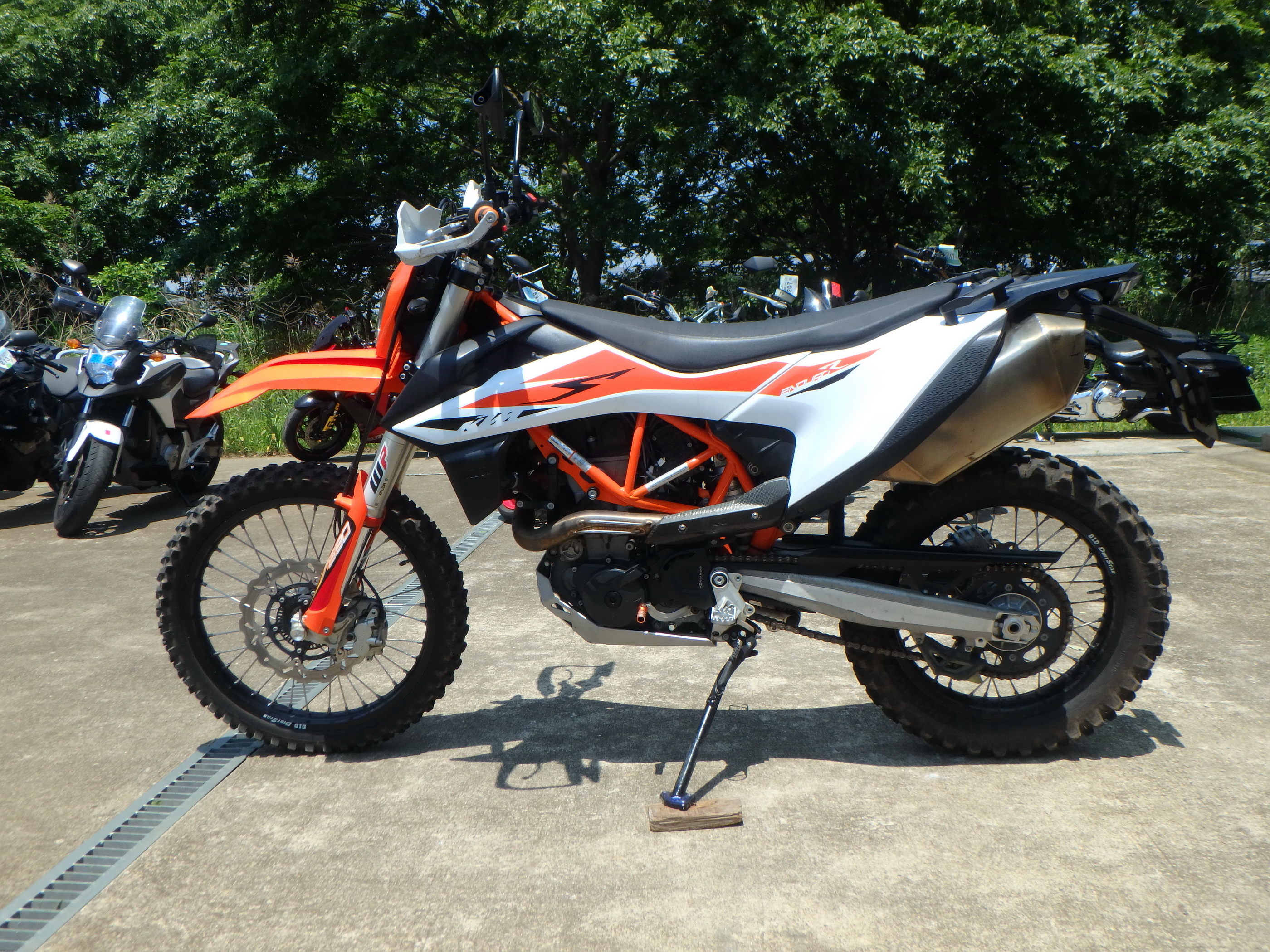

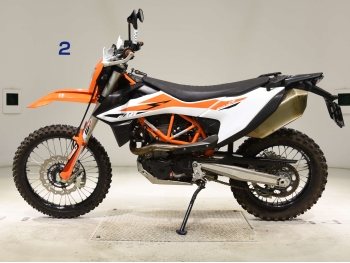

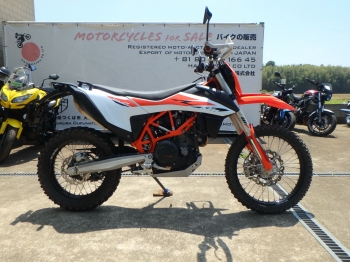

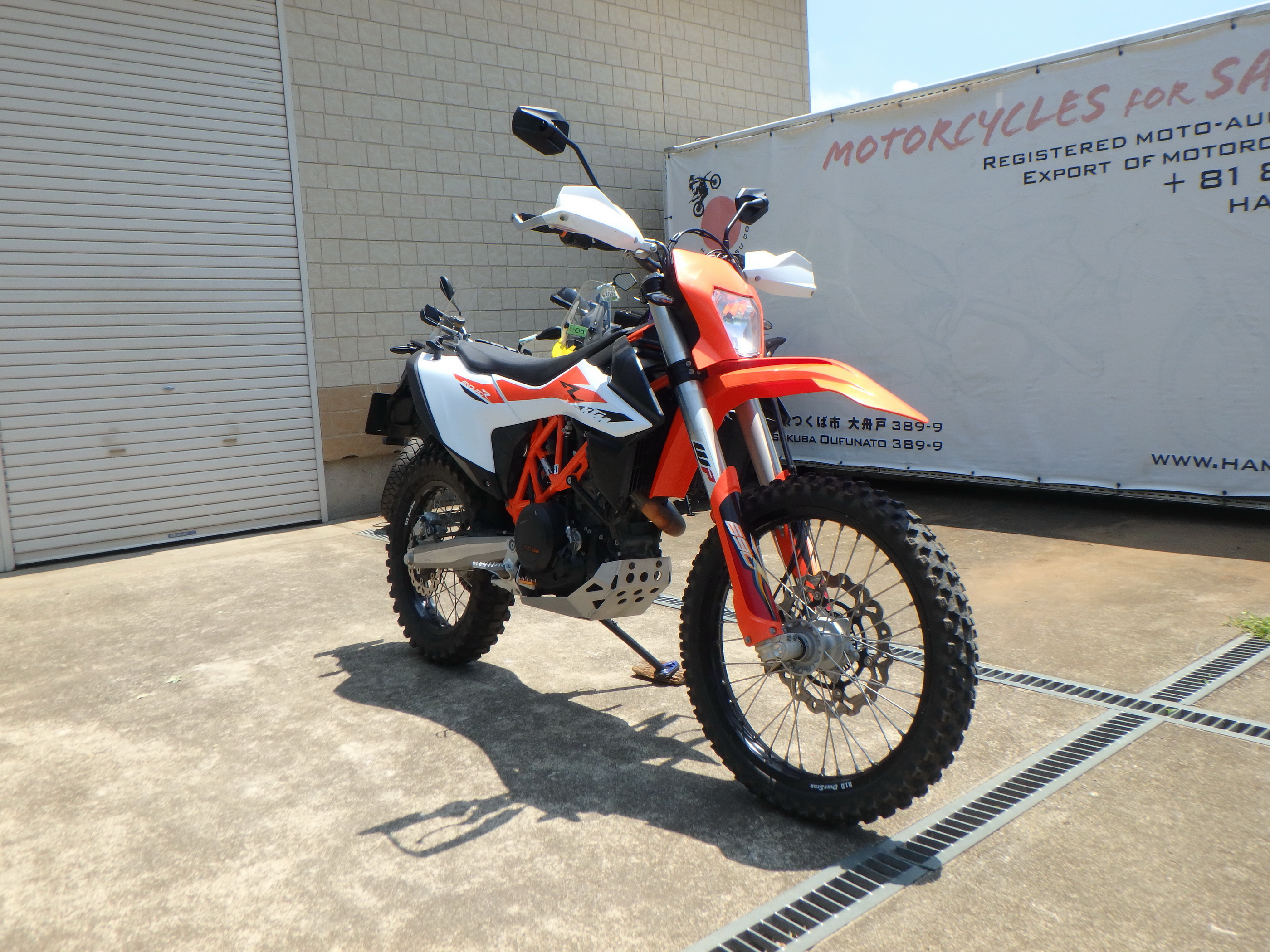

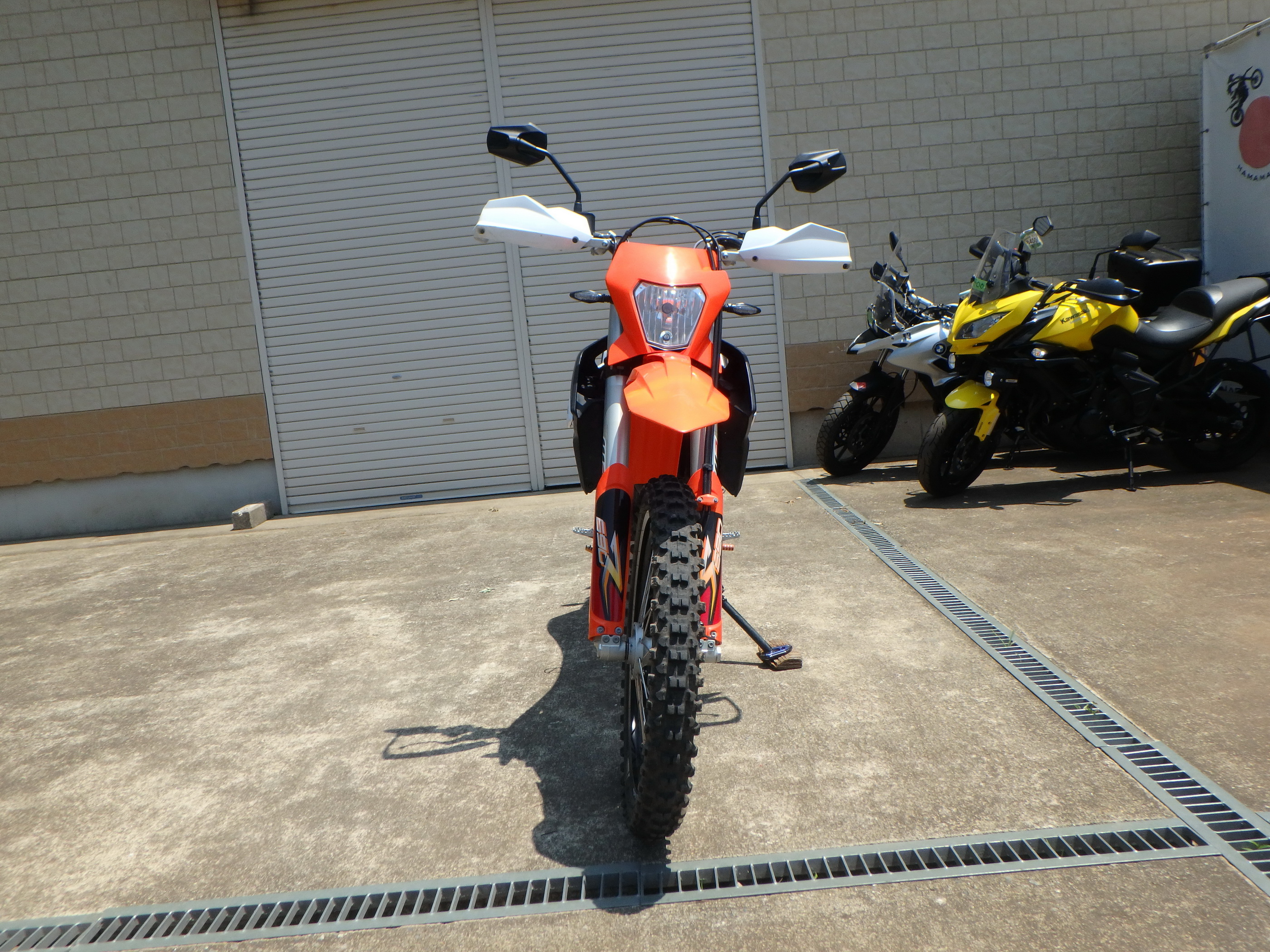

#3104 Bike KTM 690 Enduro R
Model: 690 Enduro R
Year: 2019
Capacity: 690 cm3
Mileage: 12351 km.
in
Additional information
Make Model
690 Enduro R
Year
2019

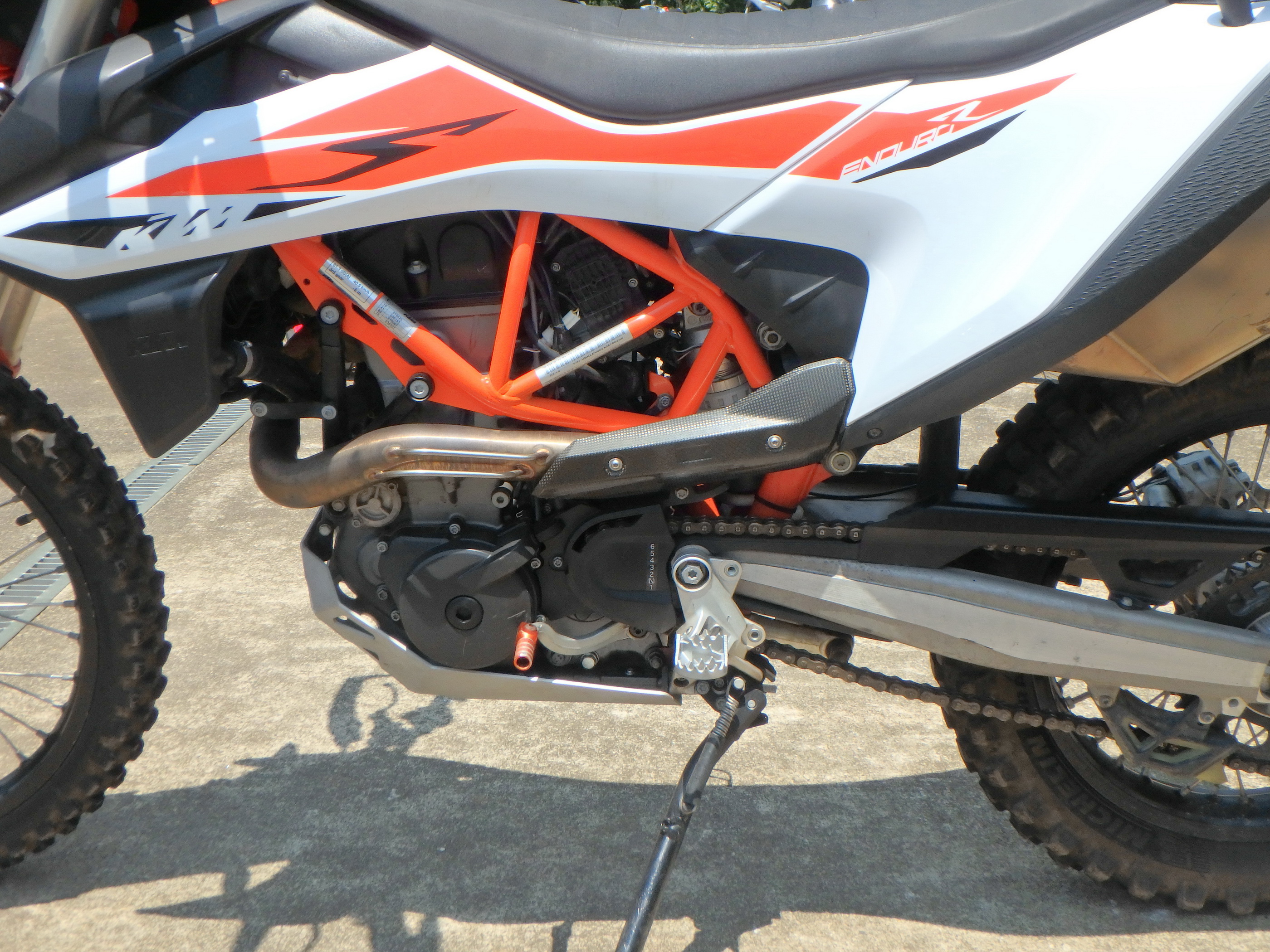

Engine

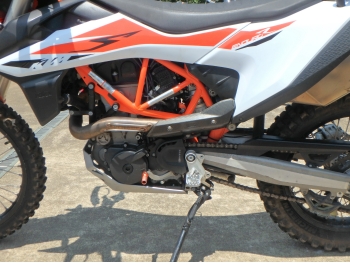

Single cylinder, 4-stroke, SOHC, 4-valve
Capacity
690 cc / 42.1 cu in
Bore x Stroke
105 x 80 mm
Compression Ratio
12.7:1
Cooling System
Liquid cooled
Lubrication System
Pressure lubrication with 2 oil pumps
Exhaust
Stainless steel primary and secondary silencer
Induction
Keihin EFI (throttle body 50 mm)
Ignition
Keihin EMS with RBW, double ignition
Starting
Electric
Battery
Lithium Ion 12V 8,6Ah
Max Power
72 hp / 54 kW @
Max Torque
73.5 Nm / 54 lb-ft @ 6500 rpm
Clutch
PASC™ slipper clutch, hydraulically operated
Transmission
6-Speed
Final Drive
Chain, 16:40
Primary Drive
36:79
Frame
Chromium-molybdenum-steel trellis frame, powder coated
Sub Frame
Self-supporting plastic tank

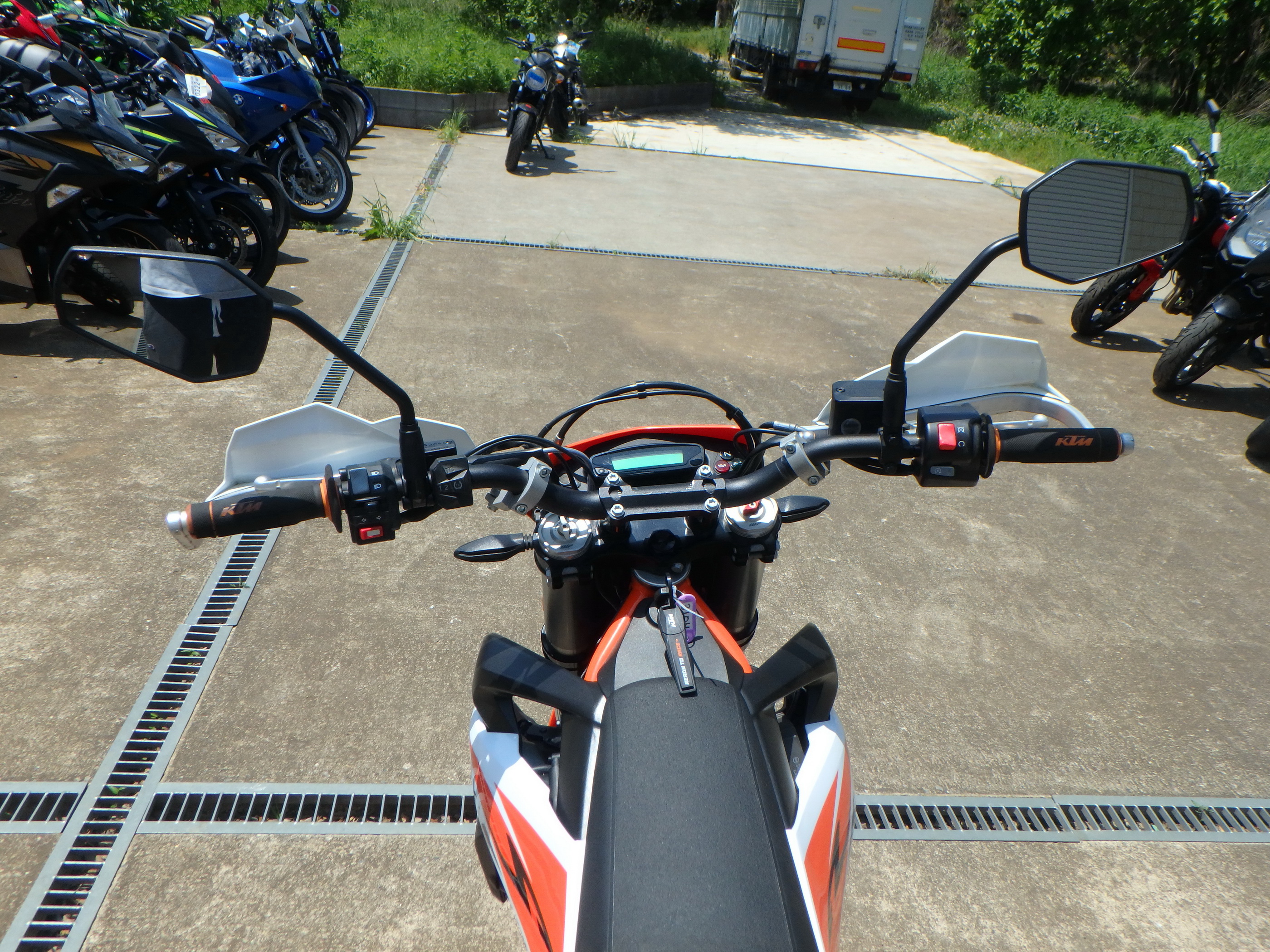

Handlebar
Aluminum, tapered, Ø 28 / 22 mm
Front Suspension
WP USD XPLOR 48 forks
Front Wheel Travel
250 mm / 9.8 in
Rear Suspension
WP shock absorber with Pro-Lever linkage
Rear Wheel Travel
250 mm / 9.8 in
Front Brakes
Single 300 mm disc, Brembo 2 piston floating caliper
Rear Brakes
Single 240 mm disc, Brembo single piston floating caliper
ABS
Bosch 9.1 MP (incl. Cornering ABS and offroad mode, disengageable)

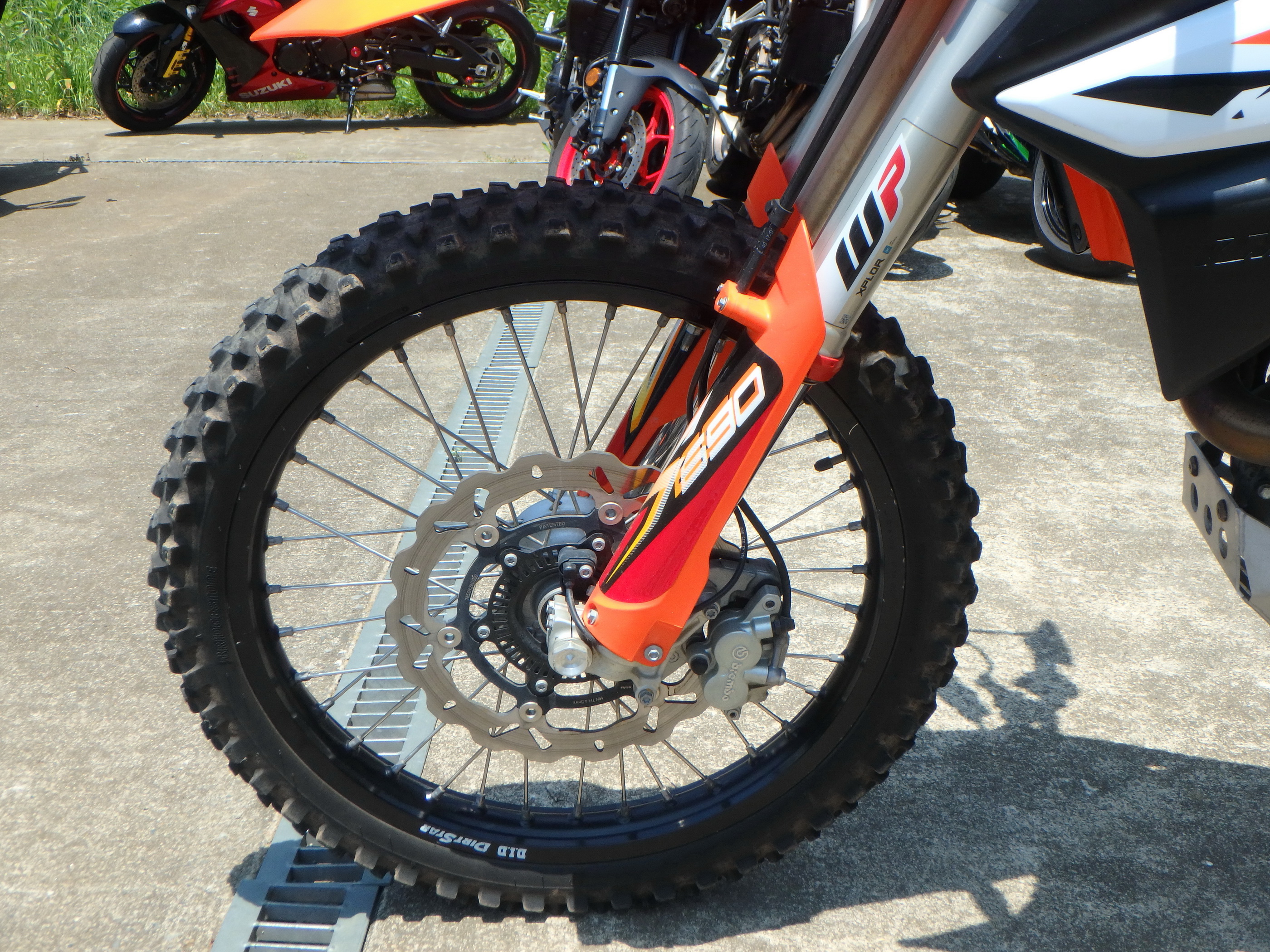

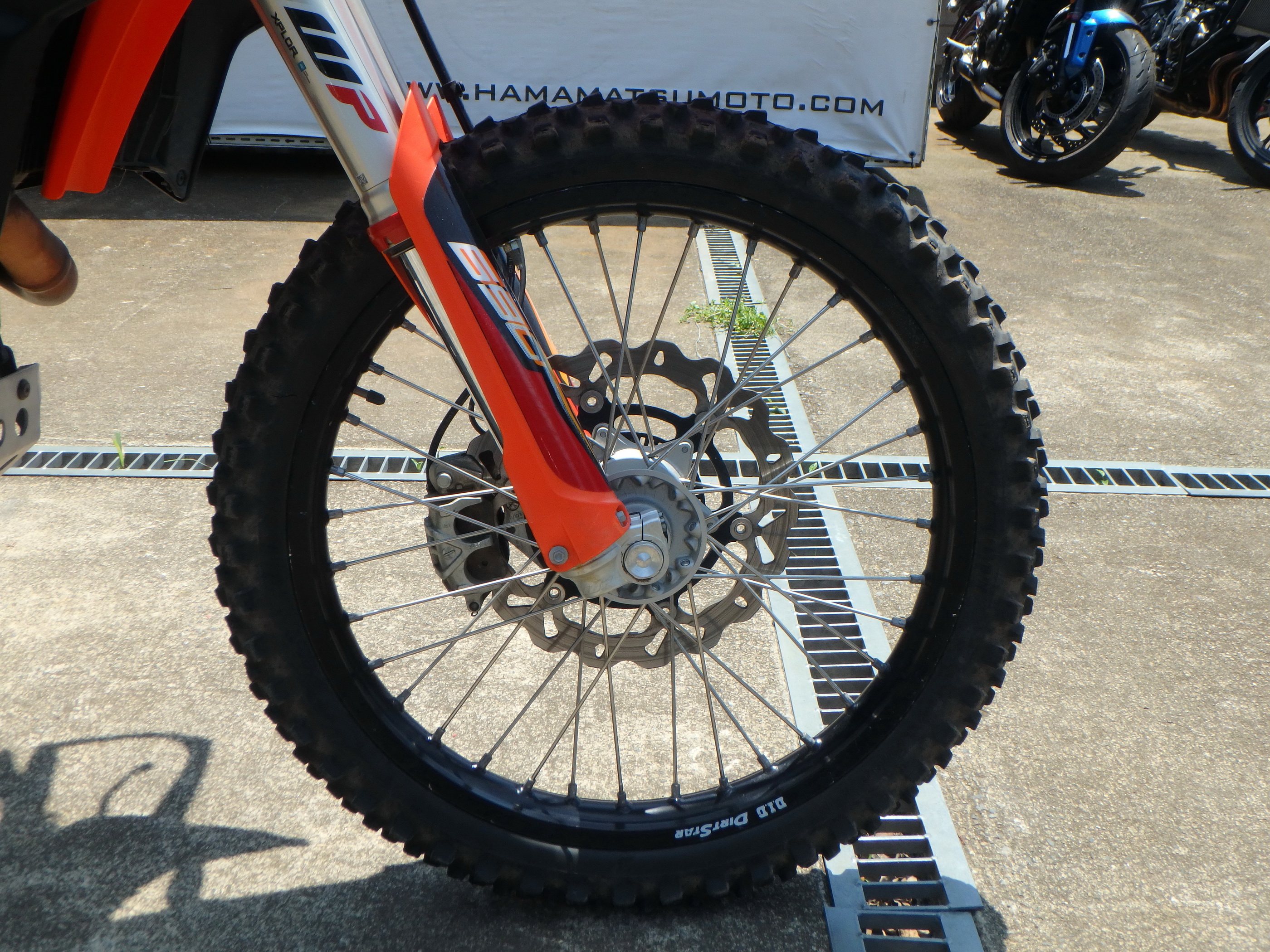

Front Wheel
Spoked wheels with aluminum rims, 1.85 × 21″

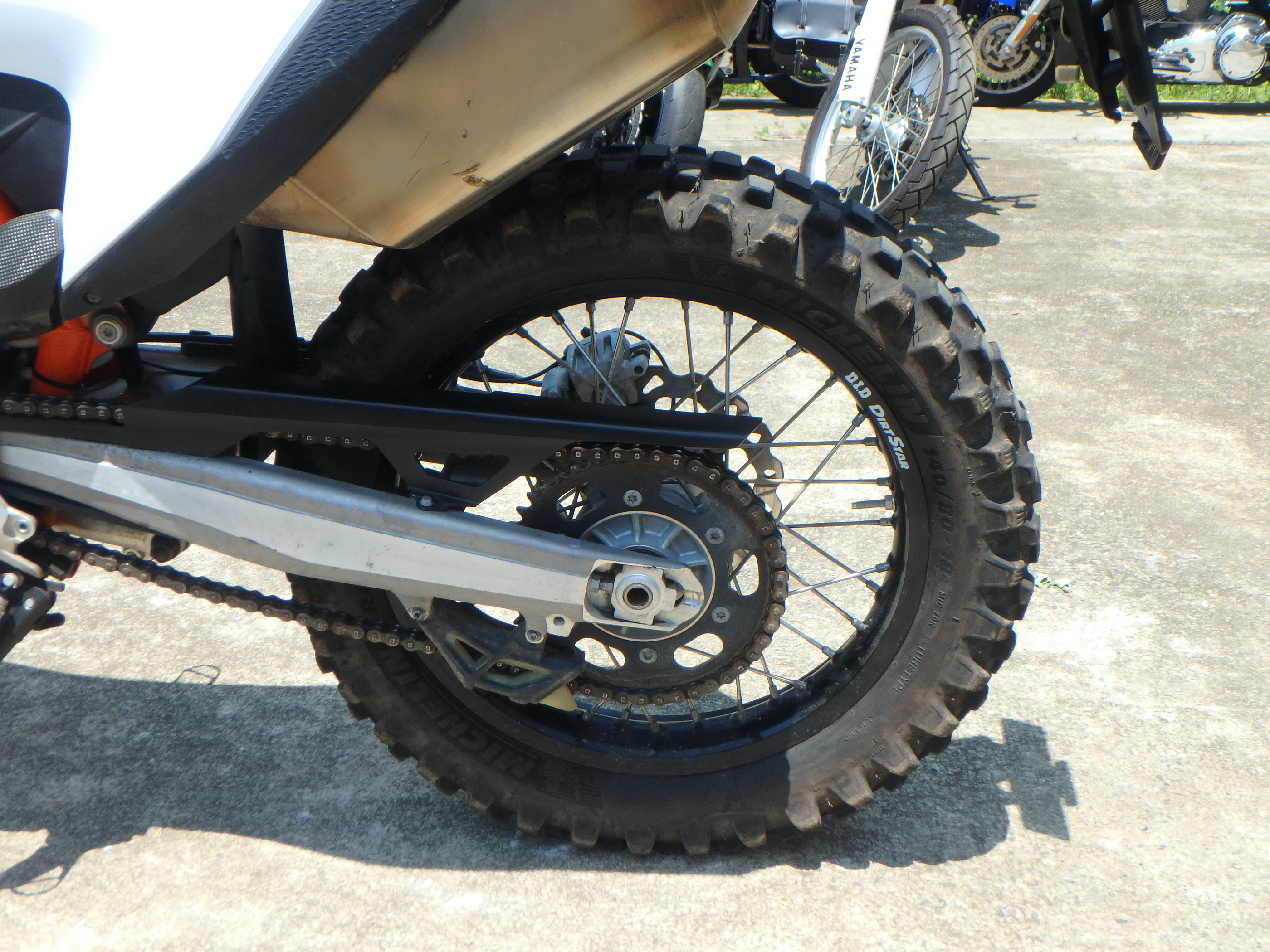

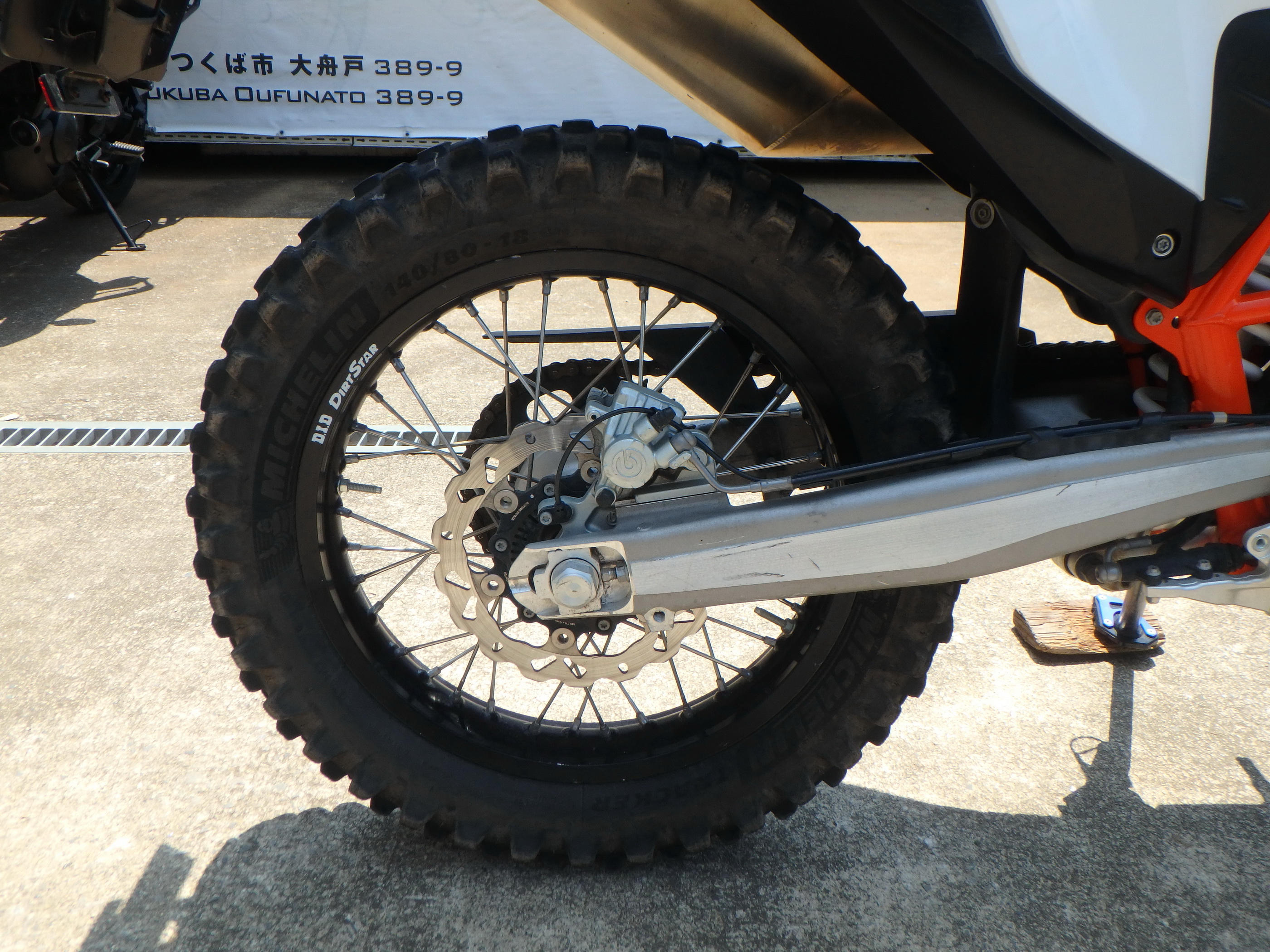

Rear Wheel
Spoked wheels with aluminum rims, 2.50 × 18″
Front Tyre
90/90 -21
Rear Tyre
140/80 -18
Steering Head Angle
62.3°
Trail
117.3 mm / 4.6 in
Wheelbase
1502 mm / 59.1 in
Ground Clearance
270 mm / 10.6 in

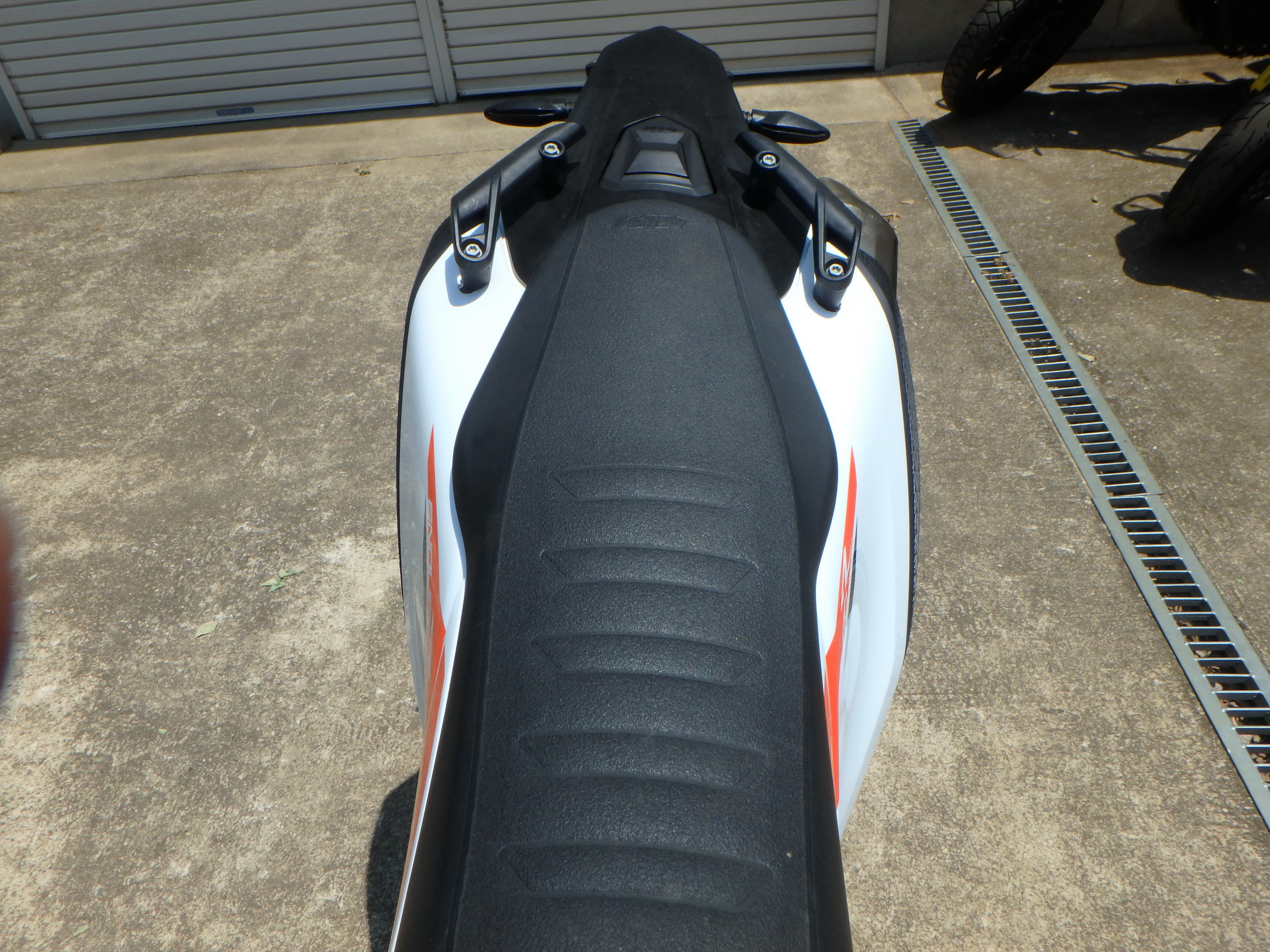

Seat Height
910 mm / 35.8 in
Dry Weight
146 kg / 321.8 lbs
Fuel Capacity
13.5 Litres / 3.5 US gal
