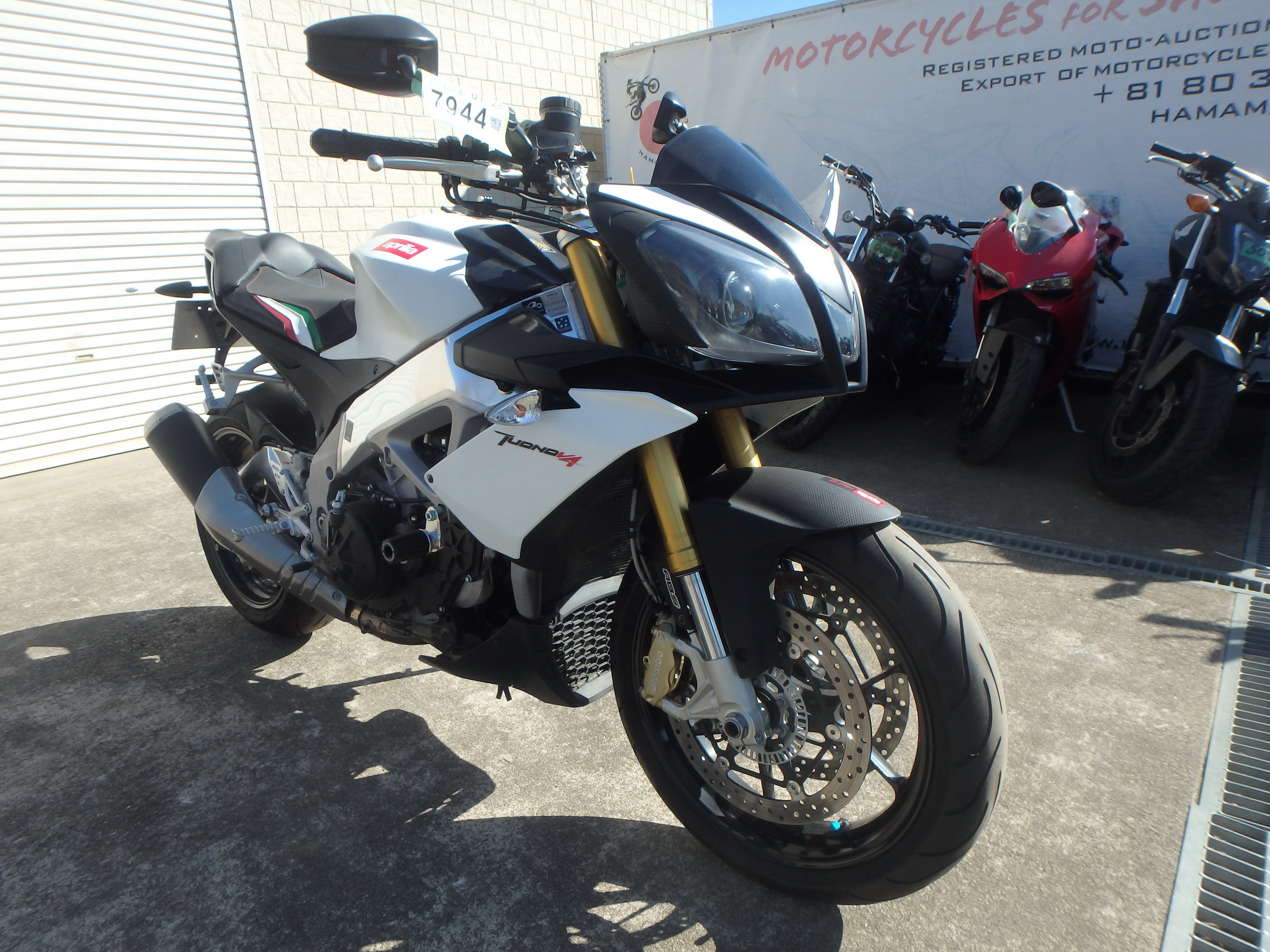

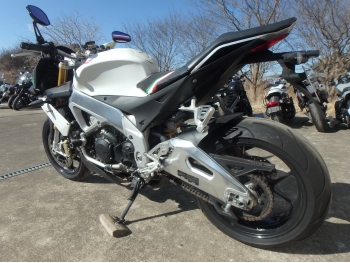

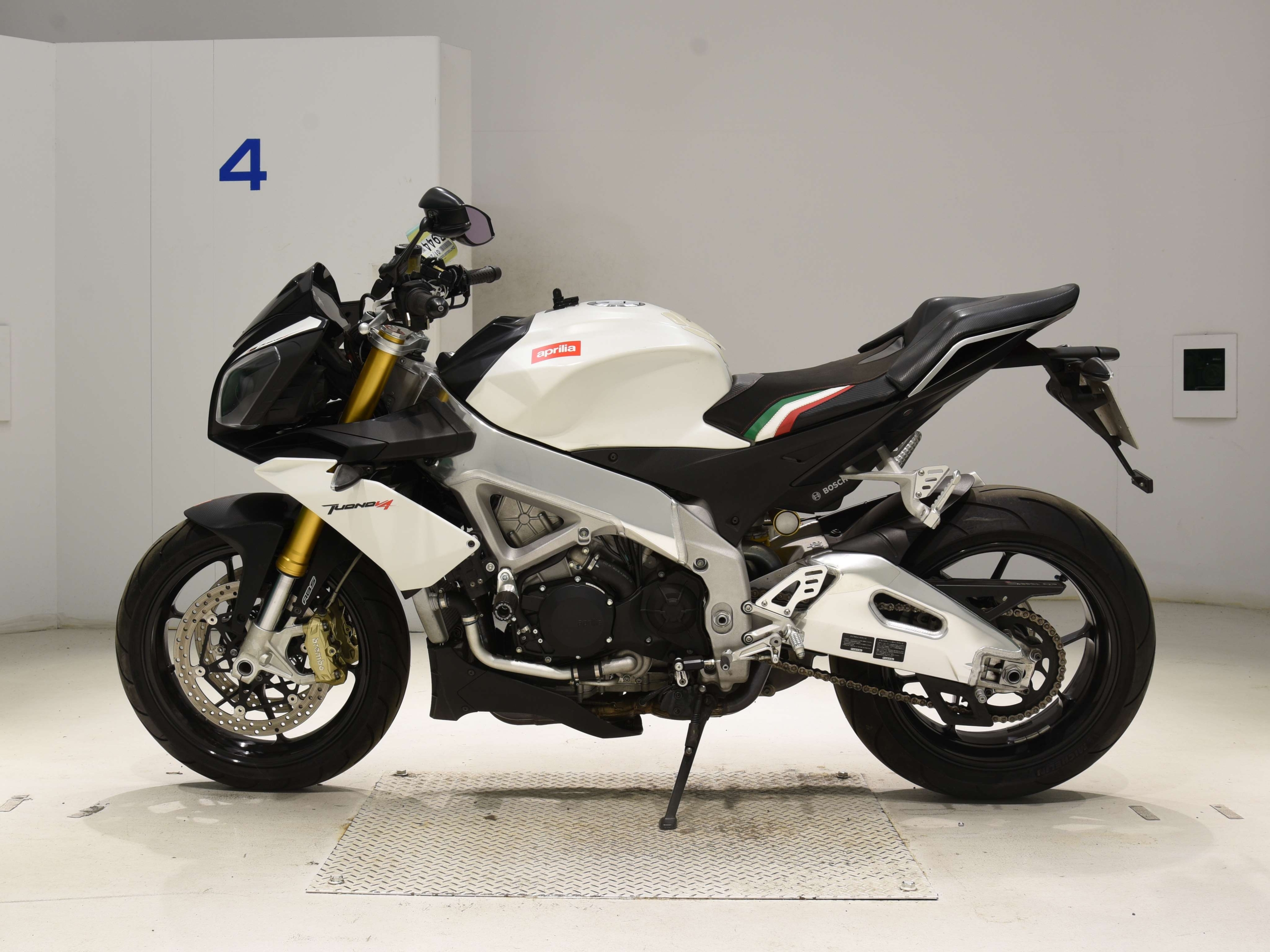

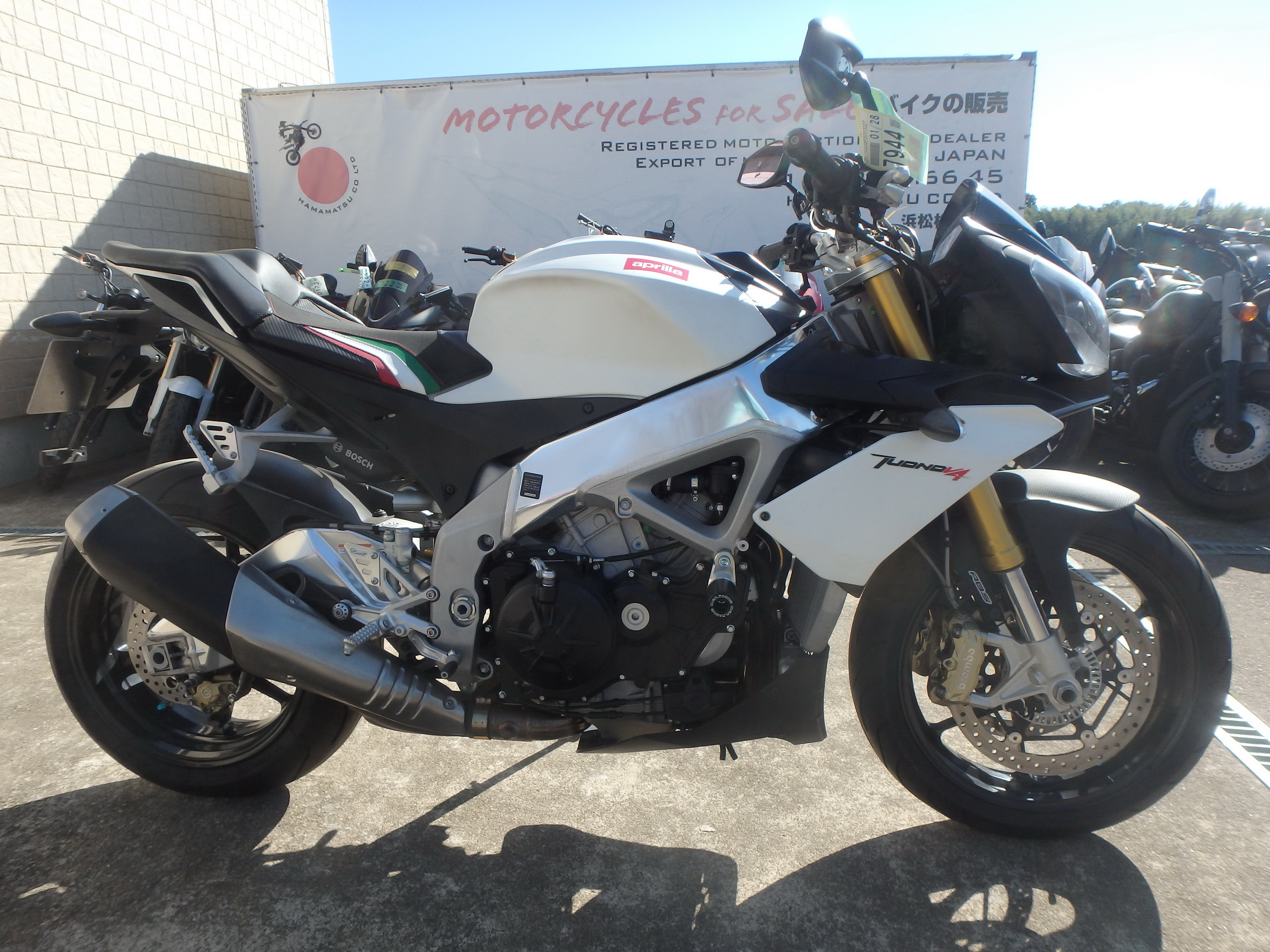

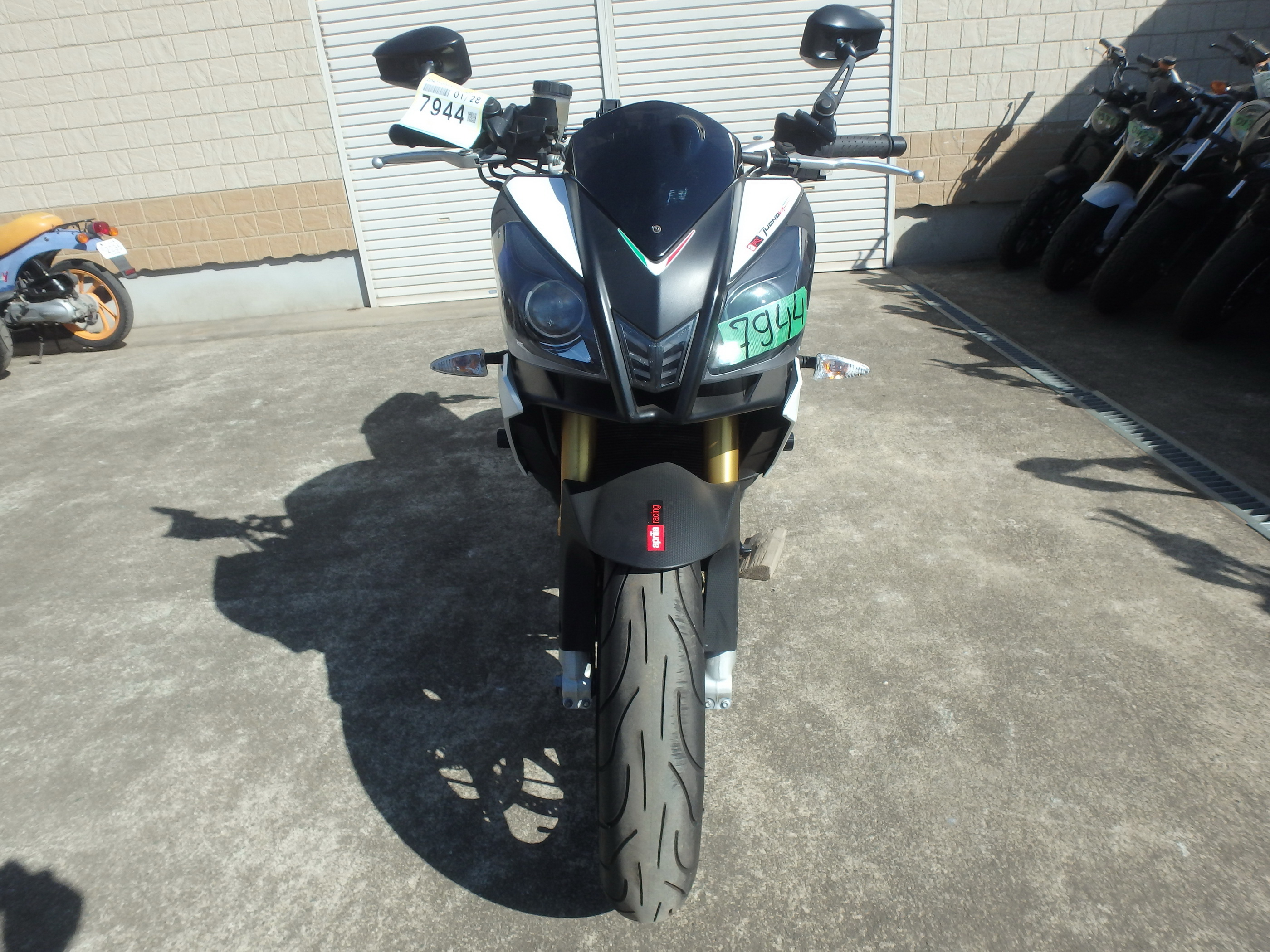

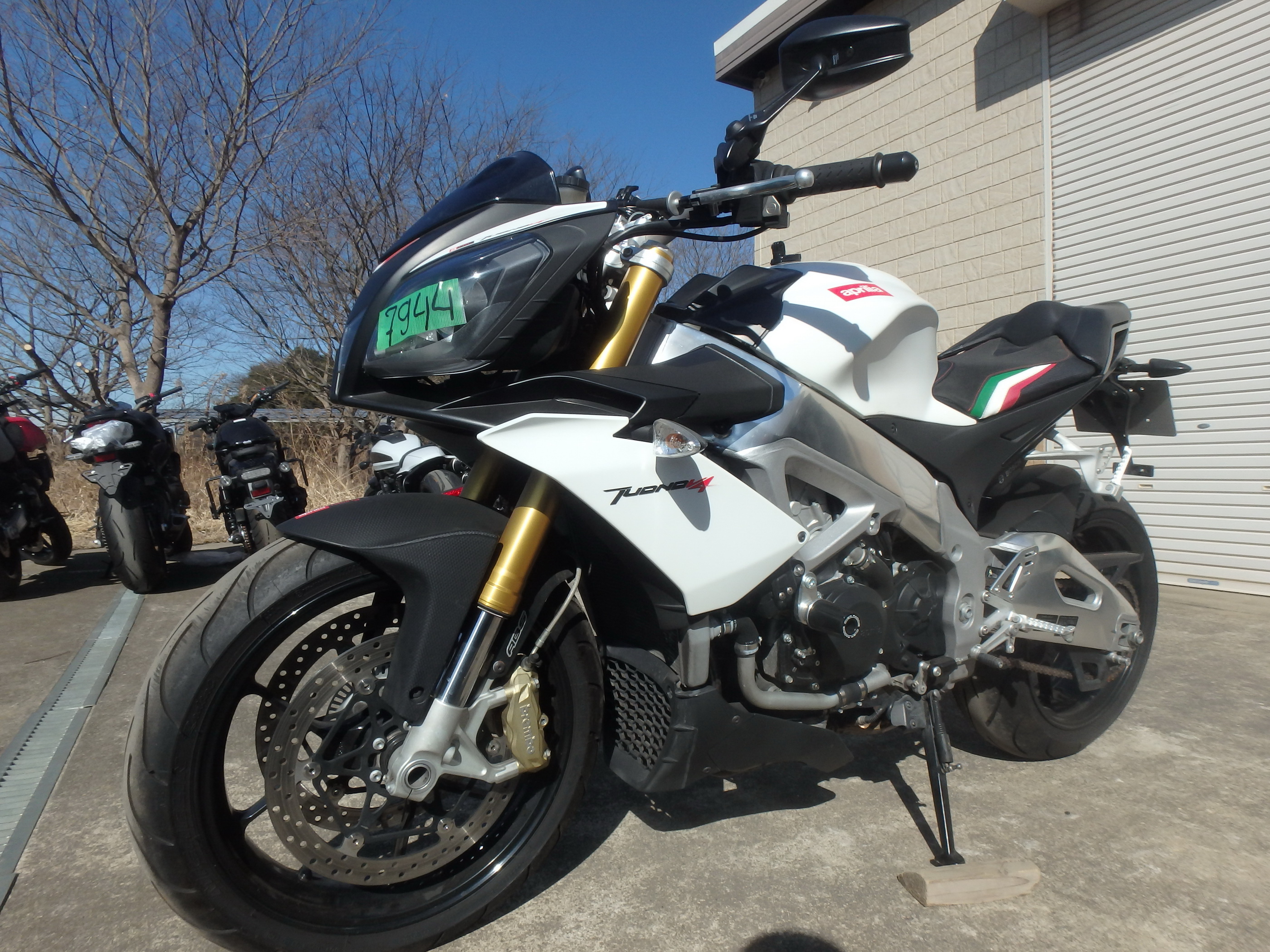

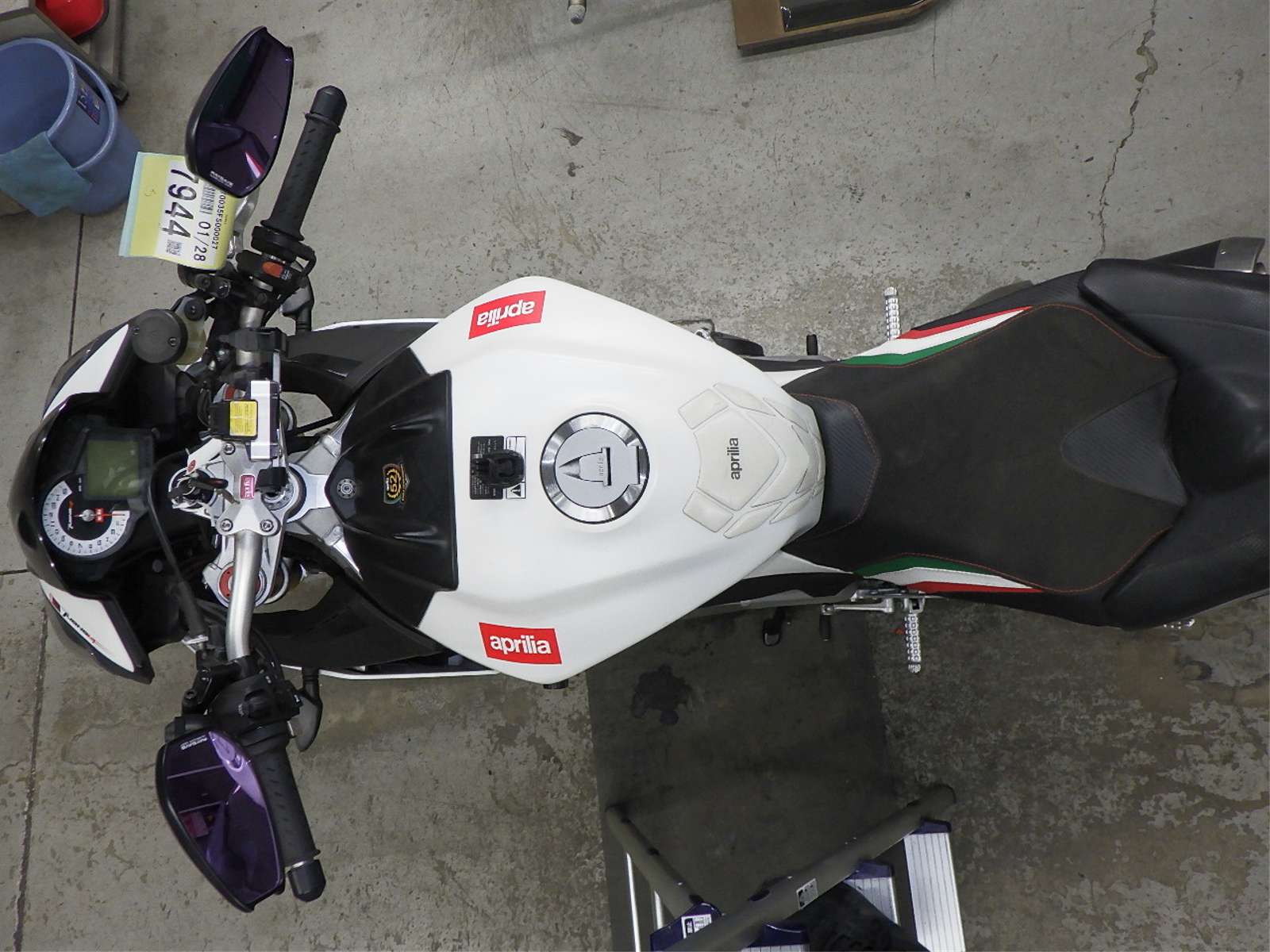

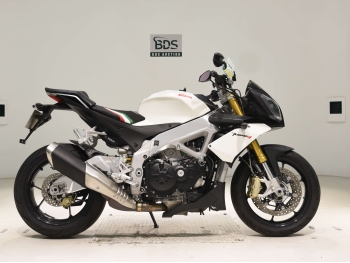

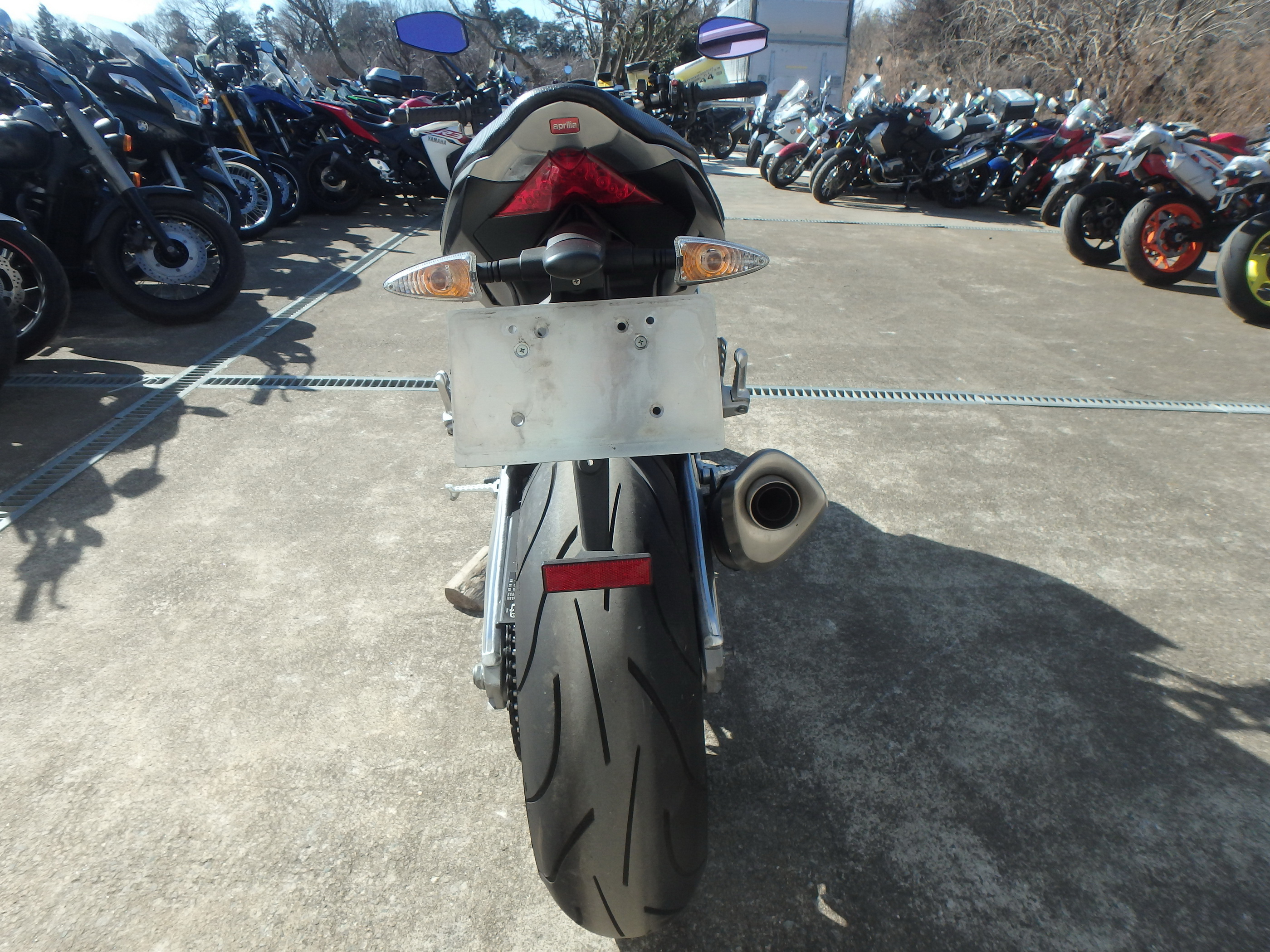

#7944 Bike Aprilia Tuono V4R
Model: Tuono V4R
Year: 2015
Capacity: 1000 cm3

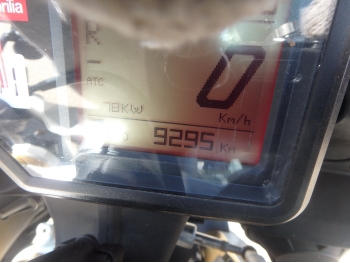

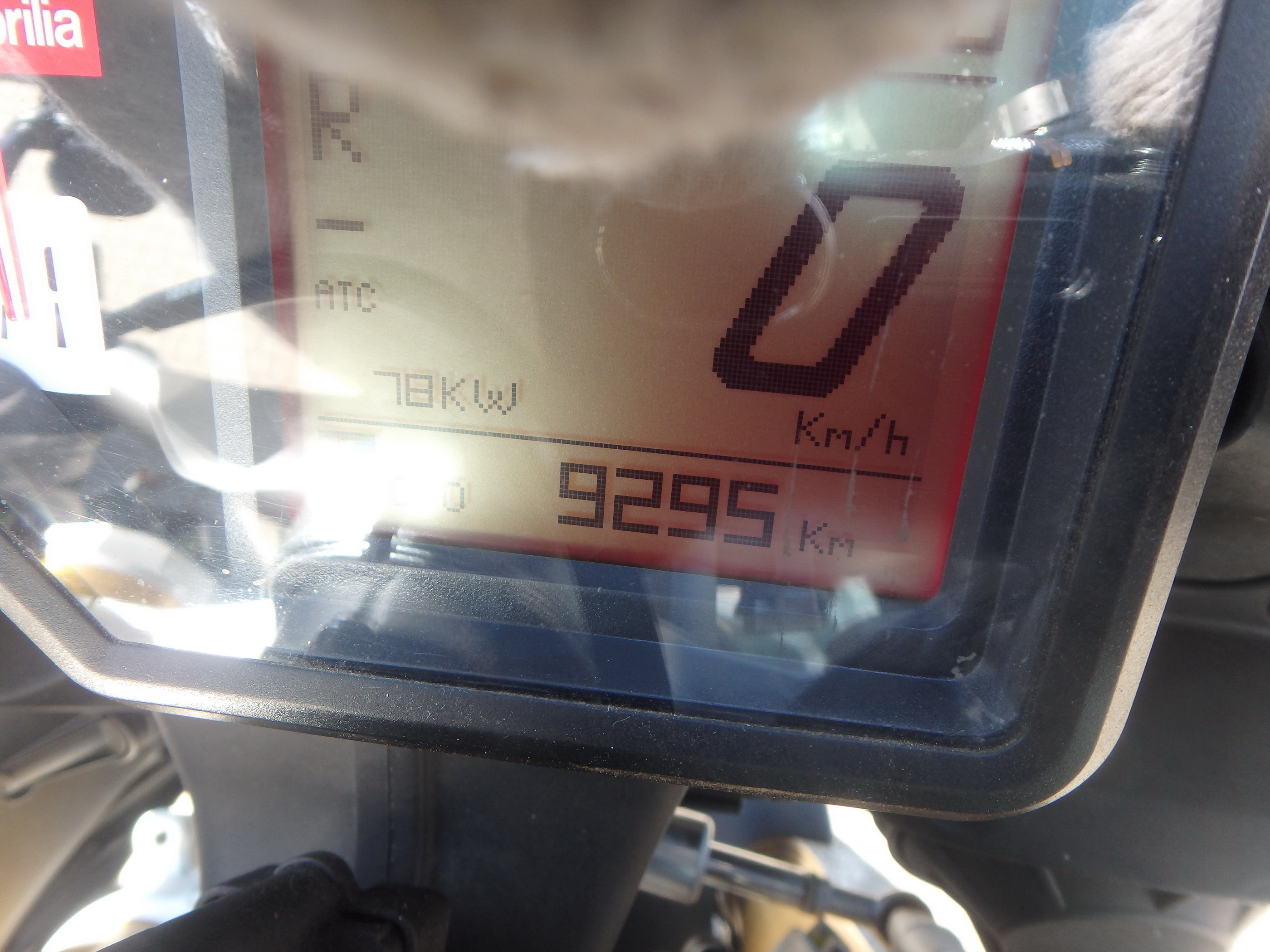

Mileage: 9295 km.
in
Additional information
Make Model
Tuono V4 R APRC
Year
2015

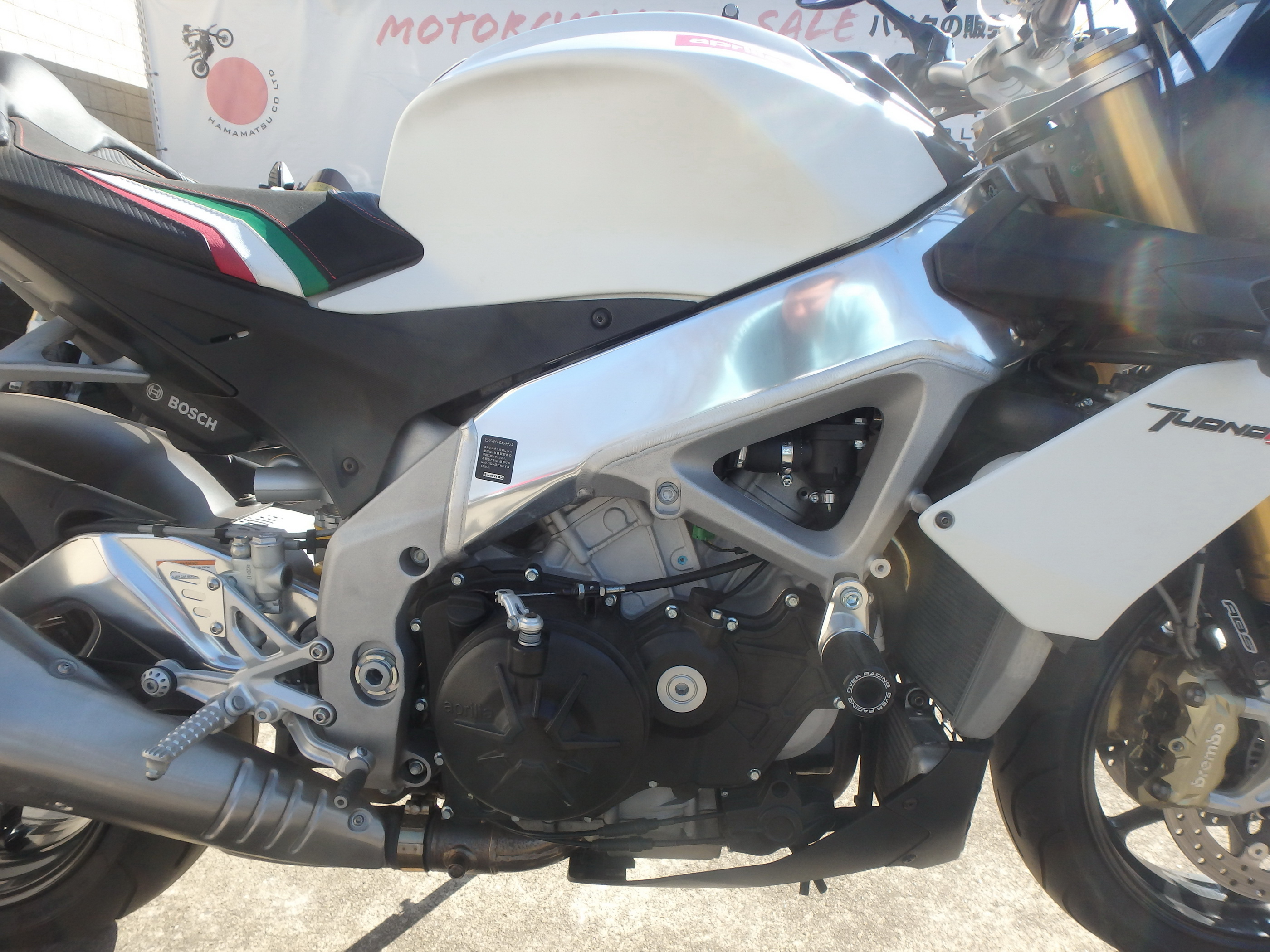

Engine

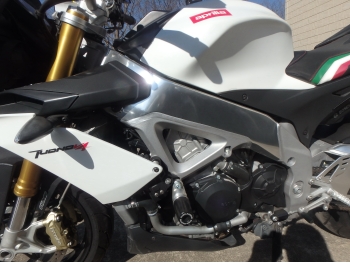

Four stroke, longitudinal 65° V four , DOHC, 4 valves per cylinder
Capacity
998,9 cc / 60.9 cu-in
Bore x Stroke
78 x 52.3 mm
Cooling System
Liquid cooled
Compression Ratio
13.0:1
Induction
Airbox with front dynamic air intakes; 4 Weber-Marelli Ø48-mm throttle bodies with 4 injectors and latest generation Ride-by-Wire engine management.
Engine Maps
Choice of three different engine maps selectable by the rider with bike in motion: T (Track), S (Sport), R (Road)
Ignition
Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and “stick-coil” type coils
Starting
Electric

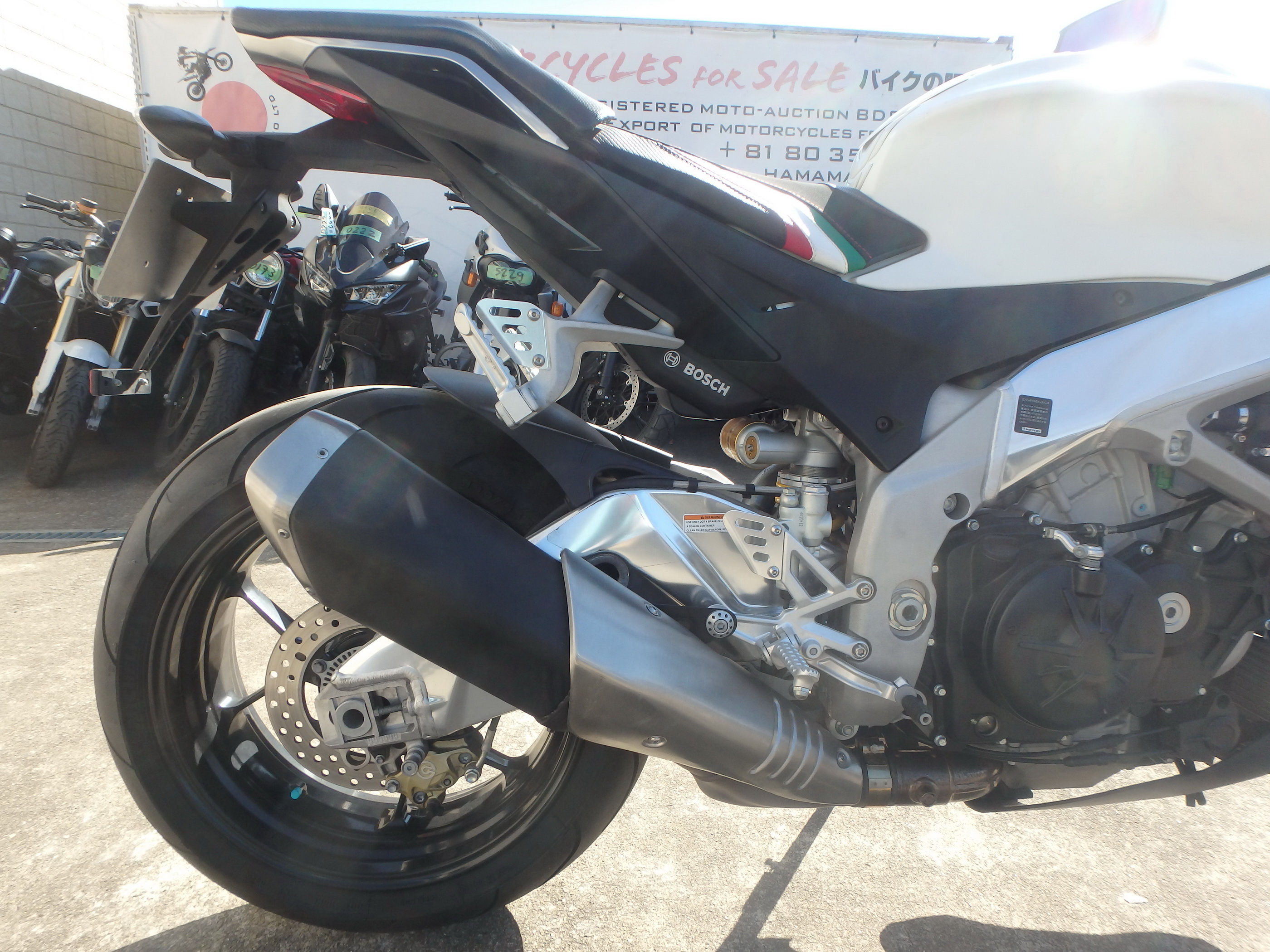

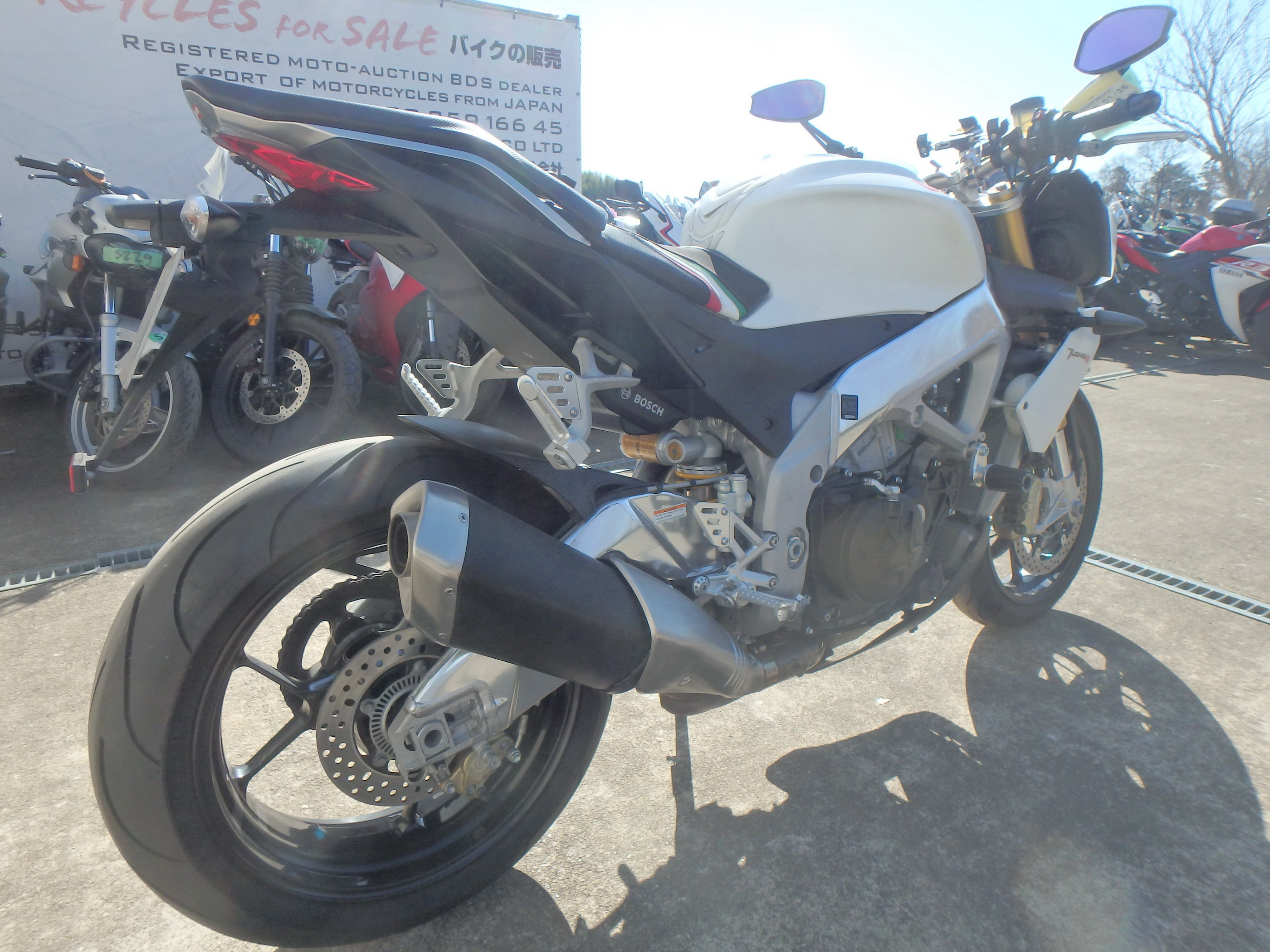

Exhaust
4 into 2 into 1 layout, single oxygen sensor, lateral single silencer with ECU-controlled bypass valve and integrated trivalent catalytic converter (Euro 3)
Alternator
Flywheel mounted 450W alternator with rare earth magnets
Lubrication
Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling)
Max Power
126.8 kW / 170 hp @ 11500 rpm
Max Torque
111.5 Nm / 11.4 kgf-m 82.2 lb/ft @ 9500 rpm
Clutch
Multiplate wet clutch
Transmission
6 Speed
Gear Ratio
1st: 39:15 (2,600) / 2nd: 33:16 (2.063) / 3rd: 34:20 (1,700) / 4th: 32:22 (1,455) / 5th: 34:26 (1,308) / 6th: 33:27 (1,222); Gear lever with Aprilia Quick Shift electronic system (aQS)
Primary Drive
Straight cut gears and integrated flexible coupling, drive ratio: 73:44 (1,659)
Final Drive
Chain, drive ratio: 42:16 (2,625)
Traction Management
:APRC System (Aprilia Performance Ride Control), which includes Traction Control (aTC), Wheelie Control (aWC), Launch Control (aLC), all of which can be configured and deactivated independently.
Frame
Aluminum dual beam chassis with pressed and cast sheet elements. Steering Damper: Sachs
Front Suspension
Sachs upside-down “one by one” fork, stanchions 43 mm. Forged aluminum feet for radial calliper mounting; Completely adjustable spring preload and hydraulic compression and rebound damping;
Front Wheel Travel
120 mm / 4.7 in

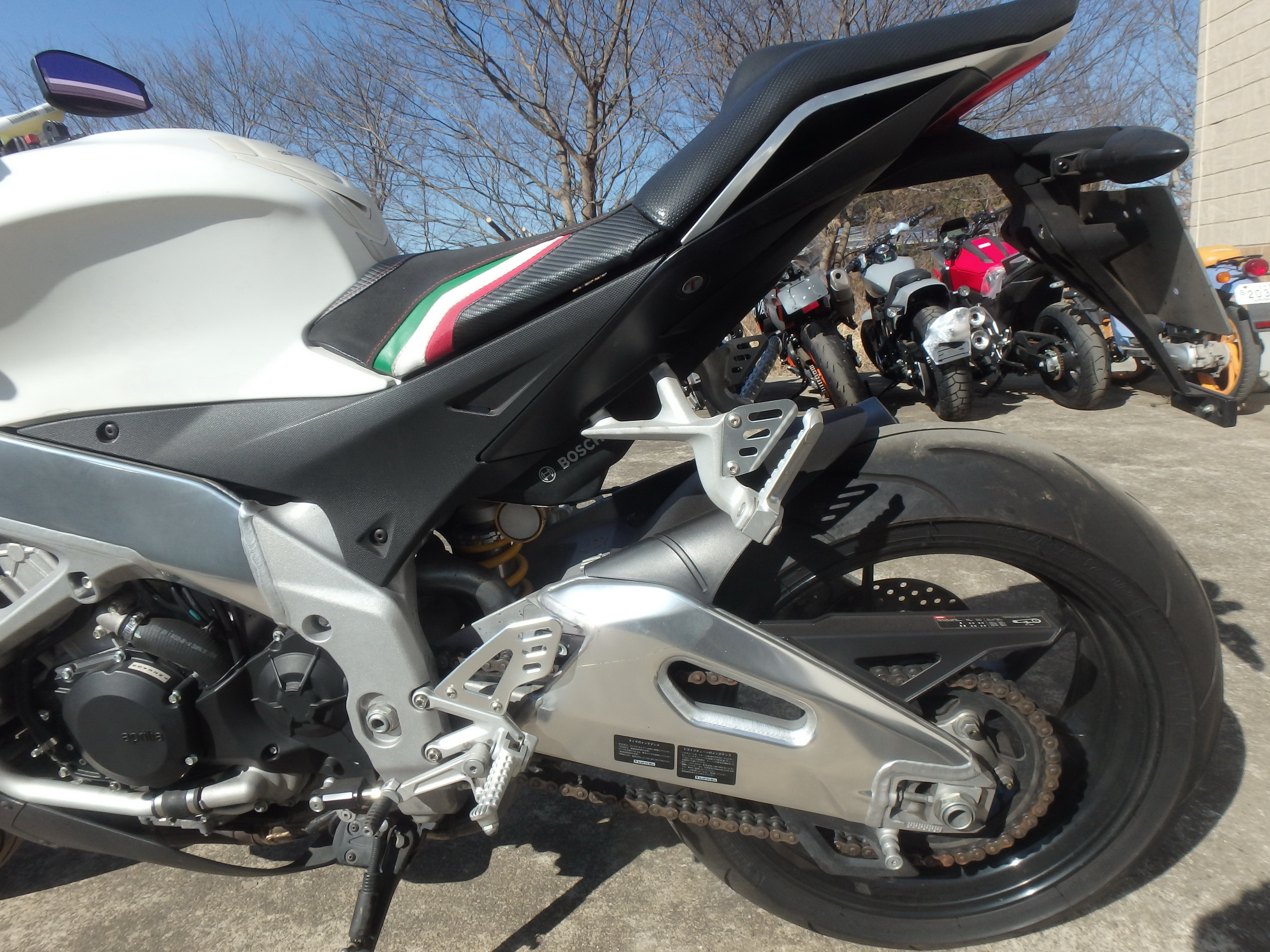

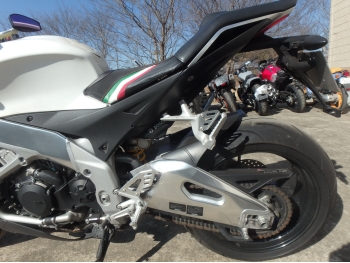

Rear Suspension
Double braced aluminum swingarm; mixed low thickness and sheet casting technology; Sachs piggy back monoshock with completely adjustable: spring preload and hydraulic compression and rebound damping. APS progressive linkage;
Rear Wheel Travel
130 mm / 5.1 in

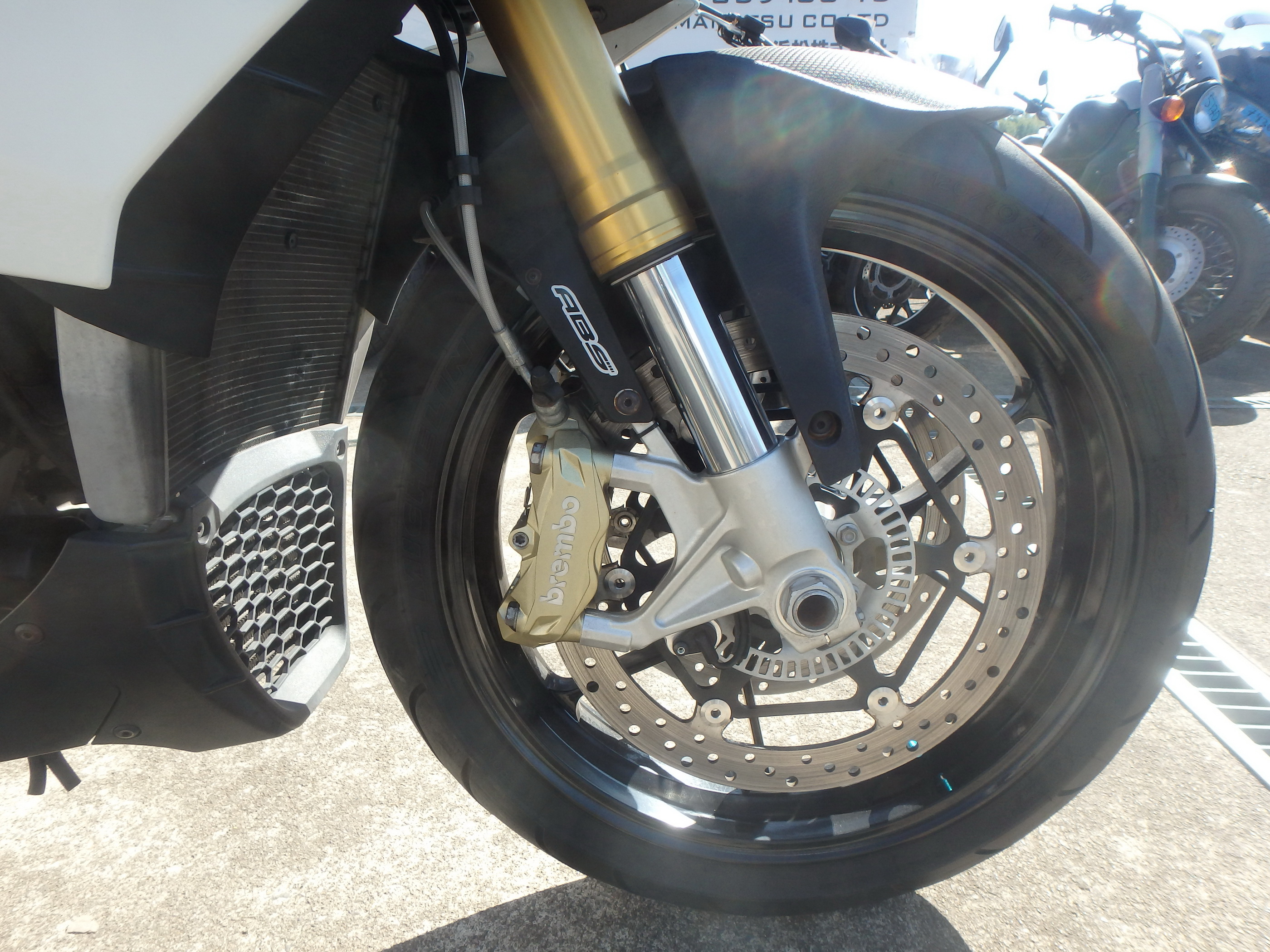

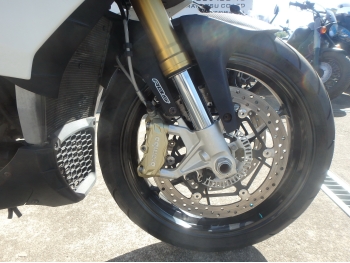

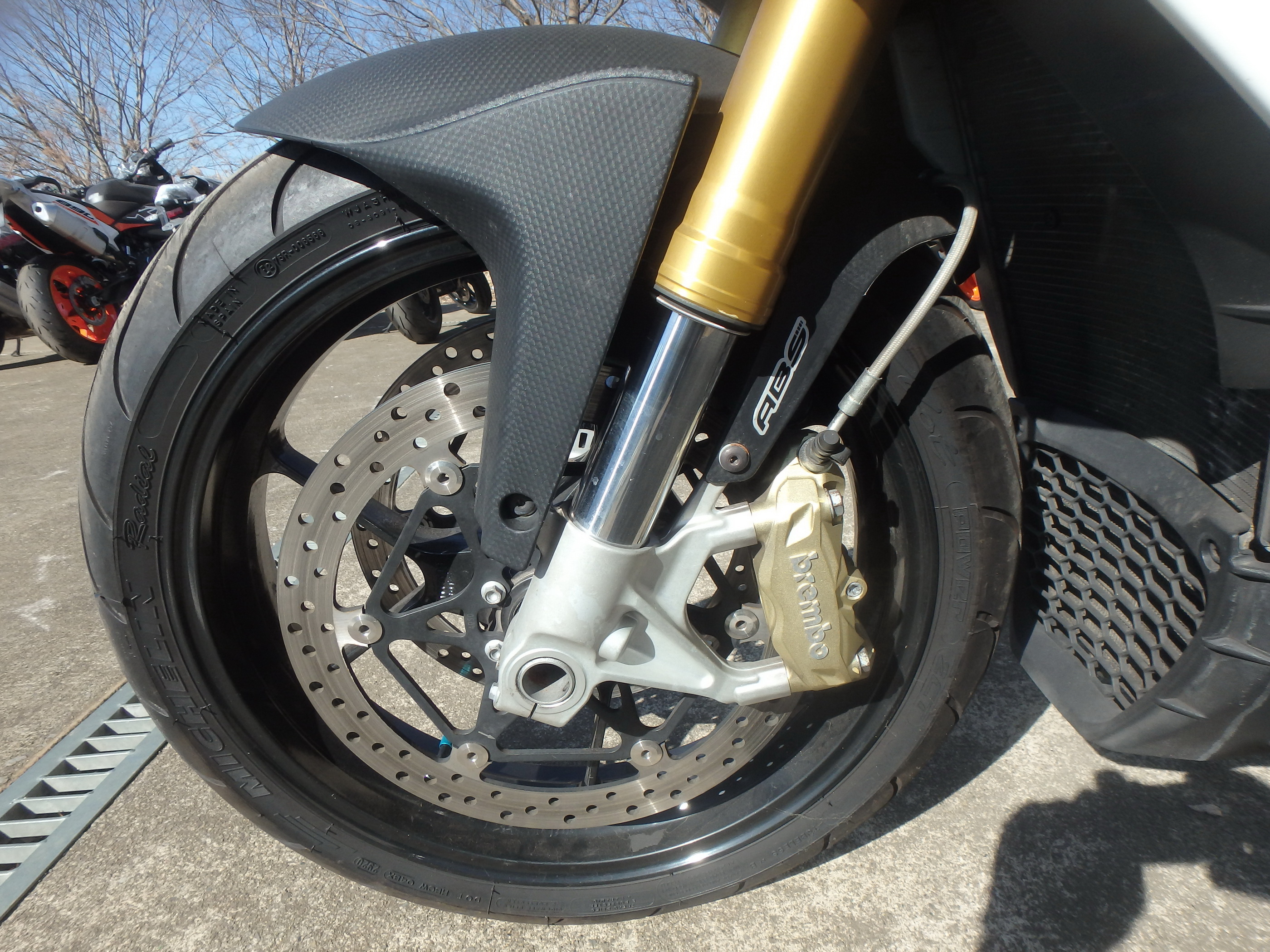

Front Brakes
2 x Ø320 mm floating stainless steel discs with lightweight stainless steel rotor with 6 studs. Brembo monobloc radial callipers M432 with 4 horizontally opposed Ø32 mm pistons. Sintered pads. Axial pump master cylinder and metal braided brake hoses.
Rear Brakes
Single Ø220 mm diameter disc, Brembo floating calliper with two Ø32 mm isolated pistons. Sintered pads. Pump with integrated tank and metal braided hose.
ABS
Bosch 9MP, adjustable on 3 maps, featuring RLM strategy and disconnectable.
Wheels
Cast aluminum wheels with 3 split spoke design
Front Wheel
3.50 x 17”
Rear Wheel
6.00 x 17”
Front Tyre
120/70 ZR17
Rear Tyre
190/55 ZR 17 (alternative: 190/50 ZR 17; 200/55 ZR 17)
Rake
25.0°
Trail
106.6 mm / 4.2 in
Dimensions
Length: 2065 mm / 81.2 in Width: 800 mm / 31.4 in (at the handlebar) Height : 1090 mm / 42.9 in
Wheelbase
1435 mm / 56.8 in
Seat Height
833 mm / 32.8 in
Ground Clearance
125 mm / 4.9 in
Dry Weight
183 kg / 403.4 lbs

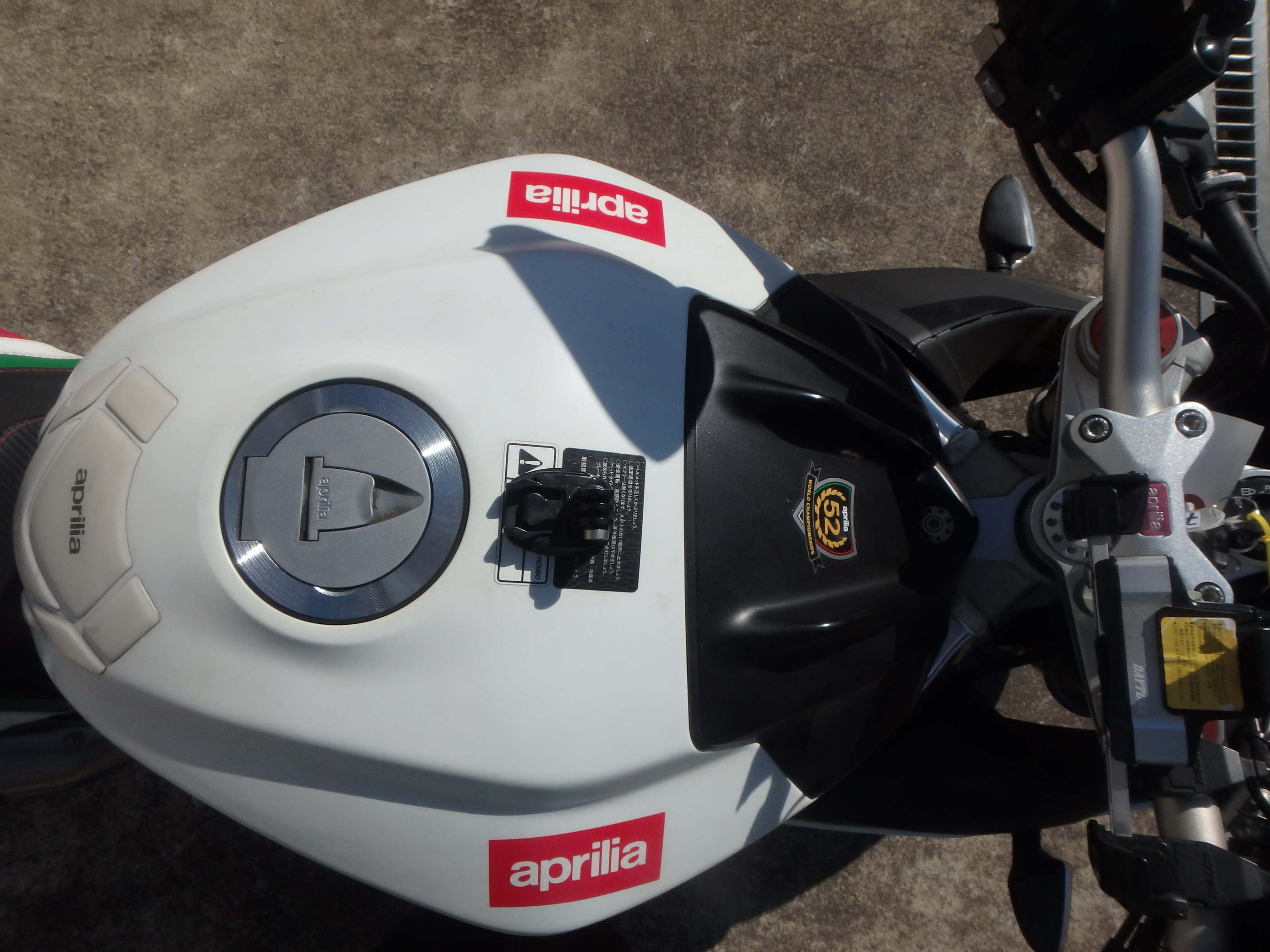

Fuel Capacity
18 Liters / 4.8 US gal
