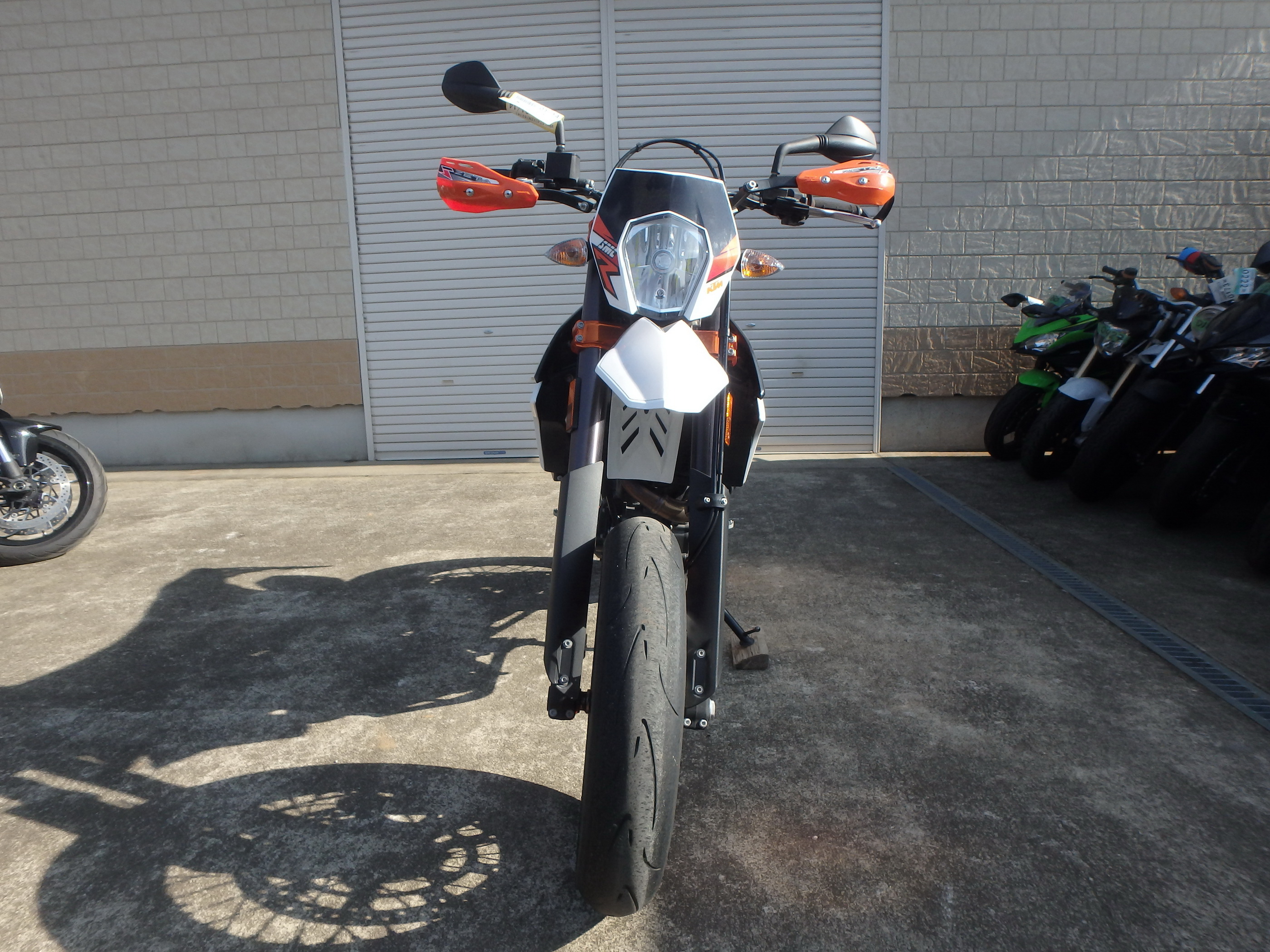

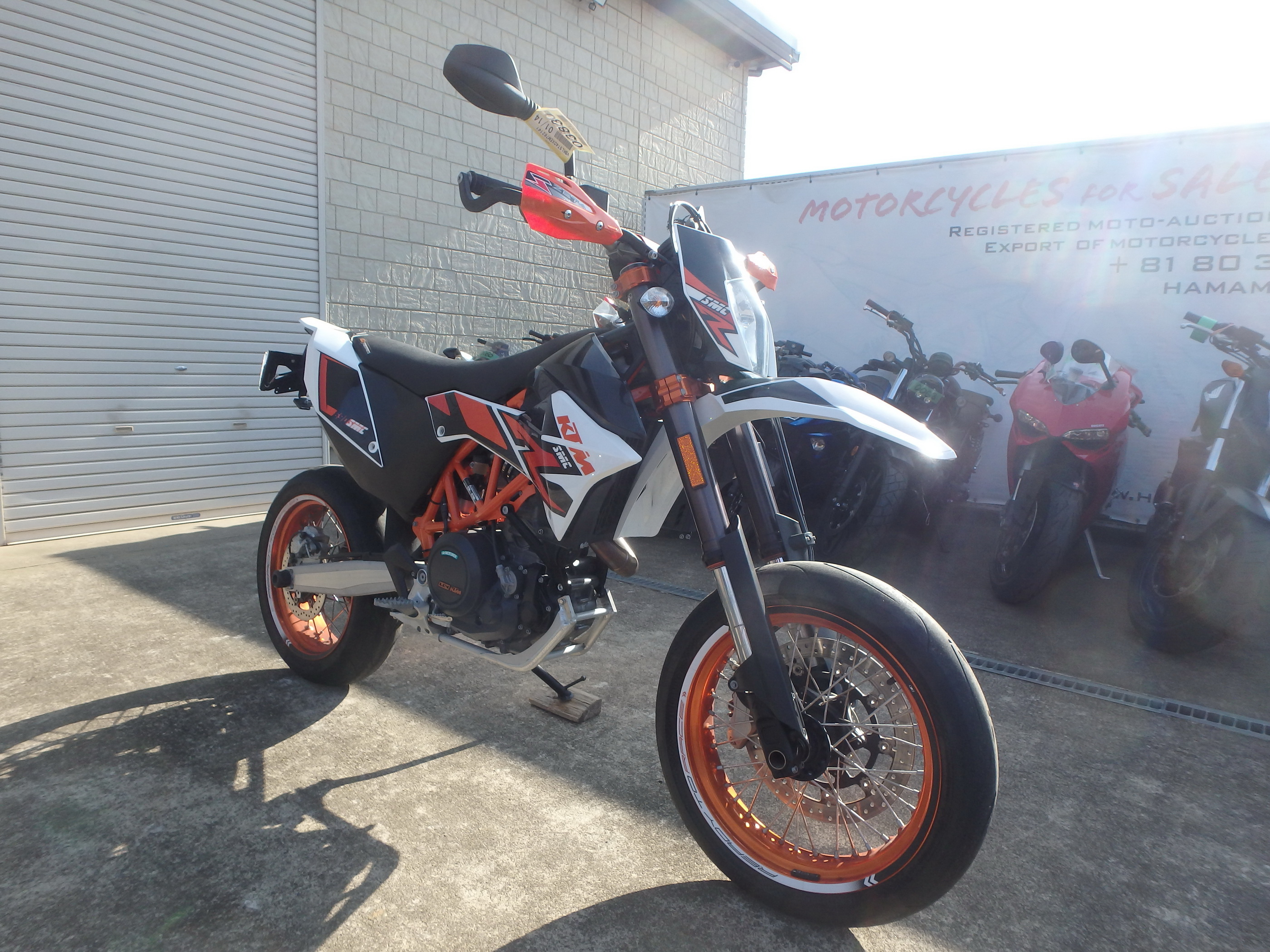

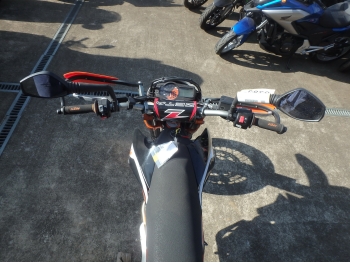

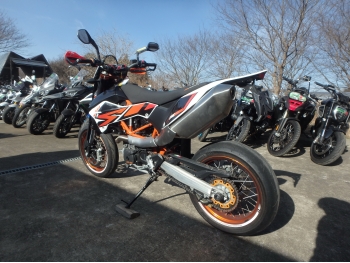

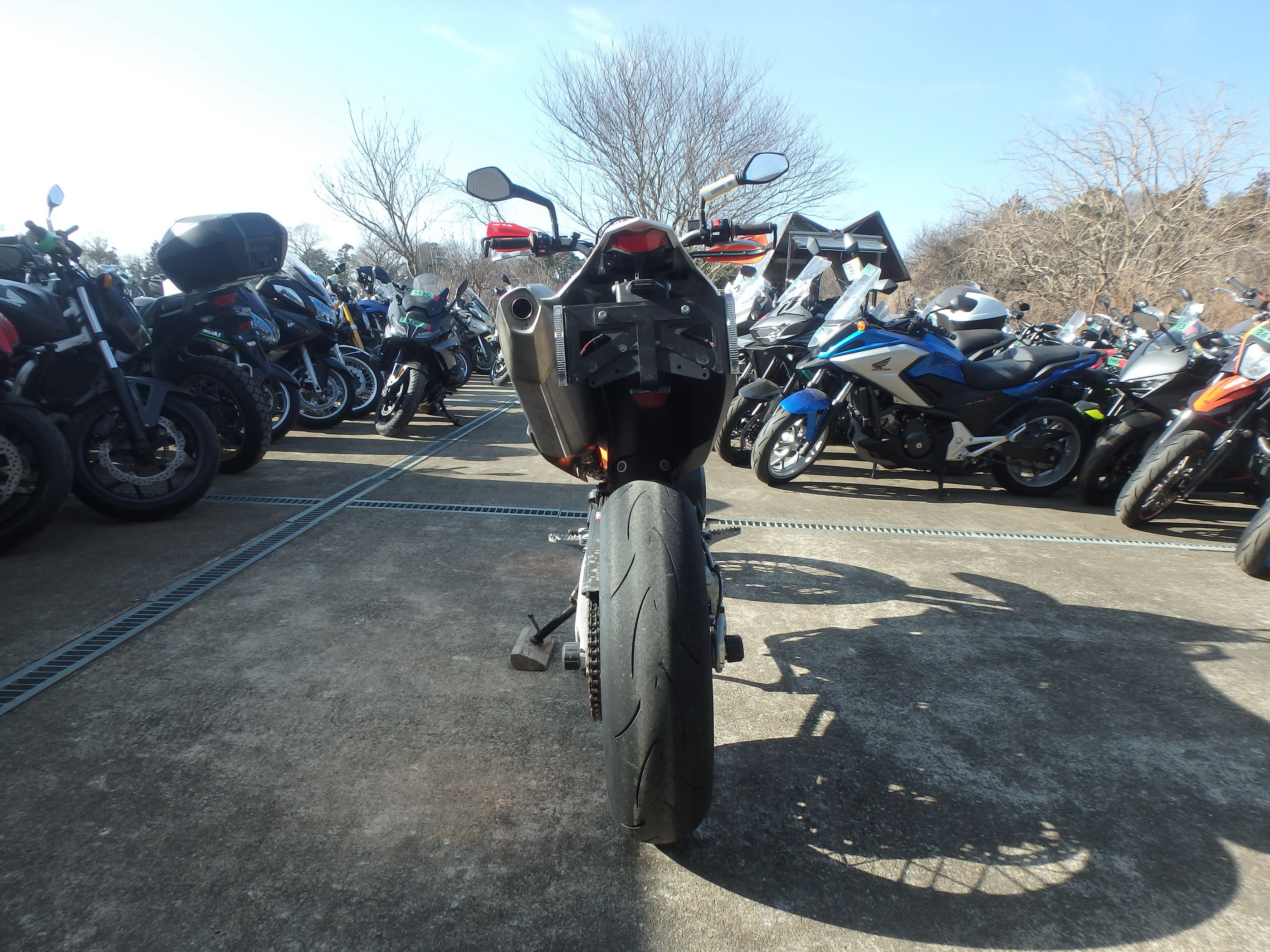

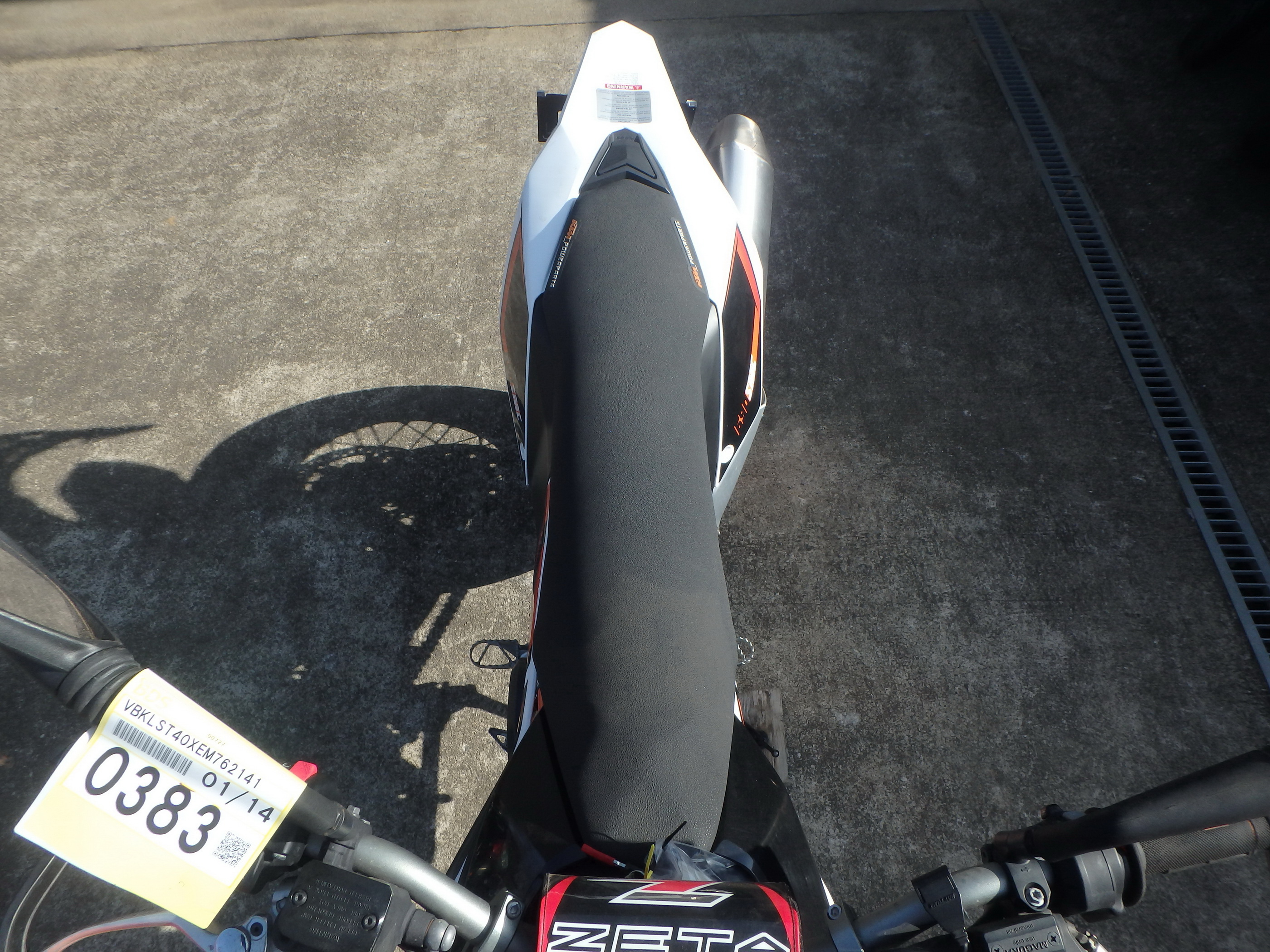

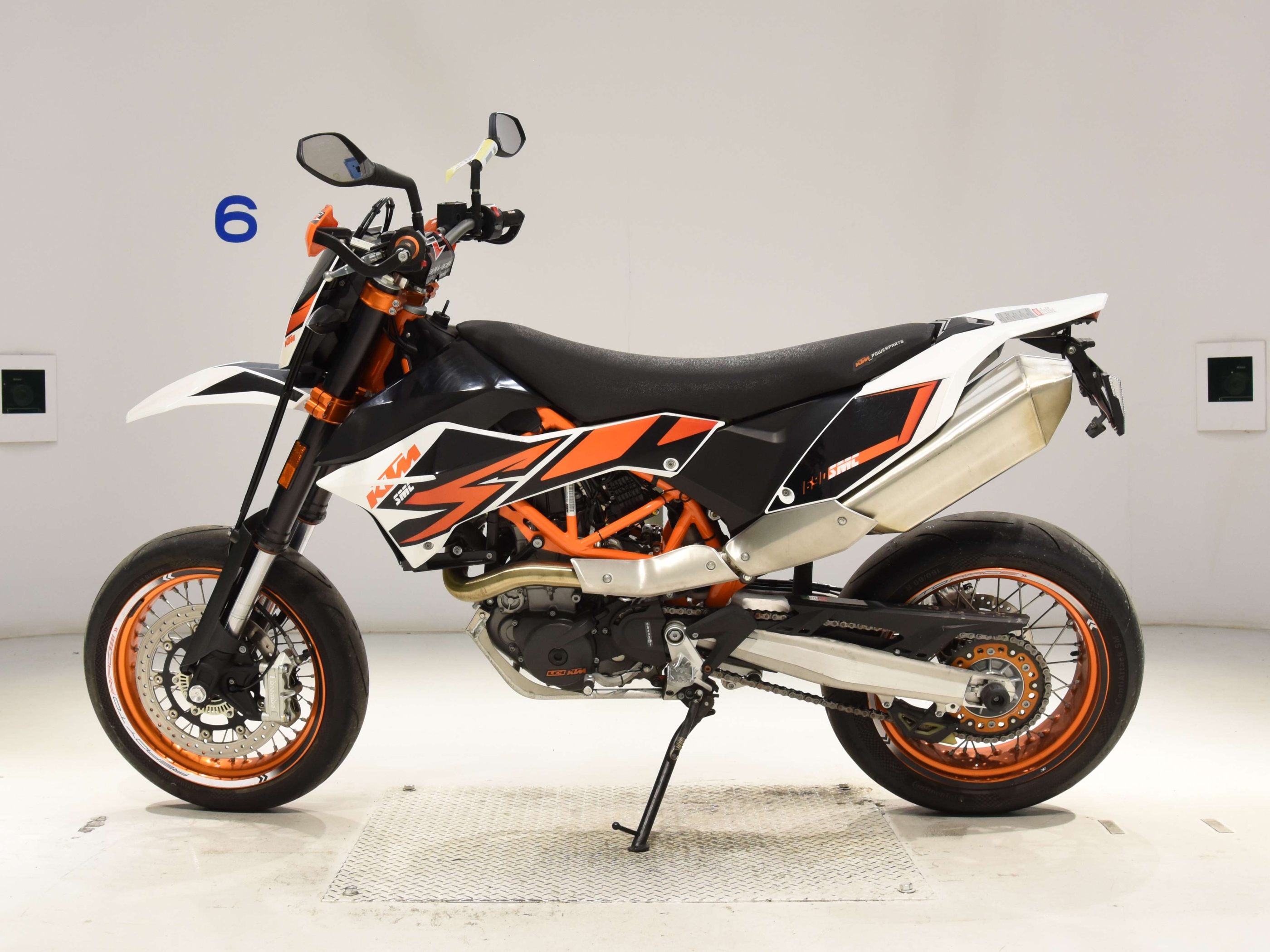

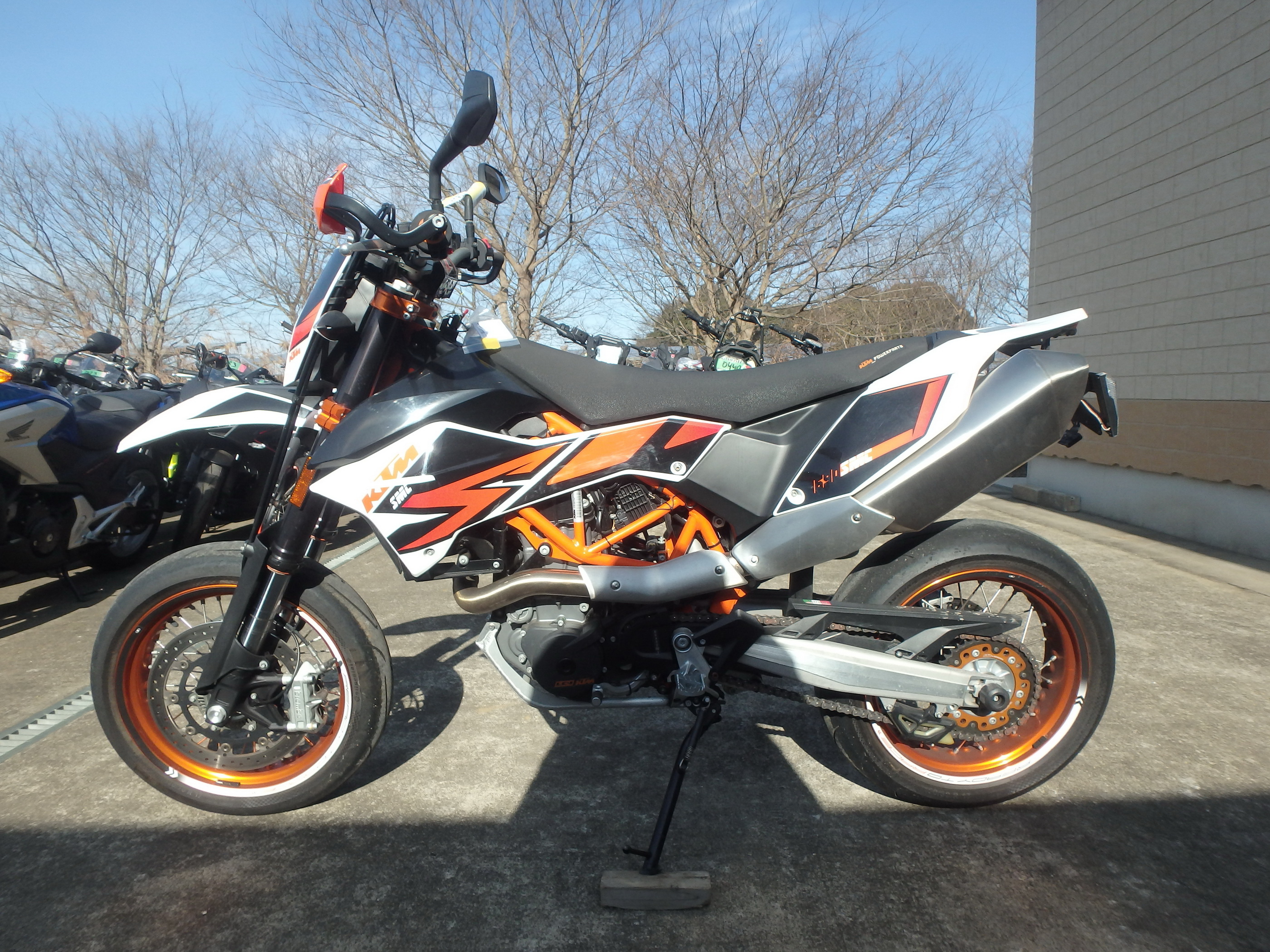

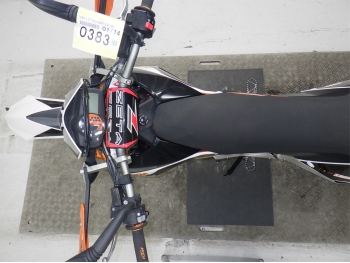

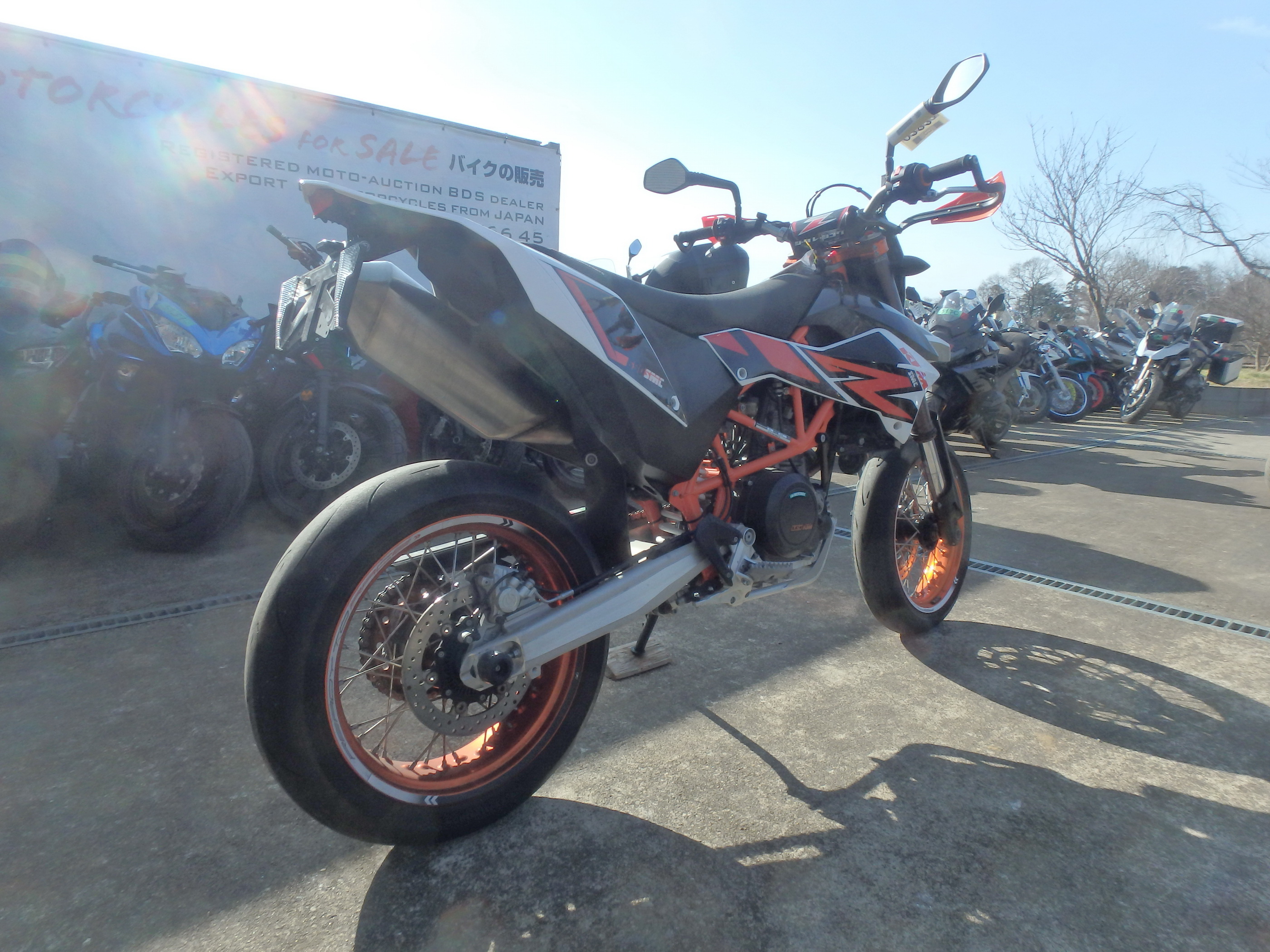

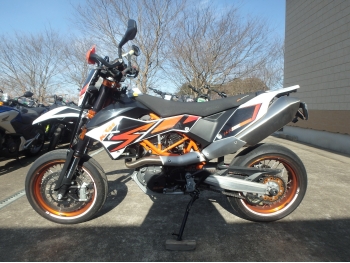

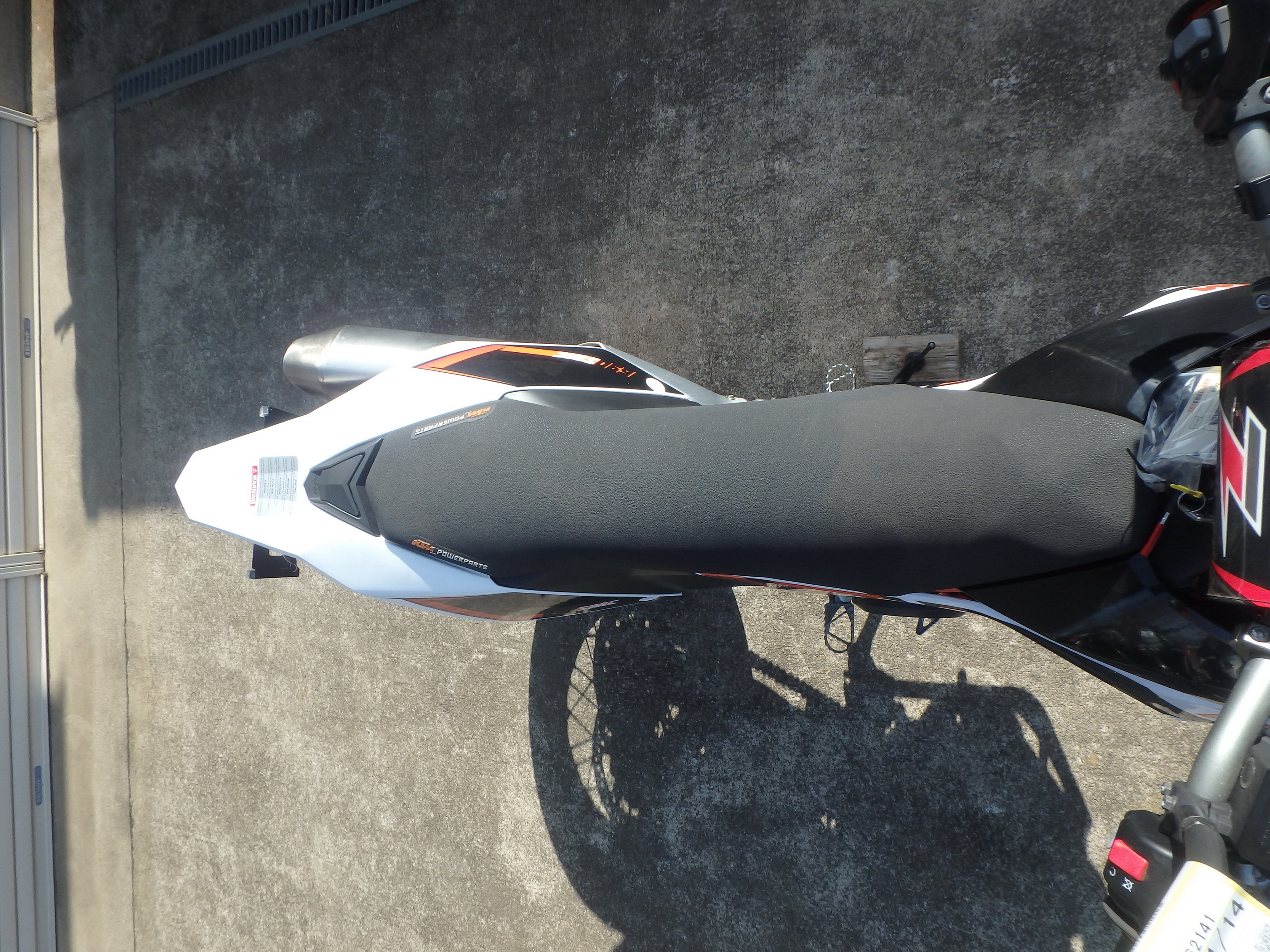

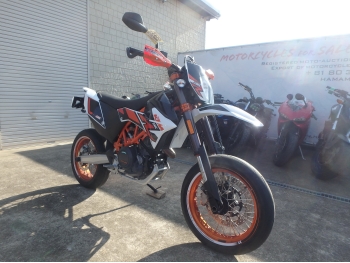

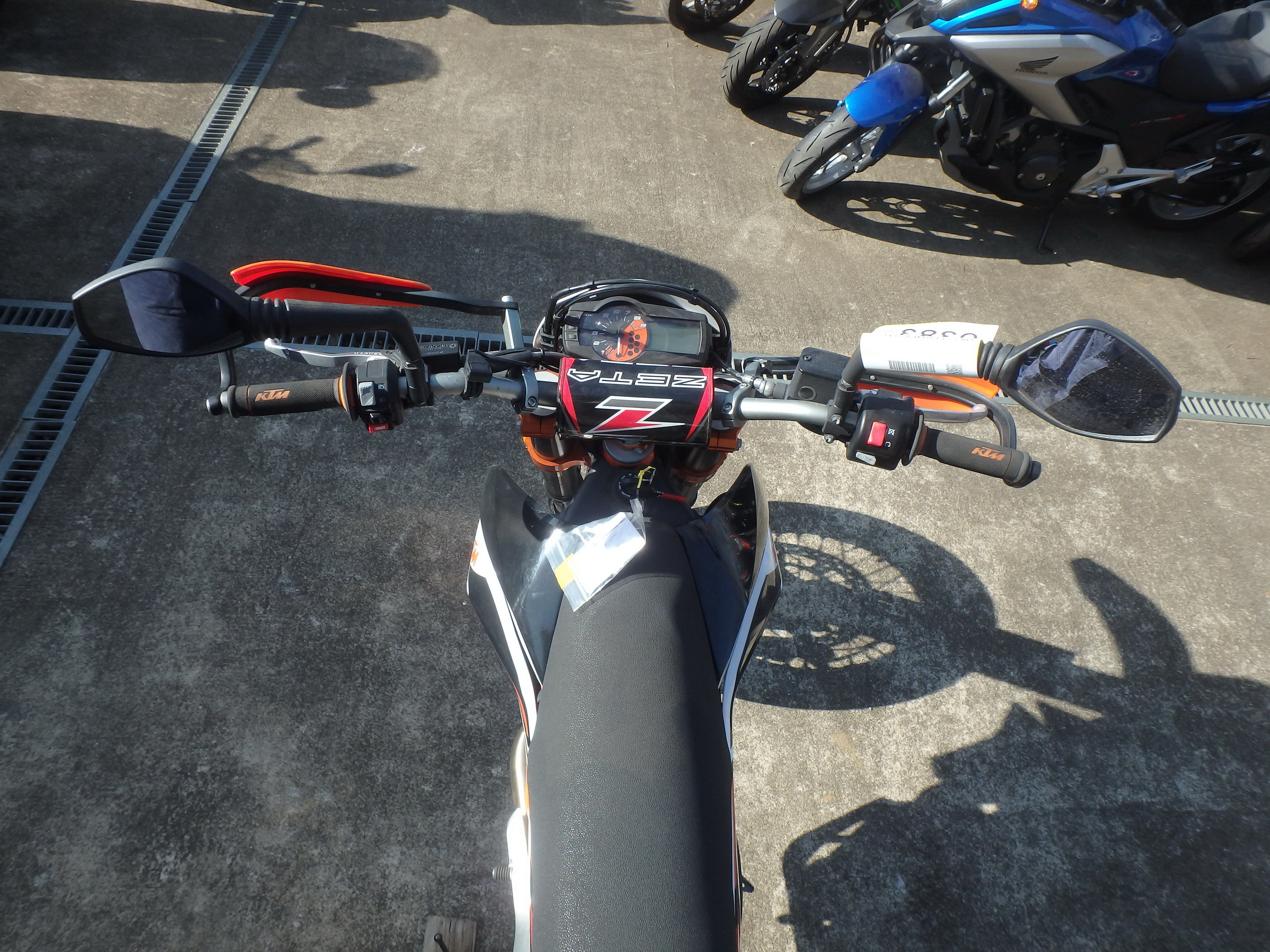

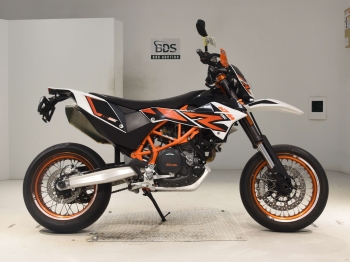

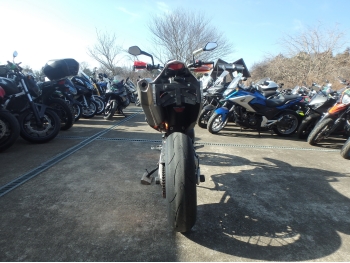

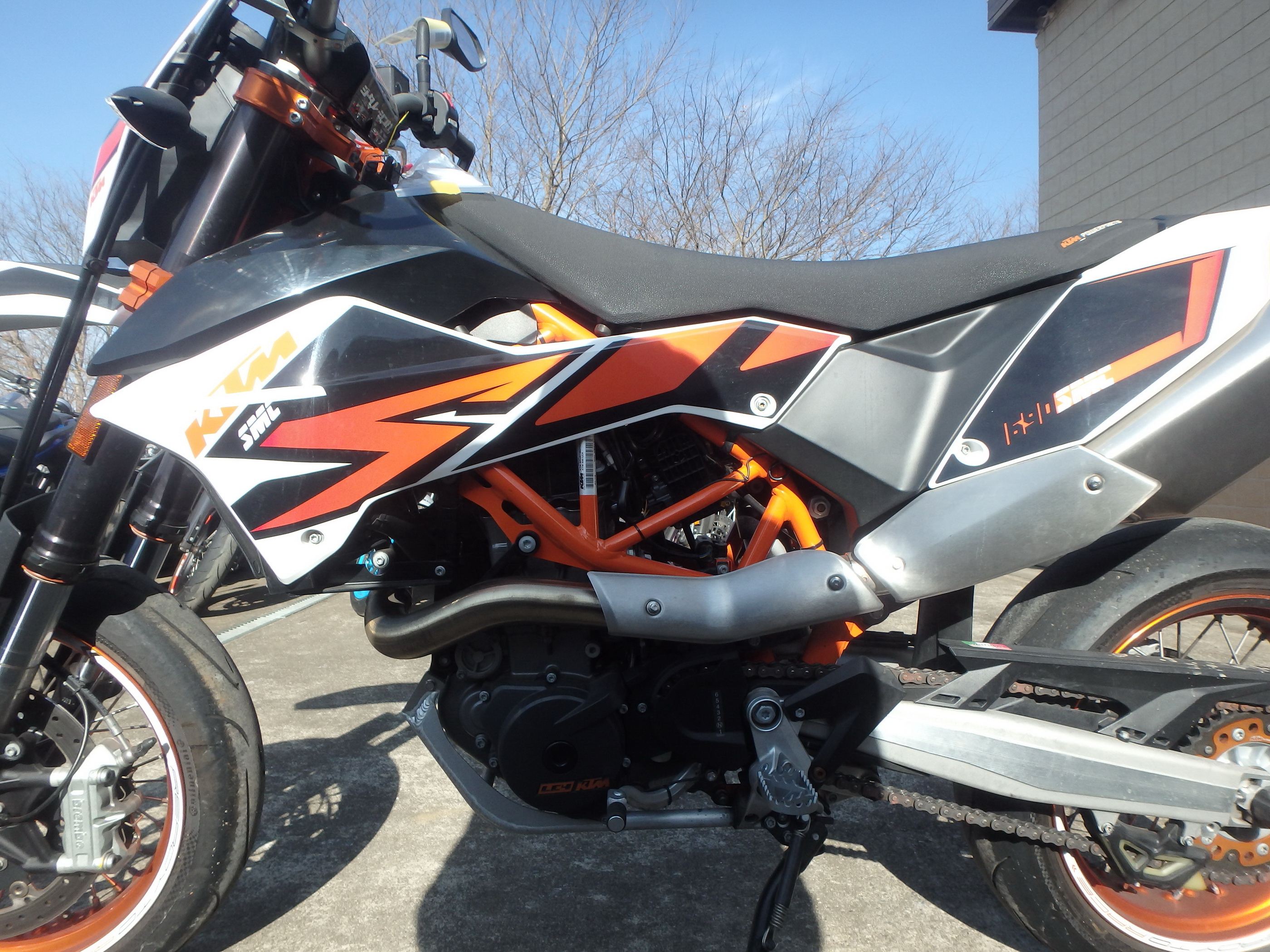

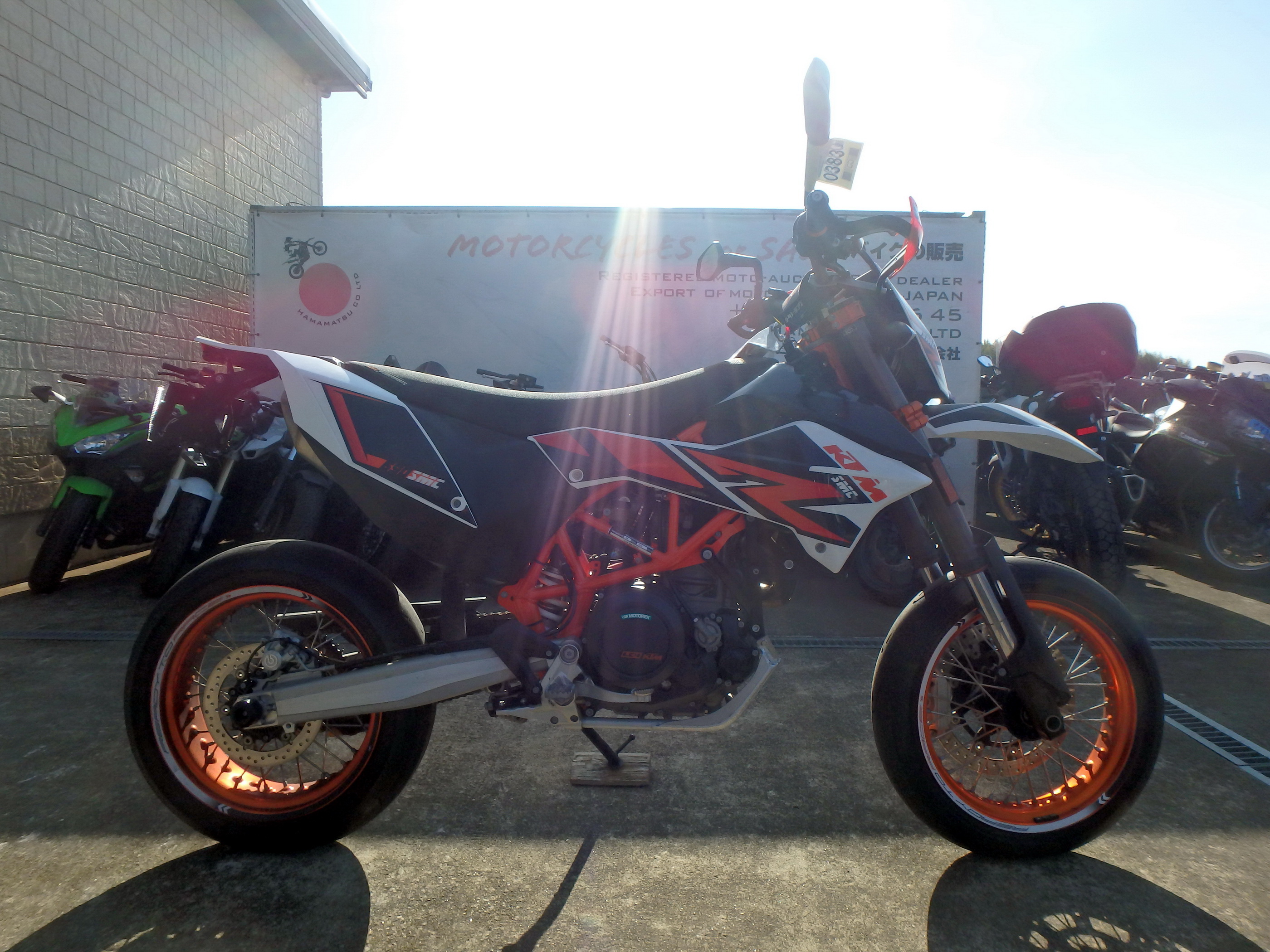

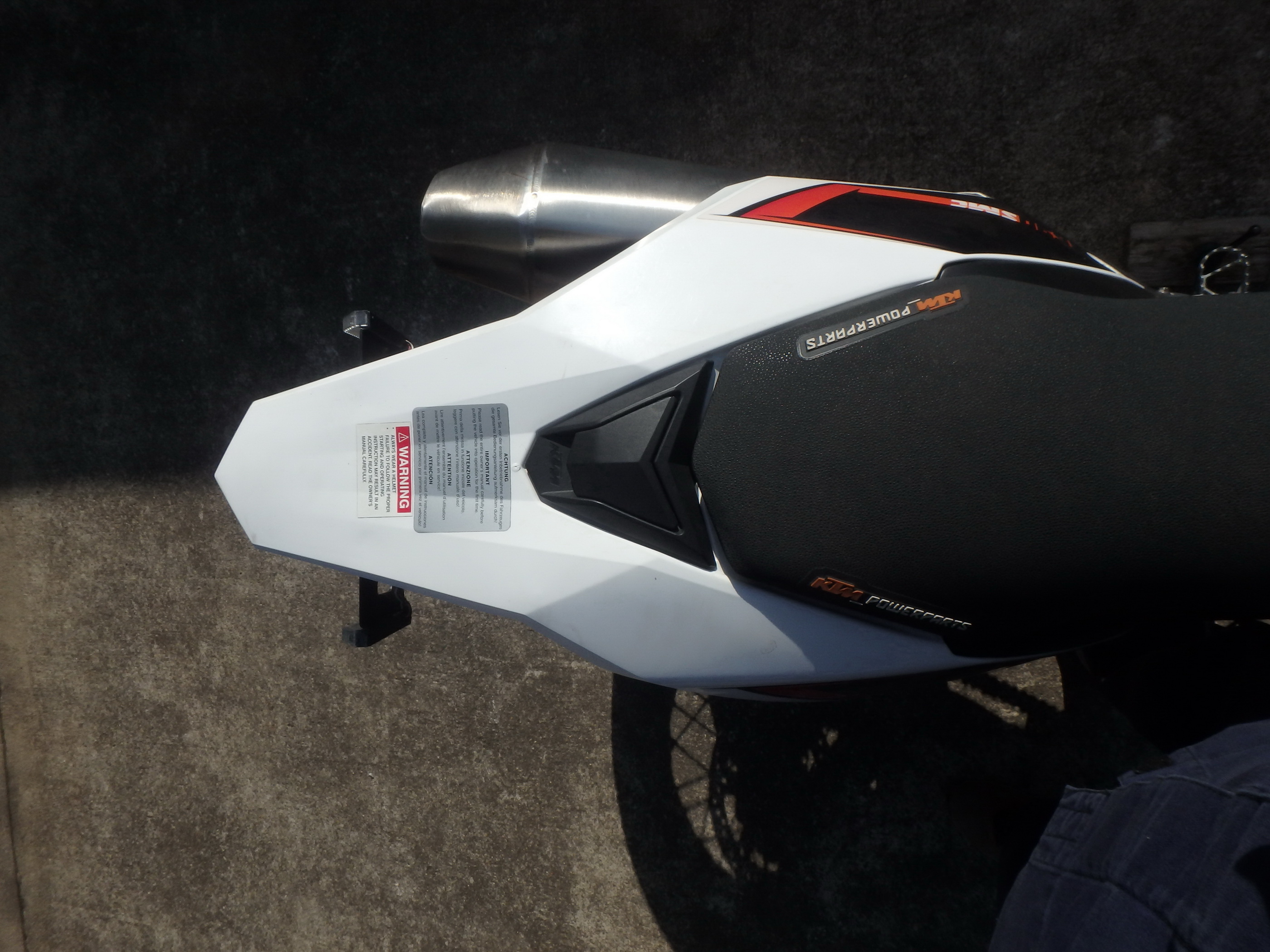

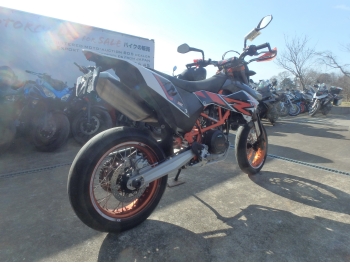

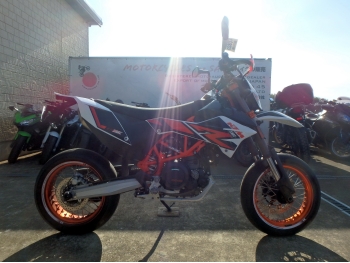

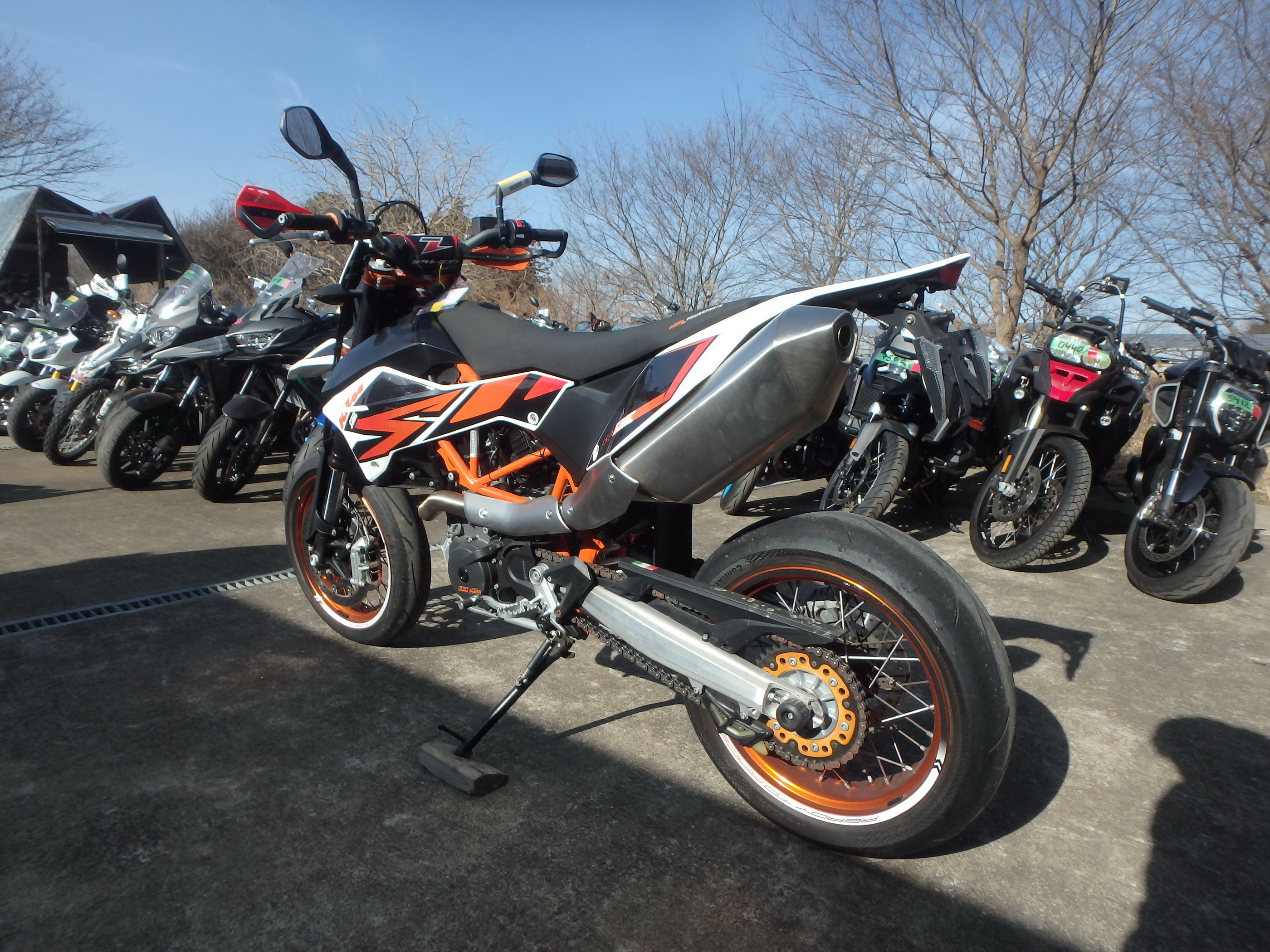

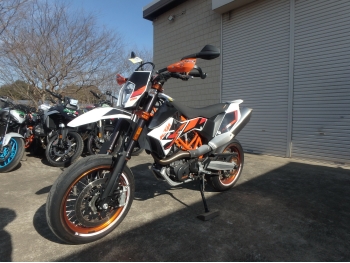

#0383 Bike KTM 690 SMC R (Reserved)
Model: 690 SMC R
Year: 2014
Capacity: 690 cm3

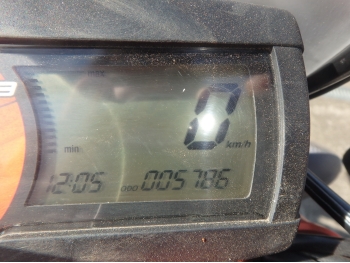

Mileage: 5785 km.
Price:
800 000 ¥
in
Additional information
Make Model
KTM 690 SMC-R
Year
2014 - 15
Engine
Four stroke, single Cylinder. SOHC, 4 Valve
Capacity
690 cc / 39.9 cu-in
Bore x Stroke
102 x 84.5 mm
Cooling System
Liquid Cooled
Compression Ratio
12.5:1
Induction
Keihin EFI with EPT (Electr. Power Throttle)
Ignition
Kokusan DC-CDI
Starting
Electric
Clutch
APTC multi-disc wet clutch, hydraulically operated
Max Power
49 kW / 65.7 hp @ 7500 rpm
Max Torque
68 Nm / 50.1 lb-ft @ 6000 rpm
Transmission
6 Speed
Final Drive
Chain 5/8 x 1/4" X Ring
Primary Drive
36:79
Final Ratio
16:40

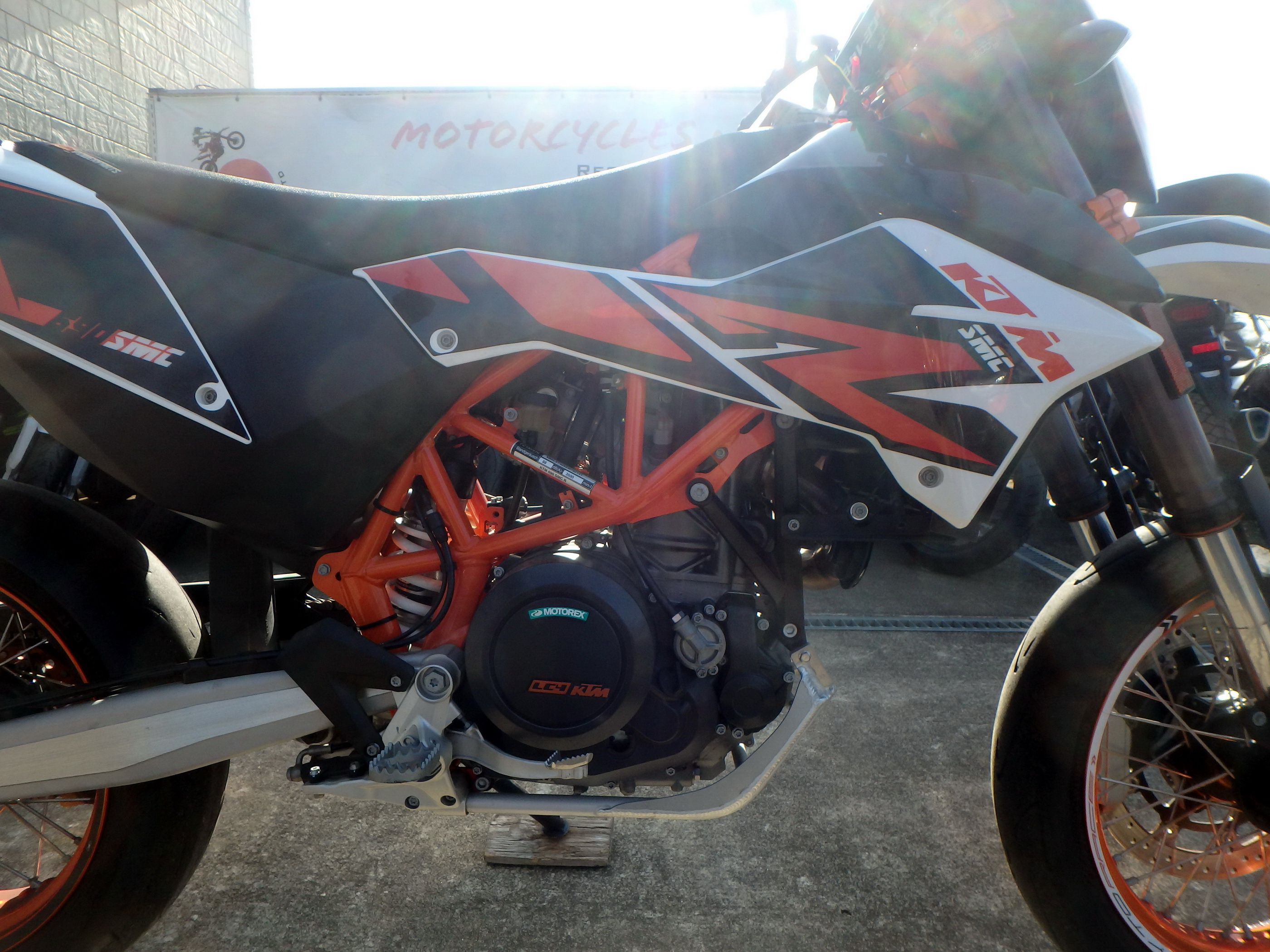

Frame
Chromium-Molybdenum trellis frame, powder coated,, Aluminium Sub frame, aluminium, tapered, Ø 28/22 mm handlebar.
Front Suspension
WP 48mm Upside-down forks,
Front Wheel Travel
250 mm / 9.8 in

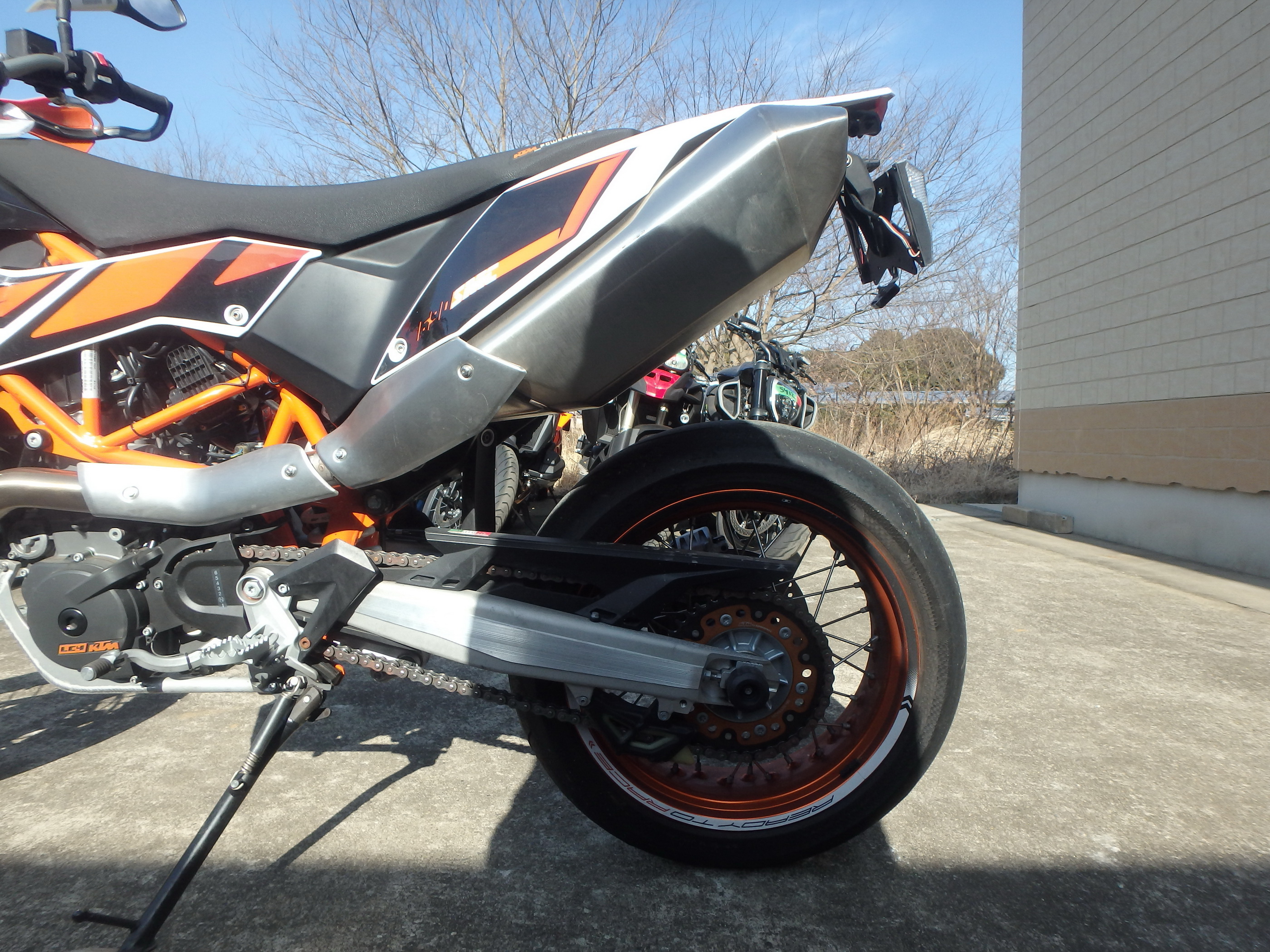

Rear Suspension
WP-Monoshock with Pro-Lever linkage,
Rear Wheel Travel
250 mm / 9.8 in

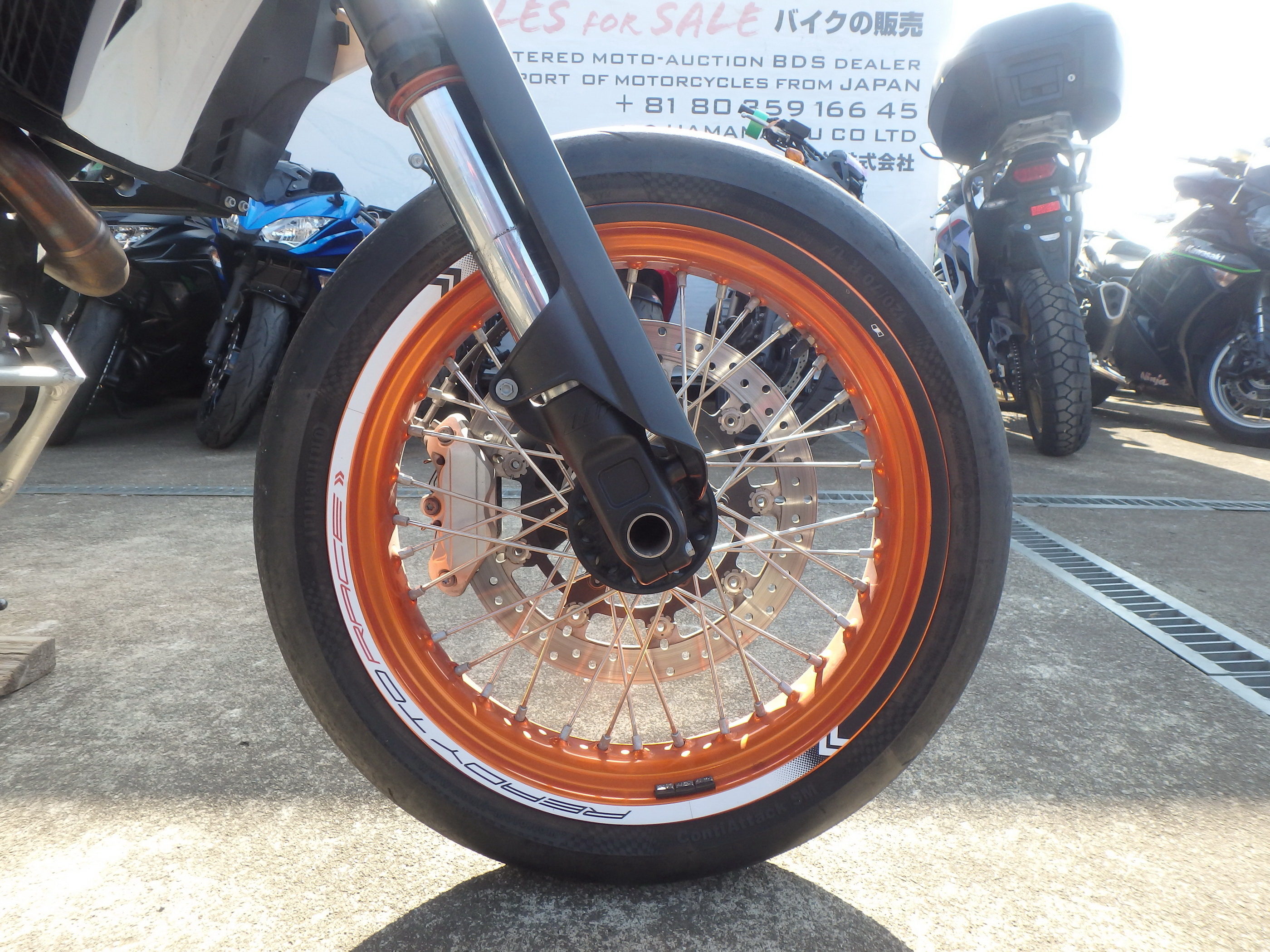

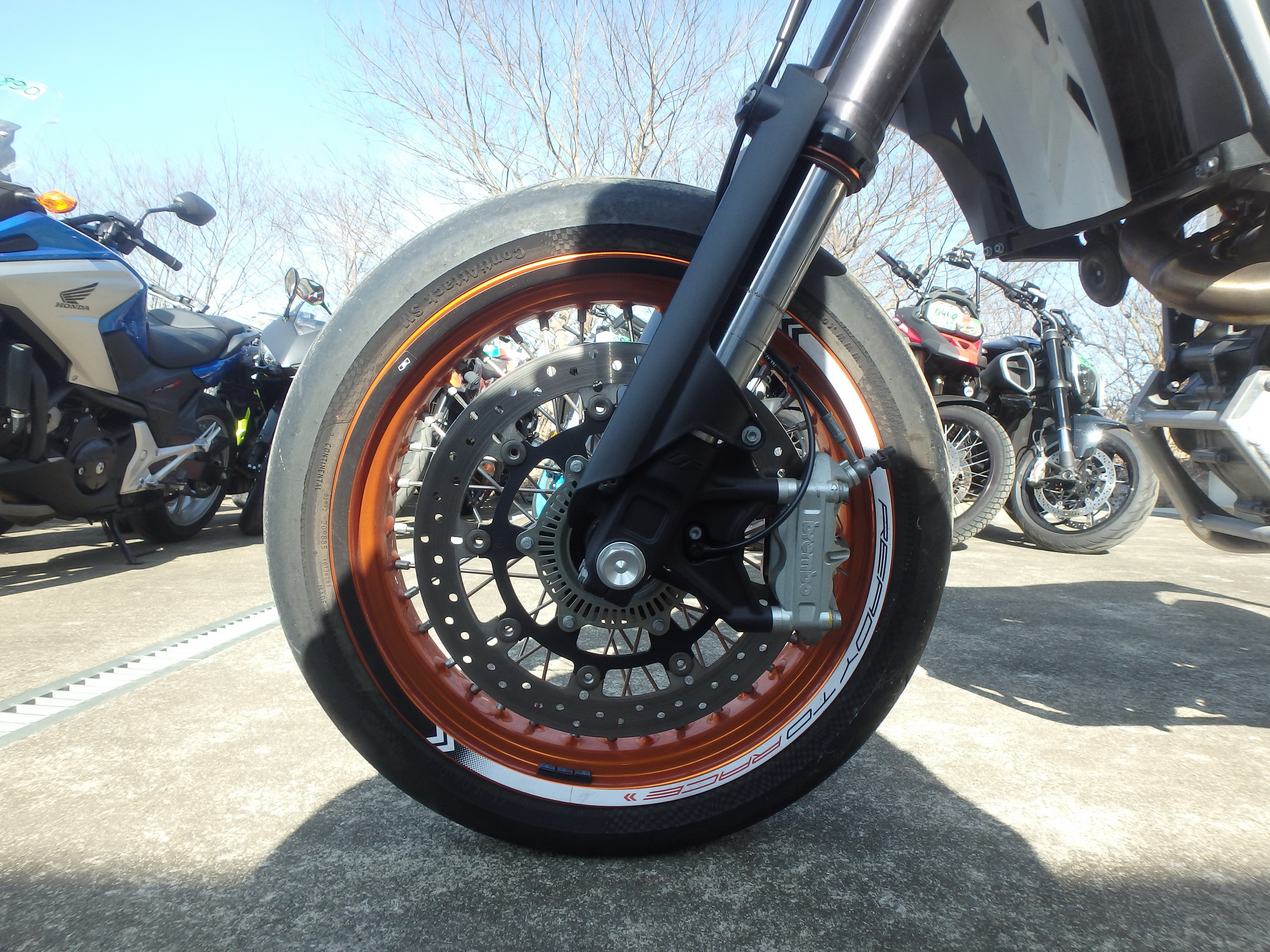

Front Brakes
Single 320mm disc
Rear Brakes
Single 240mm disc
Front Tyre
120/70 -ZR17
Rear Tyre
160/60 -ZR17
Steering Head Angle
63°
Wheelbase
1480 mm / 58.2 in
Seat Height
890 mm / 35 in
Ground Clearance
270 mm / 10.6 in
Dry Weight
139 kg / 306.4 lbs
Fuel Capacity
12 Litres / 3.1 gal
