Additional information

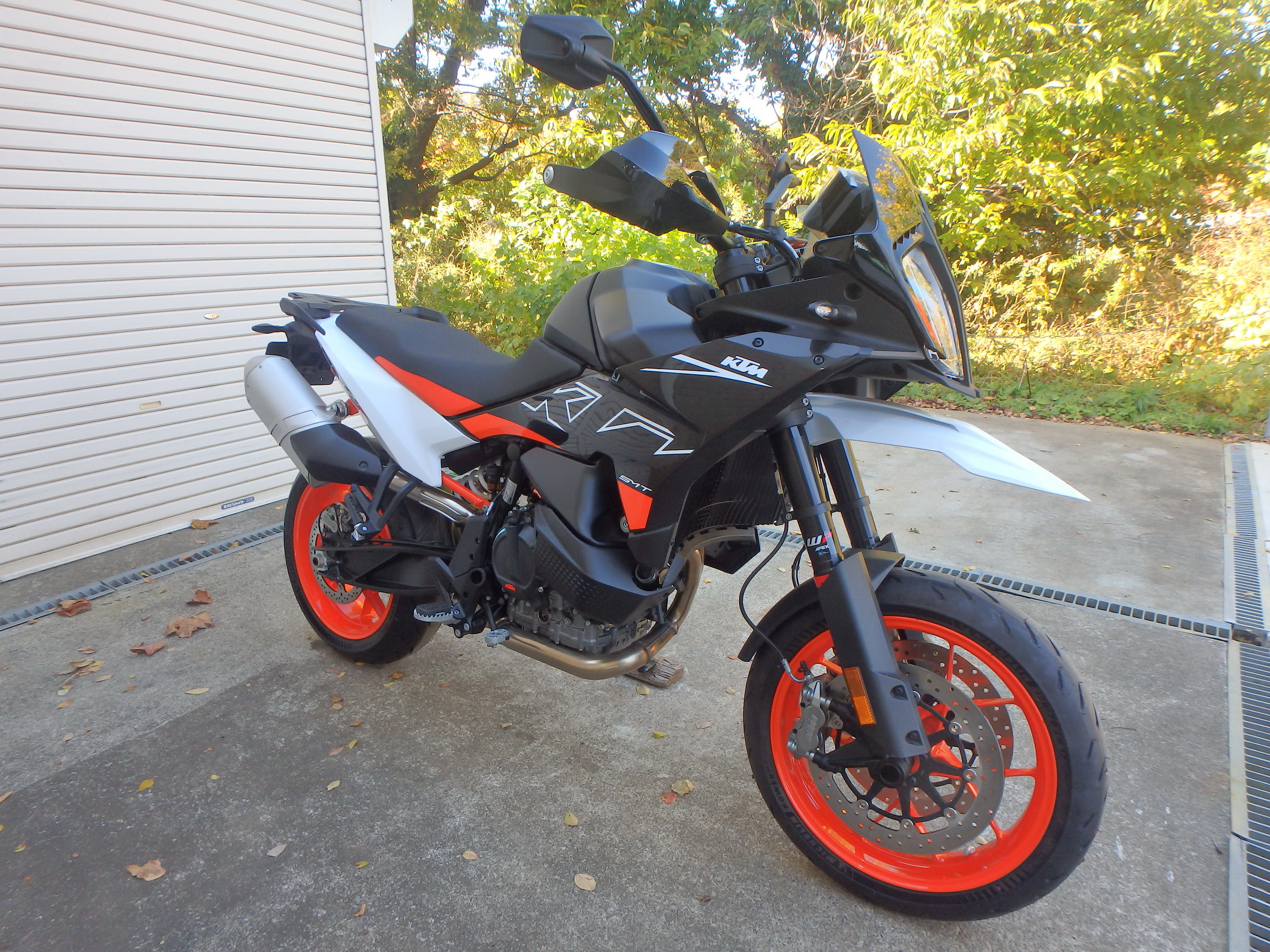

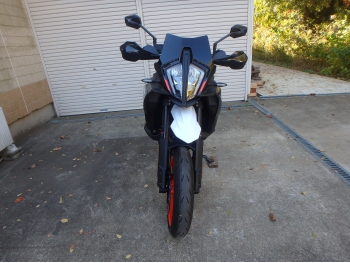

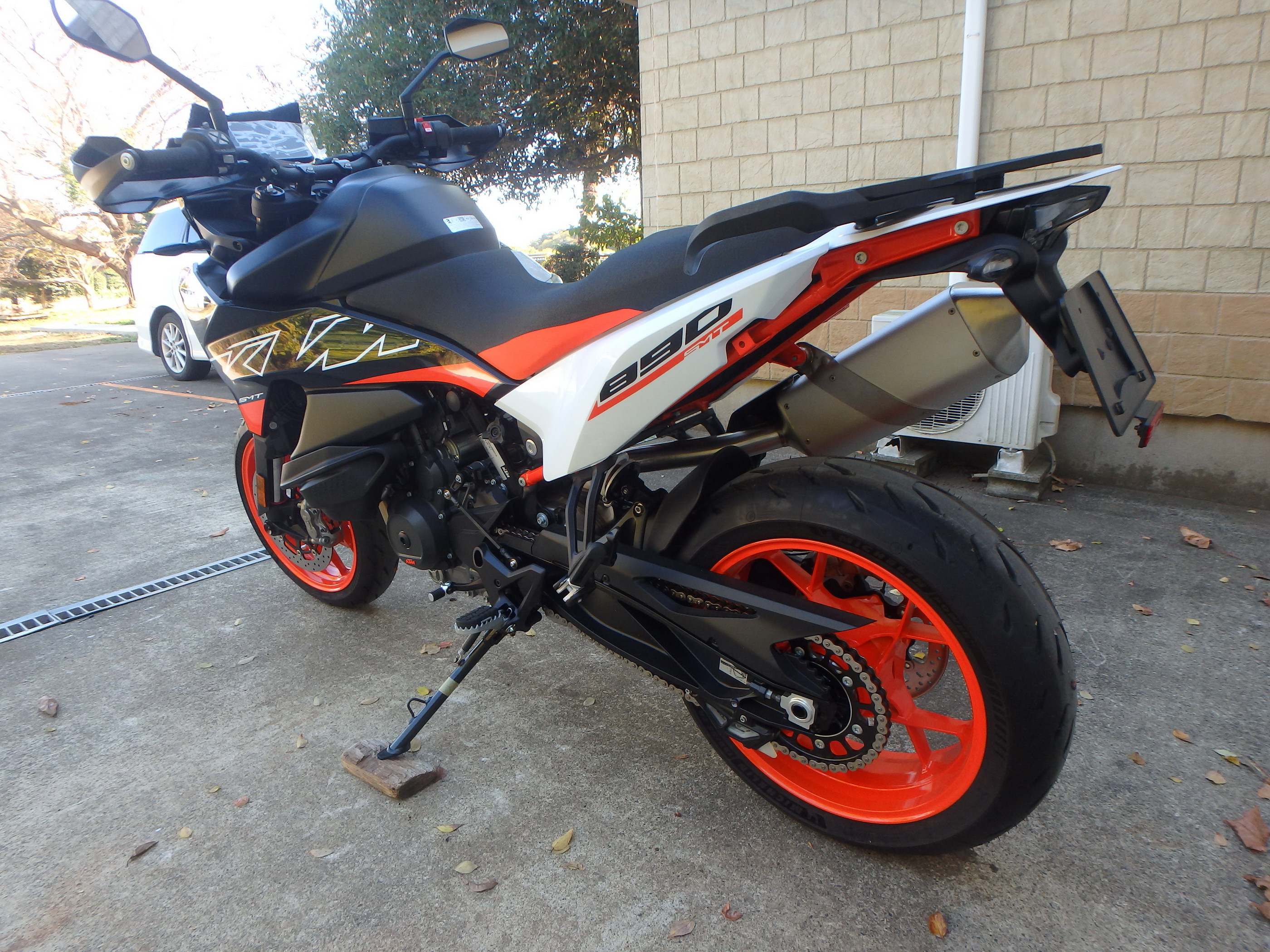

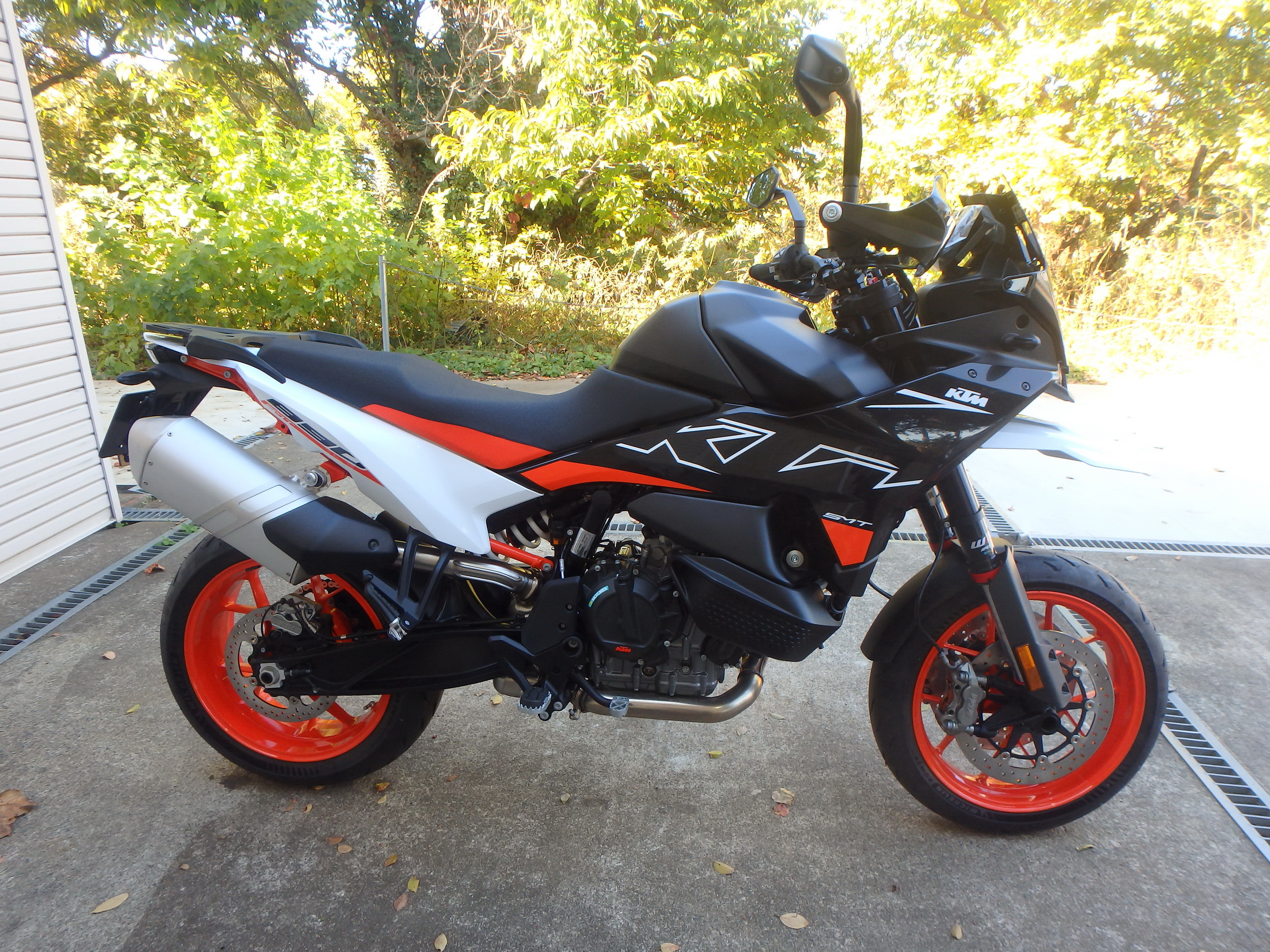

Make Model
KTM 890 SMT
Year
2023
Engine
Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder
Capacity
889 cc / 54.2 cu-in
Bore x Stroke
90.7 x 68.8 mm
Cooling System
Liquid cooled with water/oil heat exchanger
Compression Ratio
13.5:1
Lubrication
Forced oil lubrication with 2 oil pumps
Induction
Emission
EURO5
Engine Management
Bosch EMS with RBW
Starting
Electric
Max Power
Max Torque
100
Clutch
PASC antihopping clutch, mechanically operated
Traction Control
Three mode, disengageable, lean sensitive, optional
Transmission
6 Speed
Final Drive
Chain 520 X-Ring
Frame
Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated

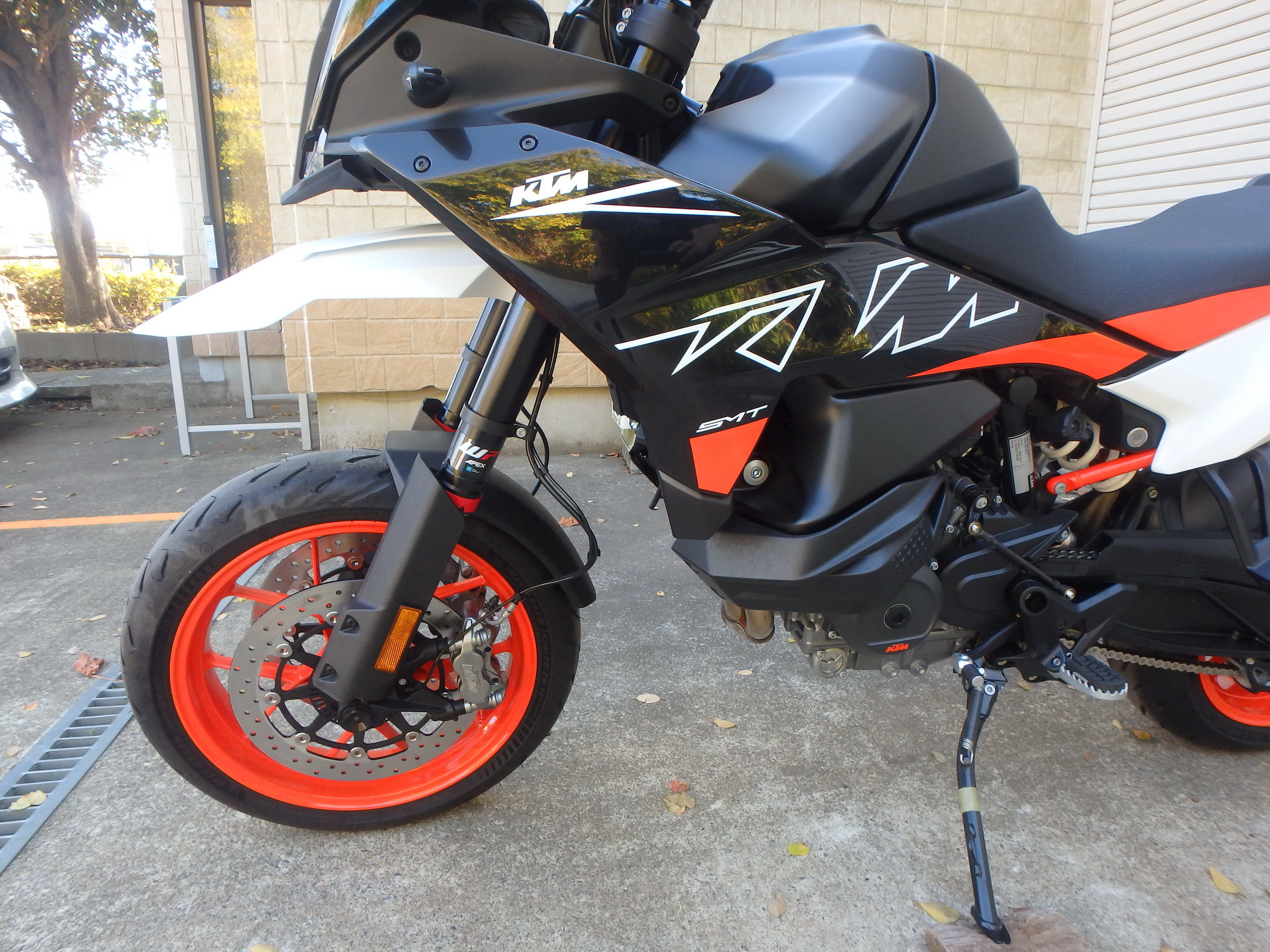

Front Suspension
43mm WP APEX upside-down forks
Front Wheel Travel
180 mm / 7.1 in

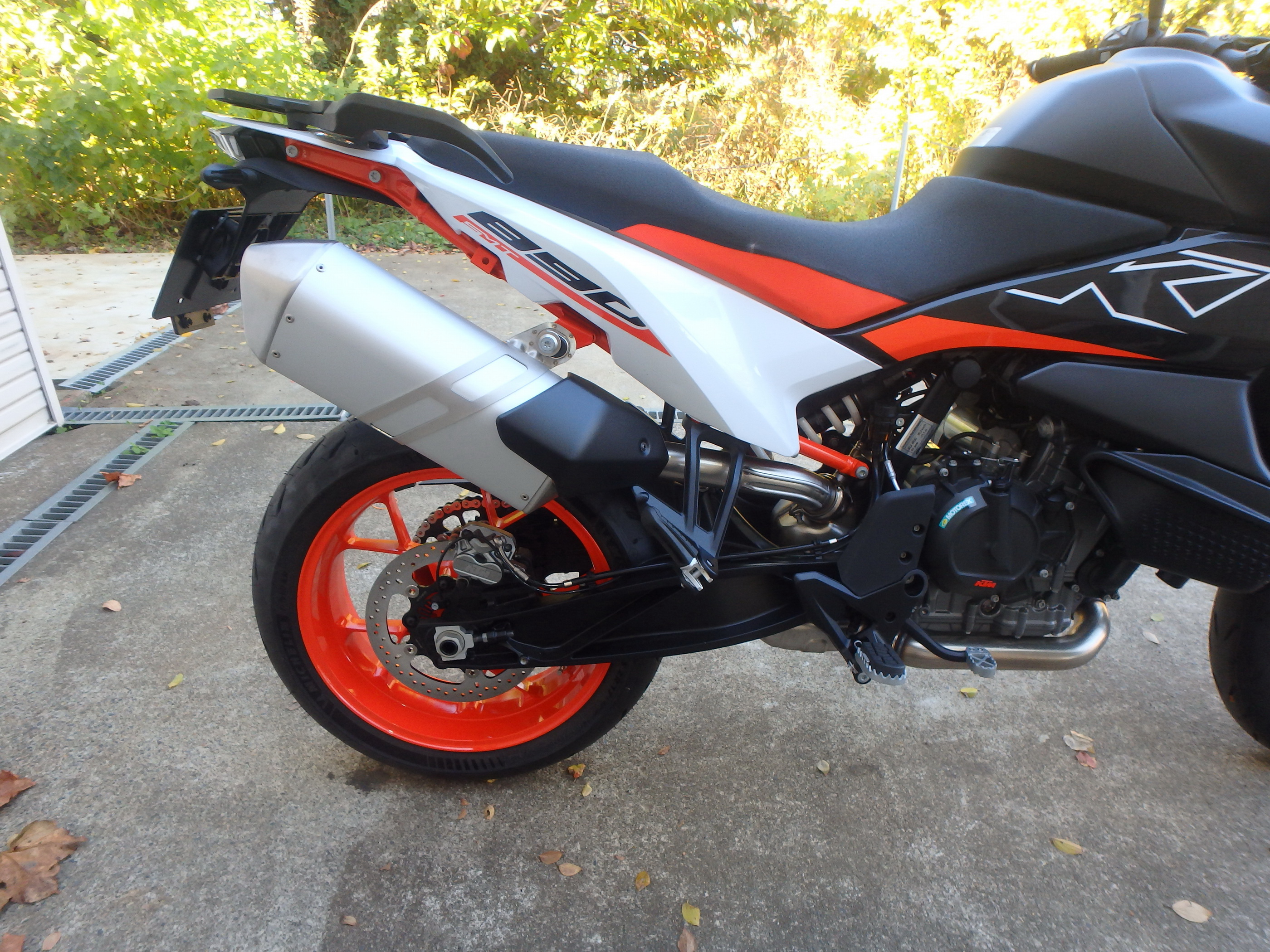

Rear Suspension
WP APEX Monoshock
Rear Wheel Travel
180 mm / 7.1 in
Front Brakes
2 x 320mm discs, 4 piston, radially mounted caliper
Rear Brakes
Single 260mm disc, 1 piston floating caliper
ABS
Bosch 9.1 MP (incl. Cornering ABS and Supermoto mode)
Front Wheel
Cast aluminium wheels 3.50 X 17
Rear Wheel
Cast aluminium wheels 5.50 X 17
Front Tyre
120/70 ZR 17
Rear Tyre
180/55 ZR 17
Rake
Steering Head Angle
Wheelbase
1502 mm / 59.1 in

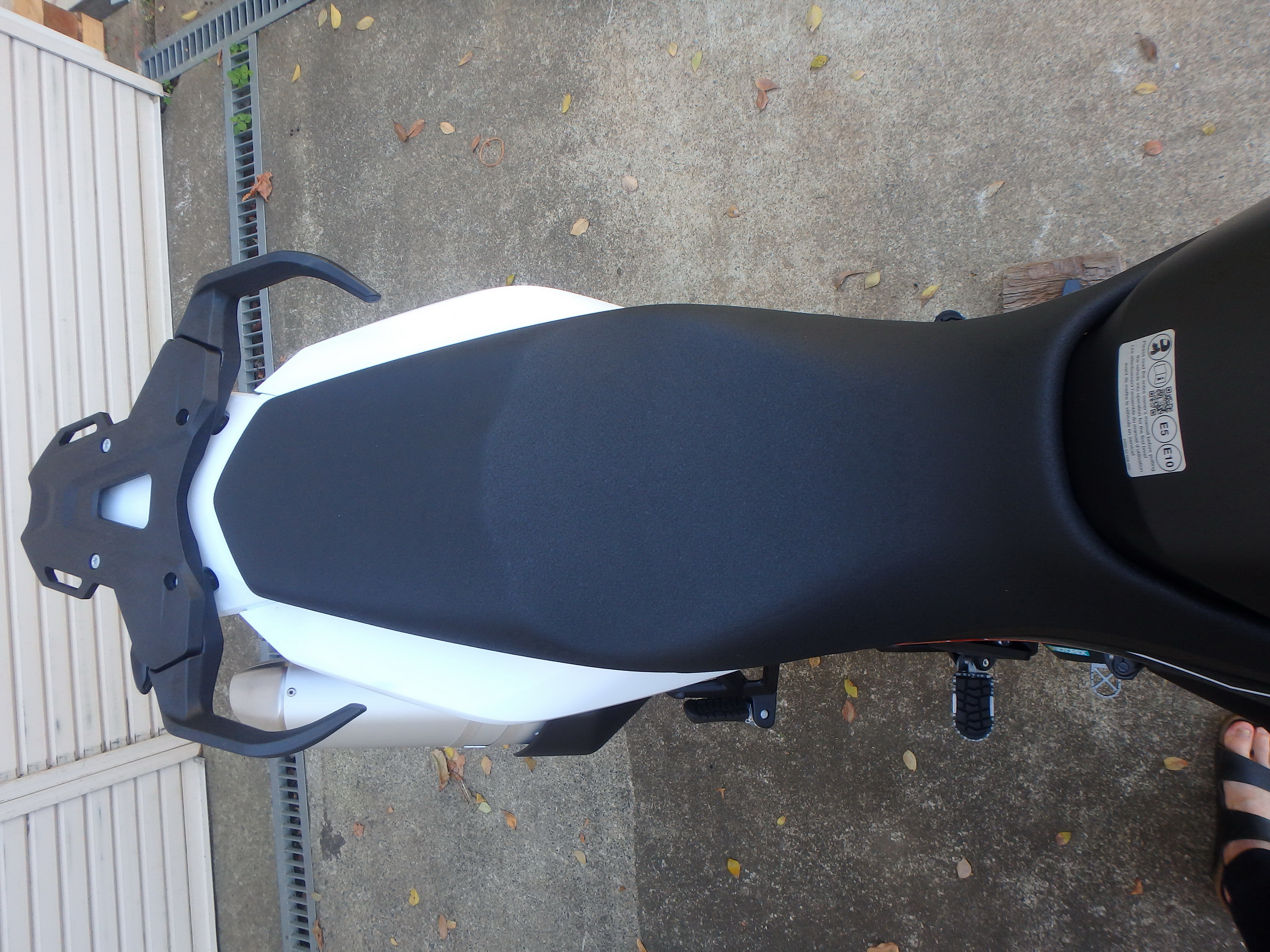

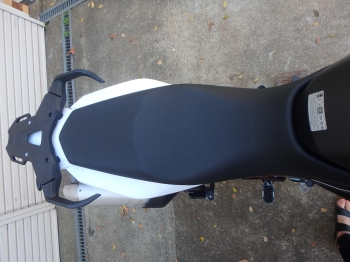

Seat Height
860 mm / 33.9 in
Ground Clearance
227 mm / 8.9 in
Dry Weight
194 kg / 427.7 lbs
Fuel Capacity
15.8 Litres / 4.2 US gal
