Additional information
Make Model
Diavel Cromo Special Edition
Year
2012

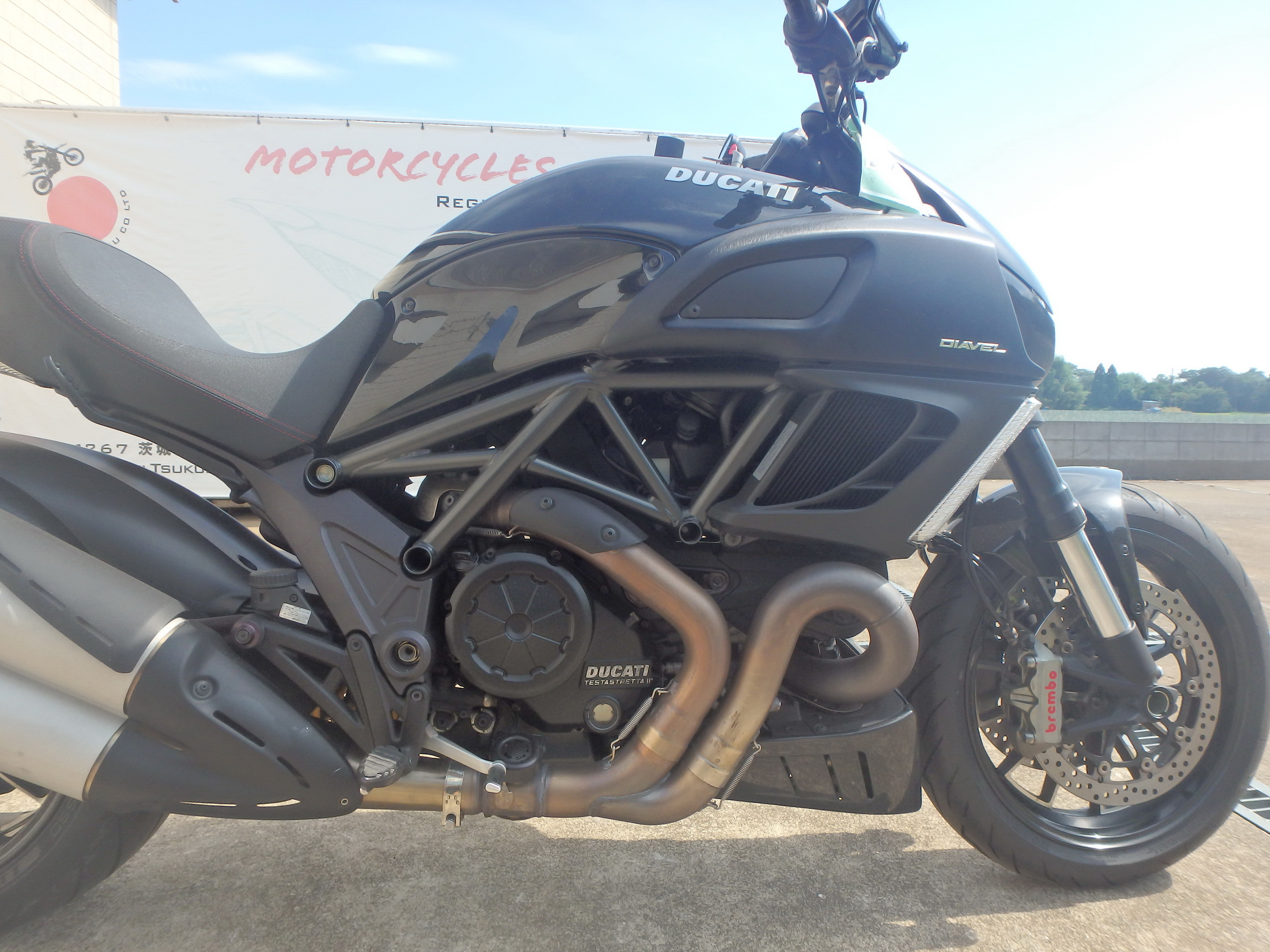

Engine
Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valves per cylinder.
Capacity
1198.4 cc / 73.1 cu in
Bore x Stroke
106 x 67.9 mm
Compression Ratio
11.5:1
Cooling System
Liquid cooled
Induction
Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW

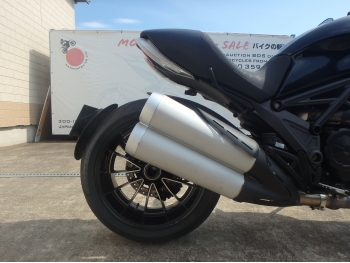

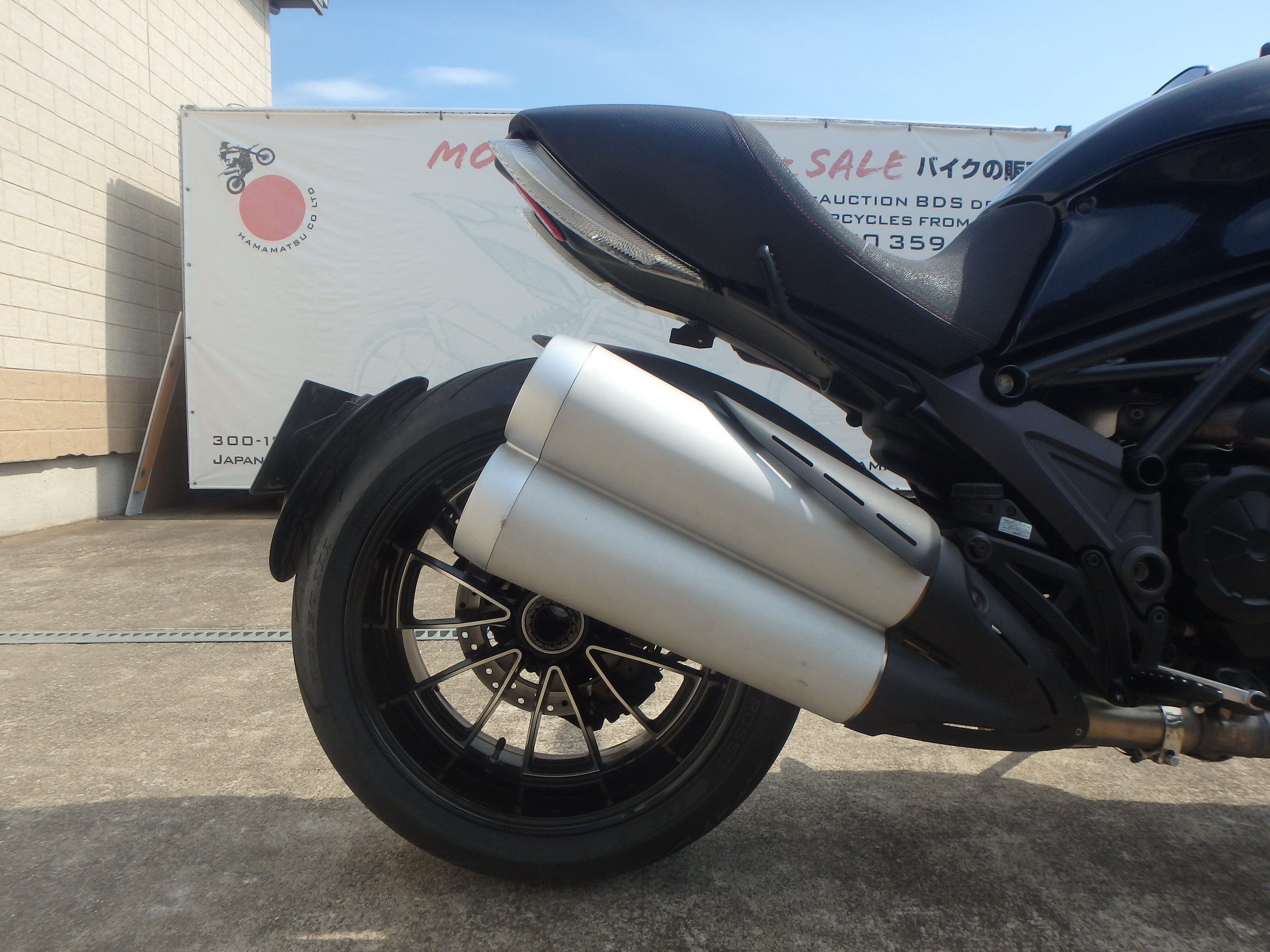

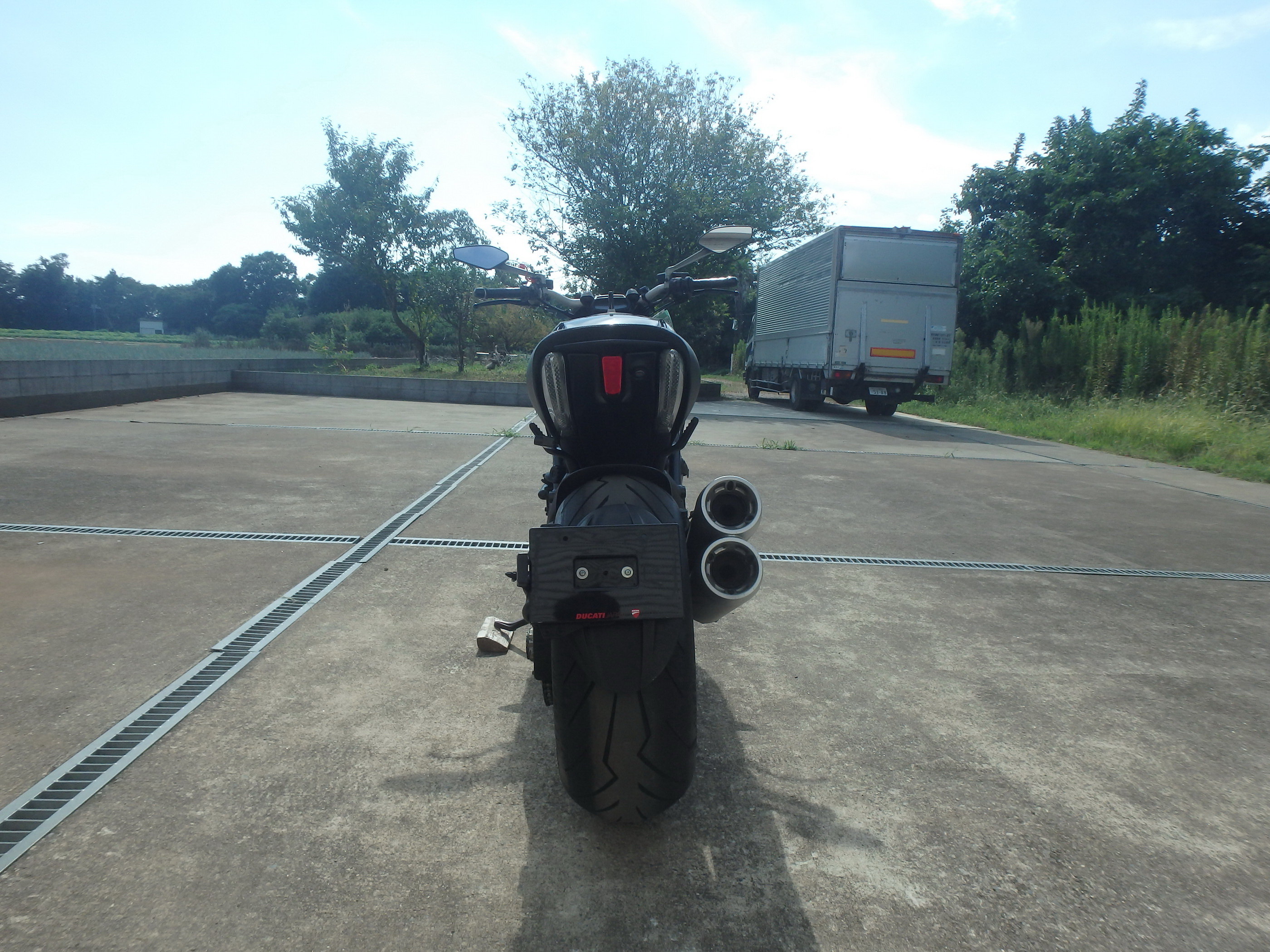

Exhaust

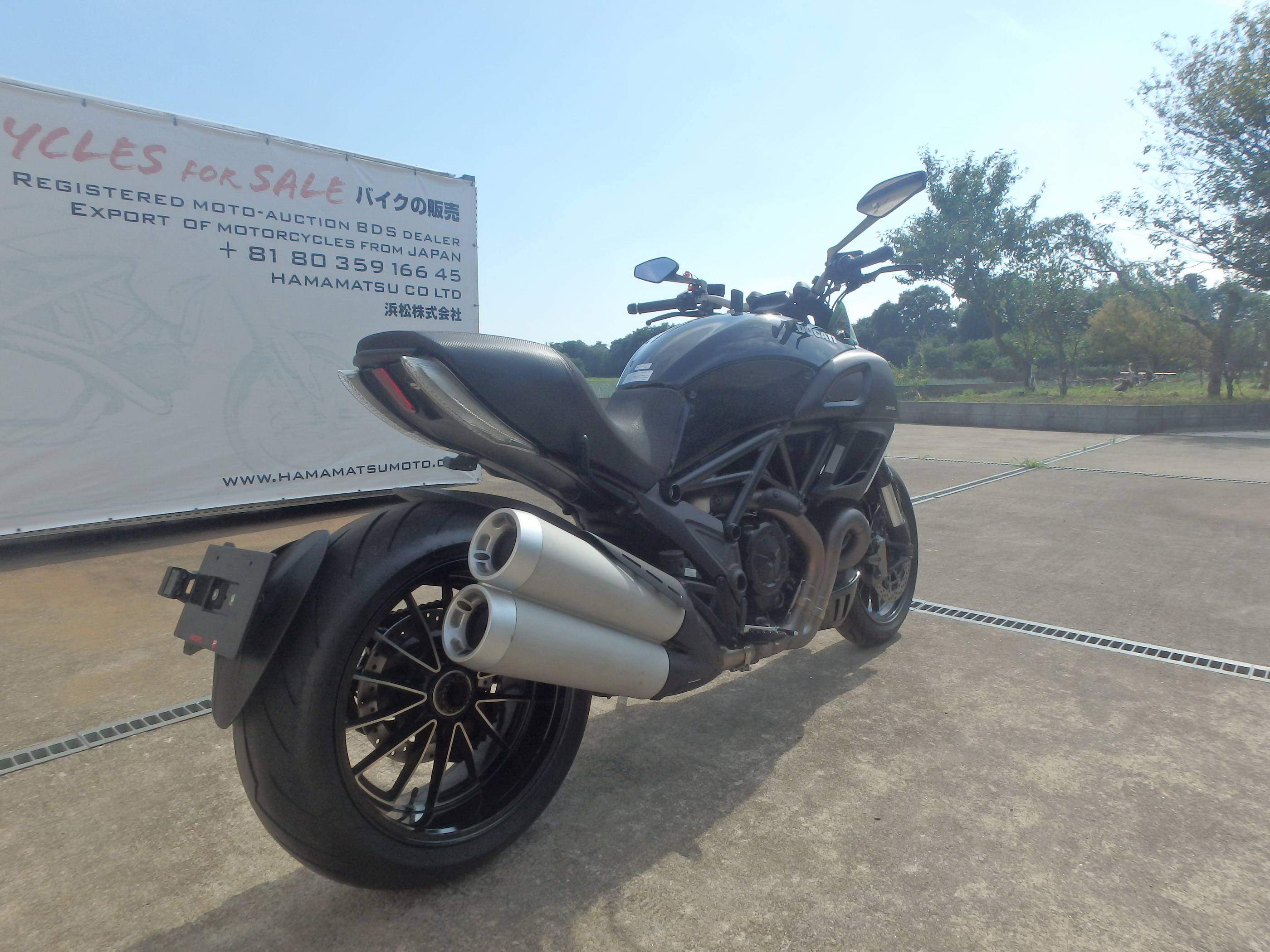

Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers
Ignition
Marelli electronic
Starting
Electric
Max Power
119 kW / 162 hp / @ 9500rpm
Max Torque
127.5 Nm / 13.0 kgf-m / 94 lb-ft / @ 8000rpm
Clutch
Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Transmission
6 Speed
Final Drive
Chain Front sprocket 15; Rear sprocket 43
Gear Ratios
1st 37/15 / 2nd 30/17 / 3rd 27/20 / 4th24/22 / 5th 23/24 / 6th 22/25

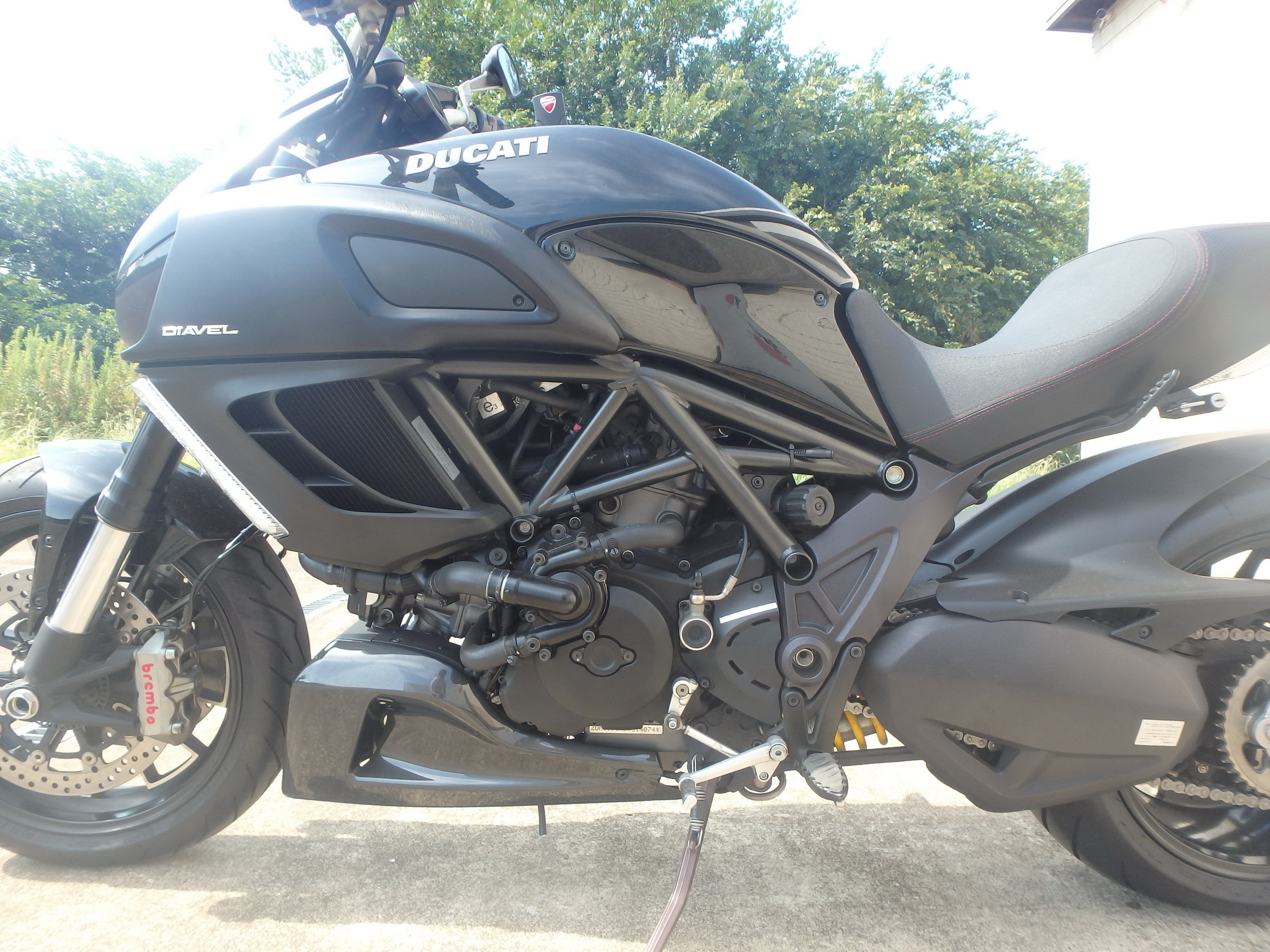

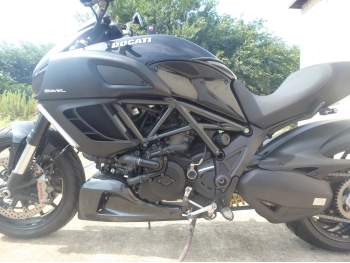

Frame
Tubular steel Trellis frame
Front Suspension
Marzocchi 50mm fully adjustable USD forks
Front Wheel Travel
120 mm / 4.72 in

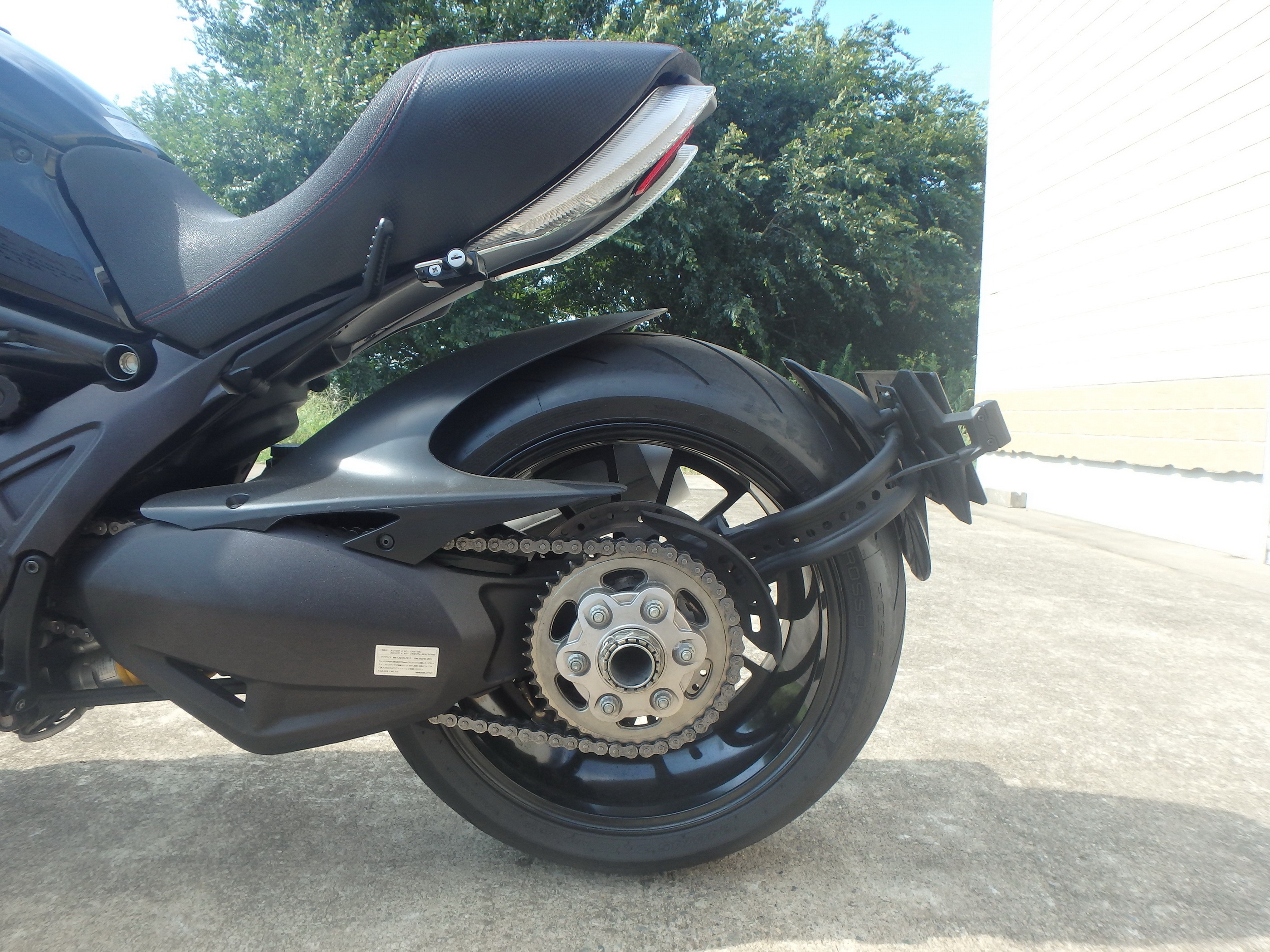

Rear Suspension

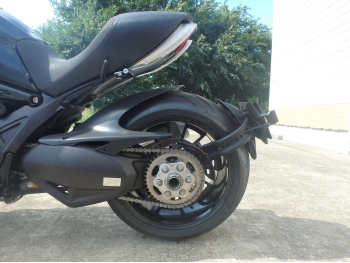

Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm,
Rear Wheel Travel
120 mm / 4.72 in

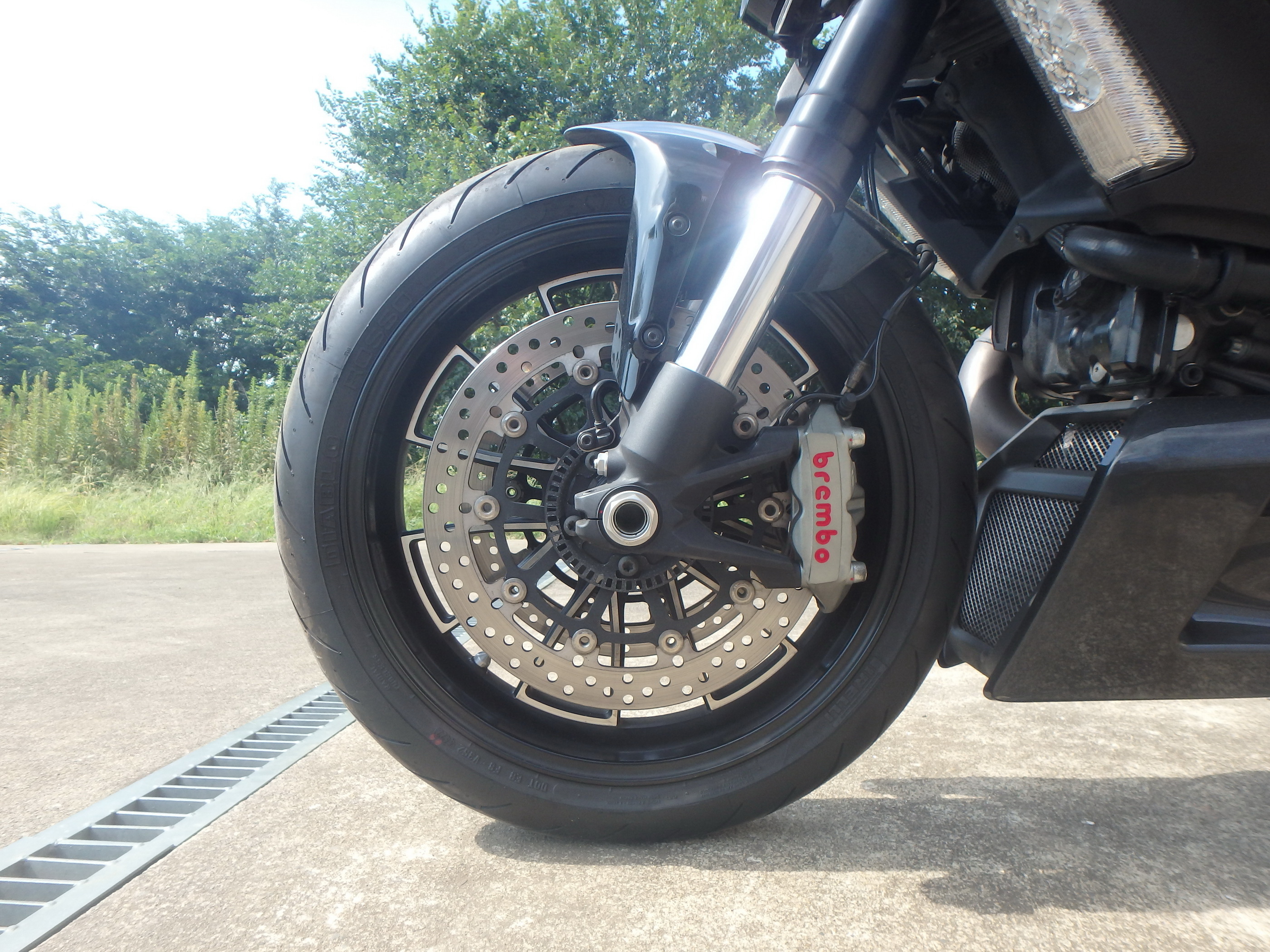

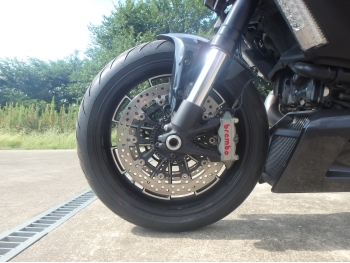

Front Brakes

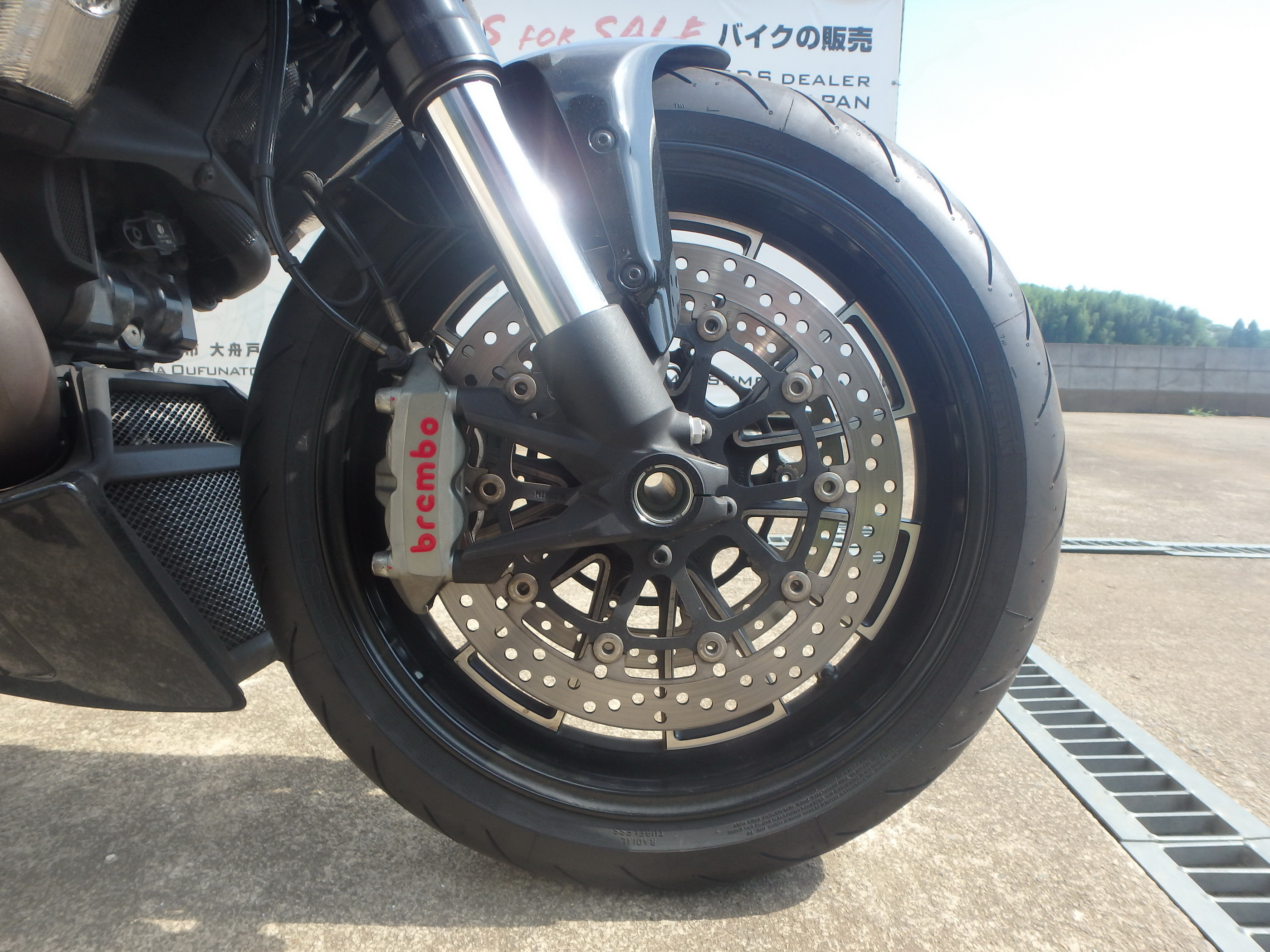

2 x 320 mm Semi-floating discs, radially mounted Monobloc Brembo calipers, 4-piston with ABS
Rear Brakes
Single 265 mm disc, 2-piston floating caliper with ABS
Front Tyre
120/70 ZR 17
Rear Tyre
240/45 ZR17
Rake
28°
Steering angle (total)
70°
Dimensions
Length 2235 mm / 87.9 in Width 860 mm / 33.8 in Height 1192 mm / 46.9 in
Wheelbase
1590 mm / 62.6 in

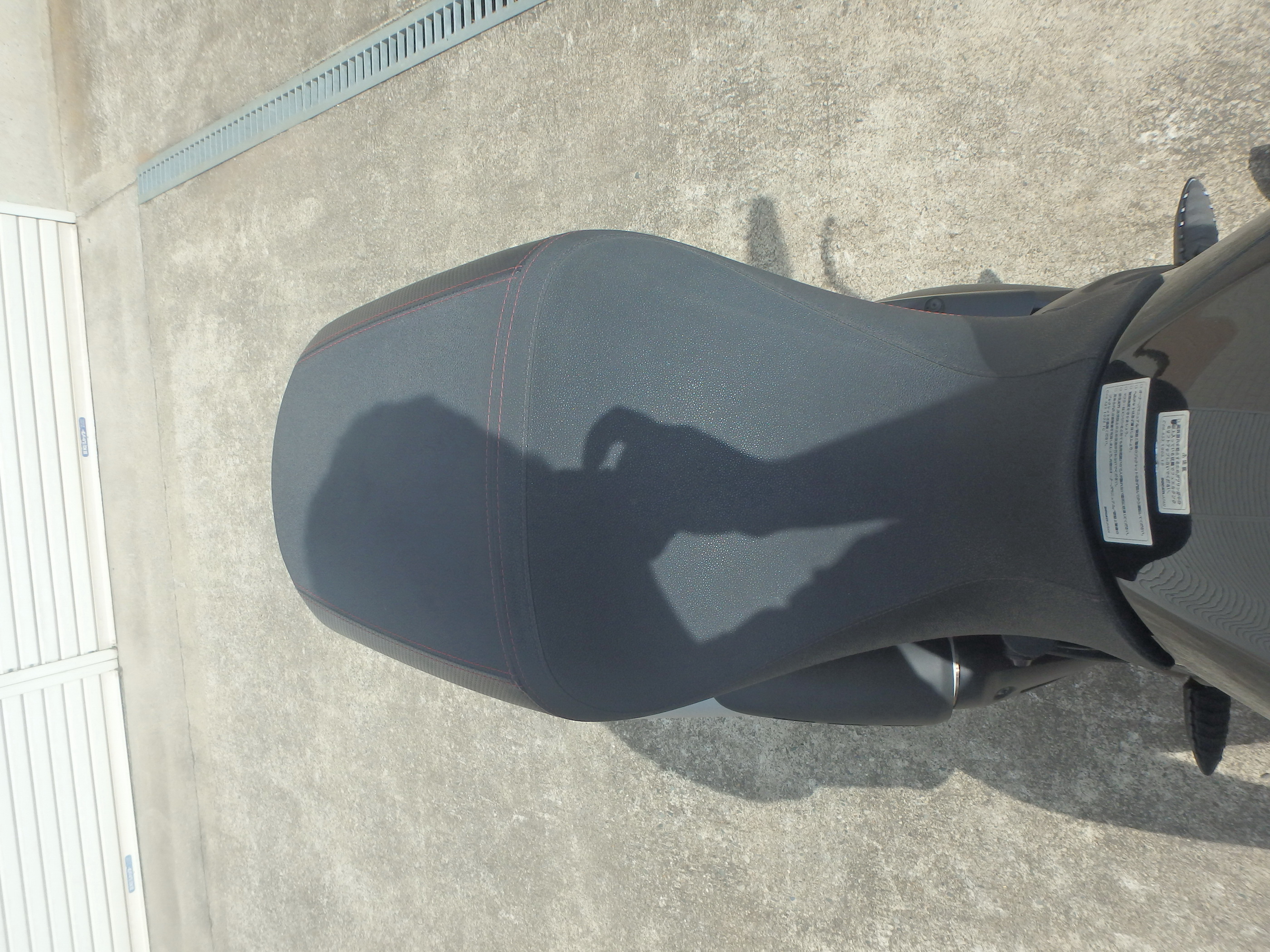

Seat Height
770 mm / 30.3in
Dry Weight
210 Kg / 463 lbs
Wet Weight
239 kg / 527lbs
Fuel Capacity
17 Litres / 4.5 US gal / 3.7 Imp gal
Consumption Average
5.2 L/100 km / 19.4 km/l / 45.6 US mpg / 54.8 Imp mpg
Standing 1/4 Mile
10.7 sec
Top Speed
252.4 km/h / 156.8 mph

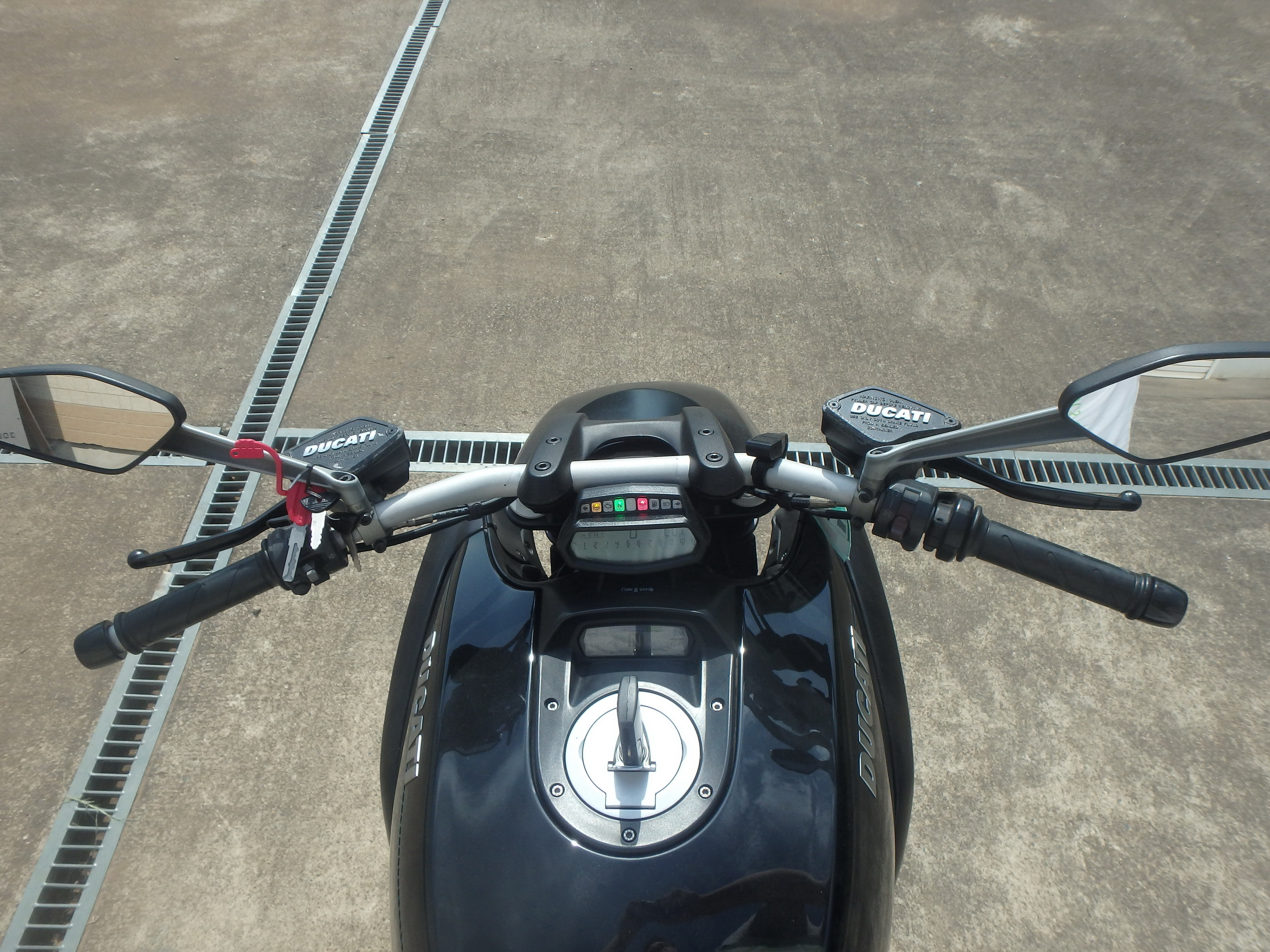

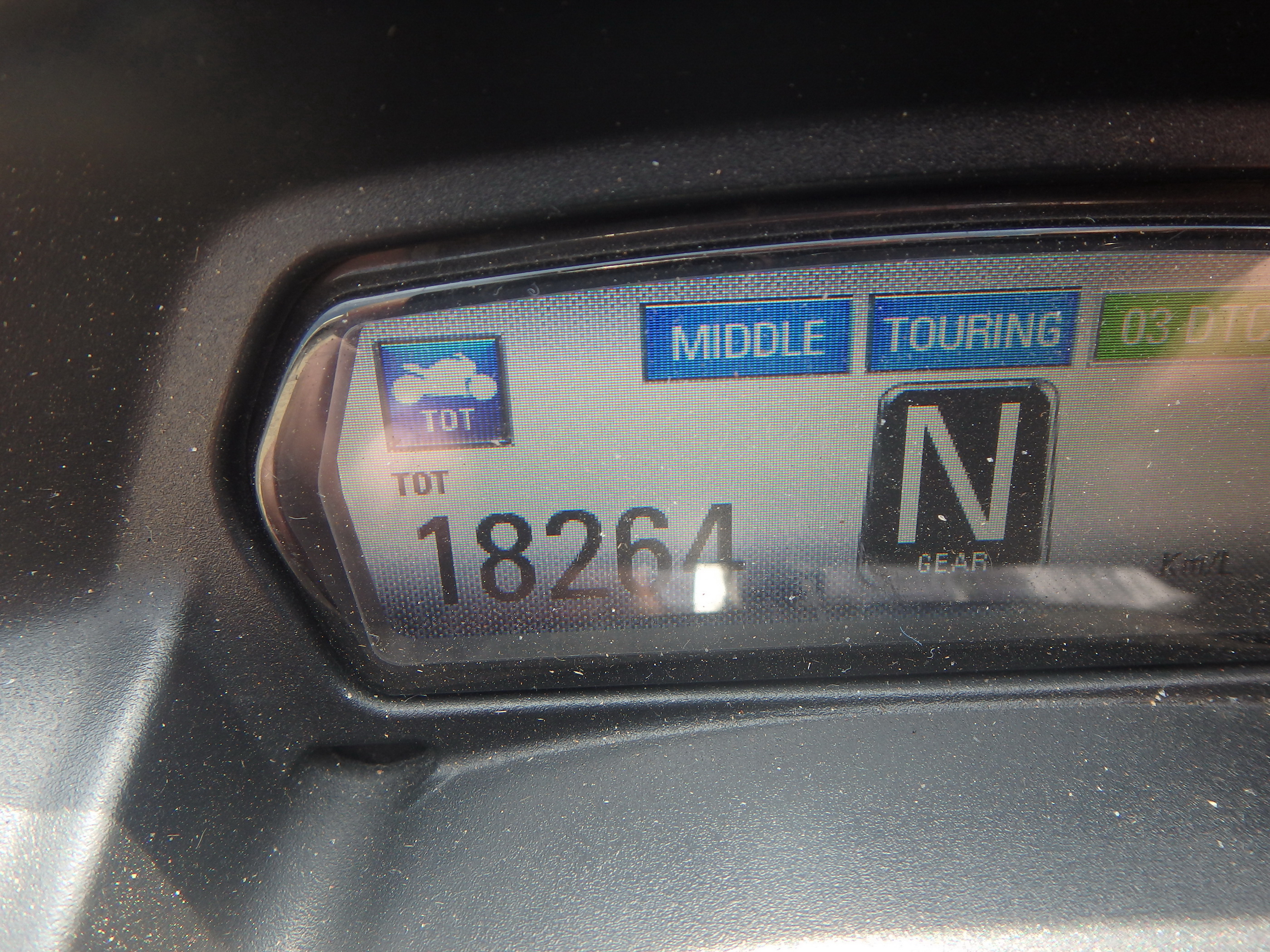

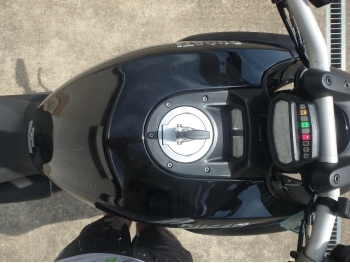

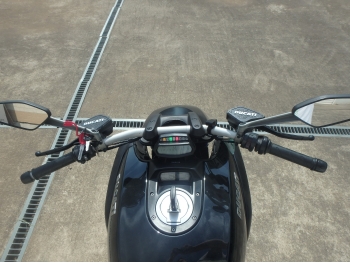

Instruments

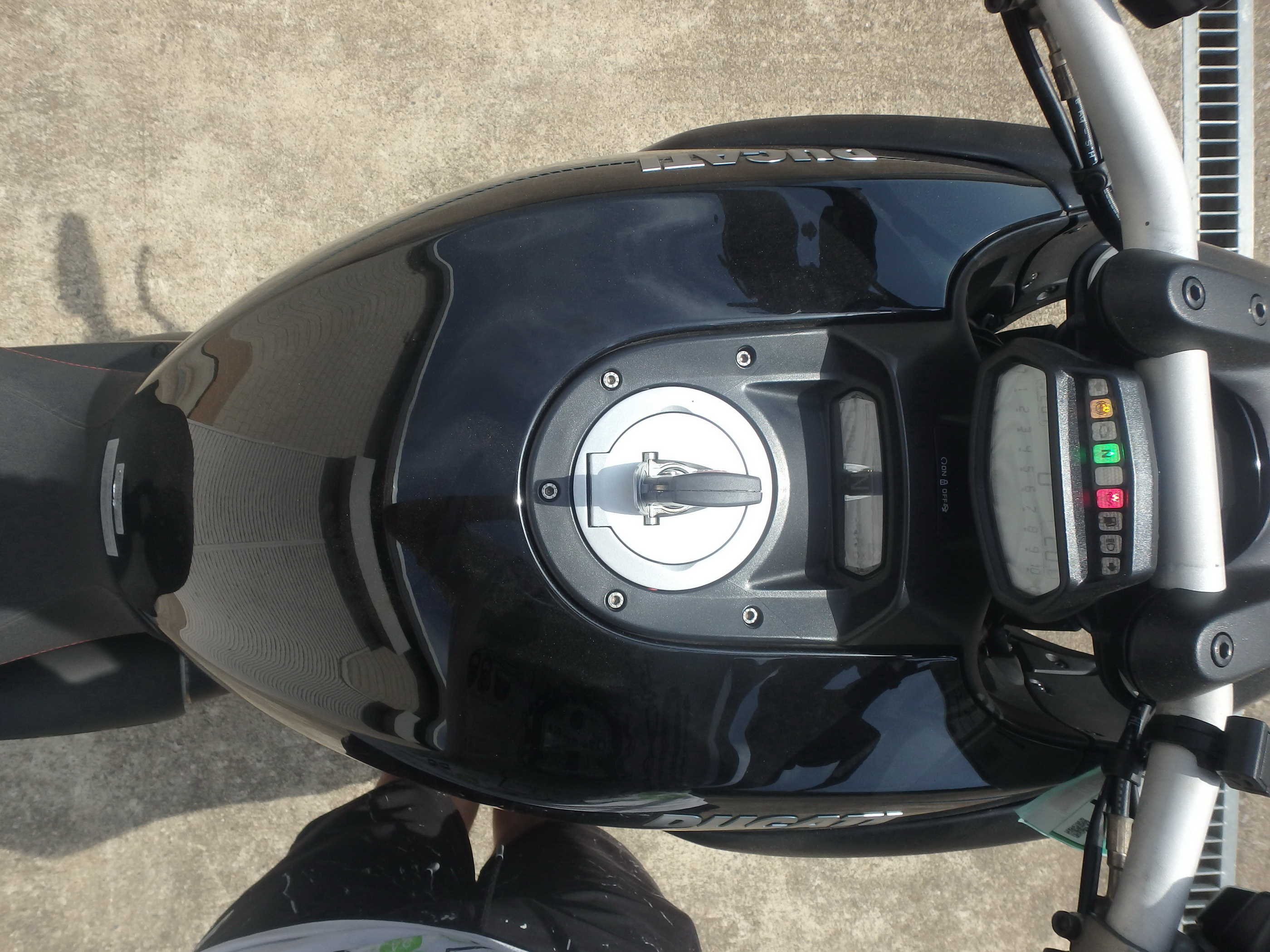

Tank mounted instrumentation with TFT colour display: Gear selected, air temp, battery voltage, trips 1 & 2, fuel reserve trip, average and actual fuel consumption and speed, trip time, scheduled maintenance. Full status and/or management of Riding Modes, DTC, RbW and ABS.
