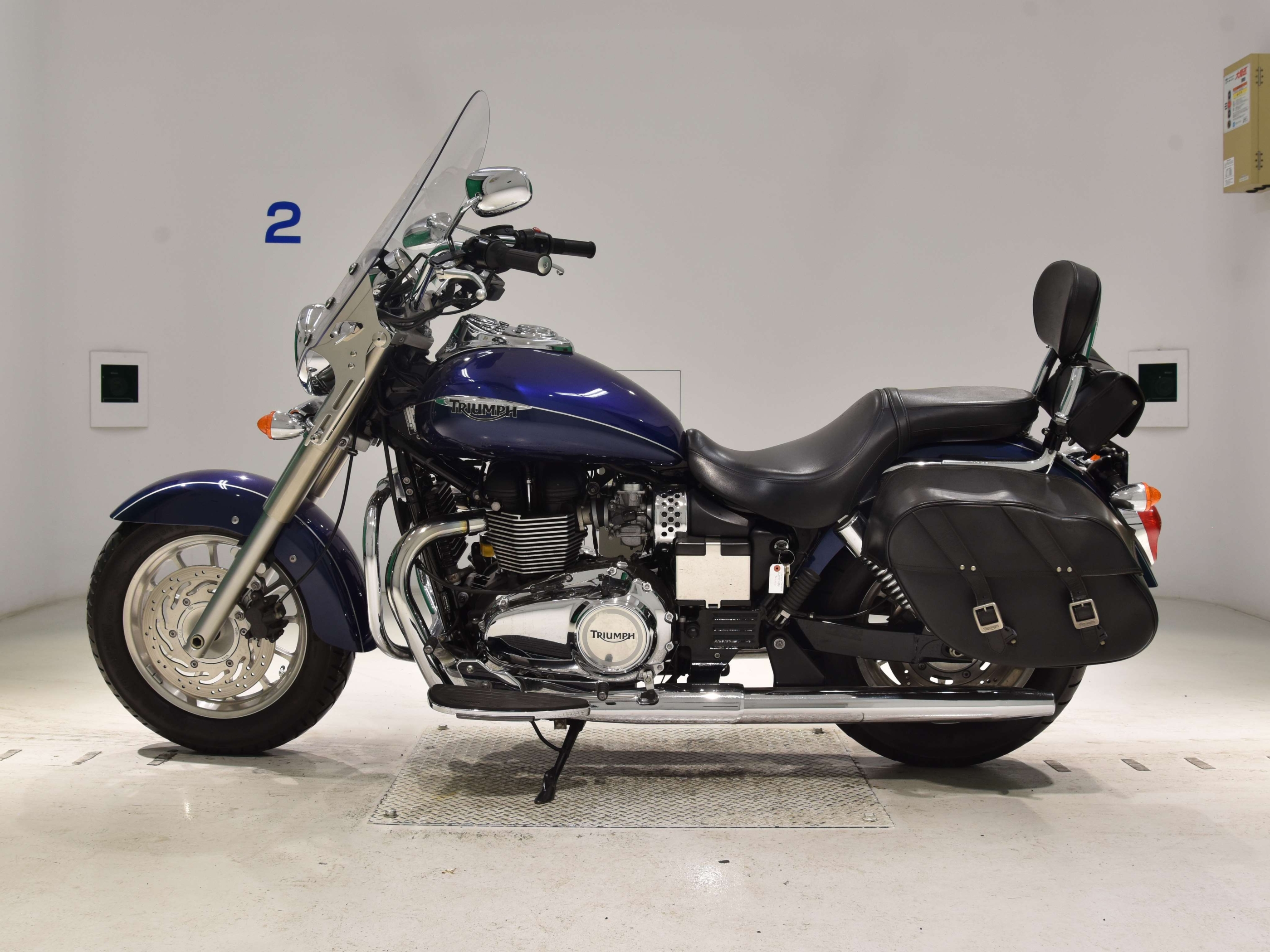

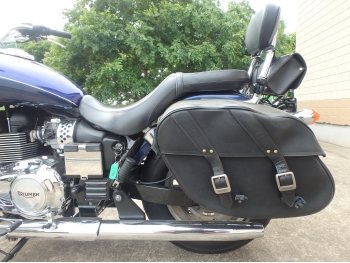

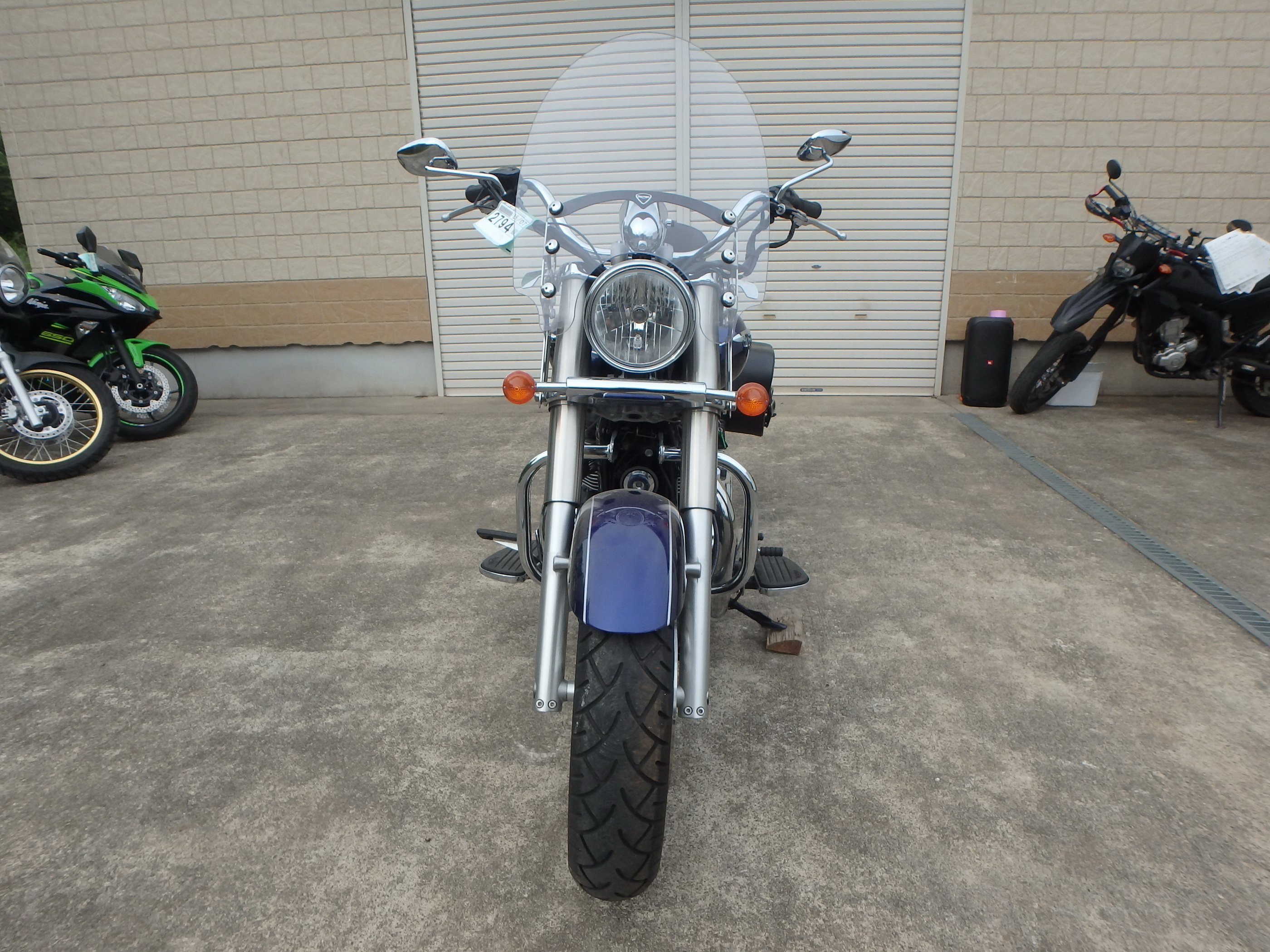

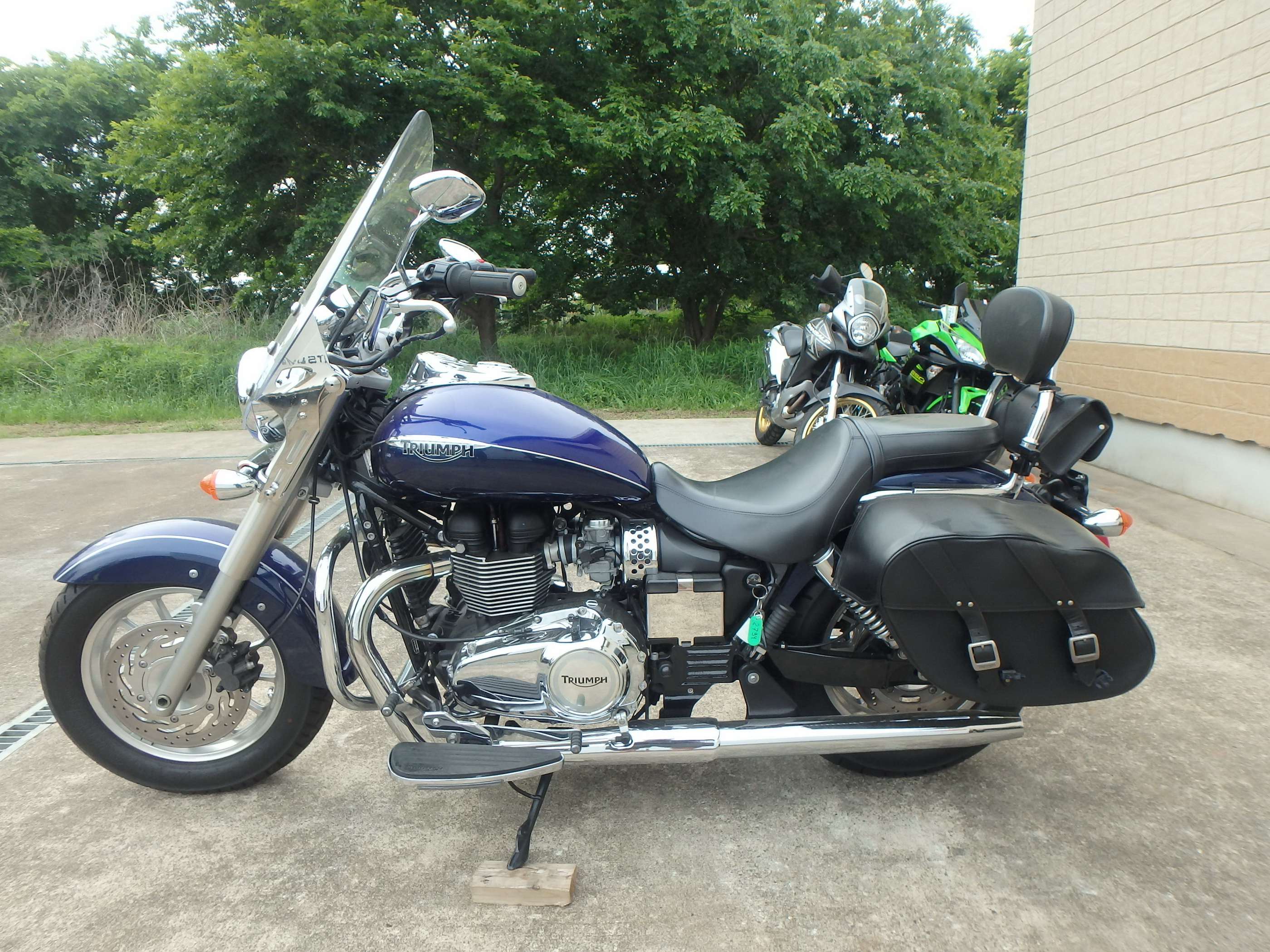

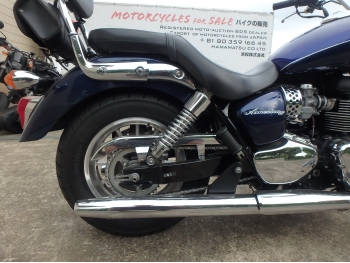

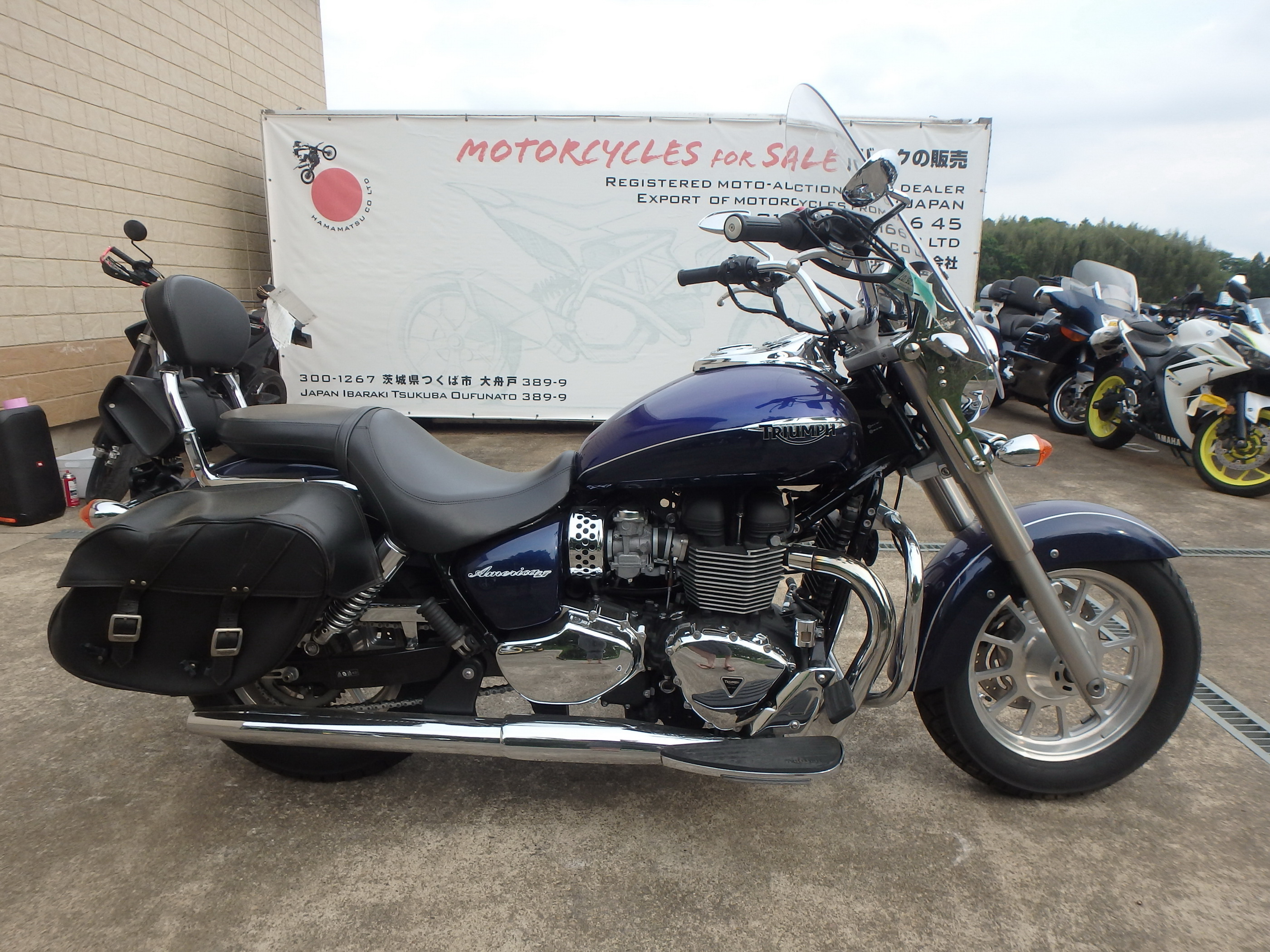

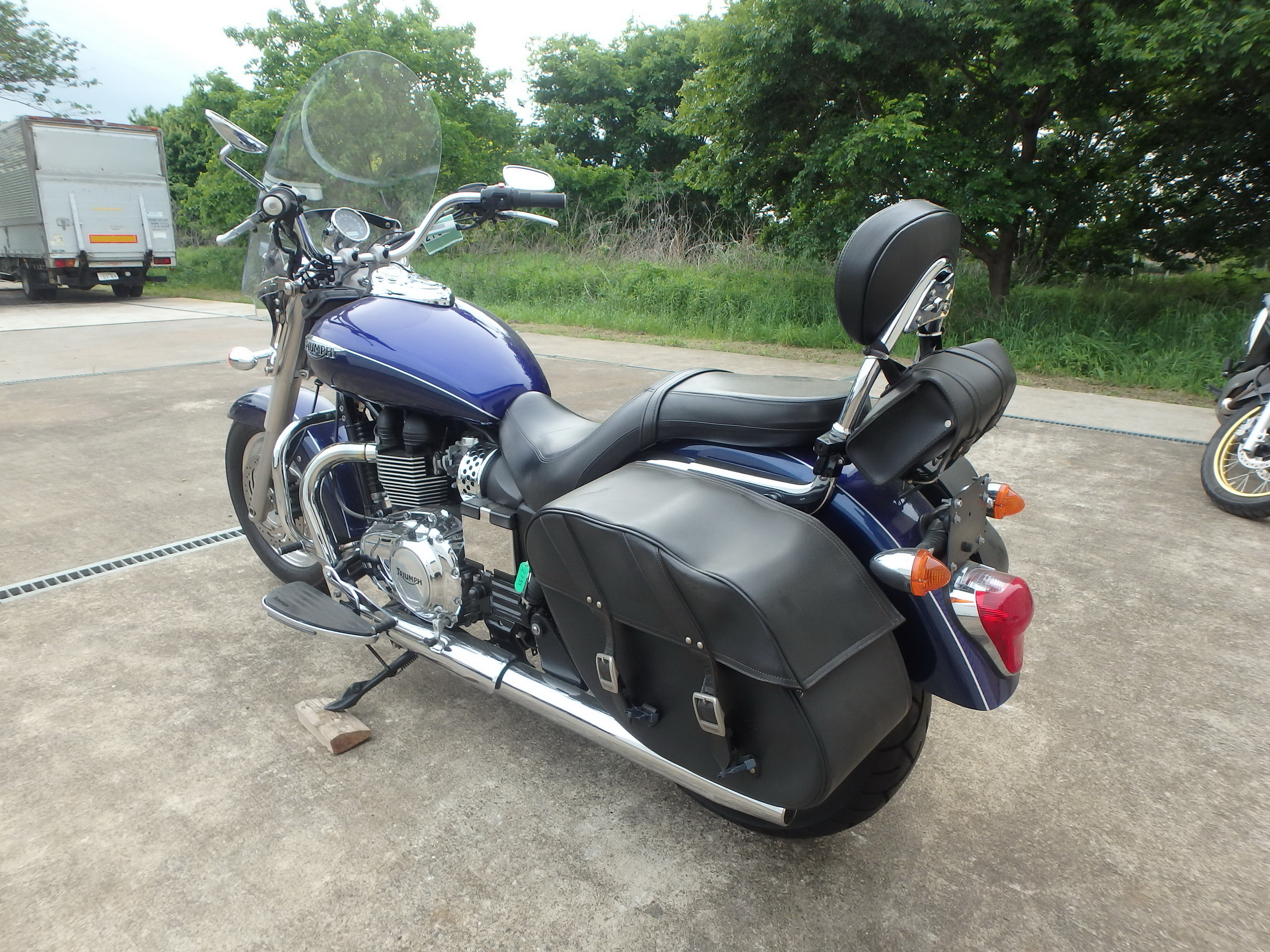

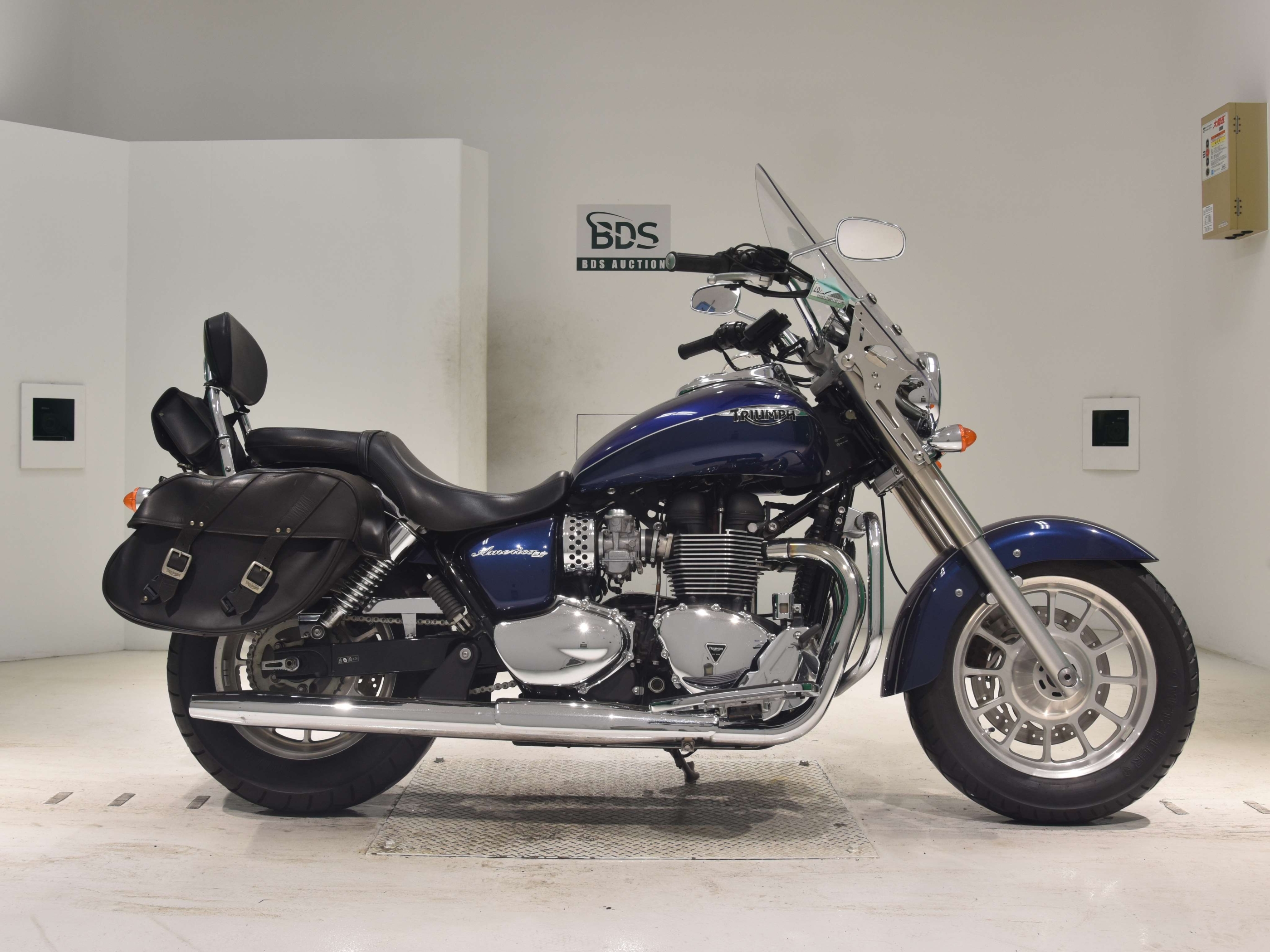

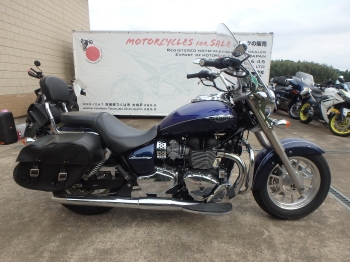

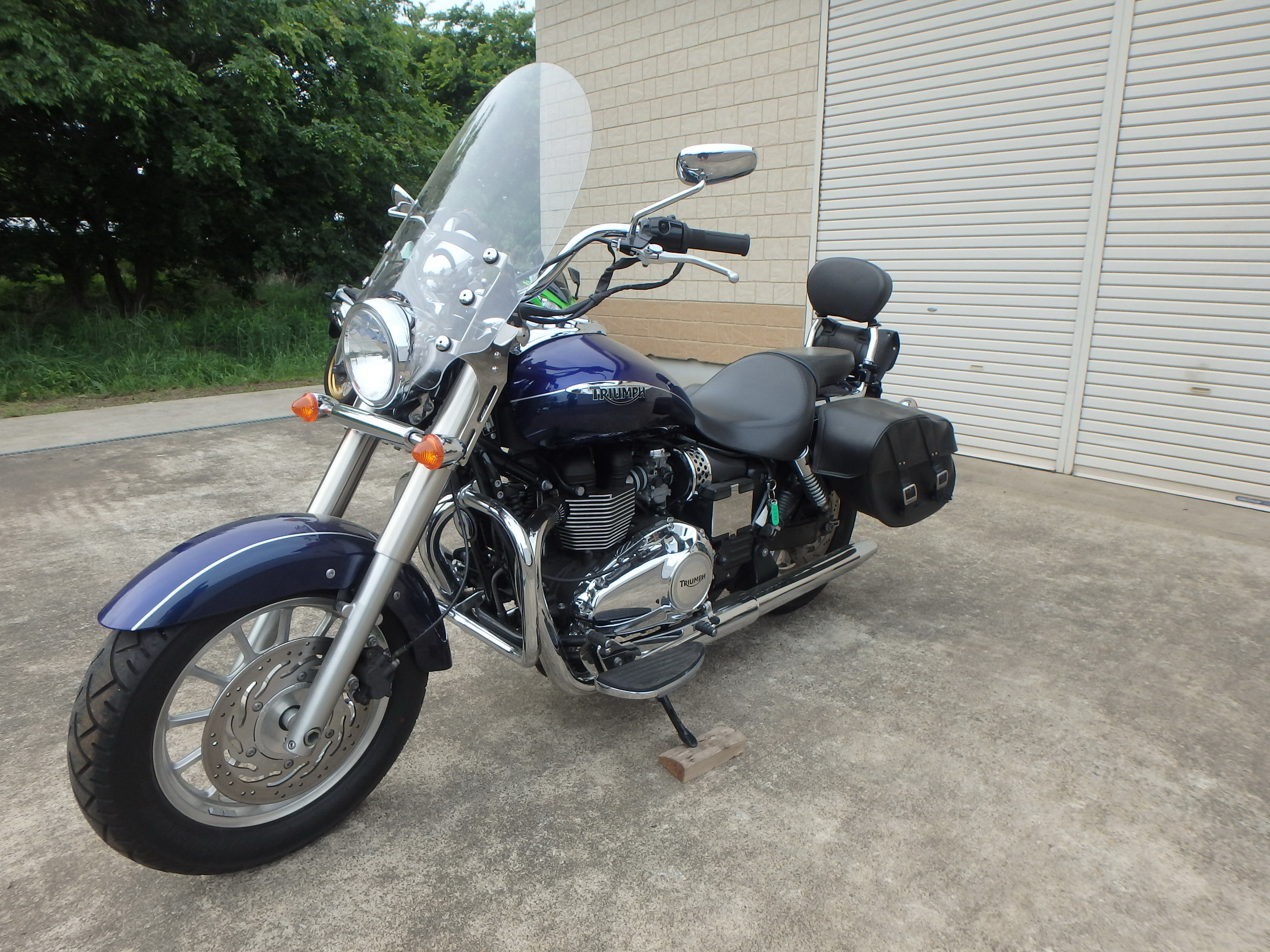

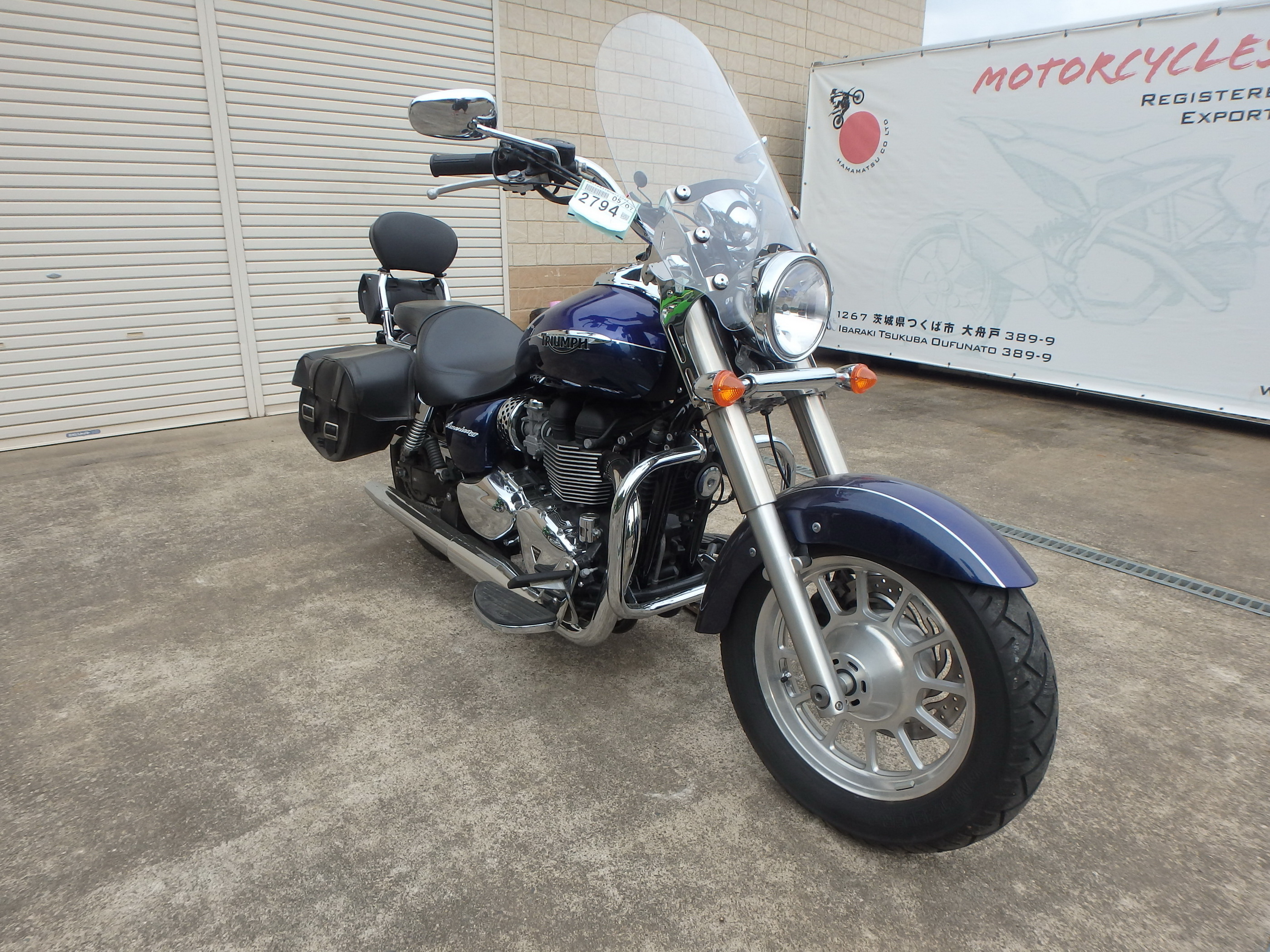

#2794 Bike Triumph America LT Limited Edition
Model: America LT Limited Edition
Year: 2016
Capacity: 865 cm3

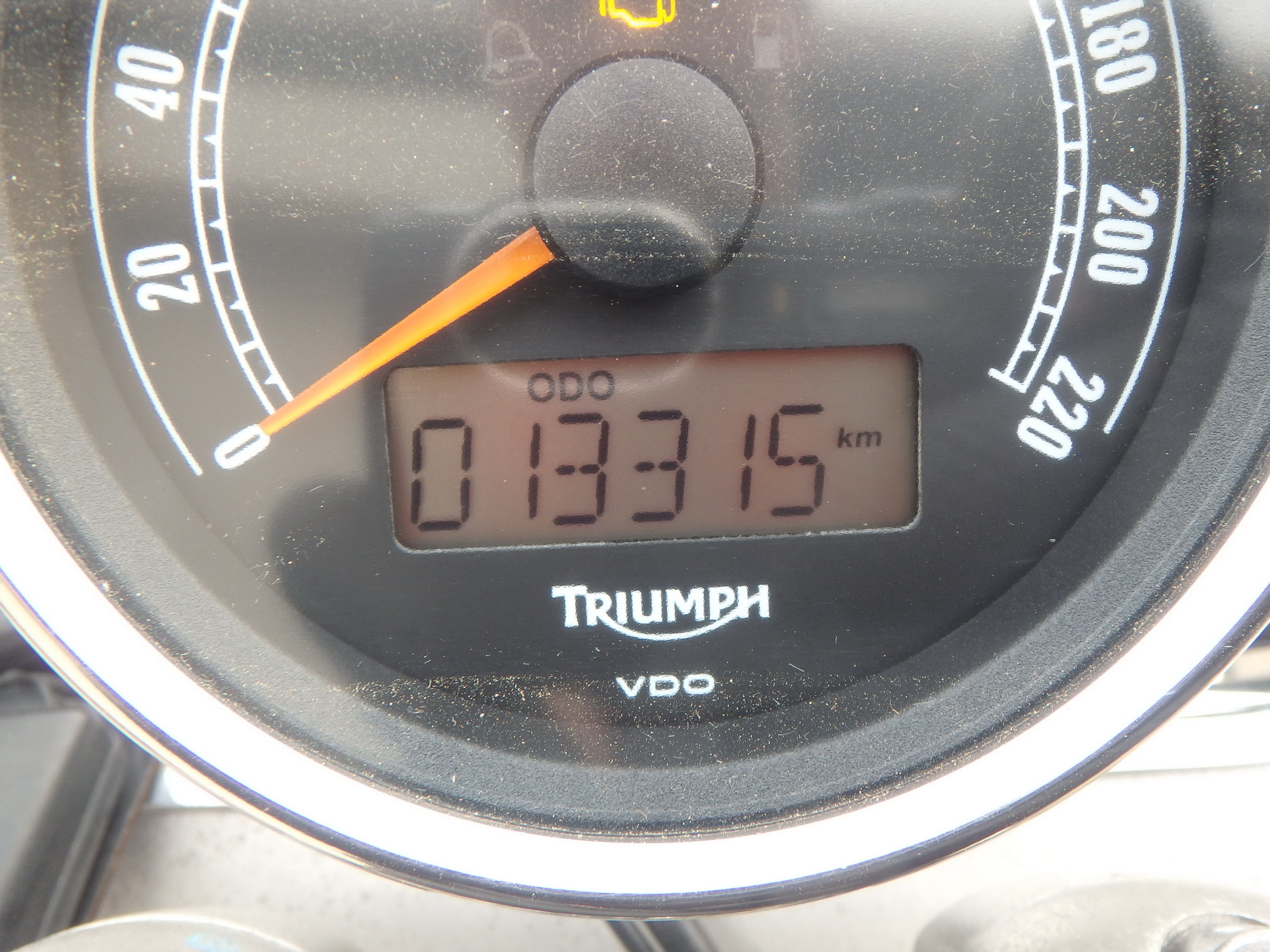

Mileage: 13315 km.
in
Additional information
Make Model
America LT Limited Edition
Year
2016
Production
25 Units

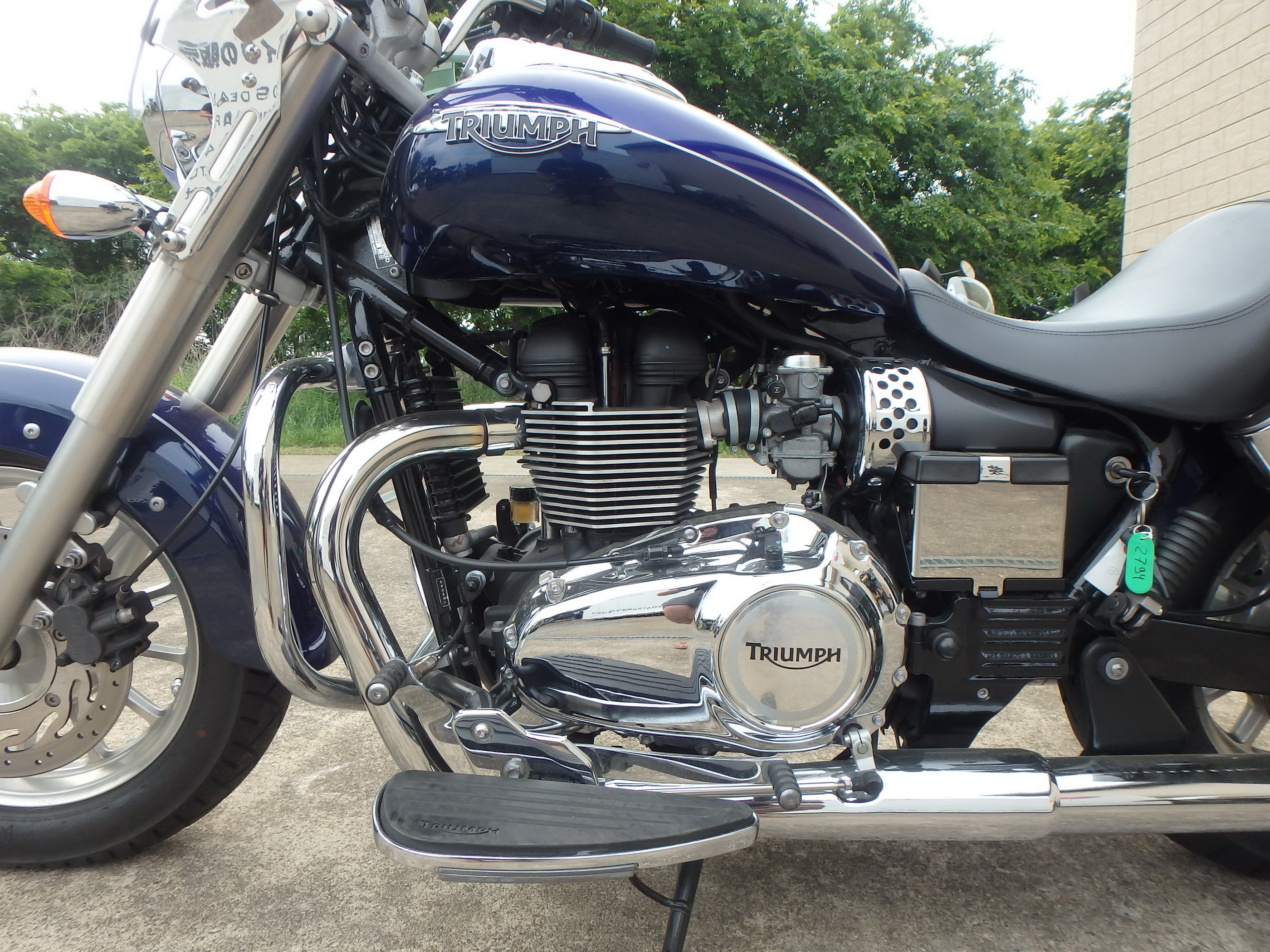

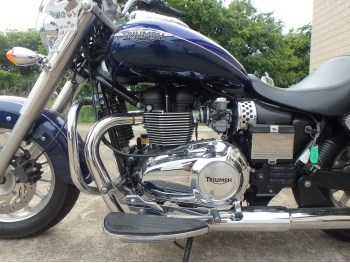

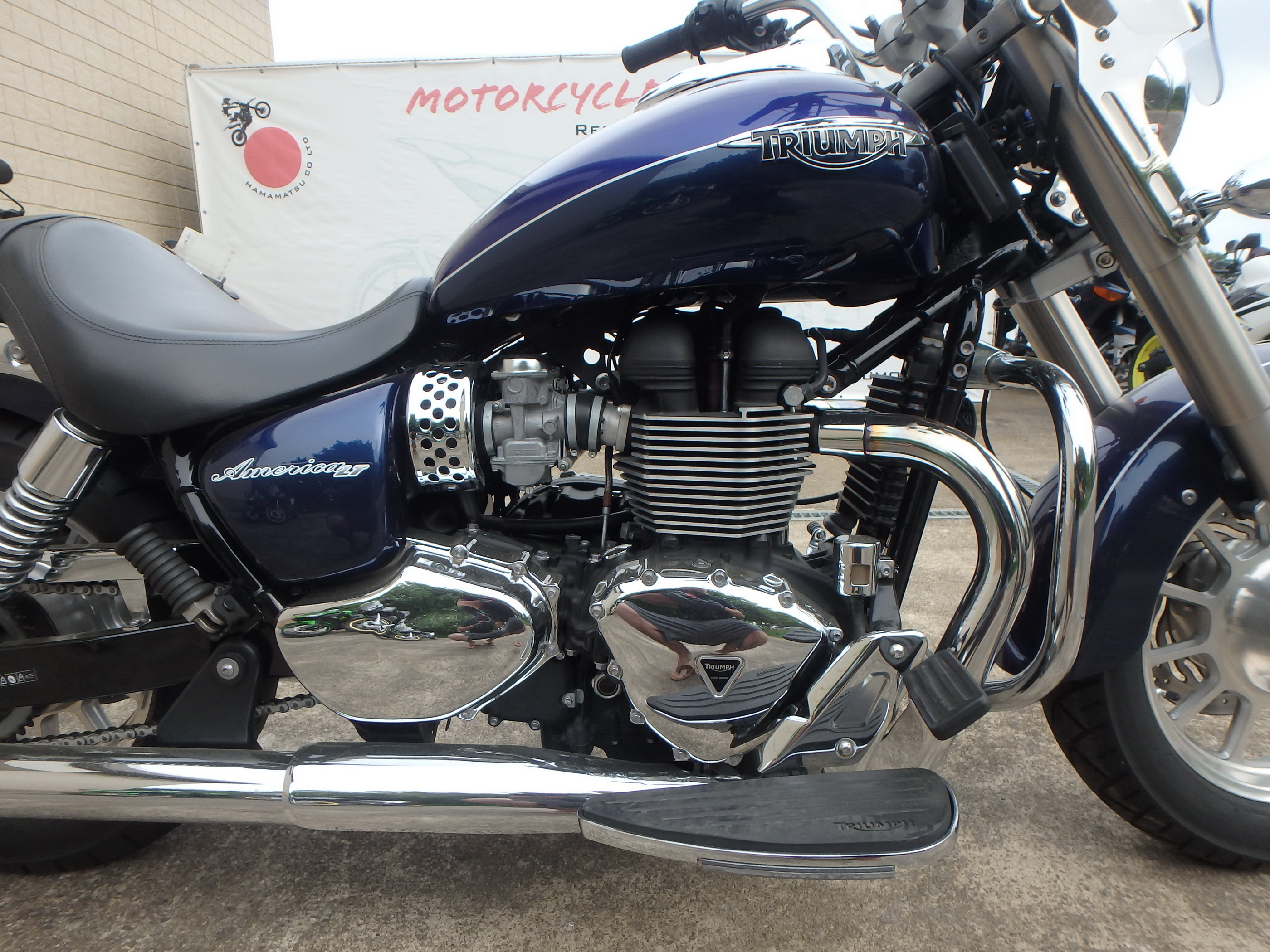

Engine
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder, 360° firing interval
Capacity
865 cc / 52.8 cub in.
Bore x Stroke
90 x 68 mm
Cooling System
Air-cooled
Compression Ratio
9.2:1
Induction
Twin carburettors, with throttle position sensor and electric carburettor heaters
Lubrication
Wet sump
Engine Oil
Synthetic, 15W/50
Oil Capacity
4.5 L / 1.2 US gal / 1.0 Imp gal
Exhaust
Stainless steel twin-walled headers, twin chromed silencers
Ignition
Digital
Starting
Electric
Max Power
45.5 kW / 61 hp @ 6800 rpm
Max Torque
72 Nm / 7.34 kgf-m / 53.1 ft-lb @ 3300 rpm
Clutch
Wet multi plate
Transmission
5 Speed
Final Drive
Chain, X-ring
Frame
Tubular steel cradle, swing arm: twin-sided, tubular steel
Front Suspension
41mm Kayaba telescopic forks, polished stainless steel shrouds
Front Wheel Travel
120 mm / 4.7 in

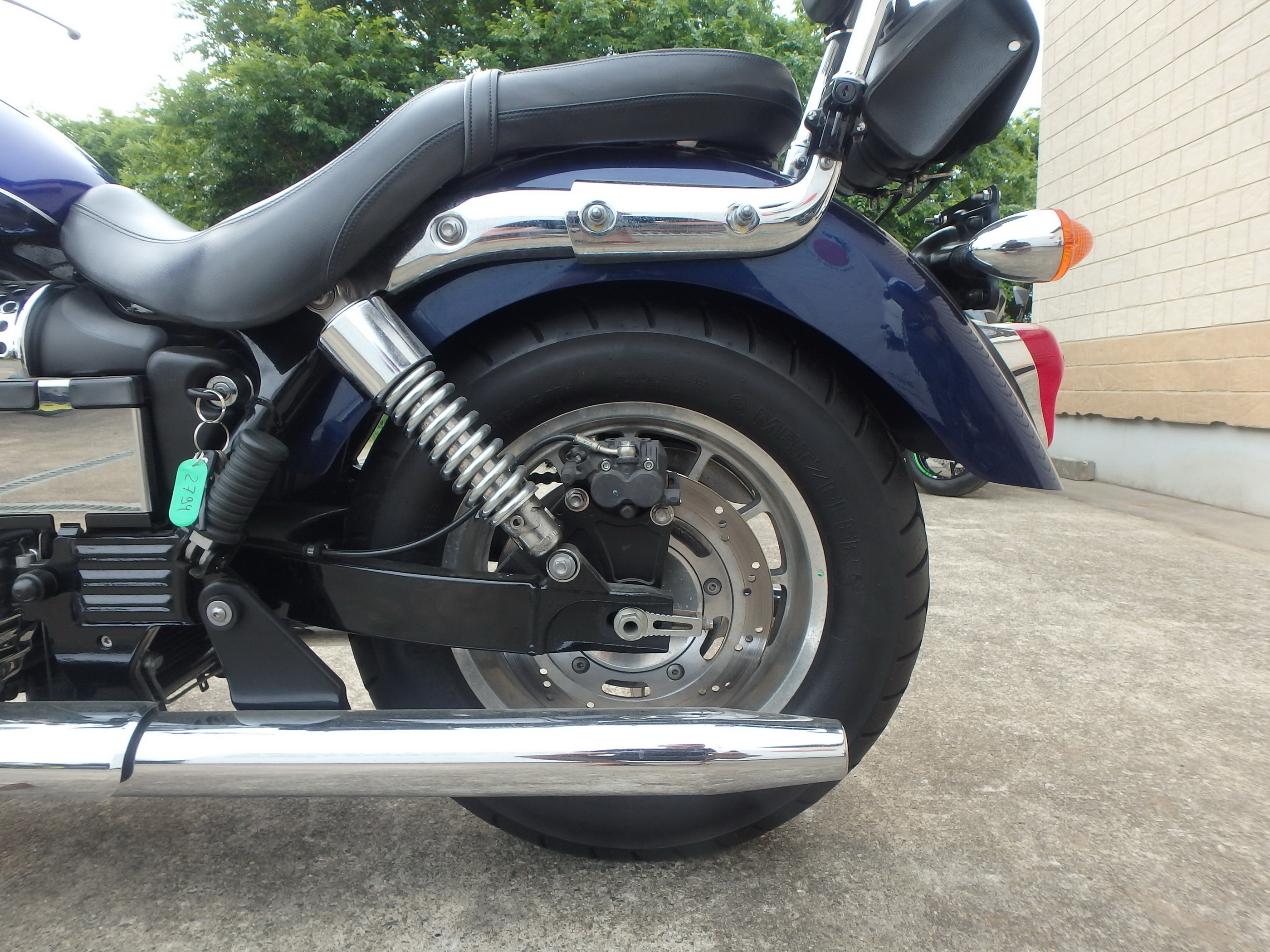

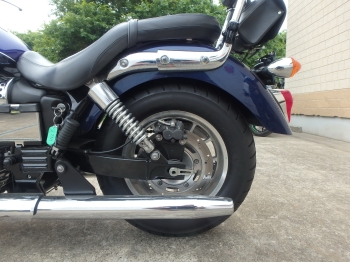

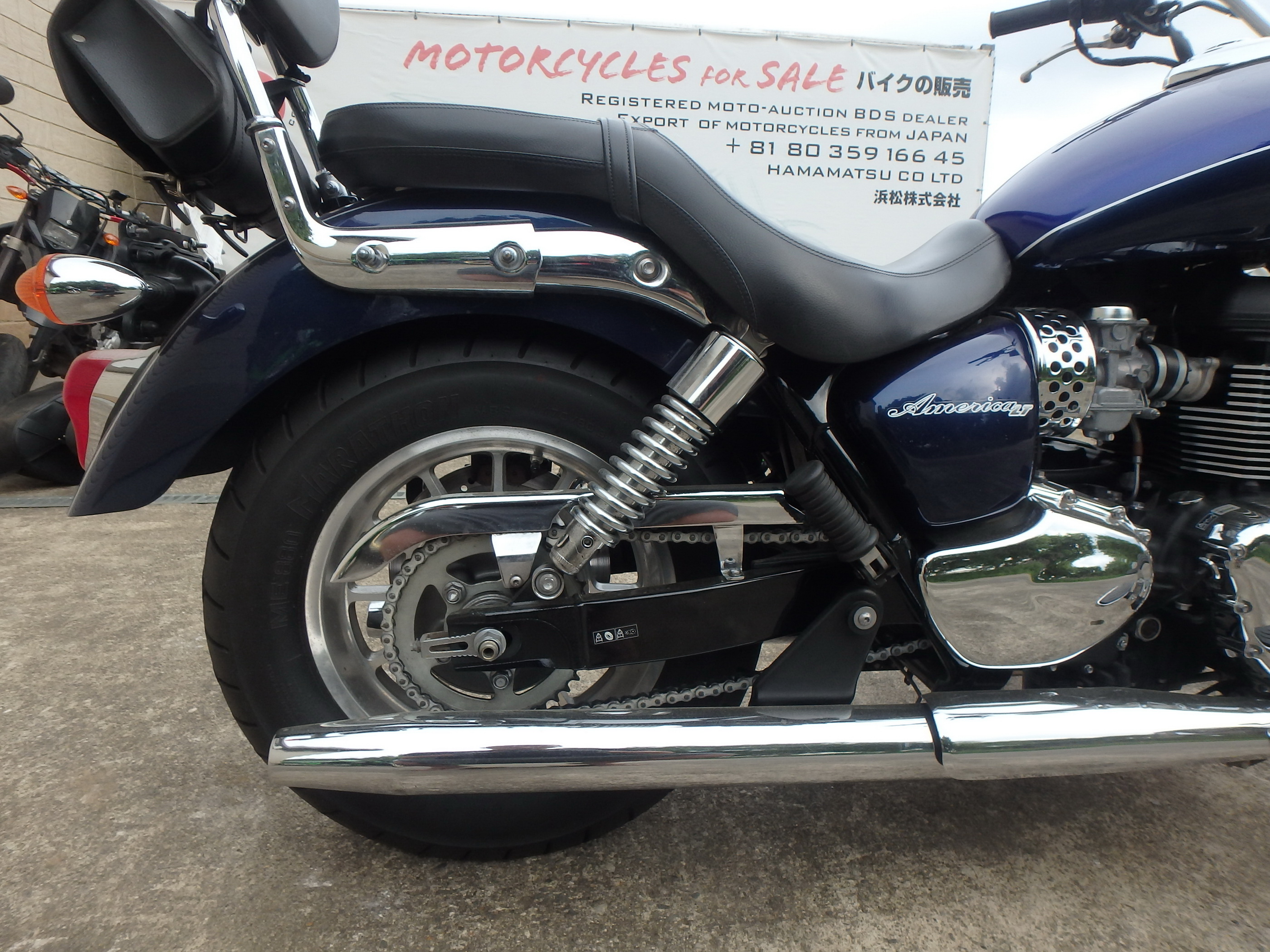

Rear Suspension
Kayaba chrome spring twin shocks with adjustable preload
Rear Wheel Travel
96 mm / 3.8 in

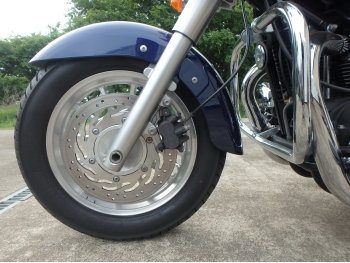

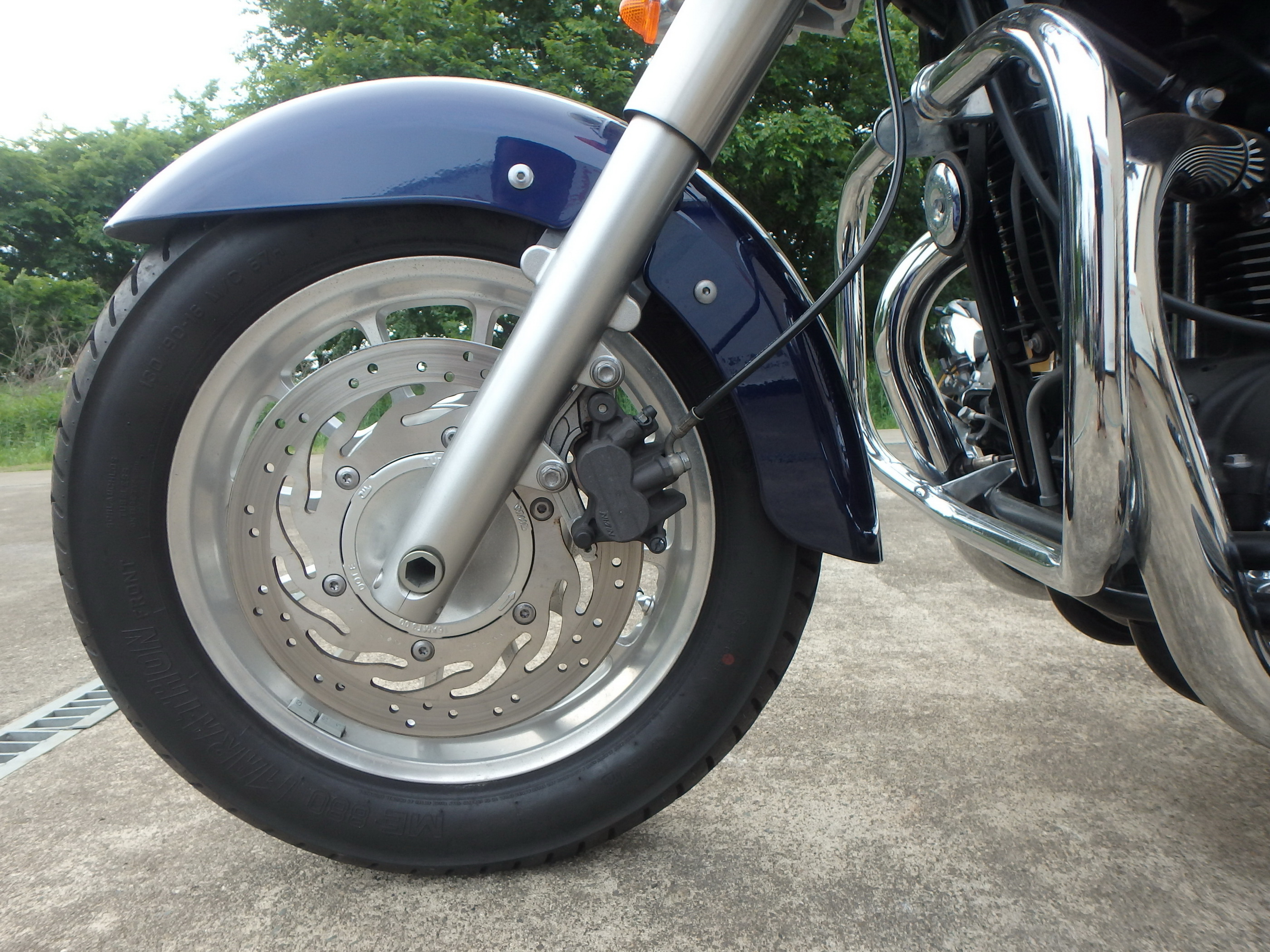

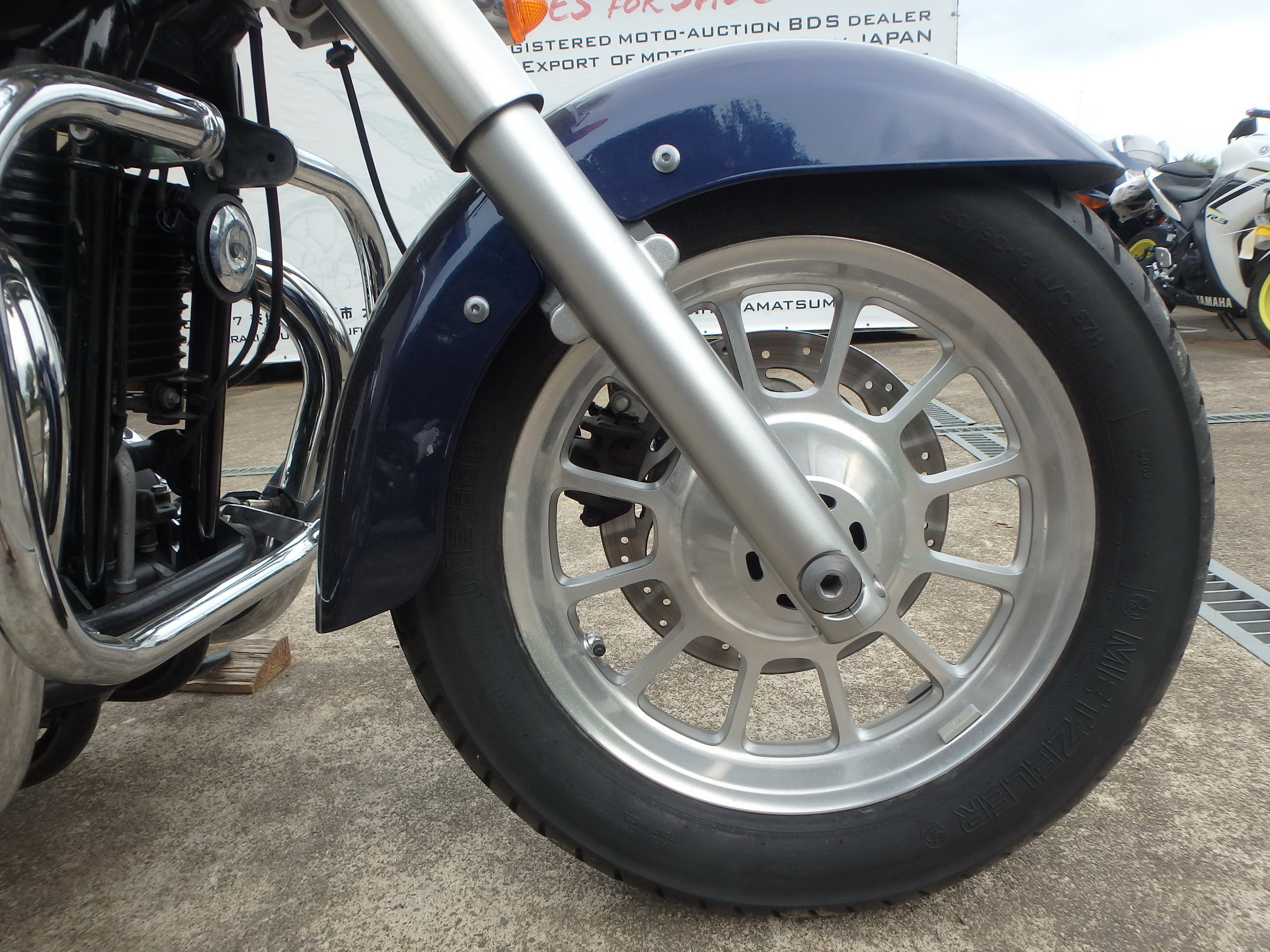

Front Brakes
Single 310 mm disc, Nissin 2 piston floating caliper
Rear Brakes
Single 285 mm disc, Nissin 2 piston floating caliper

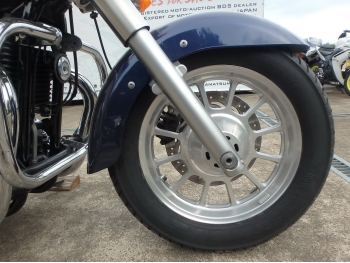

Wheels Front
Cast aluminum alloy, 12 spoke, 16 x 3.0 inch
Wheels Rear
Cast aluminum alloy, 12 spoke, 15 x 4.0 inch
Front Tyre
130/90 - 16
Rear Tyre
170/80 B15
Rake
33.3°
Trail
143 mm / 5.6 in
Dimensions
Length 2387 mm / 94.0 in Width 920 mm / 36.2 in (at handlebars) Height 1480 mm / 58.3 in (with with screen)
Wheelbase
1610 mm / 63.4 in

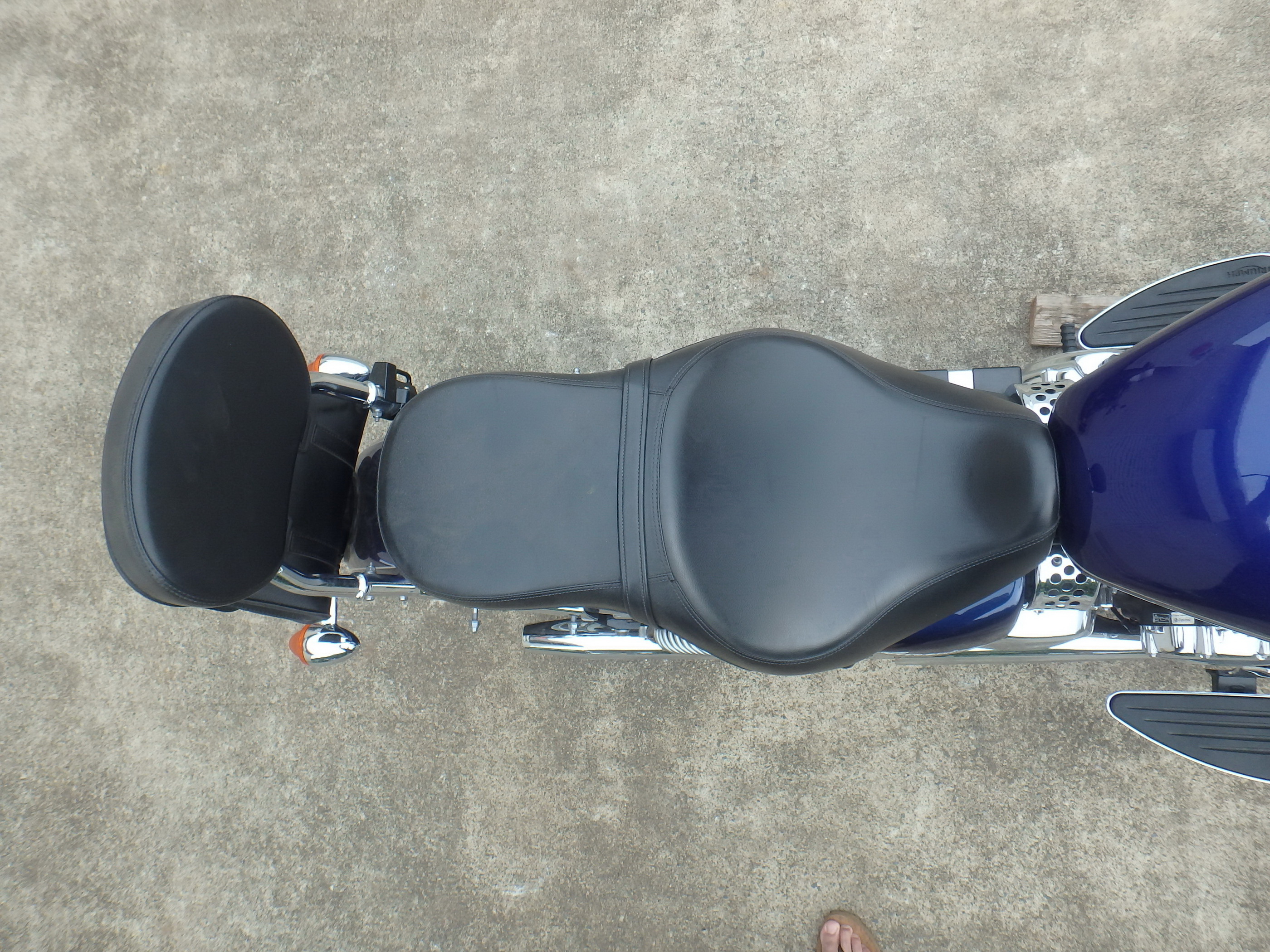

Seat Height
690 mm / 27.2 in
Wet Weight
270 kg / 595 lbs

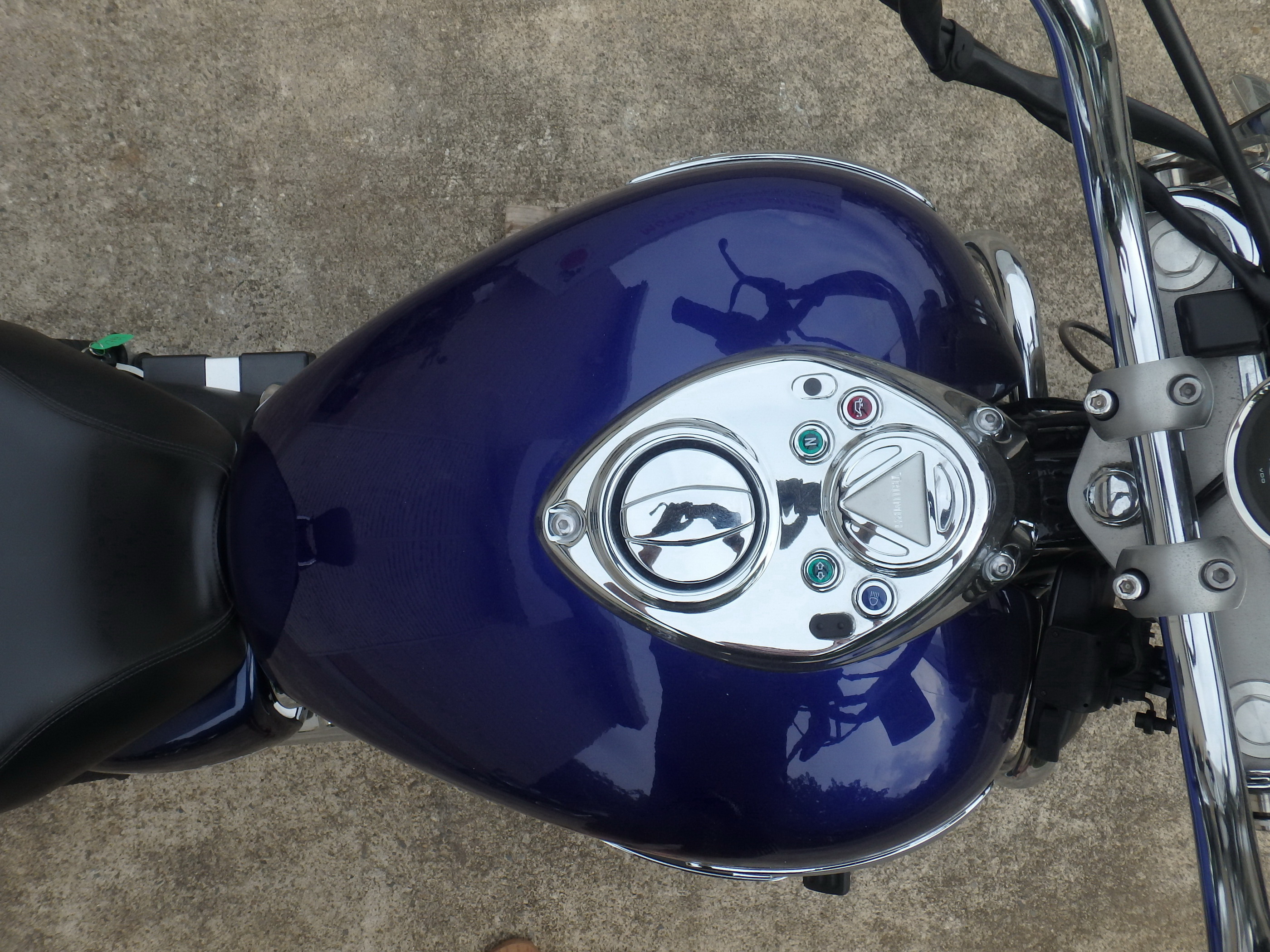

Fuel Capacity
19.3 Litres / 5.1 US gal / 4.2 Imp gal
Consumption Average (@ 120 km/h / 75 mph)
4.2 L/100 km / 23.6 km/l / 55.6 US mpg / 67.3 Imp mpg
Colours
America Limited Edition colours with special emblem on tank
