Additional information
Make Model
ZX-6RR
Year
2006
Engine
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Capacity
599 cc / 36.6 cub in
Bore x Stroke
67 x 42.5 mm
Compression Ratio
13.0:1
Cooling System
Liquid cooled,
Induction
Fuel injection with 38mm throttle bodies
Lubrication
Wet sump
Ignition
Digital
Starting
Electric
Max Power
86.8 kW / 118 hp @ 13200 rpm
Max Torque
64.4 Nm / 6.6 kgf-m / 47.5 lb-ft @ 12000 rpm
Clutch
Wet, multiple discs, cable operated
Transmission
6 Speed
Final Drive
Chain
Gear Ratios
1st 2.92 / 2nd 2.06 / 3rd 1.72 / 4th 1.45 / 5th 1.27 / 6th 1.15:1

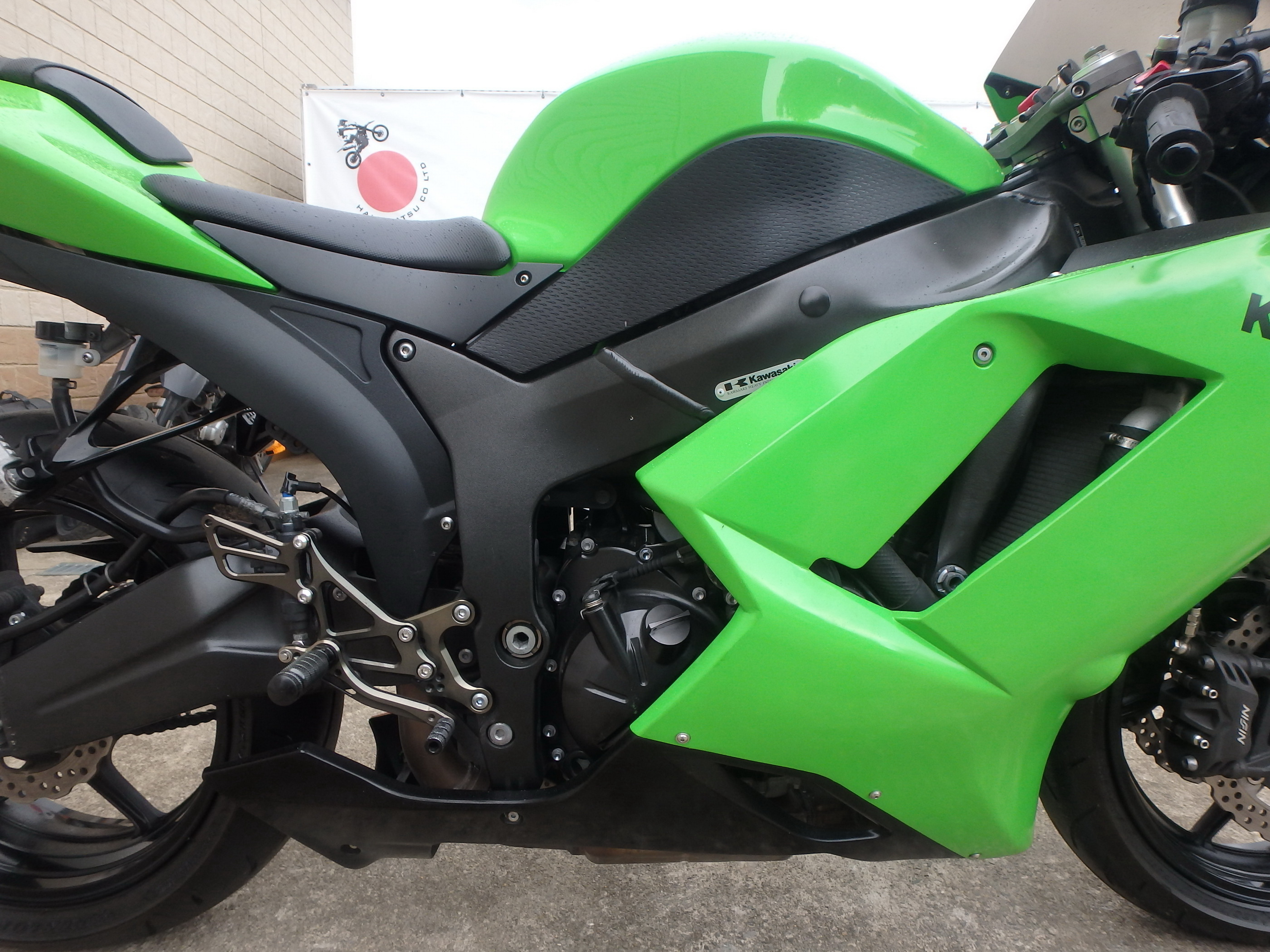

Frame
Perimeter, pressed-aluminium
Front Suspension
41mm inverted cartridge fork with adjustable preload, stepless rebound and compression damping and top-out springs
Front Wheel Travel
119 mm / 4.7 in
Rear Suspension
Bottom-Link Uni-Trak with gas charged shock, stepless rebound and compression damping, spring preload adjustability and top-out springs
Rear Wheel Travel
133 mm / 5.2 in

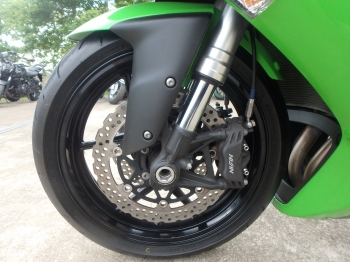

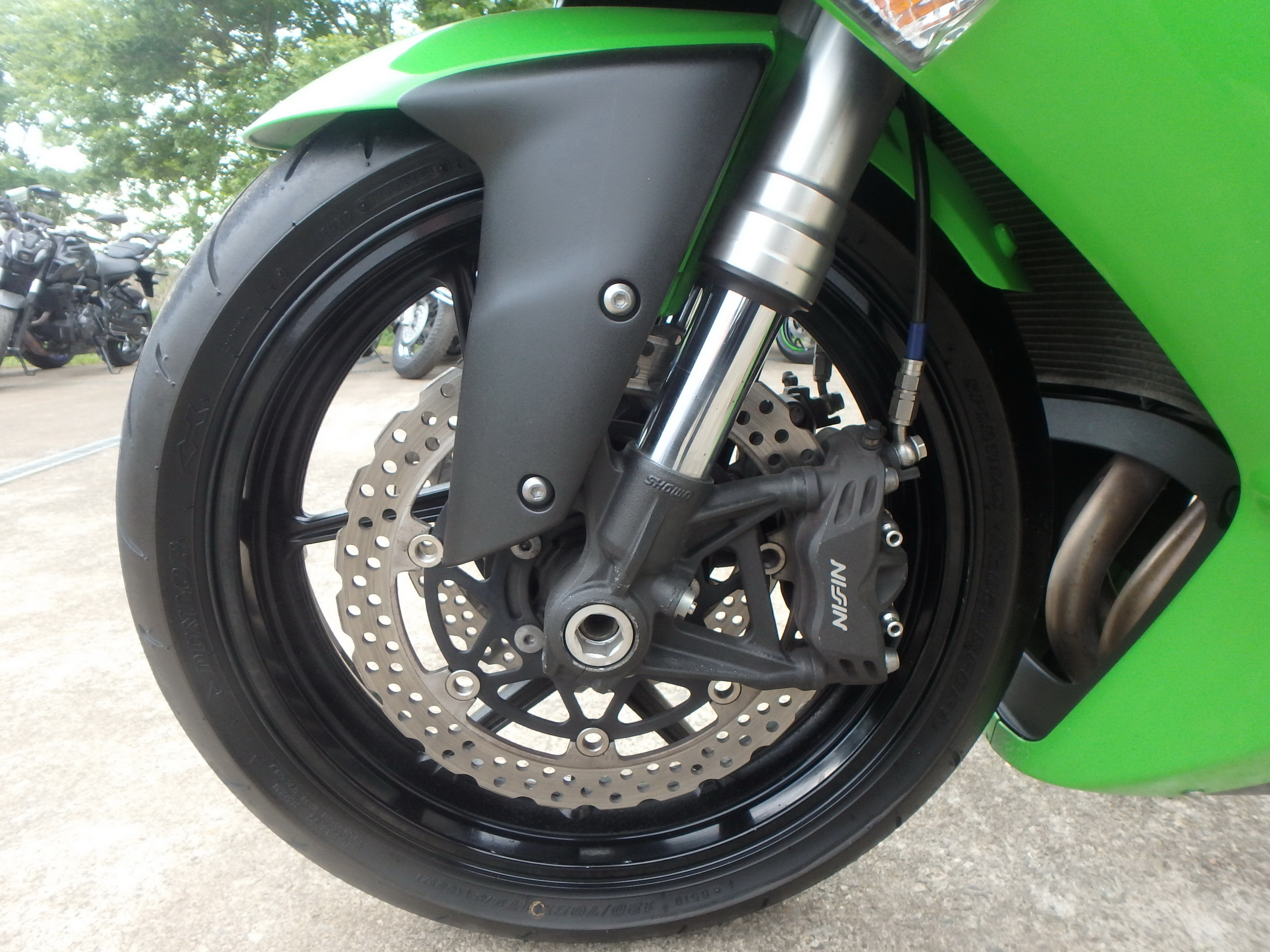

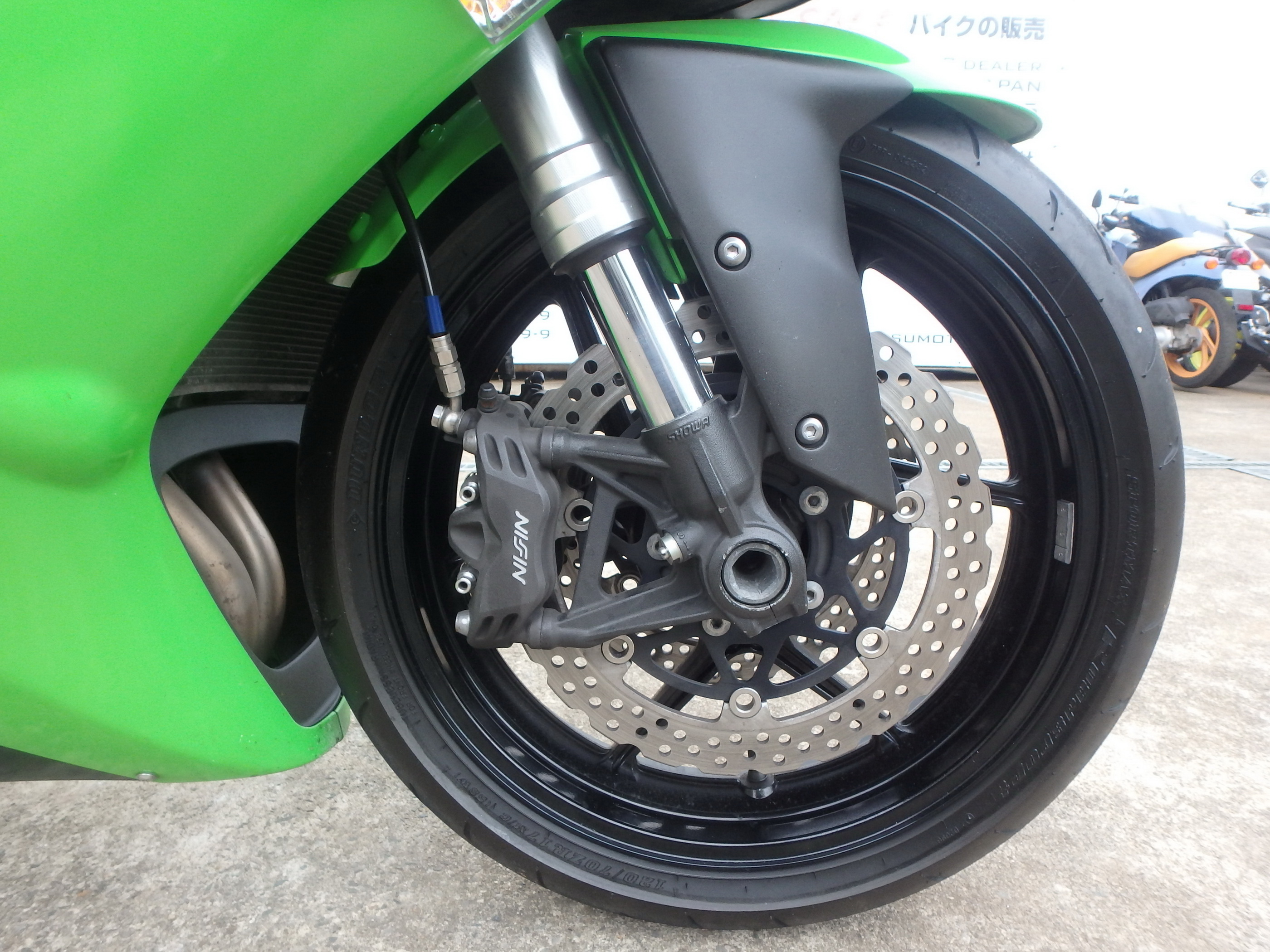

Front Brakes
2 x 280mm discs, 4 piston calipers
Rear Brakes
Single 220mm disc, 1 piston caliper
Front Tyre
120/65 ZR17
Rear Tyre
180/55 ZR17
Rake
25°
Trail
85 mm / 3.3 in.
Dimensions
Length 2075 mm / 81.7 in Width 714 mm / 28.1 in Height 1120 mm / 44.1 in
Wheelbase
1400 mm / 55.1 in.
Seat Height
820 mm / 32.3 in.
Dry Weight
164 kg / 362 lbs
Wet Weight
185 kg / 408 lbs

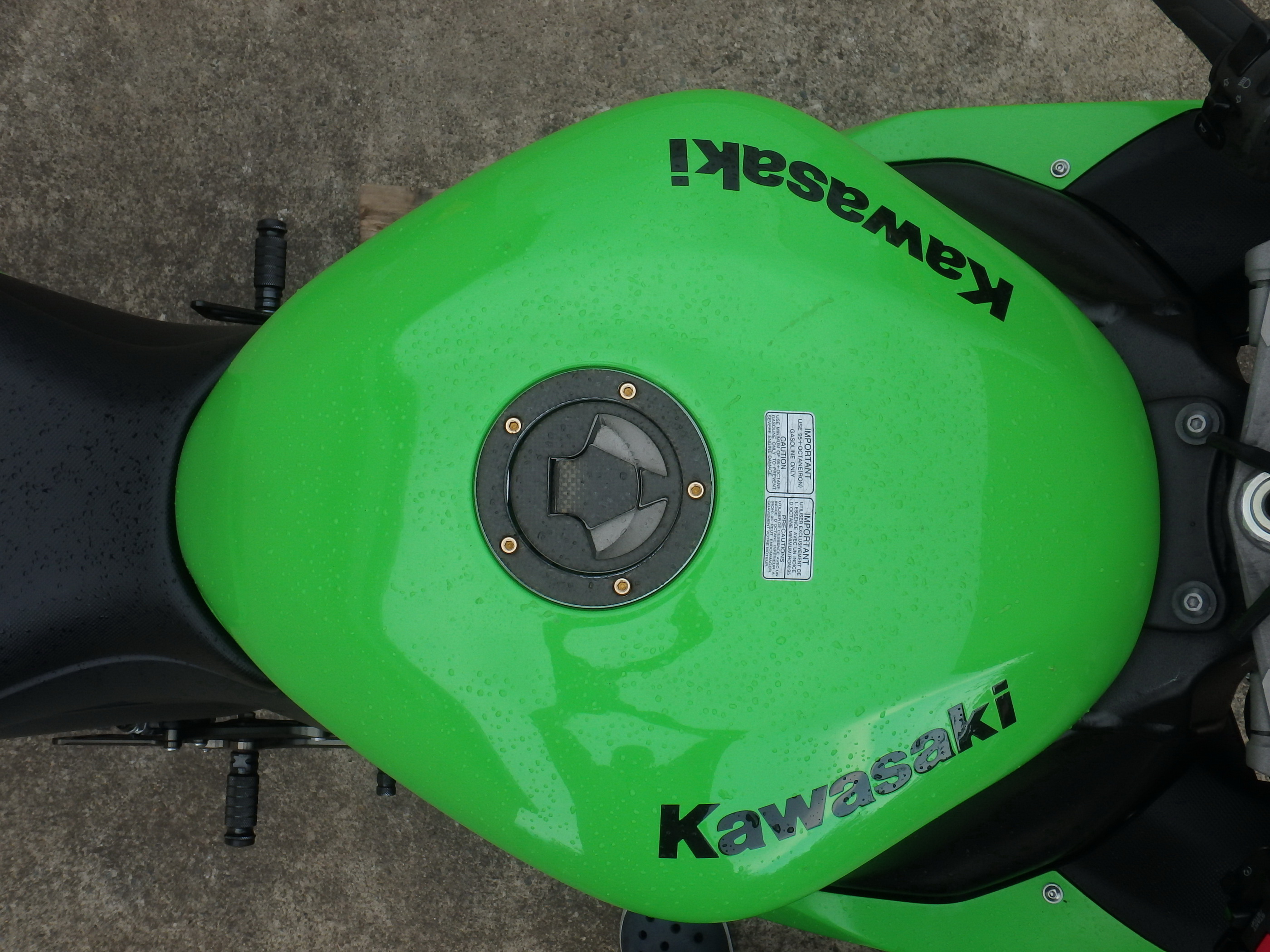

Fuel Capacity
17 Litres / 4.5 US gal
Consumption Average
5.9 L/100 km / 17 km/l / 40 US mpg
Standing 1/4 Mile
11 sec
Top Speed
270 km/h / 168 mph
