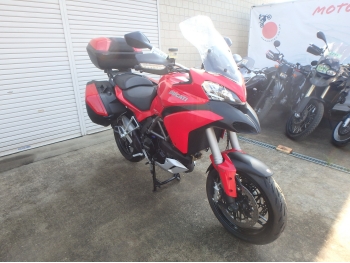

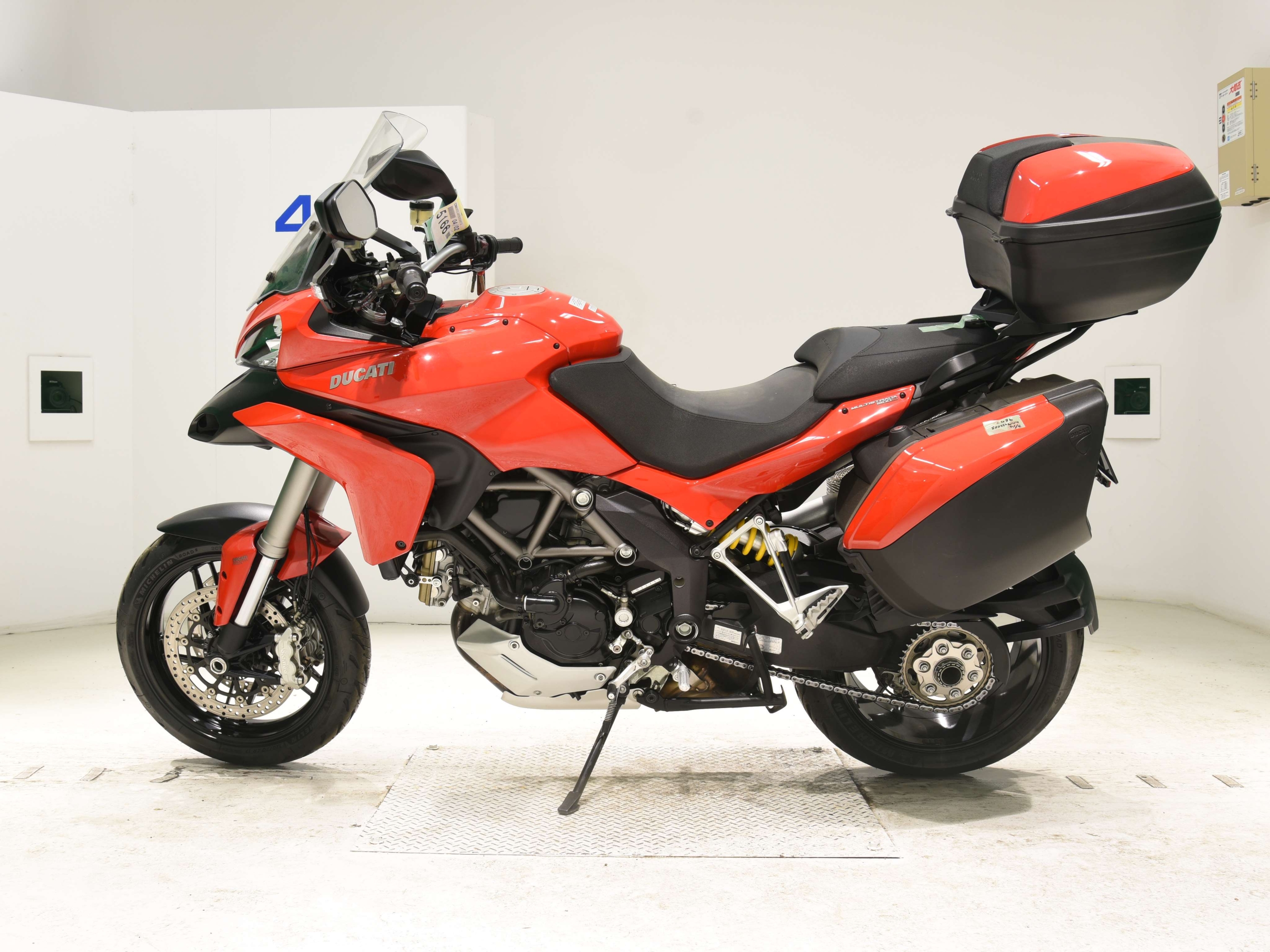

#5166 Bike Ducati Multistrada1200S
Model: Multistrada1200S
Year: 2014
Capacity: 1200 cm3
Mileage: 38993 km.
in
Additional information
Make Model
Multistrada 1200S Granturismo
Year
2014
Engine
Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valves per cylinder
Capacity
1198.4 cc / 73.1 cu-in
Bore x Stroke
106 x 67.9 mm
Cooling System
Liquid cooled
Compression Ratio
11.5:1
Lubrication
Wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Exhaust
Stainless steel muffler with catalytic converter and 2 lambda probes, alluminium tail pipes
Induction
Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies
Ignition
Marelli electronic
Starting
Electric
Max Power
110.3 kW / 150 hp @ 9250 rpm
Max Torque
124.5 Nm / 12.7 kgm / 91.8 lb-ft @ 7500rpm
Clutch
Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Transmission
6 Speed
Final Drive
Chain #530, front sprocket 15; rear sprocket 40
Straight Cut Gear Ratio
1.84:1
Gear Ratio
1st 37/15 / 2nd 30/17 / 3rd 27/20 / 4th 24/22 / 5th 23/24 / 6th 22/25
Frame
Tubular steel trellis frame
Front Suspension
Sachs 48 mm fully adjustable USD forks. Electronic compression and rebound damping adjustment with Ducati Skyhook Suspension
Front Wheel Travel
170 mm / 6.7 in
Rear Suspension
Progressive linkage with fully adjustable Sachs monoshock. Electronic compression and rebound damping adjustment. Electronic spring preload with DSS aluminium single-sided swingarm
Rear Wheel Travel
170 mm / 6.7 in
Front Brakes
2 x 320 mm Semi-floating discs, radially mounted Brembo calipers, 4-piston, 2-pad. ABS as standard equipment
Rear Brakes
Single 245 mm disc, 2-piston caliper
Front Wheel
10-spoke light alloy, 3.50 x 17
Rear Wheel
10-spoke light alloy, 6.00 x 17
Front Tyre
120/70 - ZR17
Rear Tyre
190/55 - ZR17
Rake
25°
Trail
110 mm / 4.33 in
Dimensions
Length: 2200 mm / 86.6 in Width: 945 mm / 37.2 in Height: 1310 mm / 51.5 in
Wheelbase
1530mm / 60.2 in
Seat Height
850 mm / 33.4 in
Dry Weight
192 kg / 423 lbs
Wet Weight
220 kg / 485 lbs
Fuel Capacity
20 Litres / 5.3 US gal / 4.4 Imp gal
Consumption Average
6.0 L/100 km / 16.8 km/l / 39.5 US mpg / 47.5 Imp mpg
Standing 1/4 Mile
11.8 sec
