#0174 Bike KTM 690 Supermoto R
Model: 690 Supermoto R
Year: 2008
Capacity: 690 cm3

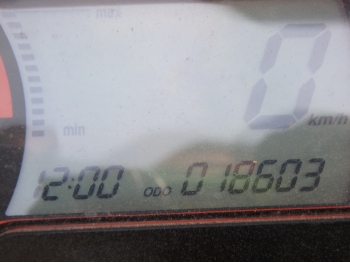

Mileage: 18603 km.
in
Additional information
Make Model
690 LC4 Supermoto R
Year
2008
Engine
Four stroke, single Cylinder. SOHC, 4 Valve
Capacity
653.7
Bore x Stroke
102 x 80 mm
Cooling System
Liquid Cooled
Compression Ratio
11.7:1
Induction
Generation Keihin EMS with EPT (Electric Power Throttle)
Ignition
Kokusan DC-CDI
Battery
12 V / 8.6 Ah
Starting
Electric
Max Power
63 hp / 46.kW @ 7500 rpm
Max Torque
65 Nm / 47.9 ft-lb @ 6550 rpm
Clutch
APTC multi-disc wet clutch, hydraulically operated
Transmission
6 Speed
Final Drive
Chain: X-ring 5/8 x 1/4"
Frame
Chromoly trellis frame, powder-coated
Front Suspension
WP Upside-down forks
Front Wheel Travel
210 mm / 8.2 in
Rear Suspension
WP monoshock
Rear Wheel Travel
210 mm / 8.2 in
Front Brakes
Single 320mm disc
Rear Brakes
Single 240mm disc
Front Rim
3.5 x 17"
Rear Rim
5.0 x 17"
Front Tyre
120/70 -17
Rear Tyre
160/60 -17
Steering head angle
:64°
Trail
112 mm / 4.4 in
Wheel base
1460±15 mm / 57.48±0.5 in
Seat Height
875 mm / 34.5 in
Dry Weight
Fuel Capacity
13.2 Litres / 3.4 US gal
